Foundations for offshore wind turbines

What are the main types of offshore wind foundations?

Offshore wind turbine foundations are critical structural components that transfer the immense aerodynamic and gravitational loads from the turbine to the seabed. The selection of the appropriate foundation type is primarily dictated by water depth, seabed geology, and the specific characteristics of the turbine itself. As the offshore wind industry has matured since its early commercialization around 2003, engineering solutions have evolved to accommodate deeper waters and larger turbine capacities. The main categories of foundations include fixed-bottom structures and floating systems, each with distinct sub-types suited to different environmental conditions.

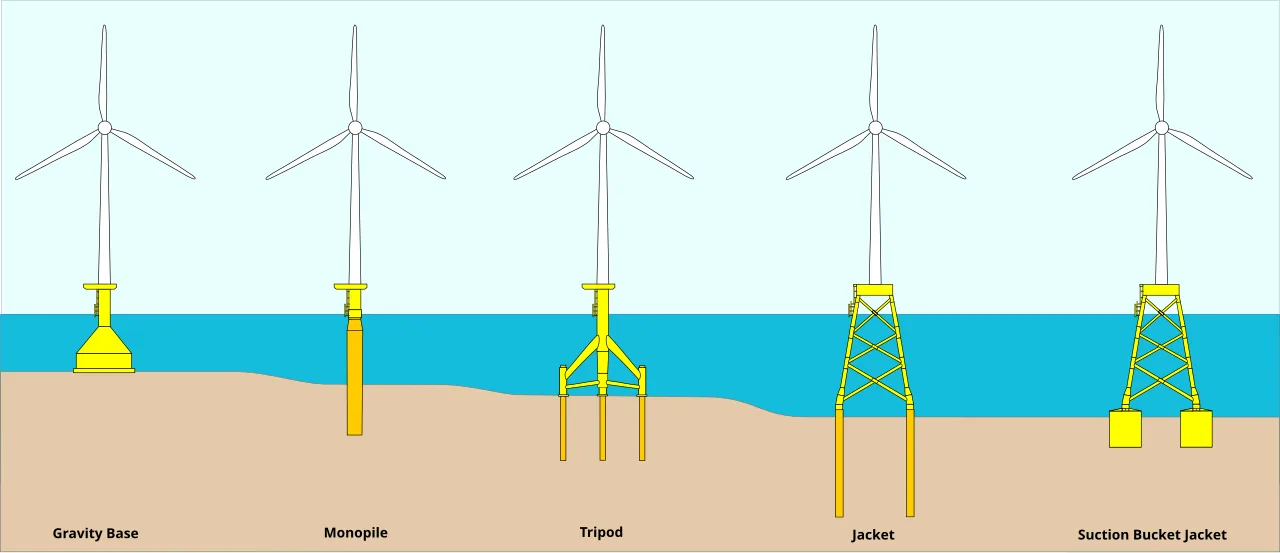

Fixed-Bottom Foundations

Fixed-bottom foundations are the most common type for installations in shallow to moderate water depths, typically up to 30 to 40 meters. The monopile is the dominant design in this category. A monopile consists of a single, large-diameter steel cylinder driven directly into the seabed. This design is favored for its simplicity, ease of installation, and cost-effectiveness in sandy or clay-rich seabeds. Monopiles provide excellent stiffness and are widely used in the North Sea and along the coasts of the United States and Asia.

For slightly deeper waters or more complex seabed conditions, the jacket foundation is often employed. Resembling a miniaturized oil and gas platform, a jacket foundation consists of multiple steel legs braced together and anchored to the seabed with piles. This structure offers greater flexibility and can support heavier turbines in water depths ranging from 15 to 40 meters. Another fixed option is the gravity-based structure (GBS), which relies on its own weight to remain stable on the seabed. GBS foundations are typically constructed from concrete and are particularly useful in areas with rocky seabeds where piling might be challenging.

Floating Foundations

As developers target deeper waters beyond the reach of fixed-bottom solutions, floating foundations have emerged as a key technology. These systems allow turbines to be installed in water depths exceeding 50 meters, unlocking vast areas of the ocean for wind energy generation. Floating foundations generally consist of a platform that supports the turbine and is moored to the seabed using chains, wires, or synthetic ropes. Common designs include semi-submersible platforms, spar buoys, and tension-leg platforms. Each design offers unique trade-offs between stability, cost, and installation complexity, enabling the expansion of offshore wind into deeper marine environments.

How do environmental factors affect foundation design?

Offshore wind turbine foundations must withstand a complex and dynamic marine environment that imposes significant structural loads and durability challenges. The design process requires a detailed analysis of metocean conditions, which include wind, wave, current, and tidal data specific to the project site. These environmental factors directly influence the choice between monopile, jacket, gravity-based, and floating foundation systems, as each type responds differently to external forces.

Wave and Current Loads

Wave action is often the dominant environmental load on offshore structures. Designers must account for significant wave height, wave period, and wave directionality to calculate the cyclic stresses applied to the foundation. Extreme events, such as the 100-year storm, dictate the ultimate limit state of the structure, while long-term wave fatigue determines the service life of the components. Ocean currents, particularly in deeper waters, exert drag and lift forces that can induce vortex-induced vibrations, requiring careful hydrodynamic modeling to prevent resonance and structural fatigue.

Wind and Aerodynamic Forces

Wind loads are transmitted from the rotor and nacelle down through the tower to the foundation. The design must consider both operational wind speeds and extreme wind events, such as hurricanes or gales, depending on the geographic location. The interaction between wind and wave loads is critical; for instance, peak wind and wave loads may not always occur simultaneously, allowing for some optimization in the foundation design. Accurate wind resource assessment is essential to ensure the foundation can support the aerodynamic thrust and moment generated by the turbine throughout its operational life.

Soil-Structure Interaction

The geotechnical conditions of the seabed play a crucial role in foundation stability. Soil types, such as clay, sand, or rock, affect the bearing capacity and settlement characteristics of the foundation. For monopiles, the penetration depth and the surrounding soil profile determine the lateral stiffness and resistance to overturning moments. In sandy soils, cyclic loading can lead to soil densification or liquefaction, while in clay, long-term consolidation may cause settlement. Detailed geotechnical surveys, including boreholes and in-situ testing, are necessary to characterize the soil layers and predict their behavior under the dynamic loads imposed by the turbine.

Corrosion and Marine Biology

The marine environment is highly corrosive, necessitating robust protection strategies for foundation materials. Steel components are typically protected by a combination of paint systems, sacrificial anodes, and cathodic protection. The splash zone, where the structure is alternately exposed to air and seawater, experiences the highest corrosion rates. Additionally, marine growth, such as barnacles and mussels, can increase the effective diameter of the foundation, thereby increasing drag forces and affecting the hydrodynamic performance. Designers must account for the accumulation of marine biology in load calculations and maintenance planning to ensure long-term structural integrity.

Applications

Offshore wind turbine foundations serve as the critical structural interface between the rotor-nacelle assembly and the seabed, translating aerodynamic loads into geotechnical resistance. The selection of a specific foundation type is dictated by water depth, soil conditions, turbine weight, and logistical constraints of the installation vessel. No single solution dominates the entire spectrum of offshore environments; instead, engineers match the foundation architecture to the site-specific bathymetry and geology.

Monopile Foundations

Monopiles represent the most prevalent foundation type in shallow waters, typically ranging from 5 to 30 meters in depth. This design consists of a single, large-diameter steel cylinder driven directly into the seabed. The primary advantage of the monopile is its relative simplicity in manufacturing and installation, which has driven its dominance in early offshore wind markets such as the North Sea and the Baltic Sea. However, as water depths increase, the required length and wall thickness of the monopile grow exponentially, leading to higher material costs and greater challenges during the driving process. Monopiles are generally preferred for sites with firm sand or clay layers that provide sufficient end-bearing and skin friction.

Jacket Foundations

For deeper waters where monopiles become less economically viable, jacket foundations offer a robust alternative. Resembling a lattice structure, jackets are typically fabricated from tubular steel members and installed using large jack-up vessels. This design allows for greater flexibility in accommodating varying water depths, often extending from 20 to 50 meters. Jackets are particularly effective in sites with complex soil profiles or where higher natural frequencies are desired to avoid resonance with the turbine's rotational speed. The modular nature of jacket construction also facilitates transportation, as individual legs and bracing can be assembled on-site or pre-fabricated in sections.

Gravity Base Structures

Gravity Base Structures (GBS) rely on their own mass to resist overturning moments and vertical loads, making them suitable for sites with rocky seabeds or specific geotechnical conditions. These foundations are typically constructed from concrete and are floated out to the site, where they are ballasted with water or sand before being settled onto the seabed. While GBS can be more cost-effective in certain deep-water scenarios, their installation requires specialized vessels and careful management of the ballasting process to ensure stability. This foundation type is less common than monopiles or jackets but offers distinct advantages in specific geographic contexts.

Emerging Deep-Water Solutions

As offshore wind farms expand into deeper waters beyond 50 meters, floating foundations have emerged as a transformative technology. Unlike fixed-bottom foundations, floating platforms are moored to the seabed using chains, wires, or synthetic ropes, allowing turbines to be deployed in water depths exceeding 60 meters. This approach unlocks vast areas of the global ocean, including the coasts of Portugal, Japan, and the western United States. Although floating foundations introduce additional complexity in terms of dynamic response and mooring system design, they offer the potential for larger turbine capacities and greater energy yield in deep-water sites. The transition to floating technology is critical for the long-term scalability of the offshore wind industry.
