Fluidized bed process: principles, types, and applications

Overview

A fluidized bed is a physical phenomenon that occurs when a solid particulate substance is under the right conditions so that it behaves like a fluid. The usual way to achieve a fluidized bed is to pump pressurized fluid into the particles. The resulting medium then has many properties and characteristics of normal fluids, such as the ability to free-flow under gravity, or to be pumped using fluid technologies. This state is fundamental to various industrial processes, particularly in the energy and chemical sectors where efficient heat and mass transfer are critical.

Industrial Applications

Fluidized bed technology is widely used in reactors, combustion, and separation processes. In fluidized bed reactors, the intimate contact between solid catalysts or reactants and fluid phases enhances reaction rates and temperature control. This is particularly advantageous in catalytic cracking in the petrochemical industry and in gasification processes where solid fuels are converted into synthetic gas.

In combustion applications, fluidized bed combustion allows for efficient burning of a wide range of fuels, including low-grade coals, biomass, and municipal solid waste. The excellent mixing and heat transfer properties help maintain a uniform temperature profile, reducing the formation of nitrogen oxides (NOx) and sulfur oxides (SOx). This makes fluidized bed combustion a key technology for reducing emissions in power generation.

Separation processes also benefit from fluidization. In fluidized bed separators, particles are separated based on their size, density, or aerodynamic properties. This is commonly used in the pharmaceutical and food industries for drying, coating, and granulating products. The ability to control the fluidization velocity allows for precise separation and processing of particulate materials.

Operational Context

The operational status of fluidized bed processes is currently active, with significant industrial adoption. In the United States, companies like Arkema are notable operators in this domain, leveraging fluidized bed technology for various chemical production processes. The versatility and efficiency of fluidized beds continue to drive their application across multiple industries, from energy production to material processing.

Physical properties and behavior

When a solid particulate substance is subjected to the right conditions, it undergoes a phase transition where the medium behaves like a fluid. This phenomenon, known as a fluidized bed, is typically achieved by pumping a pressurized fluid into the particles. The resulting medium exhibits many properties and characteristics of normal fluids, such as the ability to free-flow under gravity or to be pumped using standard fluid technologies.

Fluid-like behavior and Archimedes' principle

One of the most distinct physical properties of a fluidized bed is the formation of a horizontal upper surface, similar to a liquid in a container. This behavior allows the application of Archimedes' principle to the solid particles suspended in the fluidization medium. According to this principle, the buoyant force acting on a particle is equal to the weight of the fluid displaced by the particle. This relationship is critical for understanding the suspension and movement of solids within the bed.

The bulk density of the fluidized bed is a key parameter that influences the fluid dynamics. As the fluid velocity increases, the bed expands, and the bulk density decreases. This expansion enhances the contact between the solid particles and the fluidization medium, leading to improved mixing and heat transfer. The enhanced contact is crucial for processes that rely on efficient interaction between the solid and fluid phases, such as combustion, catalytic reactions, and drying.

Thermal transport and heat transfer

Fluidized beds are renowned for their exceptional thermal transport and heat transfer capabilities. The continuous movement and collision of particles within the bed create a highly turbulent environment, which significantly enhances heat transfer between the solid particles and the fluidization medium. This turbulence ensures that the temperature within the bed remains relatively uniform, reducing hot spots and improving the overall efficiency of thermal processes.

The heat transfer coefficient in a fluidized bed can be significantly higher than in fixed beds or packed beds, making fluidized beds ideal for applications requiring rapid and efficient heat exchange. The enhanced heat transfer is due to the increased surface area contact between the particles and the fluid, as well as the convective heat transfer caused by the fluid flow. This property is particularly beneficial in industrial processes such as fluidized bed combustion, where efficient heat recovery is essential for maximizing energy output.

How does fluidization work?

Fluidization is the physical state achieved when a solid particulate substance behaves like a fluid under specific conditions. This transition occurs when a pressurized fluid is pumped into a bed of particles, causing the resulting medium to exhibit properties of normal fluids, such as the ability to free-flow under gravity or be pumped using standard fluid technologies.

Mechanics of the Transition

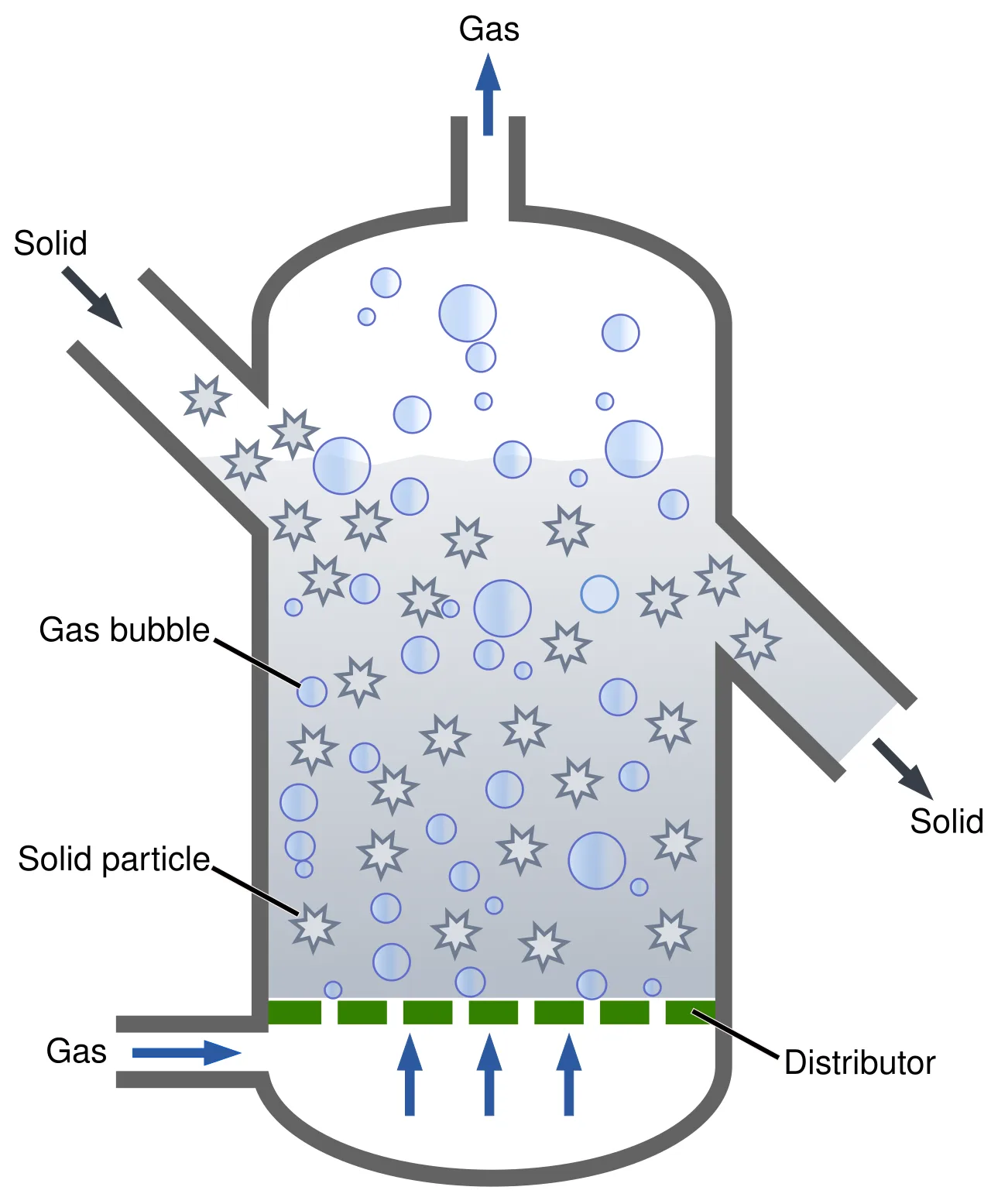

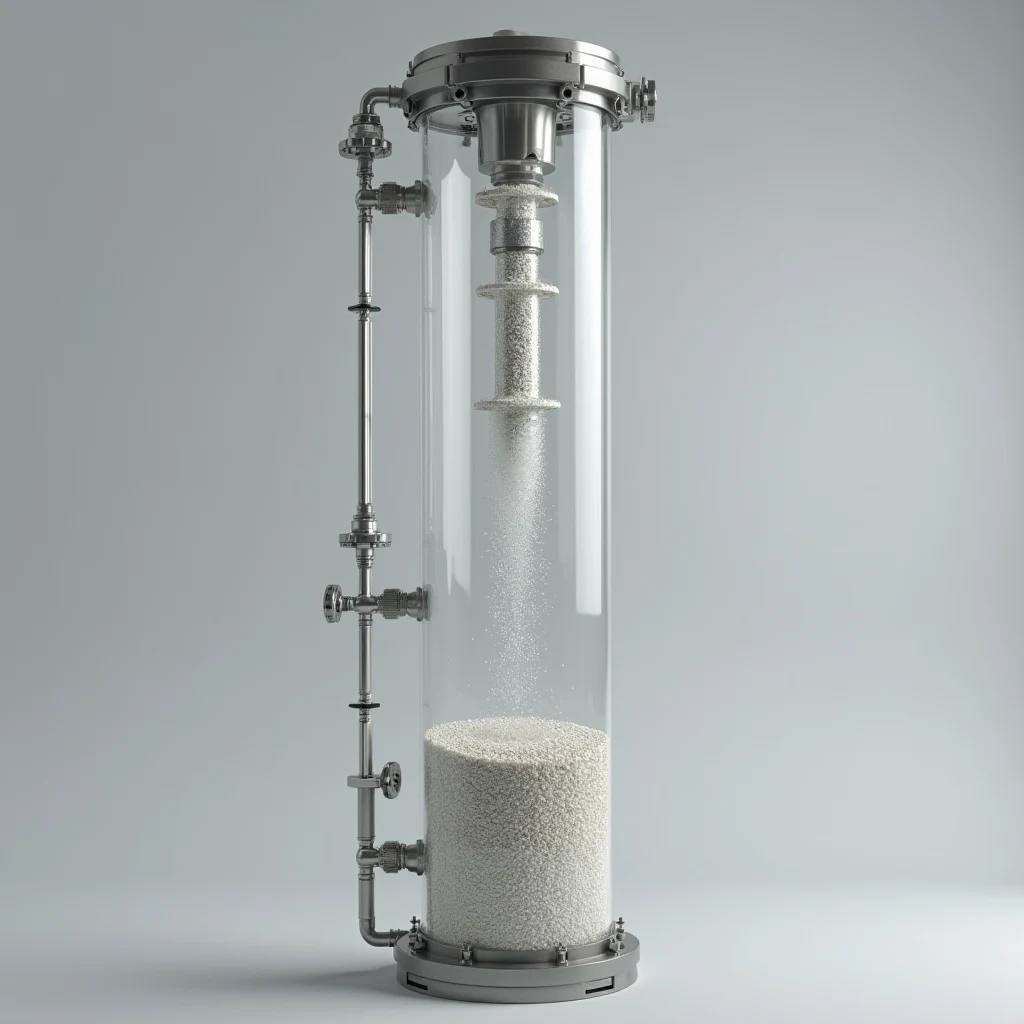

The process begins with a "packed bed," where particles rest on one another, supported primarily by inter-particle friction and contact forces. As fluid velocity increases, the drag force exerted on the particles grows. The transition to fluidization is governed by the balance between the weight of the solids and the buoyancy and drag forces provided by the fluid.

At the point of minimum fluidization velocity (Umf​), the upward drag force on the particles equals the submerged weight of the particle bed. At this critical velocity, the pressure drop across the bed stabilizes and becomes approximately equal to the weight of the solids per unit cross-sectional area. If the fluid velocity increases further, the bed expands, and the particles become suspended, mimicking fluid behavior.

Key Variables in Pressure Drop

The pressure drop (ΔP) across a fluidized bed is a critical parameter for determining the fluidization state. The following variables are central to this calculation:

Understanding these forces allows engineers to optimize the fluidized bed for various applications, ensuring efficient heat and mass transfer. The ability to control the fluid velocity relative to the minimum fluidization velocity is essential for maintaining stable operation and preventing particle entrainment or defluidization.

What are the main types of fluidized beds?

Fluidized bed configurations are classified by flow behavior and hydrodynamic characteristics. The stationary or particulate bed exhibits smooth expansion with distinct particle layers, often described by the Ergun equation for pressure drop: ΔP=ϵ3dp2​150(1−ϵ)2μu​+ϵ3dp​1.75(1−ϵ)ρu2​. Bubbling or aggregative beds feature gas bubbles rising through a dense particle phase, common in industrial reactors. Circulating fluidized beds (CFB) maintain high solids circulation rates, enhancing heat and mass transfer efficiency. Vibratory beds use mechanical oscillation to stabilize particle suspension, reducing channeling. Transport or flash beds operate at high velocities where particles behave like a dilute suspension. Annular beds form a ring-like particle distribution around a central core, typical in wide columns. Mechanically fluidized beds employ paddles or rotating elements to induce fluidization. Narrow fluidized beds utilize confined geometries to enhance radial temperature uniformity. These types serve distinct engineering needs, from combustion to catalytic conversion.

Comparison of Fluidized Bed Types

History of the fluidized bed process

The fluidized bed process is a physical phenomenon in which a solid particulate substance behaves like a fluid under specific conditions, typically achieved by pumping pressurized fluid into the particles. This medium exhibits properties such as free-flow under gravity and pumpability using fluid technologies. The development of this concept has been marked by several key milestones in the 20th century.

Early Developments

In 1922, Fritz Winkler introduced a coal gasification reactor, which was one of the earliest applications of the fluidized bed process. This innovation laid the groundwork for subsequent advancements in the field. By the late 1940s, the process was further refined for metallurgical processing, expanding its utility beyond coal gasification.

Catalytic Cracking and Industrial Implementation

In 1942, a circulating fluid bed was developed for catalytic cracking, marking a significant advancement in the application of fluidized bed technology. This development enhanced the efficiency and versatility of the process in various industrial settings. In the 1960s, the VAW-Lippewerk implementation further demonstrated the practicality and effectiveness of the fluidized bed process in large-scale industrial operations.

Current Status

Today, the fluidized bed process remains operational and is widely used in various industries. The process is primarily associated with mixed fuel sources and is operated by Arkema in the United States. The continuous evolution and application of this technology underscore its importance in modern industrial processes.

Applications in industry and engineering

Fluidized bed technology is extensively utilized across chemical engineering, food processing, and bulk material handling due to the unique hydrodynamic properties of the solid particulate medium. In chemical engineering, the process is fundamental for catalytic reactions where high surface area contact between the solid catalyst and the fluid phase is critical. The intermixing of particles ensures a nearly uniform temperature distribution, minimizing hot spots that can degrade catalyst efficiency. This principle is applied in fluidized catalytic cracking (FCC) units in refineries, where hydrocarbon molecules are broken down into lighter fractions. The contact time and heat transfer rates are optimized by adjusting the fluid velocity, which keeps the particles in a state of suspension that mimics fluid behavior.

Food Processing and Bulk Drying

In the food industry, fluidized beds are employed for rapid drying and cooling of small, free-flowing particles. A prominent application is in Instant Quick Freezing (IQF) tunnels for products such as peas, corn, and shrimp. The product is conveyed through a chamber where cold air is pumped upward through a perforated plate. The upward airflow suspends the individual pieces, ensuring that each particle is surrounded by the cooling medium. This prevents clumping and allows for uniform heat extraction, preserving the texture and nutritional value of the food. The high surface area contact between the air and the food particles significantly reduces drying or freezing times compared to static bed methods.

Aquaculture and Bulk Handling

Fluidized bed principles are also applied in aquaculture and bulk drying processes. In aquaculture, fluidized bed biofilters are used to maintain water quality. The filter media, often small spheres or granules, is kept in motion by the flow of water and air. This movement increases the surface area available for nitrifying bacteria to colonize, enhancing the removal of ammonia and nitrites from the water. The intermixing of the media prevents channeling and ensures consistent filtration efficiency. In bulk drying, materials such as sand, minerals, and granulated chemicals are processed in fluidized dryers to achieve uniform moisture content. The fluidization action breaks up agglomerates and exposes fresh surfaces to the drying medium, improving throughput and product consistency.

The efficiency of these processes relies on the balance between the drag force of the fluid and the gravitational force on the particles. The minimum fluidization velocity (Umf​) is a key parameter, determined by the particle size, density, and fluid properties. Operating above this velocity ensures optimal mixing and heat transfer, while operating too high can lead to particle entrainment and loss. The versatility of the fluidized bed process makes it a cornerstone technology in industries requiring precise control over heat and mass transfer between solid and fluid phases.
