Fluidized bed heat exchanger

Overview

A fluidized bed heat exchanger is a specialized thermal management device that leverages the hydrodynamic properties of a fluidized medium to enhance heat transfer between a working fluid and a solid particulate phase. In this configuration, a gas or liquid flows upward through a bed of solid particles, causing them to behave like a turbulent fluid. This state significantly increases the effective surface area for heat exchange and improves the convective heat transfer coefficient compared to fixed-bed or shell-and-tube systems. The technology is widely utilized in energy infrastructure, particularly in combustion processes, chemical reactors, and thermal storage systems, where uniform temperature distribution and high thermal inertia are critical.

Hydrodynamic Principles

The operation of a fluidized bed heat exchanger is governed by the balance of gravitational, drag, and inertial forces acting on the particulate phase. The onset of fluidization occurs when the upward drag force exerted by the fluidizing medium equals the effective weight of the particle bed. This transition point is characterized by the minimum fluidization velocity, umf, which can be estimated using the Ergun equation or simplified correlations such as the Richardson-Zaki equation. The heat transfer mechanism involves three primary components: conduction through the particle-to-particle contacts, convection from the gas phase, and radiation at higher temperatures. The overall heat transfer coefficient, h, is often expressed as a function of the bed voidage, particle diameter, and fluid velocity, reflecting the complex interplay between hydrodynamics and thermodynamics.

Thermal Management Role

In thermal management applications, fluidized bed heat exchangers provide superior temperature control due to the intense mixing within the bed. This mixing minimizes radial temperature gradients, ensuring a nearly isothermal condition across the cross-section of the exchanger. Such uniformity is particularly advantageous in processes sensitive to hot spots or thermal shocks, such as catalytic cracking or biomass gasification. Additionally, the high heat capacity of the solid particles allows for effective thermal energy storage, making fluidized beds suitable for intermittent energy systems like concentrated solar power plants. The versatility of the technology enables its integration with various heat transfer surfaces, including immersed tubes, wall panels, and external loop exchangers, allowing for customization based on specific operational requirements and spatial constraints.

What are the main types of fluidized bed heat exchangers?

Fluidized bed heat exchangers are classified primarily by the hydrodynamic regime of the bed and the phase states of the interacting media. The fundamental distinction lies between bubbling fluidized beds, circulating fluidized beds, and fast fluidized beds, each offering distinct heat transfer characteristics based on particle velocity and voidage.

Classification by Hydrodynamic Regime

In a bubbling fluidized bed, gas velocity exceeds the minimum fluidization velocity but remains below the terminal velocity of the particles. This regime is characterized by the formation of gas bubbles that rise through the emulsion phase. The heat transfer coefficient in this regime is often modeled using empirical correlations that account for bubble size and frequency. A common representation for the overall heat transfer coefficient U involves the sum of contributions from the emulsion and bubble phases, though specific formulas depend on the geometry of the immersed surface.

Circulating fluidized beds operate at higher gas velocities, causing significant particle entrainment and recirculation. This regime is prevalent in large-scale energy applications, such as circulating fluidized bed boilers. The intense mixing and high particle flux result in more uniform temperature distribution and enhanced heat transfer rates compared to bubbling beds. The heat transfer mechanism here is dominated by particle-to-surface convection rather than gas conduction.

Classification by Phase States

Fluidized bed heat exchangers can also be categorized by the phases involved in the heat exchange process. Gas-solid fluidized beds are the most common, where a gas fluidizes solid particles while exchanging heat with immersed surfaces or a secondary gas stream. Liquid-solid fluidized beds use a liquid fluidizing medium, offering higher heat capacity and density, which can lead to superior heat transfer coefficients. These are often used in chemical processing and nuclear reactor cooling systems.

Two-phase fluidized beds involve both gas and liquid fluidizing a solid bed, creating a complex three-phase interaction. This regime is utilized in applications requiring precise temperature control and high heat flux, such as in certain types of chemical reactors and heat exchangers for waste-to-energy plants. The interplay between gas, liquid, and solid phases allows for tunable heat transfer properties by adjusting the flow rates of the gas and liquid components.

The selection of a specific type of fluidized bed heat exchanger depends on the desired heat transfer rate, temperature uniformity, and the physical properties of the particles and fluidizing media. Engineers must balance the complexity of the hydrodynamics with the thermal performance requirements of the application.

How does a fluidized bed heat exchanger work?

A fluidized bed heat exchanger operates by suspending solid particles in an upward-flowing fluid stream, creating a dynamic interface that enhances thermal energy transfer between the solid phase and the heat transfer surface. The fundamental mechanism relies on the fluidization state, where the drag force exerted by the fluid on the particles balances the gravitational force, causing the bed to behave like a turbulent liquid. This state significantly increases the contact area and mixing efficiency compared to fixed-bed systems, leading to superior heat transfer coefficients.

Convective Heat Transfer Mechanisms

Convective heat transfer in fluidized beds is dominated by two primary components: particle convection and gas convection. Particle convection is often the most significant contributor, accounting for a large portion of the total heat flux. As particles collide with the heat transfer surface and form a boundary layer, they conduct heat directly from the solid phase to the wall. The continuous motion and renewal of particles at the surface minimize thermal resistance. Gas convection, while generally less dominant than particle convection in dense beds, involves the fluid flowing through the void spaces between particles and transferring heat to the surface. The overall convective heat transfer coefficient, hc, can be conceptualized as the sum of these contributions, influenced by factors such as particle size, density, and fluid velocity.

Radiative Heat Transfer

Radiative heat transfer becomes increasingly important at higher operating temperatures, typically above 400°C. In a fluidized bed, radiation occurs between the hot particles, the heat transfer surface, and the freeboard region. The emissivity of the particles and the optical thickness of the bed play crucial roles in determining the radiative flux. The radiative heat transfer rate, qrad, can be approximated using the Stefan-Boltzmann law, modified by the view factors and emissivities of the participating media. As temperature rises, the radiative component can account for a significant fraction of the total heat transfer, sometimes exceeding convective contributions in high-temperature applications like fluidized bed combustion.

Combined Heat Transfer

The total heat transfer coefficient in a fluidized bed heat exchanger is the combined effect of convection and radiation. The interplay between these mechanisms depends on the specific operating conditions, including fluid velocity, particle properties, and temperature gradients. Efficient design requires optimizing these parameters to maximize heat flux while maintaining stable fluidization and minimizing erosion or agglomeration of particles. Understanding these mechanisms is essential for scaling up fluidized bed systems in various industrial applications, from power generation to chemical processing.

What distinguishes fluidized bed heat exchangers from other types?

Fluidized bed heat exchangers (FBHEs) operate on fundamentally different thermodynamic and hydrodynamic principles compared to conventional shell-and-tube or plate heat exchangers. The primary distinction lies in the phase state of the heat transfer medium. While shell-and-tube and plate exchangers rely on laminar or turbulent flow of distinct liquid or gas phases across solid surfaces, FBHEs utilize a granular solid medium—typically sand, catalyst pellets, or metal shots—suspended in an upward-flowing fluid (gas or liquid). This suspension creates a "third phase" that exhibits fluid-like behavior, significantly enhancing convective heat transfer coefficients.

In a shell-and-tube heat exchanger, heat transfer is often limited by the thermal resistance of the boundary layer on the tube sides. The overall heat transfer coefficient, U, is governed by the harmonic sum of individual resistances:

U1=hi1+kRf+ho1 where hi and ho are the internal and external convective heat transfer coefficients, and Rf represents fouling resistance. In contrast, the vigorous mixing and particle-to-particle contact in a fluidized bed drastically reduce the thermal boundary layer thickness. This results in heat transfer coefficients (h) that can be 5 to 10 times higher than those in conventional gas-to-gas shell-and-tube exchangers, allowing for more compact equipment for equivalent thermal duty.

Plate heat exchangers achieve high efficiency through large surface-area-to-volume ratios and induced turbulence via corrugated plates. However, they are highly susceptible to fouling and pressure drop limitations, particularly when handling non-Newtonian fluids or solids-laden streams. FBHEs, conversely, offer superior fouling resistance. The continuous motion of the bed particles acts as a self-cleaning mechanism, scraping heat transfer surfaces and preventing the accumulation of deposits. This makes FBHEs particularly advantageous in applications involving viscous oils, slurries, or gases with high particulate loads, where plate exchangers would require frequent shutdowns for mechanical cleaning.

Another critical differentiator is the temperature profile. Shell-and-tube exchangers typically follow a logarithmic mean temperature difference (LMTD) profile, which can lead to thermal pinches. FBHEs, due to the intense mixing of the solid phase, approach an isothermal temperature distribution within the bed. This near-uniform temperature profile minimizes thermal stresses on the heat transfer surfaces and allows for more precise temperature control, which is essential in sensitive chemical reactions or drying processes. However, this comes at the cost of higher pressure drops across the bed compared to the relatively low pressure drop in plate exchangers, requiring more robust fan or pump systems to maintain fluidization velocity.

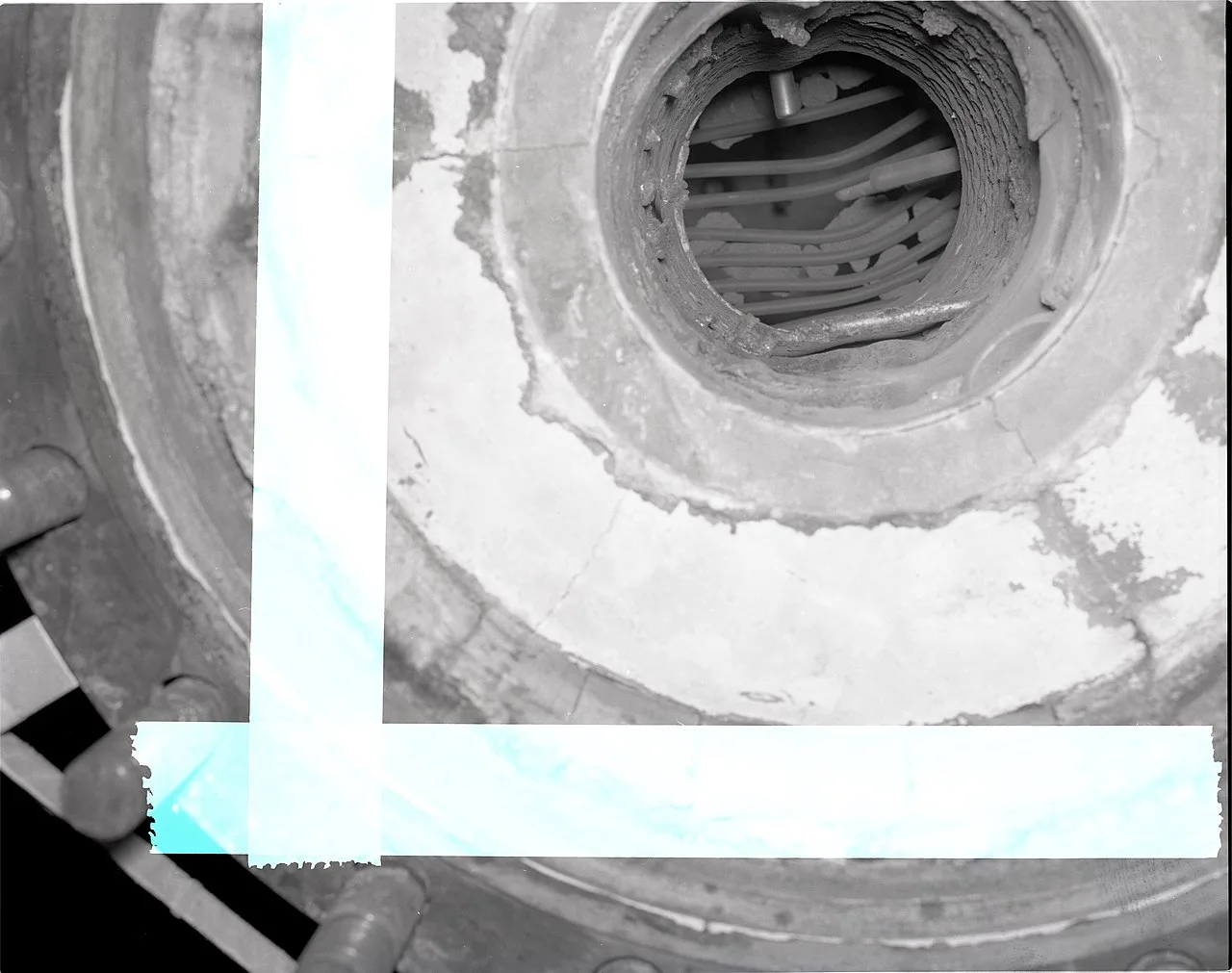

Fouling prevention mechanisms

Fluidized bed heat exchangers leverage the dynamic interaction between solid particles and the heat transfer medium to significantly mitigate fouling on heat transfer surfaces. The primary mechanism is mechanical scrubbing, where the turbulent motion of the bed particles continuously impacts the tube walls. This physical abrasion dislodges deposited layers of ash, slag, or crystallized salts before they can sinter into a dense, insulating layer. The effectiveness of this cleaning action depends on the kinetic energy of the particles, which is a function of particle density, size, and velocity relative to the tube surface.

Particle-Tube Interaction Dynamics

The intensity of the scrubbing action is governed by the fluidization velocity and the particle characteristics. In a fast fluidized bed, the particles are entrained at higher velocities, leading to more frequent and energetic collisions with the heat transfer tubes. The local heat transfer coefficient is enhanced by the formation of particle clusters and strands that sweep across the tube surface. This continuous renewal of the particle layer near the wall reduces the thermal resistance associated with the stagnant gas film. The mechanical impact also helps to break up larger agglomerates, preventing the formation of a continuous crust that would otherwise insulate the tube.

Thermal Fouling and Sintering

In high-temperature applications, such as circulating fluidized bed (CFB) boilers, thermal fouling occurs when ash particles soften and adhere to the tube surface. The fluidized bed environment helps to control the temperature profile, reducing the likelihood of excessive sintering. The continuous movement of particles ensures that no single point on the tube surface remains in contact with the same particle for an extended period, which helps to distribute the thermal load and reduce localized hot spots. Additionally, the presence of a large mass of inert bed material, such as limestone or sand, acts as a thermal buffer, stabilizing the temperature and reducing thermal shocks to the heat transfer surfaces.

Gas-Side Fouling

On the gas side of the heat exchanger, the fluidization process helps to keep the gas stream clean by capturing fine particulates. The bed particles act as a filter, trapping fly ash and other suspended solids. This reduces the amount of particulate matter that reaches the downstream heat transfer surfaces, such as superheaters and economizers. The continuous circulation of the bed material in a CFB system ensures that the captured particles are periodically removed and replaced, maintaining a high level of cleanliness in the gas stream. This mechanism is particularly effective in reducing the accumulation of alkali metals and other volatile species that can form low-melting-point eutectics on the tube surfaces.

Future research directions

Research into fluidized bed heat exchangers is increasingly focused on enhancing thermal efficiency and operational stability through advanced material science and computational modeling. A primary area of study involves the development of high-temperature ceramic and metallic alloys capable of withstanding the severe erosive and corrosive environments inherent to dense-phase fluidization. These materials aim to extend the service life of heat transfer tubes, which are often the limiting factor in the overall lifespan of the heat exchanger. Concurrently, numerical simulations using Computational Fluid Dynamics (CFD) coupled with Discrete Element Method (DEM) are being refined to predict particle-tube interactions with greater accuracy. These models help optimize tube bundle arrangements and pitch ratios to minimize dead zones and maximize the convective heat transfer coefficient, h, which is critical for compacting the exchanger’s footprint.

Hybridization and Novel Fluidization Regimes

Another significant trend is the exploration of hybrid fluidization regimes, such as circulating fluidized beds (CFB) and bubbling fluidized beds (BFB), to leverage the distinct advantages of each. Researchers are investigating how varying the superficial gas velocity, Us, can shift the bed dynamics to optimize heat transfer rates. The Nusselt number, Nu, is often analyzed in relation to the Reynolds number, Re, and the Prandtl number, Pr, to develop new correlations that better predict performance across different fluidization intensities. This work is particularly relevant for applications in waste-to-energy plants and biomass combustion, where fuel heterogeneity poses challenges to consistent heat extraction.

Integration with Emerging Energy Systems

Future studies are also examining the integration of fluidized bed heat exchangers with emerging energy systems, including concentrated solar power (CSP) and carbon capture, utilization, and storage (CCUS). In CSP applications, the fluidized bed acts as both the heat transfer medium and the thermal storage unit, offering a solution to the intermittency of solar irradiance. For CCUS, the focus is on optimizing the heat exchange process during the calcination and carbonation cycles of limestone-based sorbents. These integrations require precise control over the bed temperature and particle residence time, driving research into advanced sensor technologies and real-time control algorithms.
