Voltage spike: causes, types, and protection in electrical circuits

Overview

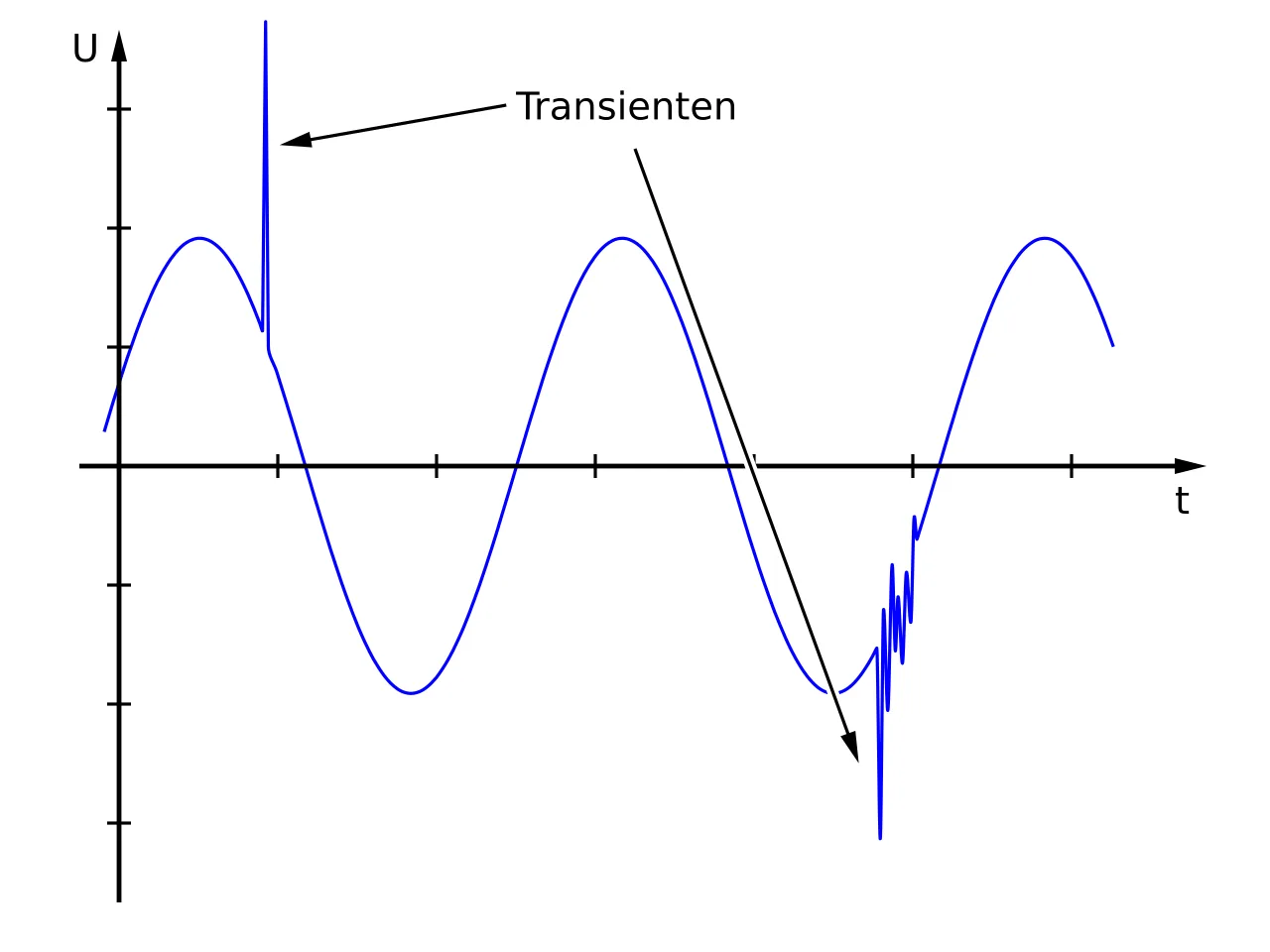

In electrical engineering, voltage spikes are defined as fast, short-duration electrical transients in voltage, current, or transferred energy in an electrical circuit. These phenomena represent sudden, brief deviations from the nominal voltage level, characterized by their rapid rise time and relatively short duration compared to other power quality disturbances. Unlike sustained deviations, spikes are impulsive in nature, often lasting only a few microseconds to milliseconds, yet they can carry significant energy capable of stressing insulation and electronic components.

Distinction from Other Transients

Voltage spikes must be distinguished from other common power quality events such as swells, sags, and overvoltages. A voltage swell is a temporary increase in voltage that lasts longer than a spike, typically ranging from half a cycle to one minute. Similarly, a voltage sag is a temporary decrease in voltage over a comparable duration. Overvoltages refer to a broader category of voltage increases that can be sustained or transient, whereas spikes are specifically characterized by their short duration and high frequency content. This distinction is crucial for selecting appropriate protection devices, as different transients require different mitigation strategies.

Impact on Current and Circuit Behavior

The basic impact of a voltage spike on current is governed by the fundamental relationship between voltage and current in electrical circuits. According to Ohm's Law, the instantaneous current I resulting from a voltage spike V across an impedance Z can be expressed as I = V / Z. In capacitive circuits, the current I is proportional to the rate of change of voltage, given by I = C * (dV/dt), where C is the capacitance. This means that the faster the voltage rises (higher dV/dt), the greater the current surge, which can lead to significant stress on circuit components. In inductive circuits, the voltage spike is related to the rate of change of current, expressed as V = L * (dI/dt), where L is the inductance. These relationships highlight how voltage spikes can induce large current transients, potentially causing overheating, insulation breakdown, or electronic malfunction in power systems and connected devices.

What causes voltage spikes in power systems?

Voltage spikes in power systems originate from a variety of external and internal electrical transients. These fast, short-duration fluctuations in voltage, current, or transferred energy can significantly impact circuit integrity. Understanding the specific mechanisms behind these spikes is essential for effective mitigation and system design.

External Environmental Factors

Lightning strikes are among the most common causes of voltage spikes. When lightning hits a power line or nearby ground, the resulting surge travels through the conductor, creating a rapid increase in voltage. Similarly, electromagnetic pulses (EMP) can induce sudden voltage changes across wide areas. EMPs may result from solar flares, nuclear explosions, or other high-energy atmospheric events, inducing currents in conductors that were previously at steady state.

Internal System Dynamics

Within the power grid, power outages and subsequent restorations often generate spikes. When power returns after an interruption, the sudden influx of energy can create a transient surge. Tripped circuit breakers also contribute to voltage instability. When a breaker opens or closes, the interruption or re-establishment of current flow can cause a momentary spike in voltage. Short circuits represent another internal cause, where a low-resistance path allows excessive current to flow, leading to rapid voltage fluctuations.

Equipment and Infrastructure Issues

Power company malfunctions, such as switching operations or load balancing errors, can introduce spikes into the grid. Transformer faults are particularly significant; when a transformer experiences an internal short or insulation breakdown, the resulting magnetic field changes can induce sharp voltage rises. Wire accidents, including physical damage to conductors or loose connections, can also create intermittent contacts that generate transient spikes.

Inductive and Nuclear Sources

Inductive spikes occur when the magnetic field around an inductor collapses rapidly. This phenomenon is common when inductive loads, such as motors or solenoids, are switched off. The voltage spike can be described by the formula V=Ldtdi​, where L is inductance and dtdi​ is the rate of change of current. Nuclear electromagnetic pulses (NEMP) are a specialized form of EMP resulting from nuclear detonations, which can induce massive voltage spikes in power lines over a large geographic area.

How do voltage spikes affect electrical components?

Current Increase and Thermal Stress

When a voltage spike occurs, the rapid rise in potential difference forces a corresponding increase in current through the connected load. According to Ohm’s Law, expressed as I=V/R, a sudden increase in voltage (V) across a resistance (R) results in a proportional surge in current (I). This transient current can significantly exceed the nominal operating current of the component, leading to rapid Joule heating. The power dissipated as heat is given by P=I2R, meaning that even a modest increase in current can result in a quadratic increase in thermal energy. If the duration of the spike is long enough, this excess heat can melt solder joints, warp printed circuit boards, or degrade insulation materials, leading to thermal fatigue or immediate short-circuit failure.

Dielectric and Material Breakdown

Every electrical component has a maximum voltage rating, known as the breakdown voltage, which represents the limit of the electric field the material can withstand before losing its insulating properties. When a voltage spike exceeds this threshold, the dielectric strength of the insulating material is overcome. In capacitors, this can cause the dielectric layer to puncture, creating a conductive path between the plates. In transformers and motors, the insulation between windings can arc, leading to inter-turn shorts. This phenomenon is often irreversible, resulting in a permanent change in the component’s electrical characteristics or complete failure. The breakdown voltage is a critical parameter in selecting components for environments prone to transients, such as motor drives or lightning-struck power lines.

Avalanche Breakdown in Semiconductors

In semiconductor devices, such as diodes, transistors, and integrated circuits, voltage spikes can trigger avalanche breakdown within the p-n junction. This occurs when the electric field across the depletion region becomes strong enough to accelerate charge carriers to high velocities. These high-energy carriers collide with the crystal lattice, freeing additional electron-hole pairs. This process creates a multiplicative effect, known as the avalanche effect, causing the current to rise exponentially. While some devices, like Zener diodes, are designed to operate in this region, most semiconductors are vulnerable to thermal runaway if the current is not limited. The relationship between the electric field (E) and the critical breakdown field (Ec​) determines the onset of this phenomenon. If the power dissipation during the spike exceeds the junction’s thermal capacity, the semiconductor can suffer from latch-up or permanent junction fusion.

Device Destruction and Weakening

The impact of a voltage spike can range from immediate catastrophic failure to gradual degradation, depending on the magnitude and duration of the transient. In severe cases, the component may exhibit a short circuit or an open circuit, rendering the device instantly non-functional. For example, a MOSFET may suffer from gate oxide rupture, leading to a direct connection between the gate and the source. In less extreme cases, the spike may cause "soft" failures, where the component continues to operate but with altered parameters. This weakening can manifest as increased leakage current, reduced gain in transistors, or shifted threshold voltages in integrated circuits. Over time, repeated exposure to sub-lethal spikes can accelerate aging mechanisms, such as electromigration in interconnects or dielectric absorption in capacitors, ultimately reducing the mean time between failures (MTBF) of the entire system. Understanding these failure modes is essential for designing robust protection circuits, such as transient voltage suppressors (TVS) and metal-oxide varistors (MOVs), to mitigate the effects of voltage spikes.

What are the different modes of voltage spikes?

Voltage spikes manifest in two distinct electrical modes, defined by the path the transient current takes relative to the circuit conductors. Understanding this distinction is critical for selecting effective protective equipment, as a spike in one mode may be largely invisible to protection devices optimized for the other.

Longitudinal (Common) Mode

Longitudinal mode, also known as common mode, occurs when the voltage transient appears between the signal or power conductor and the reference ground. In this mode, the spike voltage is present on both the line and the neutral conductors simultaneously, relative to the earth. This mode is particularly prevalent in systems where the ground reference is not perfectly stable, such as in long cable runs or during lightning strikes that couple capacitively to the line. The transient energy flows from the conductor, through the device under protection, and returns via the ground path. Protective devices for this mode, such as common-mode chokes or Y-capacitors, must handle the voltage difference between the line and earth.

Metallic (Differential) Mode

Metallic mode, referred to as normal or differential mode, describes a voltage transient that appears directly between the two active conductors of the circuit, such as between Line and Neutral in a single-phase system, or between two Lines in a three-phase system. In this configuration, the ground reference may remain relatively undisturbed, while the potential difference between the conductors surges. This mode is often generated by switching transients within the load itself or by mutual inductance from adjacent phases. Protection requires components that bridge the two conductors, such as X-capacitors or metal-oxide varistors (MOVs) connected line-to-line. The transient current flows from one conductor, through the protective element, and back through the other conductor, largely bypassing the ground return path.

Necessity of Selective Protection

Effective surge protection demands a selective approach because the impedance characteristics and energy distribution differ significantly between the two modes. A protective device optimized for differential mode may leave the common-mode voltage unchecked, potentially stressing the insulation between the conductor and the chassis. Conversely, a common-mode filter may not sufficiently clamp the voltage difference between the line and neutral, exposing sensitive electronics to differential stress. Engineers often employ a combination of components, such as a common-mode inductor to suppress high-frequency longitudinal noise and a differential-mode capacitor to shunt metallic transients. The selection process involves analyzing the source of the spike, the grounding topology of the system, and the specific voltage-withstand ratings of the connected equipment to ensure comprehensive coverage of both longitudinal and metallic transient paths.

How are voltage spikes protected against?

Voltage spikes, defined as fast, short-duration electrical transients in voltage, current, or transferred energy, require specialized protection mechanisms to prevent damage to sensitive components and downstream circuits. Protection strategies generally fall into two categories: shunting devices, which divert excess energy away from the load, and clamping devices, which limit the voltage across the load. Effective surge protection often involves a layered approach, combining multiple technologies to handle varying magnitudes and durations of transients.

Shunting and Clamping Devices

Transient Voltage Suppression (TVS) diodes are semiconductor devices designed to clamp voltage spikes by entering a low-impedance state when the voltage exceeds a specific breakdown threshold. They operate similarly to Zener diodes but are optimized for speed and power dissipation, making them ideal for protecting digital logic and microcontrollers. Avalanche diodes, a subset of TVS diodes, rely on the avalanche breakdown mechanism to conduct current rapidly, effectively shunting the transient energy from the signal line to ground.

Varistors, particularly Metal Oxide Varistors (MOVs), are non-linear resistors widely used for bulk surge protection. A MOV’s resistance decreases exponentially as the applied voltage increases. The current-voltage relationship for a varistor is often approximated by the formula I=kVα, where I is the current, V is the voltage, k is a constant, and α is the non-linearity coefficient (typically between 20 and 50). When a spike occurs, the MOV’s resistance drops sharply, shunting the excess current away from the protected circuit. While effective for high-energy transients, MOVs have a slower response time compared to TVS diodes.

Crowbar and Hybrid Mechanisms

Overvoltage crowbar circuits provide a more aggressive form of protection by creating a near-short circuit across the power supply rails when the voltage exceeds a predefined limit. This action typically triggers a fuse or circuit breaker, effectively "pulling the plug" on the power source to protect downstream components. Crowbars are particularly useful in DC power supplies where the transient energy is too high for simple clamping devices to dissipate without overheating.

In complex systems, hybrid protection schemes combine these mechanisms. For instance, a MOV might handle the initial high-energy surge, while a TVS diode refines the clamping voltage for the final stage. This layered approach ensures that both the magnitude and duration of the voltage spike are managed effectively, preserving the integrity of the electrical circuit against transient disturbances.

Worked examples

To illustrate these phenomena, consider the behavior of inductive components and electromagnetic pulses (EMP).

Inductive Discharge and Voltage Spikes

When an inductive load is disconnected, the magnetic field collapses, inducing a voltage spike. The relationship is defined by the formula V = L * (di/dt), where V is voltage, L is inductance, and di/dt is the rate of current change. Consider a circuit with a 10 mH inductor carrying a steady 2 A current. If the switch opens in 1 ms, the rate of change di/dt is 2 A / 0.001 s = 2000 A/s. The resulting voltage spike is V = 0.01 H * 2000 A/s = 20 V. This demonstrates how even modest inductance can generate significant voltage increases during rapid current interruption.

EMP Frequency Ranges

Electromagnetic pulses introduce complex voltage spikes across wide frequency bands. A typical EMP spectrum spans from 100 kHz to 1 MHz for intermediate frequencies, and extends from 1 kHz to gigahertz for broader coverage. In a transmission line scenario, a 500 kHz spike might induce a 150 V transient in a 50 Ω system. The energy transferred can be calculated using E = 0.5 * C * V^2. For a 100 pF capacitance, E = 0.5 * 100e-12 F * (150 V)^2 = 1.125 µJ. This energy, though small, can disrupt sensitive electronic components.

Practical Circuit Protection

Protection against voltage spikes often involves clamping devices like Zener diodes. Suppose a 12 V system uses a 15 V Zener diode. A 20 V spike exceeds the Zener voltage by 5 V. If the series resistance is 100 Ω, the current through the Zener is I = 5 V / 100 Ω = 50 mA. The power dissipated is P = V * I = 15 V * 0.05 A = 0.75 W. This calculation ensures the Zener diode is rated to handle the transient power without failure, effectively limiting the voltage spike to 15 V for downstream components.

Applications and infrastructure design

Critical infrastructure and military hardware require robust design against voltage spikes to maintain operational continuity. Power grids, data centers, and communication networks integrate surge protection devices (SPDs) and transient voltage suppressors to clamp fast-rising transients. These components divert excess energy to ground, protecting sensitive electronics from insulation breakdown and component fatigue.

Nuclear Explosion Pulse Concerns

Military hardware faces unique threats from the Electromagnetic Pulse (EMP) generated by nuclear explosions. A high-altitude nuclear detonation creates a broad-spectrum electromagnetic field that induces massive voltage spikes in long conductors, such as transmission lines and antenna arrays. The interaction between the EMP field and infrastructure can induce transient voltages exceeding standard operational tolerances, potentially frying unshielded semiconductor devices.

The physics of this interaction involves the rapid change in magnetic flux, inducing an electromotive force (EMF) in conductive loops. The induced voltage V can be approximated by Faraday's law of induction:

where N is the number of turns in the conductor loop and dtdΦB​​ is the rate of change of magnetic flux. Military systems often use Faraday cages, twisted-pair cabling, and specialized capacitors to mitigate these high-frequency transients, ensuring that command, control, and communication (C3) systems remain functional after a detonation event.

Frequently asked questions

These transients are characterized by their rapid rise time and brief duration, distinguishing them from slower voltage fluctuations. Understanding the precise nature of these spikes is essential for designing robust power systems and protecting sensitive electronic components from sudden energy surges.

What is the difference between a voltage spike and an overvoltage?

While both terms refer to voltage levels exceeding the nominal value, they differ primarily in duration and frequency. An overvoltage is a broader term that can describe any condition where the voltage rises above the rated level, potentially lasting from milliseconds to several seconds or even minutes. In contrast, a voltage spike is a specific type of transient event that is extremely short-lived, often lasting only microseconds or nanoseconds. Spikes are typically caused by sudden changes in the circuit, such as switching actions or electromagnetic interference, whereas overvoltages may result from sustained system imbalances or transformer tap changes.

How do common mode and normal mode spikes differ?

Voltage spikes are categorized by their path through the circuit. Normal mode spikes occur between the line (live) and neutral conductors. These are the most common type of transient and are often caused by inductive loads switching on or off within the same circuit. Common mode spikes, on the other hand, appear between each line conductor and the ground reference. These spikes are frequently induced by external electromagnetic fields or lightning strikes and can be more challenging to filter because they require the ground path to complete the circuit. Effective protection often involves addressing both modes simultaneously.

What are the primary causes of voltage spikes?

Voltage spikes are generated by various internal and external sources. Externally, lightning strikes are a major cause, injecting massive amounts of energy into power lines. Other sources include electrostatic discharge (ESD) and the operation of heavy industrial machinery. These events can stress insulation and degrade electronic components over time if not properly managed.

Summary

These phenomena represent a critical challenge in power quality management, affecting everything from residential electronics to industrial motor control systems. Understanding the nature of these transients is essential for designing robust electrical infrastructure and protecting sensitive equipment from sudden stress.

Causes and Origins

Electrical transients originate from both internal and external sources within a power distribution network. Internal causes typically involve switching operations, such as the energizing or de-energizing of inductive loads like motors, transformers, and capacitors. These events can generate rapid changes in current flow, inducing voltage surges. External causes are often attributed to atmospheric phenomena, particularly lightning strikes, which inject high-energy pulses into overhead transmission lines. Additionally, faults in the utility grid, such as short circuits or ground faults, can propagate voltage spikes through the distribution system, reaching end-user equipment.

Effects on Electrical Systems

The impact of voltage spikes varies depending on the magnitude, duration, and frequency of the transient. High-voltage surges can cause immediate dielectric breakdown in insulation materials, leading to short circuits or open circuits in wiring. In electronic devices, spikes can stress semiconductor components, resulting in gradual degradation or catastrophic failure. For example, a single high-amplitude spike can punch through the oxide layer of a transistor, while repeated lower-magnitude transients can cause cumulative thermal stress. In industrial settings, voltage spikes can trigger nuisance tripping of protective relays, leading to unexpected downtime and reduced operational efficiency.

Protection Strategies

Mitigating the effects of voltage spikes requires a multi-layered protection approach. Surge Protective Devices (SPDs) are commonly employed to clamp voltage levels to a safe threshold, diverting excess energy to ground. These devices utilize components such as Metal Oxide Varistors (MOVs), Transient Voltage Suppression (TVS) diodes, and Gas Discharge Tubes (GDTs) to absorb or shunt transient energy. Proper grounding and bonding are also critical, providing a low-impedance path for transient currents to dissipate. In complex systems, a combination of point-of-entry and point-of-use protection ensures comprehensive coverage, safeguarding both the main distribution panel and individual sensitive loads. Regular maintenance and testing of SPDs are necessary to ensure continued effectiveness, as components can degrade over time with repeated exposure to transients.
