Overview

Blue hydrogen production represents a transitional strategy in the global energy infrastructure, focusing on the conversion of natural gas into hydrogen while mitigating carbon emissions through carbon capture and storage (CCS). The primary fuel source for this process is natural gas, which undergoes thermochemical conversion to yield hydrogen gas. This method is distinguished from green hydrogen, which relies on water electrolysis powered by renewable electricity, and grey hydrogen, which utilizes natural gas but releases carbon dioxide directly into the atmosphere.

The core technology underpinning blue hydrogen is steam methane reforming (SMR). In this process, high-pressure steam reacts with methane at high temperatures in the presence of a catalyst. The primary chemical reaction can be expressed as:

CH₄ + H₂O → CO + 3H₂

This reaction produces a mixture of hydrogen and carbon monoxide, known as syngas. To maximize hydrogen yield, a water-gas shift reaction is typically employed, where carbon monoxide reacts with additional steam to produce carbon dioxide and more hydrogen:

CO + H₂O → CO₂ + H₂

The resulting gas stream is then processed to separate hydrogen from carbon dioxide. The defining characteristic of blue hydrogen is the capture of this carbon dioxide, which is then transported and stored in geological formations, thereby reducing the carbon intensity of the hydrogen produced. The efficiency and effectiveness of the SMR process are critical factors in determining the overall viability of blue hydrogen as a low-carbon energy carrier. This overview focuses on the technical aspects of steam methane reformers and their role in the broader context of blue hydrogen production.

What is blue hydrogen production?

Blue hydrogen production is a method of generating molecular hydrogen (H2​) primarily from natural gas, distinguished by the integration of carbon capture, utilization, and storage (CCUS) technologies. This process positions blue hydrogen as a transitional fuel source in the global energy infrastructure, offering lower carbon intensity compared to conventional "grey" hydrogen while leveraging existing natural gas reserves. The core technology employed is steam methane reforming (SMR), which accounts for the majority of global hydrogen production. In SMR, natural gas—predominantly methane (CH4​)—reacts with high-temperature steam (H2​O) under pressure in the presence of a catalyst.

Distinguishing Characteristics

The defining feature of blue hydrogen is the fate of the carbon dioxide (CO2​) byproduct. This distinction is critical for energy analysts evaluating the carbon footprint of hydrogen vectors. Unlike green hydrogen, which relies on electrolysis powered by renewable energy sources such as wind or solar photovoltaics, blue hydrogen depends on the natural gas supply chain and the efficiency of CCUS infrastructure. Consequently, blue hydrogen is often viewed as a bridge technology, enabling the scaling of hydrogen demand while renewable energy capacity expands.

Operational Context

The efficiency of blue hydrogen production hinges on the maturity of natural gas infrastructure and the cost-effectiveness of carbon capture. Natural gas serves as the primary feedstock, providing a relatively low-cost and energy-dense source of hydrogen. The integration of CCUS allows producers to reduce the carbon intensity of the output, making it attractive for industries where direct electrification is challenging, such as steel manufacturing and ammonia production. However, the classification of hydrogen colors remains a heuristic tool; the actual carbon intensity varies based on the efficiency of the SMR process, the percentage of CO2​ captured, and the leakage rates of methane from the natural gas supply chain. For energy researchers and engineers, understanding these variables is essential for accurately assessing the environmental and economic viability of blue hydrogen projects within the broader energy transition framework.

How does CO2 emission reduction work in steam methane reformers?

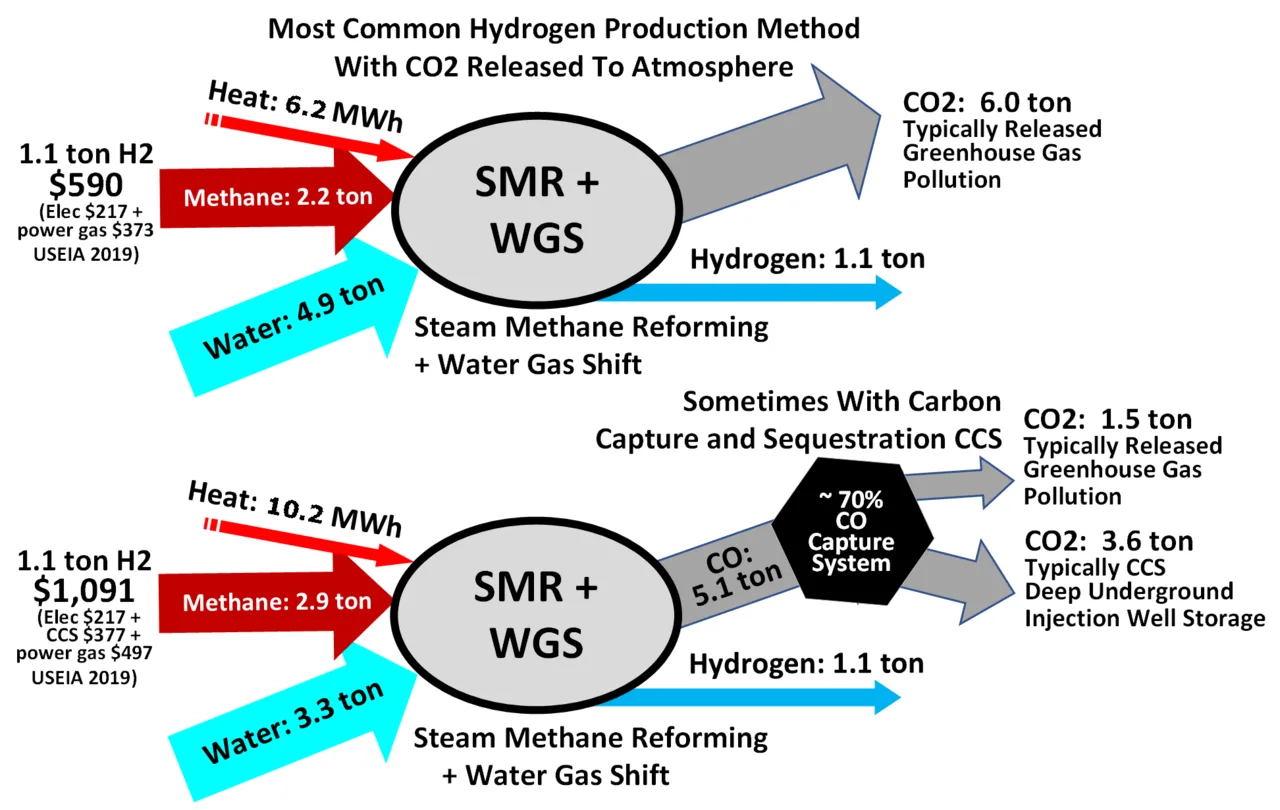

Steam methane reforming (SMR) is the dominant technology for blue hydrogen production, utilizing natural gas as the primary feedstock. The process involves reacting methane with high-temperature steam in the presence of a catalyst to produce hydrogen and carbon monoxide. The fundamental chemical reaction is represented as CH4​+H2​O→CO+3H2​. This endothermic reaction requires significant heat input, typically achieved by burning a portion of the natural gas feed. The resulting syngas mixture then undergoes the water-gas shift reaction, where carbon monoxide reacts with additional steam to produce more hydrogen and carbon dioxide (CO+H2​O→CO2​+H2​).

The distinction between "green," "grey," and "blue" hydrogen lies in the fate of the emitted carbon dioxide. In conventional "grey" hydrogen production, the CO2​ is often vented directly into the atmosphere, resulting in an emission intensity of approximately 10 kg of CO2​ per kg of H2​. Blue hydrogen production integrates carbon capture, utilization, and storage (CCUS) technologies to quantify and reduce these emissions. The quantification of reduction relies on measuring the mass balance of carbon entering the reformer versus the mass of carbon captured by the CCUS system.

Carbon capture in SMR plants typically employs amine-based post-combustion capture. The flue gas, rich in CO2​, is passed through an absorber where the CO2​ binds with the amine solvent. The efficiency of this capture process is critical for defining the "blueness" of the hydrogen. This means that for every 100 kg of CO2​ produced by the chemical reactions, 70 to 80 kg are sequestered, leaving only 20 to 30 kg emitted into the atmosphere.

The quantification of emission reduction is calculated by comparing the lifecycle emissions of blue hydrogen against the baseline grey hydrogen emissions. The formula for the emission reduction factor (ERF) can be expressed as ERF=Egrey​Egrey​−Eblue​​, where Egrey​ is the emission intensity of grey hydrogen and Eblue​ is the emission intensity of blue hydrogen. This metric allows analysts and engineers to assess the effectiveness of the CCUS integration in specific SMR plants. The accuracy of this quantification depends on rigorous monitoring of the CO2​ flow rates at the capture unit and the storage site, ensuring that the captured carbon remains sequestered over geological timescales.

Methodology for quantifying emissions

The quantification of emissions in blue hydrogen production relies on a rigorous case study approach designed to isolate the specific contribution of natural gas reforming and subsequent carbon capture. This methodology requires defining precise system boundaries to ensure that the "blue" label reflects genuine net reductions rather than accounting artifacts. The primary focus is on the life-cycle assessment of the natural gas feedstock, from extraction through processing, transportation, and final conversion at the hydrogen plant. By treating the production facility as a distinct control volume, analysts can measure the direct emissions from the steam methane reforming process and the efficiency of the carbon capture, utilization, and storage systems.

Central to this quantification is the calculation of the carbon capture ratio, which determines what percentage of the generated CO2 is successfully sequestered. The methodology typically involves measuring the total CO2 output from the reformer and subtracting the amount that escapes into the atmosphere, often through flue gas or venting. This data is then normalized against the total hydrogen output to establish an intensity metric, usually expressed in kilograms of CO2 equivalent per kilogram of hydrogen produced. This intensity allows for direct comparison with other hydrogen production methods, such as grey hydrogen (minimal capture) and green hydrogen (electrolysis).

Accurate measurement also demands the inclusion of upstream emissions, particularly methane leakage during natural gas extraction and transportation. Methane is a potent greenhouse gas, and its global warming potential must be factored into the total carbon footprint. The case study approach aggregates these upstream data points with the downstream capture efficiency to produce a comprehensive emission profile. This holistic view prevents the overestimation of blue hydrogen's climate benefits by accounting for losses that occur before the natural gas even reaches the reformer. The resulting data provides engineers and policymakers with a reliable basis for evaluating the environmental performance of blue hydrogen projects.

Applications and implications

Blue hydrogen production represents a transitional strategy within global decarbonization efforts, primarily leveraging existing natural gas infrastructure to supply the hydrogen economy. The process relies on Steam Methane Reforming (SMR), where natural gas reacts with high-temperature steam to produce hydrogen and carbon dioxide. The defining characteristic of "blue" hydrogen is the capture and sequestration of a significant portion of the resulting CO2 emissions, typically utilizing Carbon Capture, Utilization, and Storage (CCUS) technologies. This approach allows for the utilization of natural gas, identified as the primary fuel source, while mitigating its immediate carbon footprint compared to conventional "grey" hydrogen production.

Energy Sector Implications

The adoption of blue hydrogen has profound implications for energy infrastructure and market dynamics. It serves as a bridge fuel strategy, enabling industries to transition from direct fossil fuel combustion to hydrogen usage without requiring an immediate, total overhaul of supply chains. For energy analysts and engineers, this means evaluating the efficiency losses inherent in the SMR process and the subsequent capture stages. The integration of CCUS adds capital and operational expenditures, influencing the levelized cost of hydrogen (LCOH). Strategic planning must account for the availability of natural gas reserves and the geological suitability for CO2 storage sites, which vary significantly by region.

Production Strategies and Challenges

Strategies for scaling blue hydrogen focus on optimizing capture rates and reducing leakage of methane, a potent greenhouse gas. The effectiveness of blue hydrogen as a low-carbon alternative depends heavily on the percentage of CO2 captured, often targeting ranges between 70% and 90%. However, the strategy faces scrutiny regarding methane slip during extraction and transportation. If methane leakage rates are not strictly controlled, the climate benefit of blue hydrogen diminishes. Consequently, production strategies increasingly emphasize rigorous monitoring and reporting standards to ensure the net carbon intensity remains competitive with emerging green hydrogen technologies, which rely on electrolysis powered by renewable energy.
