Overview
Variable renewable energy (VRE), also referred to as intermittent renewable energy sources (IRES), represents a distinct class of renewable energy generation characterized by its inherent fluctuating nature. These energy sources are defined by their lack of dispatchability, meaning their power output cannot be easily adjusted or controlled by the grid operator to match immediate electricity demand. This stands in direct contrast to controllable renewable energy sources, such as dammed hydroelectricity and bioenergy, which can be ramped up or down with relative ease. It also differs from relatively constant sources like geothermal power, which provides a more stable baseload contribution to the grid. The primary examples of VRE include wind power and solar power. These technologies depend on environmental conditions—specifically wind speed and solar irradiance—that vary over time scales ranging from seconds to seasons. Because the fuel source is not stored on-site in a readily accessible form (unlike coal or natural gas in a boiler), the generation profile is intrinsically linked to the availability of the natural resource. This variability introduces specific challenges for grid management, as the supply of electricity may not always align perfectly with the timing of peak demand. Understanding the distinction between VRE and dispatchable renewables is critical for energy infrastructure planning. While hydroelectric dams can store water in reservoirs to release during high-demand periods, and bioenergy plants can burn biomass at scheduled intervals, wind and solar installations generate electricity primarily when the resource is present. This characteristic does not necessarily mean the energy is unreliable, but it does require different integration strategies, such as energy storage, demand response, or interconnection with other generation types, to ensure grid stability. The classification of these sources as "variable" or "intermittent" highlights the operational differences that engineers and analysts must account for when modeling future energy mixes and evaluating the role of renewables in the global power sector.What are the key characteristics of VRE?
Variable renewable energy (VRE) is defined by its lack of dispatchability, meaning output cannot be fully controlled by operators to match demand in real-time. This contrasts with controllable sources like dammed hydroelectricity or bioenergy, and relatively constant sources like geothermal power. The primary examples of VRE are wind power and solar power, which exhibit fluctuating nature due to environmental factors.Intermittency and Variability
Intermittency refers to the on-off or stop-start nature of VRE generation. For instance, solar power ceases at night, and wind power may drop to near-zero during calm periods. Variability describes the rate and magnitude of change in output over time. High variability can challenge grid stability, requiring fast-responding reserves or storage. These characteristics are intrinsic to the fuel sources—sunlight and wind—which are not stored naturally in the same way as fossil fuels or water in a reservoir.
Dispatchability and Penetration
Dispatchability is the ability to adjust output to meet demand. VRE is considered non-dispatchable because its primary driver is the weather, not the grid operator's immediate need. However, with forecasting and storage, VRE can become more "dispatchable" in effect. Penetration refers to the share of VRE in the total electricity mix or load. As penetration increases, the impact of VRE's variability on the grid becomes more pronounced, often requiring changes to transmission infrastructure and generation mix.
Capacity Factor
The capacity factor measures the actual output of a VRE plant compared to its maximum possible output over a period. It is a key metric for evaluating the efficiency and reliability of VRE sources. A higher capacity factor indicates more consistent generation. This metric helps in comparing different VRE technologies and locations.
| Term | Definition in VRE Context |
|---|---|
| Intermittency | The stop-start nature of generation due to environmental fluctuations. |
| Variability | The rate and magnitude of change in power output over time. |
| Dispatchability | The ability to control output to match demand; VRE is typically non-dispatchable. |
| Penetration | The proportion of VRE in the total electricity generation or load. |
| Capacity Factor | The ratio of actual output to maximum possible output over a period. |

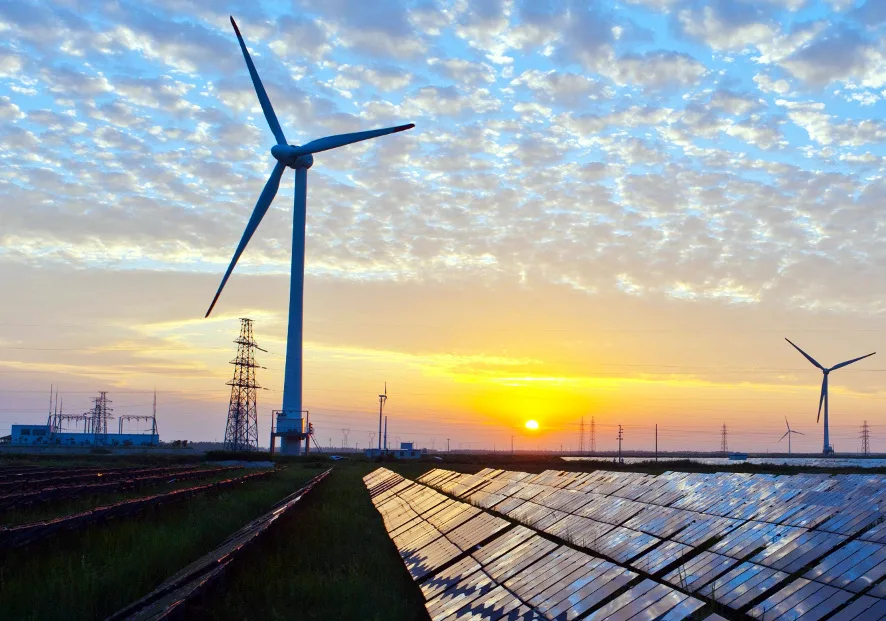

Wind and solar power profiles
Variable renewable energy sources, primarily wind and solar power, are characterized by their non-dispatchable nature, meaning their output fluctuates with environmental conditions rather than direct mechanical control. Unlike dammed hydroelectricity or bioenergy, which offer controllable generation, wind and solar outputs depend on meteorological variability. This intermittency requires specific analysis of capacity factors and predictability to integrate these sources effectively into the electrical grid.
Wind Power Variability and Capacity Factors
Wind power generation is driven by the kinetic energy of air masses, making it highly dependent on local topography and seasonal weather patterns. The power output of a wind turbine is proportional to the cube of the wind speed, leading to significant fluctuations even with minor changes in wind velocity. Onshore wind farms typically exhibit different variability profiles compared to offshore installations, where wind speeds are generally higher and more consistent. The capacity factor, defined as the ratio of actual energy output over a period to the maximum possible output if the turbine ran at full nameplate capacity continuously, is a key metric for assessing wind energy performance.
| Technology | Typical Capacity Factor |
|---|---|
| Onshore Wind | 25% – 45% |
| Offshore Wind | 35% – 50% |
Solar Power Variability and Capacity Factors
Solar power generation, including photovoltaic (PV) and concentrated solar power (CSP), is inherently diurnal and seasonal. Output peaks during midday and varies significantly with cloud cover, atmospheric conditions, and the angle of incidence of sunlight. Solar PV systems convert sunlight directly into electricity, while CSP uses mirrors to concentrate sunlight to heat a fluid, often allowing for thermal storage to extend generation beyond sunset. The predictability of solar power is generally higher on short timescales due to the regularity of the day-night cycle, but long-term variability is influenced by weather systems and seasonal changes in daylight hours.
| Technology | Typical Capacity Factor |
|---|---|
| Utility-Scale Solar PV | 20% – 30% |
| Concentrated Solar Power (CSP) | 25% – 40% |
Predictability and Grid Integration
The predictability of wind and solar power is crucial for grid stability and operational planning. Advanced forecasting models use meteorological data to predict output, reducing uncertainty for grid operators. While solar power is highly predictable on a daily basis, wind power can exhibit greater short-term variability. The integration of these variable sources often requires complementary generation, energy storage, or flexible demand to balance supply and demand. Understanding these profiles helps in optimizing the mix of renewable energy sources to ensure a reliable and efficient power system.
How is VRE integrated into the power grid?
Integrating variable renewable energy (VRE) into the power grid requires managing the non-dispatchable nature of sources like wind and solar power. Because these sources fluctuate due to environmental conditions, they differ fundamentally from controllable renewable sources such as dammed hydroelectricity or bioenergy, and from relatively constant sources like geothermal power. Grid operators must ensure that supply matches demand in real-time, a challenge that increases as the share of VRE grows.
Operational Reserves and Balancing
To balance VRE fluctuations, grid systems rely on operational reserves. These reserves represent the additional generation capacity or demand-side flexibility available to maintain frequency and voltage stability. Spinning reserve is a critical component, referring to online generators that are already synchronized to the grid and can increase output rapidly. This allows for immediate response to sudden drops in wind or solar generation.
Conventional power plants play a vital role in this balancing act. Unlike VRE, conventional sources are often dispatchable, meaning their output can be adjusted on demand. These plants provide the inertia and flexibility needed to smooth out the variability inherent in wind and solar power. The integration process involves coordinating these controllable sources with the intermittent nature of VRE to ensure grid reliability.
The mathematical relationship for power balance at any time t can be expressed as:
P_demand(t) = P_VRE(t) + P_conventional(t) + P_other(t) + P_losses(t)
Where PVRE(t) represents the variable output from wind and solar, and Pconventional(t) is adjusted to compensate for its fluctuations. This equation highlights the dependency on conventional or other controllable sources to fill the gap when VRE output is lower than demand. Grid operators use forecasting and real-time data to optimize this balance, minimizing the cost of reserves while maintaining system stability.
The distinction between VRE and controllable renewables is crucial for grid planning. While dammed hydroelectricity and bioenergy can be dispatched similarly to conventional plants, VRE requires specific reserve strategies. These strategies ensure that the grid can handle the inherent variability without compromising reliability or efficiency. Effective integration thus depends on a mix of technologies and operational practices tailored to the specific characteristics of the VRE sources involved.
Energy storage and demand response
Variable renewable energy (VRE) sources, primarily wind and solar power, are characterized by their non-dispatchable, fluctuating nature (per Wikipedia definition of VRE). Unlike controllable sources such as dammed hydroelectricity, bioenergy, or geothermal power, VRE output varies with weather conditions and time of day. To integrate these sources into the electrical grid, energy storage systems and demand response mechanisms are essential for balancing supply and demand.
Energy Storage Technologies
Energy storage converts excess electricity generated during peak VRE production into forms that can be released when generation drops. Pumped hydro storage is one of the most established technologies, using gravitational potential energy by moving water between upper and lower reservoirs. The energy stored, E, can be expressed as E=mgh, where m is the mass of water, g is gravitational acceleration, and h is the height difference between reservoirs.
Lithium-ion batteries have become increasingly prominent for short-to-medium duration storage due to their high energy density and rapid response times. These electrochemical storage systems are particularly effective for smoothing out minute-by-minute fluctuations in solar and wind output. Other storage technologies include flywheels, which store kinetic energy in a rotating mass, and thermal storage, which retains heat in materials like molten salt or water for later conversion back to electricity or direct use.
Demand Response Mechanisms
Demand response involves adjusting electricity consumption patterns to better align with VRE availability. Real-time pricing is a key mechanism, where electricity prices fluctuate based on current supply conditions. When wind or solar generation is high, prices drop, encouraging consumers to increase usage. Conversely, when VRE output declines, prices rise, incentivizing reduced consumption or shifting loads to later periods.
Load control programs allow utilities to temporarily reduce or shift electricity demand from specific consumers, often through smart thermostats, industrial process adjustments, or time-of-use tariffs. These mechanisms help reduce the need for peaking power plants and enhance grid stability. By combining energy storage and demand response, grid operators can mitigate the intermittency of VRE sources, ensuring reliable power supply while maximizing the utilization of renewable energy.
Geographic diversity and sector coupling
Variable renewable energy (VRE) systems derive significant operational stability from geographic diversity. Because wind and solar resources are inherently fluctuating, spreading generation assets across varied climatic and topographic zones smooths aggregate output. For instance, a high-pressure system may calm winds in one region while simultaneously driving strong gusts in an adjacent low-pressure zone. This spatial correlation reduction mitigates the "duck curve" effect and reduces the need for peaking power plants, enhancing the overall dispatchability of the renewable mix.
Complementarity of Wind and Solar
Wind and solar power often exhibit strong temporal complementarity. Solar irradiance typically peaks during midday, while wind speeds frequently increase during the night and early morning hours. In many temperate regions, solar generation dominates the summer months, whereas wind resources can remain robust or even peak during the winter. This natural inverse relationship allows for a more stable combined output profile compared to relying on a single VRE source, reducing the residual load that conventional generators must cover.
International Grid Interconnections
International grid interconnections amplify the benefits of geographic diversity by linking distinct renewable resource basins. Cross-border transmission lines allow surplus electricity from a windy coastal region to flow to a sunny inland area experiencing a lull, and vice versa. These interconnections create a larger "statistical average" of generation, effectively reducing the capacity factor variability seen in isolated grids. Enhanced transmission infrastructure is therefore critical for integrating high shares of VRE, enabling energy arbitrage and improving system resilience through shared reserve pools.
Sector Coupling: EVs and Heat
Sector coupling integrates the power sector with transport and heating, leveraging flexibility to absorb VRE fluctuations. Electric vehicles (EVs) serve as distributed energy storage units. Through smart charging algorithms, EVs can draw power during periods of high solar or wind generation, effectively shifting load to match supply. Similarly, electric heat pumps and thermal storage systems in buildings can increase heat demand when electricity is abundant and cheap. This demand-side flexibility reduces the need for curtailment and enhances the economic viability of VRE assets by aligning consumption patterns with generation profiles.
What are the penetration limits and economic impacts?
Variable renewable energy (VRE) integration is constrained by technical penetration limits and economic costs associated with grid balancing. VRE sources, primarily wind and solar power, are characterized by their fluctuating nature, making them non-dispatchable compared to controllable sources like dammed hydroelectricity or bioenergy. As VRE shares increase, the grid requires additional operating reserves and transmission infrastructure to manage variability.
Technical Penetration Limits
Maximum technical limits for VRE depend on grid flexibility, transmission capacity, and the mix of renewable sources. Unlike constant sources such as geothermal power, VRE output varies with weather conditions, necessitating balancing mechanisms. High penetration levels can lead to curtailment if transmission infrastructure or storage capacity is insufficient. The exact limit varies by region, influenced by factors such as load profiles and the diversity of VRE inputs.
Economic Impacts and Costs
The economic impact of VRE includes increased costs for transmission, operating reserves, and balancing. Transmission costs rise as VRE generation sites are often located far from demand centers. Operating reserve costs increase to account for the uncertainty in VRE output, requiring faster-response generation or storage. Balancing costs reflect the need for short-term adjustments to match supply and demand.
| Factor | Description | Impact |
|---|---|---|
| Transmission | Infrastructure to move power from VRE sites to load centers | Increased capital expenditure |
| Operating Reserve | Extra capacity to handle VRE variability | Higher operational costs |
| Balancing | Short-term adjustments to match supply and demand | Increased system flexibility requirements |
| Curtailment | Wasted VRE output due to grid constraints | Reduced economic efficiency |
While VRE offers benefits such as reduced fuel costs and lower emissions, the integration challenges require careful planning. Grid operators must balance the variability of wind and solar power with the need for reliability, often relying on a mix of controllable renewable sources and traditional generation to maintain stability.
