Overview
The traveling-wave reactor (TWR) is a proposed type of nuclear fission reactor designed to convert fertile material into usable fuel through nuclear transmutation, operating in tandem with the burnup of fissile material. This concept represents a significant evolution in nuclear energy infrastructure, aiming to enhance fuel efficiency without relying on traditional uranium enrichment or complex reprocessing cycles. Unlike conventional reactors, TWRs are engineered to utilize a broader spectrum of fuel sources, including depleted uranium, natural uranium, thorium, and spent fuel removed from light water reactors, or various combinations of these materials. This flexibility allows for a more direct and potentially cost-effective approach to nuclear fuel management, reducing the dependency on specific fuel cycle infrastructures that have historically limited the scalability of nuclear power.
Operational Status and Development
As of the current assessment, the traveling-wave reactor remains a development-stage concept. No TWR units have been built or commissioned for commercial or experimental operation. The technology is distinguished from other kinds of fast-neutron and breeder reactors by its unique ability to sustain a self-propagating wave of nuclear fission through a long column of fuel. This wave moves through the reactor core over time, consuming the fuel as it advances, which theoretically allows for longer refueling intervals and higher fuel utilization rates. The absence of built units indicates that the TWR is still undergoing theoretical refinement, materials testing, and engineering design phases to validate its feasibility for large-scale energy production.
Technical Distinctions
The TWR concept differs fundamentally from standard light water reactors and other breeder designs in its fuel handling strategy. By eliminating the need for uranium enrichment or extensive reprocessing, the TWR aims to simplify the nuclear fuel cycle. This characteristic is particularly relevant for energy infrastructure planning, as it could potentially reduce the volume of high-level nuclear waste and enhance the sustainability of uranium resources. The proposed reactor type leverages fast-neutron physics to achieve efficient transmutation, converting fertile isotopes like uranium-238 or thorium-232 into fissile isotopes such as plutonium-239 or uranium-233, respectively. This process supports the continuous generation of power from a diverse range of fuel inputs, offering a versatile solution for future nuclear energy systems. The development of the TWR continues to focus on optimizing core design, neutron economy, and thermal management to ensure reliable and efficient operation.
History of the breed-and-burn concept
The conceptual foundation for the traveling-wave reactor (TWR) was established in 1958 by Savely Moiseevich Feinberg. Feinberg proposed a nuclear fission system capable of converting fertile material into usable fuel through nuclear transmutation while simultaneously burning fissile material. This approach differed significantly from traditional fast-neutron and breeder reactors by eliminating the need for complex uranium enrichment or continuous reprocessing. Instead, the design aimed to utilize depleted uranium, natural uranium, thorium, or spent fuel from light water reactors directly. The concept remained largely theoretical for decades, with the core innovation being the efficient use of fuel without external processing infrastructure.
Japanese CANDLE Studies
In the early 21st century, the concept was revisited under the name CANDLE (Constant Axial Shape of Neutron flux, nuclide Concentrations and power Density along the Longitudinal岳 axis of the reactor core). In 2004, Japanese researchers initiated detailed studies on this configuration. By 2006, further analysis confirmed the feasibility of the constant axial shape of neutron flux and nuclide concentrations. In 2010, additional CANDLE reactor studies expanded on these findings, demonstrating how the traveling wave could maintain stable power density along the longitudinal axis of the core. These studies highlighted the potential for simplified reactor operation and enhanced fuel utilization efficiency.
TerraPower Commercialization
TerraPower later pursued commercialization efforts for the TWR concept. The company focused on developing the technology to a stage where it could be viable for deployment. Despite these efforts, the traveling-wave reactor remains in the development stage. As of the current operational status, no TWRs have ever been built. The concept continues to be evaluated for its ability to provide a sustainable nuclear energy solution using readily available fuel sources. The primary fuel source for these proposed reactors is uranium, with the potential to incorporate thorium and spent fuel mixtures. The operational status remains proposed, indicating that while the theoretical and study phases are advanced, physical construction has not yet commenced.
How does a traveling wave reactor work?
The traveling wave reactor (TWR) operates as a proposed nuclear fission system designed to convert fertile material into usable fuel through nuclear transmutation while simultaneously burning fissile material. This process allows the reactor to utilize fuel efficiently without requiring uranium enrichment or reprocessing, directly using materials such as depleted uranium, natural uranium, thorium, or spent fuel from light water reactors. The concept remains in the development stage, with no TWRs yet built.
Core Zones and Physics
The TWR core is characterized by four distinct zones that facilitate the traveling wave of fission. The system relies on fast-neutron physics to drive the transmutation process, distinguishing it from other breeder reactors. The following table outlines the four core zones:
| Zone | Description |
|---|---|
| Depleted Zone | Contains fuel that has undergone significant burnup, with most fissile material consumed. |
| Fission Zone | The active region where the majority of nuclear fission occurs, generating heat and neutrons. |
| Breeding Zone | Where fertile material captures neutrons to transmute into new fissile fuel. |
| Fresh Zone | Contains unburned or minimally processed fuel, such as depleted uranium or natural uranium. |
The reactor physics involve the balance between neutron production and absorption. The neutron economy is critical, as neutrons must sustain the chain reaction while also converting fertile isotopes into fissile ones. The transmutation process can be represented by the general equation: Fertile+n→Fissile+γ. The fission reaction releases energy according to E=mc2, where the mass defect is converted into thermal energy. The TWR design aims to optimize this process to maximize fuel utilization.
Sodium-Cooled Pool-Type Design
The TWR utilizes a sodium-cooled pool-type design. Liquid sodium serves as the primary coolant, chosen for its high thermal conductivity and low neutron absorption cross-section. The pool-type configuration houses the core, primary pumps, and heat exchangers within a large vessel filled with liquid sodium. This design enhances natural circulation and provides a large thermal inertia, contributing to the reactor's stability. The sodium coolant transfers heat from the core to steam generators, where secondary loops produce steam to drive turbines. The use of sodium allows the TWR to operate at high temperatures with relatively low pressure, enhancing thermodynamic efficiency. The pool design also simplifies the primary circuit, reducing the number of large-diameter pipes and potential leak paths. The TWR's ability to use a variety of fuel types, including depleted uranium and thorium, is facilitated by this robust cooling and moderation scheme. The system is designed to be self-sustaining over long periods, with the "wave" of fission moving through the fuel assembly over time. This movement is driven by the gradual consumption of fissile fuel and the continuous breeding of new fuel from fertile material. The TWR concept represents a significant advancement in nuclear fuel cycle efficiency, potentially reducing the need for frequent refueling and reprocessing. The development of the TWR continues, with ongoing research focused on optimizing the core design, fuel composition, and coolant dynamics. The successful implementation of a TWR could provide a long-term, low-carbon energy source with enhanced fuel utilization compared to traditional light water reactors. The TWR's reliance on fast neutrons allows for a more efficient use of the uranium resource, potentially extending the availability of nuclear fuel for future generations. The concept is still being refined, with various prototypes and simulations being conducted to validate the theoretical models. The TWR represents a promising direction for the future of nuclear energy, offering a path towards a more sustainable and efficient nuclear fuel cycle. The continued development of the TWR is essential for realizing its potential as a key component of the global energy infrastructure. The TWR's unique design and operational characteristics make it a compelling option for addressing the challenges of fuel supply and waste management in the nuclear industry. The TWR's ability to utilize depleted uranium and other underutilized fuel sources could significantly reduce the volume of nuclear waste and enhance the economic viability of nuclear power. The TWR concept is a testament to the ongoing innovation in nuclear reactor design, aiming to maximize the benefits of nuclear fission while minimizing its drawbacks. The future of the TWR depends on continued research, development, and demonstration projects to prove its feasibility and reliability. The TWR has the potential to play a significant role in the transition to a low-carbon energy system, providing a stable and scalable source of baseload power. The TWR's development is a collaborative effort involving researchers, engineers, and industry stakeholders from around the world. The TWR represents a forward-looking approach to nuclear energy, leveraging advanced physics and engineering to create a more efficient and sustainable power generation technology. The TWR's success will depend on overcoming technical challenges and demonstrating its economic competitiveness. The TWR is a proposed technology with the potential to transform the nuclear fuel cycle. The TWR's design is focused on maximizing fuel utilization and minimizing waste. The TWR is a key concept in the evolution of nuclear reactor technology. The TWR represents a significant step towards a more sustainable nuclear energy future. The TWR is a proposed reactor type that utilizes fast neutrons to drive the fission and breeding processes. The TWR's core design is optimized for efficient neutron utilization. The TWR's sodium-cooled pool-type design provides a robust and stable operating environment. The TWR's ability to use a variety of fuel types enhances its flexibility and adaptability. The TWR is a promising technology for the future of nuclear energy. The TWR's development is ongoing, with significant progress being made in understanding its physics and engineering requirements. The TWR has the potential to provide a long-term, low-carbon energy source. The TWR represents a significant advancement in nuclear reactor design. The TWR is a proposed technology that aims to maximize the efficiency of nuclear fuel utilization. The TWR is a forward-looking approach to nuclear energy. The TWR's success will depend on continued research and development.
What distinguishes TWR fuel cycles from light water reactors?
Traveling wave reactors (TWRs) are distinguished from light water reactors (LWRs) primarily by their fuel cycle flexibility and efficiency. According to the provided technical definitions, TWRs are proposed nuclear fission reactors designed to convert fertile material into usable fuel through nuclear transmutation while simultaneously burning fissile material. This dual process allows TWRs to utilize fuel without requiring uranium enrichment or complex reprocessing stages, a significant deviation from standard LWR operations.
Fuel Requirements and Efficiency
Standard light water reactors typically rely on low-enriched uranium, often requiring sophisticated enrichment facilities to increase the concentration of uranium-235. In contrast, TWRs are designed to directly use depleted uranium, natural uranium, thorium, or spent fuel removed from light water reactors. This capability stems from the TWR's fast-neutron spectrum, which enables efficient burnup of fissile material and the concurrent conversion of fertile isotopes. The system does not mandate the same level of pre-fuel preparation, potentially simplifying the front-end of the nuclear fuel cycle.
Waste Reduction and Spent Fuel Utilization
The ability to burn spent fuel removed from light water reactors represents a key waste reduction strategy for TWRs. By incorporating spent LWR fuel into the TWR core, the technology can extract additional energy from isotopes that might otherwise remain in storage. This process contributes to a more efficient use of nuclear resources, reducing the volume and radiotoxicity of the resulting waste compared to conventional cycles that discard significant amounts of uranium-238 and minor actinides.
| Characteristic | Light Water Reactor (LWR) | Traveling Wave Reactor (TWR) |
|---|---|---|
| Fuel Enrichment | Required (typically low-enriched uranium) | Not required (can use natural or depleted uranium) |
| Primary Fuel Sources | Low-enriched uranium | Depleted uranium, natural uranium, thorium, spent LWR fuel |
| Reprocessing | Often required for optimal efficiency | Not required for basic operation |
| Transmutation | Limited in-core transmutation | Significant in-core transmutation of fertile material |
| Operational Status | Operational (global standard) | Proposed (development stage) |
Its proposed advantages center on the efficient use of fuel resources, particularly the ability to leverage abundant depleted uranium stocks and existing spent fuel inventories, offering a potential pathway to extend nuclear fuel supplies and reduce waste without the infrastructure demands of traditional enrichment and reprocessing.
Traveling wave vs. standing wave designs
The traveling-wave reactor concept encompasses distinct architectural approaches to managing the propagation of the neutron flux through the fuel assembly. While the foundational TWR design envisions a wave moving through a relatively static core, alternative configurations, such as the "standing wave" or "soliton" design, utilize dynamic fuel management to achieve similar transmutation efficiency. These variations address different engineering constraints regarding core size, control rod placement, and the mechanical complexity of fuel handling.
Standing Wave and Soliton Configurations

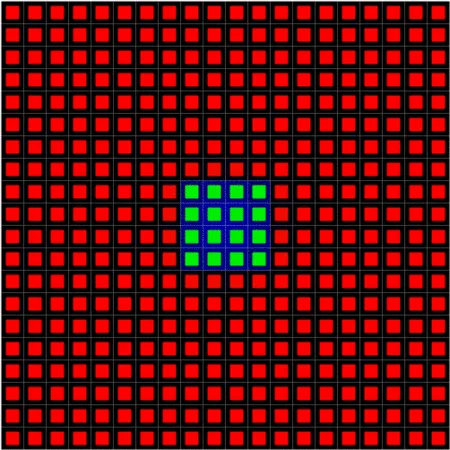

In a standing wave design, the neutron flux profile remains relatively fixed in space, while the fuel itself is periodically reshuffled to maintain optimal burnup. This approach contrasts with the classic traveling wave, where the wave of fission moves through the core over decades. The soliton variant, notably explored by TerraPower, relies on robotic systems to reposition fuel assemblies within the core. This dynamic management allows for a more compact reactor design and potentially simpler containment structures, as the core does not need to be as large to accommodate the long-term progression of the wave.
The reshuffling process involves moving fuel rods from the periphery to the center of the core, or vice versa, depending on their burnup stage. This method can enhance fuel utilization by ensuring that fertile material, such as depleted uranium or thorium, is exposed to the peak neutron flux at the optimal time. The efficiency of this process can be described by the relationship between the neutron flux ϕ, the microscopic cross-section σ, and the fuel density N, where the reaction rate R=ϕσN. By manipulating N through robotic reshuffling, the reactor can maintain a stable power output and efficient transmutation of fertile material into fissile fuel.
Robotic Management and Containment
Robotic management is a critical component of both traveling and standing wave designs. In the soliton configuration, robots must operate within the reactor core or the surrounding fuel pool to move fuel assemblies with precision. These systems must withstand high radiation levels and temperatures, requiring robust materials and advanced control algorithms. The automation of fuel handling reduces the need for human intervention, enhancing safety and operational efficiency.
Containment structures for these reactors must accommodate the dynamic nature of the fuel management system. In standing wave designs, the containment may need to allow for the movement of fuel assemblies, potentially requiring flexible seals or modular components. The integration of robotic systems also influences the design of the containment, as access ports and maintenance pathways must be incorporated to facilitate the operation and repair of the fuel handling mechanisms. These engineering considerations are essential for ensuring the long-term reliability and safety of the reactor.
While the traveling-wave reactor concept remains in the development stage, the exploration of standing wave and soliton designs offers promising avenues for optimizing fuel utilization and simplifying reactor operations. The use of robotic management and advanced containment strategies highlights the potential for these reactors to provide a flexible and efficient source of nuclear power, capable of utilizing a variety of fuel types, including depleted uranium and thorium. Further research and prototyping are needed to validate these designs and assess their economic viability.
Commercial development and project status
The commercial development of the traveling-wave reactor (TWR) concept was primarily driven by TerraPower, a nuclear energy company founded by Bill Gates. TerraPower originated as a spin-off from Intellectual Ventures, a corporate venture capital firm, aiming to translate the theoretical advantages of TWRs into viable engineering designs. The technology's appeal lay in its potential to utilize depleted uranium and other fertile materials efficiently, reducing the need for extensive uranium enrichment or complex fuel reprocessing cycles.
International Partnerships and the TWR-P Project
A significant milestone in TWR commercialization was the formation of a joint venture between TerraPower and the China National Nuclear Corporation (CNNC). This partnership aimed to accelerate the development and deployment of TWR technology in the global market. The collaboration focused on the TWR-P (Traveling-Wave Reactor Prototype) demonstration plant, which was intended to serve as a proof-of-concept facility. The TWR-P design was engineered to demonstrate the reactor's ability to sustain a fission chain reaction through the transmutation of fertile material into fissile fuel, validating the core principles of the traveling-wave mechanism.
The joint venture represented a strategic alignment between American innovation and Chinese industrial capacity. CNNC brought extensive experience in nuclear construction and operations, while TerraPower contributed the proprietary TWR design and intellectual property. The planned demonstration plant was expected to provide critical operational data, including thermal performance, fuel burnup rates, and neutron flux stability, which were essential for securing regulatory approvals and attracting further investment.
Project Abandonment and Current Status
Despite the initial optimism and strategic partnerships, the TWR project faced significant challenges. In 2019, TerraPower announced the abandonment of the specific TWR-P demonstration project. This decision was part of a broader strategic shift within the company, which redirected its primary focus toward the development of the Natrium reactor, a sodium-cooled fast reactor design. The abandonment of the TWR project highlighted the technical and economic hurdles associated with bringing advanced reactor concepts to market, including the complexity of fuel fabrication, the need for specialized fast-neutron physics validation, and the high capital costs of prototype construction.
No TWRs have ever been built, and the technology is still in the development stage. The abandonment of the TWR-P project does not necessarily invalidate the underlying physics of the traveling-wave mechanism, but it does indicate that the specific commercial pathway pursued by TerraPower and CNNC was not immediately viable. Future development of TWRs may depend on advancements in materials science, fuel cycle economics, and the emergence of new investors or national energy policies that prioritize fast-neutron reactor technologies for long-term nuclear sustainability.
Significance for global energy infrastructure
The traveling-wave reactor (TWR) concept addresses critical vulnerabilities in global energy infrastructure by redefining the efficiency of uranium utilization. Traditional nuclear power generation relies heavily on enriched uranium and complex reprocessing cycles, creating logistical and economic bottlenecks. The TWR proposes a paradigm shift by enabling the direct use of fertile materials, such as depleted uranium, natural uranium, thorium, and spent fuel from light water reactors, without requiring prior enrichment or extensive reprocessing. This capability has profound implications for the sustainability of nuclear energy as a baseload power source.
Impact on Depleted Uranium Stockpiles
One of the most significant aspects of the TWR is its potential to unlock vast reserves of depleted uranium, a byproduct of the enrichment process that currently constitutes the largest stockpile of nuclear fuel. The United States alone holds substantial quantities of depleted uranium, primarily stored at the Portsmouth Gaseous Diffusion Plant and the Paducah Gaseous Diffusion Plant. These stockpiles represent a latent energy resource that could significantly extend the operational lifespan of nuclear power generation without new mining operations. The TWR’s ability to transmute fertile material into usable fuel through nuclear transmutation allows for the efficient burnup of these reserves, reducing the volume of nuclear waste and decreasing dependency on fresh uranium ore.
Theoretical Capacity for Global Energy Sustainability
The theoretical energy equivalence of global depleted uranium stockpiles suggests that TWRs could sustain global energy usage for centuries. The energy density of uranium is significantly higher than that of fossil fuels, with the potential for fast-neutron reactors to extract up to 60 times more energy from the same mass of uranium compared to traditional light water reactors. This efficiency gain is critical for achieving long-term energy sustainability, particularly as global energy demand continues to rise. The TWR’s ability to utilize a combination of fuel types, including thorium and spent fuel, further enhances its flexibility and adaptability to different regional resource availabilities.
While the TWR remains a proposed concept with no built examples, its potential to transform global energy infrastructure is substantial. By leveraging existing depleted uranium stockpiles and reducing the need for new uranium mining and enrichment, TWRs could play a pivotal role in achieving a more sustainable and resilient global energy system. The continued development and validation of the TWR concept are essential for realizing these benefits and integrating nuclear power more effectively into the global energy mix.
