NERVA: Nuclear Thermal Rocket Engine Development Program

Overview

The Nuclear Engine for Rocket Vehicle Application (NERVA) was an American nuclear thermal rocket engine development program that operated for approximately two decades. Its principal objective was to "establish a technology base for nuclear rocket engine systems to be utilized in the design and development of propulsion systems for space mission application." The initiative represented a significant effort to integrate nuclear propulsion into space exploration, aiming to provide a high-thrust, high-efficiency alternative to chemical rockets for deep space missions.

NERVA was a joint effort between the Atomic Energy Commission (AEC) and the National Aeronautics and Space Administration (NASA). The program was managed by the Space Nuclear Propulsion Office (SNPO), which oversaw the integration of nuclear engineering and aerospace requirements. SNPO was led by NASA's Harold Finger and AEC's Milton Klein, who coordinated the technical and administrative aspects of the project. The program officially began in 1956 and concluded in January 1973, marking the end of the initial phase of nuclear thermal rocket development in the United States.

The NERVA program focused on developing a reliable nuclear thermal rocket engine capable of utilizing uranium as its primary fuel source. The engine was designed to achieve a capacity of 1140 MW, providing the necessary thrust for various space mission profiles. The collaboration between NASA and the AEC allowed for the pooling of resources and expertise, facilitating advancements in reactor design, materials science, and propulsion systems. This partnership was crucial in addressing the technical challenges associated with nuclear thermal propulsion, including heat transfer, fuel stability, and engine longevity.

Although the NERVA program was eventually cancelled, it laid the groundwork for future nuclear propulsion initiatives. The technology base established during the program influenced subsequent efforts in space nuclear propulsion, contributing to the broader understanding of how nuclear energy could be harnessed for space travel. The insights gained from NERVA continue to inform modern approaches to nuclear thermal rockets, highlighting its enduring impact on space exploration history.

Origins and Early Development

The Nuclear Engine for Rocket Vehicle Application (NERVA) originated from the scientific foundations established during the Manhattan Project. The initial research into nuclear thermal propulsion began under the auspices of the Atomic Energy Commission (AEC), which sought to leverage nuclear fission to advance space exploration capabilities. The program's principal objective was to "establish a technology base for nuclear rocket engine systems to be utilized in the design and development of propulsion systems for space mission application". This early phase was characterized by the transition of nuclear technology from military applications to civilian space exploration, marking a significant shift in the strategic use of uranium as a primary fuel source.

The development effort evolved into a joint initiative between the AEC and the National Aeronautics and Space Administration (NASA). This collaboration was formalized under the management of the Space Nuclear Propulsion Office (SNPO), which oversaw the program's technical and administrative progress. The program ran for roughly two decades, beginning with its commissioning in 1956 and concluding in January 1973. During this period, the NERVA program focused on refining the nuclear thermal rocket engine, aiming to achieve a capacity of 1140 MW. The project was ultimately cancelled, leaving its technological base as a foundational reference for future nuclear propulsion systems.

How does a nuclear thermal rocket work?

Nuclear thermal rockets (NTRs) operate on a principle fundamentally different from chemical propulsion. Instead of mixing fuel and oxidizer in a combustion chamber, an NTR uses a nuclear reactor to heat a liquid propellant, typically hydrogen, to extremely high temperatures before expanding it through a nozzle. This process converts thermal energy directly into kinetic energy, offering significant efficiency gains for deep-space missions.

Propulsion Mechanics and Hydrogen Propellant

In a typical NTR design, liquid hydrogen is pumped through the reactor core, where it absorbs heat from the uranium fuel elements. The hydrogen expands and exits the nozzle at high velocity. Because hydrogen has a low molecular weight compared to chemical exhaust products (like water vapor or carbon dioxide), it achieves higher exhaust velocities. The specific impulse (Isp​) is a key metric of efficiency, defined as:

where F is thrust, m˙ is the mass flow rate, and g0​ is standard gravity. Higher specific impulse means more thrust per unit of propellant mass, allowing spacecraft to carry less fuel for the same delta-v.

Chemical vs. Nuclear Specific Impulse

The following table compares the typical specific impulse values of chemical and nuclear thermal rockets:

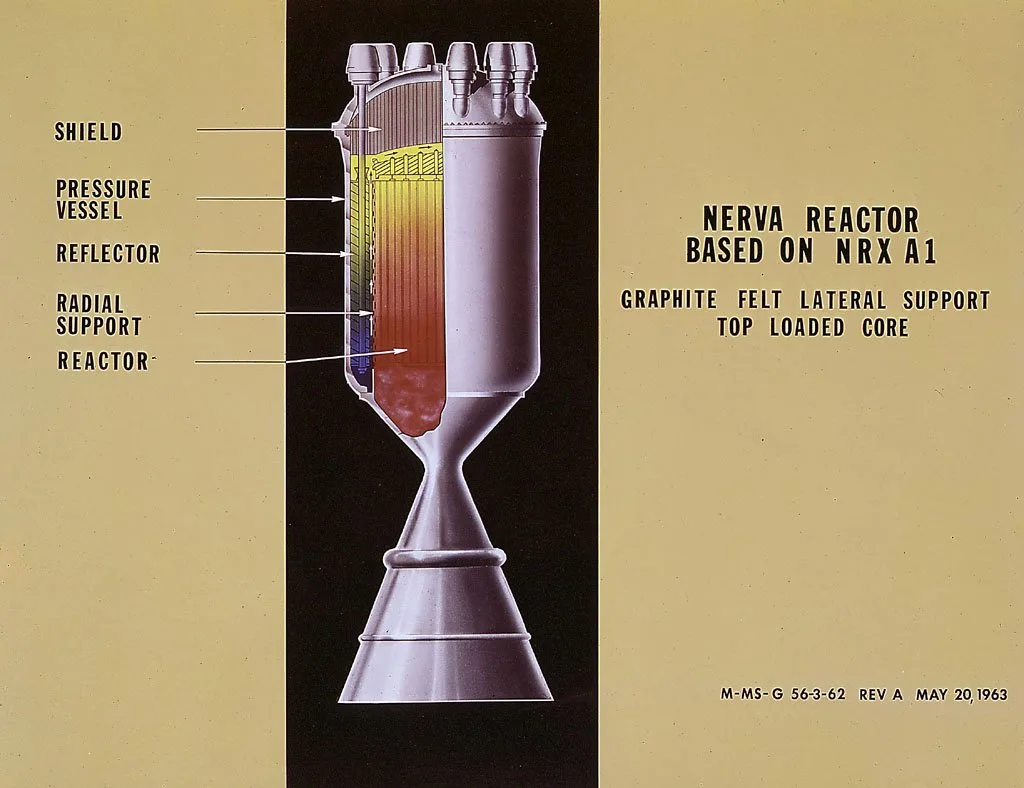

Reactor Core Materials

The reactor core in an NTR must withstand extreme temperatures and radiation while maintaining structural integrity. NERVA utilized uranium dioxide (UO2​) fuel particles embedded in a graphite matrix. Graphite was chosen for its high melting point and good thermal conductivity. The fuel elements were often shaped as "beads" or "discs" to maximize surface area for heat transfer to the hydrogen propellant. The core design had to balance neutron moderation and heat transfer efficiency to achieve the target thermal power, such as the 1140 MW capacity noted in NERVA's development phase.

Engineering Challenges and Test Facilities

The NERVA program required specialized infrastructure to validate nuclear thermal propulsion concepts under simulated flight conditions. The primary test facility was located at Jackass Flats, a desert site in Nevada chosen for its relative isolation and geological stability. This location allowed engineers to conduct hot-fire tests of the nuclear reactor core while managing the intense neutron flux and thermal radiation inherent to uranium-fueled systems. The facility housed multiple test cells designed to suspend the engine nozzle and measure thrust, temperature, and mass flow rates with high precision.

One of the most significant engineering hurdles was hydrogen leakage. The working fluid, liquid hydrogen, was pumped through the reactor core to absorb heat before expanding through the nozzle. Maintaining a tight seal between the high-pressure hydrogen and the reactor's coolant channels was critical. Any leakage could lead to hydrogen embrittlement of the structural materials or a loss of propellant efficiency. Engineers had to develop advanced gasketing and bearing systems capable of withstanding extreme thermal gradients and radiation damage over extended burn times.

Vibration issues also posed a major challenge. The interaction between the turbulent hydrogen flow and the reactor core's fuel elements induced mechanical vibrations that could fatigue the fuel cladding. These vibrations were exacerbated by the high rotational speeds of the turbopump assembly. To mitigate this, designers optimized the geometry of the fuel elements and the flow distribution within the core. The goal was to minimize acoustic resonance and mechanical stress, ensuring the integrity of the uranium fuel rods during the dynamic phases of engine operation.

The testing regime at Jackass Flats provided crucial data on the thermal and mechanical performance of the NERVA engine. These tests helped refine the design parameters for future nuclear thermal rockets, demonstrating the viability of using uranium as a primary fuel source for space propulsion. The insights gained from overcoming hydrogen leakage and vibration challenges contributed significantly to the broader understanding of nuclear thermal dynamics in space environments.

Engine Development: From Kiwi to NERVA XE

The NERVA program’s engineering maturity was demonstrated through a rigorous sequence of ground tests, progressing from the preliminary Kiwi series to the full-scale NRX and XE engines. These tests validated the nuclear thermal propulsion concept, confirming the ability of uranium-fueled reactors to heat hydrogen propellant to high temperatures under vacuum and pressure conditions. The program, jointly managed by NASA and the AEC, relied on data from these iterations to refine the reactor core design, nozzle geometry, and thermal management systems.

Kiwi and NRX Test Series

The Kiwi tests served as the initial proof-of-concept phase, establishing the fundamental performance parameters for nuclear rocket engines. Following the Kiwi series, the program advanced to the NRX (Nuclear Rocket X) engine, which incorporated design improvements based on earlier data. The NRX tests focused on validating the engine’s performance under conditions more representative of actual flight, including longer burn durations and higher thrust levels. These iterations were critical in identifying thermal stresses and material fatigue issues that needed resolution before the final XE engine could be certified.

XE Engine and Final Validation

The XE engine represented the culmination of the NERVA development effort, designed to meet the specific requirements for a Mars mission. Tests of the XE engine confirmed its capability to deliver the target performance metrics, including thrust and specific impulse, necessary for interplanetary travel. The successful completion of the XE tests provided the technical foundation for the proposed nuclear thermal rocket system, although the program was ultimately cancelled in January 1973 before flight deployment.

What was the impact of NERVA's cancellation?

The cancellation of the NERVA program in January 1973 marked the end of a two-decade joint effort between the Atomic Energy Commission (AEC) and the National Aeronautics and Space Administration (NASA). This decision was driven by significant political and budgetary pressures under President Nixon, who sought to consolidate federal space spending. The program, managed by the Space Nuclear Propulsion Office (SNPO) under leaders Harold Finger and Milton Klein, had successfully established a technology base for nuclear rocket engine systems. However, with the Apollo program winding down and the focus shifting toward the Space Shuttle, the immediate need for a high-thrust nuclear thermal rocket diminished. Nixon’s administration prioritized cost-cutting measures, leading to the termination of the SNPO and the subsequent cancellation of NERVA.

Budgetary and Political Context

The decision to cancel NERVA was not solely technical but deeply rooted in the fiscal climate of the early 1970s. President Nixon faced a growing federal deficit and sought to streamline NASA’s budget. The joint AEC-NASA structure, while innovative, became a target for consolidation. The SNPO, which had been instrumental in managing the program’s technical development, was dissolved as part of this restructuring. This move reflected a broader shift in U.S. space policy, where political will and budgetary constraints often outweighed long-term technological potential. The cancellation was formalized in January 1973, effectively ending the principal objective of developing propulsion systems for space mission applications.

Immediate Aftermath

The immediate aftermath of NERVA’s cancellation saw the dispersal of key personnel and the storage of critical hardware. The technology base established by the program, including the 1140 MW capacity engine designs, was preserved but not immediately utilized. The end of the SNPO meant that the coordinated effort between NASA and the AEC was fragmented, slowing further advancements in nuclear thermal propulsion. While the program was cancelled, the data and engineering insights gained from NERVA laid the groundwork for future nuclear rocket concepts, influencing subsequent space propulsion strategies. The cancellation highlighted the vulnerability of long-term space projects to shifting political and economic priorities.

Legacy and Post-NERVA Research

The termination of the NERVA program in January 1973 did not immediately extinguish American interest in nuclear thermal propulsion. Subsequent efforts sought to refine the technology base established by the joint NASA and AEC initiative, focusing on modular designs and advanced materials to address the specific demands of deep space exploration. The Space Nuclear Propulsion Office, which had managed NERVA under leaders Harold Finger and Milton Klein, laid the groundwork for later conceptual studies that would influence modern mission architectures.

SP-100 and Modular Concepts

In the decades following NERVA’s cancellation, research shifted toward the SP-100 program, a joint NASA-Department of Energy initiative. Unlike the large-scale NERVA engines, SP-100 emphasized modularity, aiming to create smaller, more versatile nuclear thermal rockets that could be clustered for various mission profiles. This approach allowed for greater flexibility in payload capacity and mission duration, addressing some of the logistical challenges faced by the original NERVA designs. The program explored advanced fuel elements and heat exchangers to improve efficiency and reliability, building on the uranium-based technology foundation established in the 1950s and 1960s.

Modern Initiatives and Mars Missions

Recent years have seen a resurgence in nuclear propulsion research, driven by ambitious goals such as crewed missions to Mars. Modern NASA and DARPA initiatives continue to leverage the technological heritage of NERVA, integrating new materials and manufacturing techniques to enhance performance. These efforts focus on reducing transit times and increasing payload capabilities, critical factors for sustaining human presence on the Red Planet. The legacy of the NERVA program remains evident in current design philosophies, which prioritize robustness and efficiency in the harsh environment of space.

The continuous evolution of nuclear thermal propulsion reflects a long-term commitment to advancing space exploration capabilities. By building on the foundational work of NERVA, subsequent programs like SP-100 and modern NASA/DARPA initiatives have kept the technology viable for future missions. This ongoing research underscores the enduring relevance of nuclear engines in the quest to explore the solar system.

Why it matters

The Nuclear Engine for Rocket Vehicle Application (NERVA) stands as the most mature and extensively tested nuclear thermal rocket (NTR) program in aerospace history. As a joint initiative of the Atomic Energy Commission (AEC) and the National Aeronautics and Space Administration (NASA), NERVA established the foundational technology base for nuclear propulsion systems intended for deep space mission applications. The program’s significance lies not only in its technical achievements but in its role as the primary reference architecture for modern Mars mission planning. By demonstrating the feasibility of using uranium-fueled reactors to heat propellant, NERVA proved that nuclear thermal propulsion could offer superior performance compared to conventional chemical rockets, particularly for crewed missions beyond low Earth orbit.

Technological Featurability and Deep Space Architecture

NERVA’s development, which concluded in January 1973, provided critical data on the behavior of nuclear reactors in the vacuum of space. The program was managed by the Space Nuclear Propulsion Office (SNPO), led by NASA’s Harold Finger and AEC’s Milton Klein. Their work validated the core principle of nuclear thermal propulsion: using the heat from a uranium-based reactor to expand a liquid hydrogen propellant through a nozzle. This method yields a specific impulse significantly higher than that of chemical bipropellant engines, reducing transit times and payload mass for deep space exploration. The feasibility demonstrated by NERVA directly influences contemporary mission architectures, where reducing the time astronauts spend in deep space radiation environments is a critical design constraint.

Influence on Modern Mars Missions

Modern proposals for crewed Mars missions frequently cite NERVA as the historical precedent for nuclear thermal propulsion. The technology allows for a more efficient transfer between Earth and Mars, potentially cutting the transit time from six to four months or less, depending on the orbital alignment and engine performance. This efficiency is crucial for mission sustainability, as it reduces the amount of life-support consumables required and limits the crew’s exposure to cosmic radiation. The program’s legacy continues to inform the design of next-generation propulsion systems, serving as a benchmark for performance and reliability in the quest for sustained human presence in the solar system.
