Overview

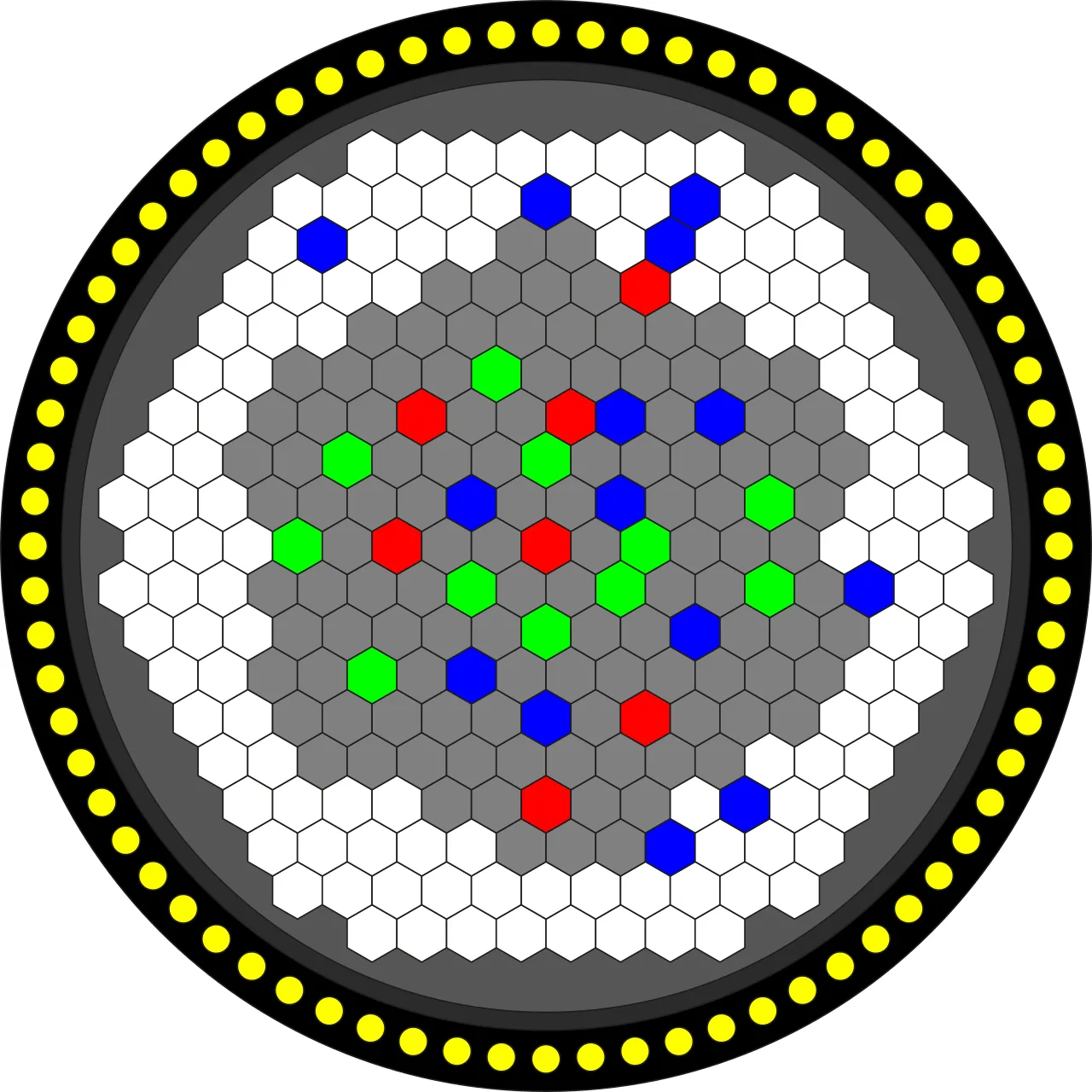

Control rods are fundamental components in nuclear reactor engineering, serving as the primary mechanism for regulating the rate of nuclear fission. These devices are essential for maintaining stable power output and ensuring the operational safety of reactors that utilize uranium or plutonium as their primary fuel sources. By modulating the neutron population within the reactor core, control rods allow operators to precisely adjust the reactor's power level, initiate startup sequences, and execute shutdown procedures.
Composition and Material Properties
The effectiveness of a control rod is determined by its ability to absorb neutrons without undergoing immediate radioactive decay. Consequently, control rods are composed of chemical elements with high neutron capture cross-sections. Common materials include boron, cadmium, silver, hafnium, and indium. Each of these elements possesses distinct neutron capture characteristics, making them suitable for different reactor environments. The choice of material depends on the specific energy spectrum of the neutrons present in the reactor core.
Operational Context in Reactor Designs
Nuclear reactors operate under different neutron energy conditions, which influences the selection of control rod materials. Boiling water reactors (BWR), pressurized water reactors (PWR), and heavy-water reactors (HWR) typically operate with thermal neutrons. In contrast, breeder reactors operate with fast neutrons. Each reactor design utilizes control rod materials optimized for its specific neutron energy spectrum to ensure efficient absorption and precise power control.
Historical and Specialized Applications
While control rods are standard in terrestrial nuclear power plants, their application extends to specialized engineering projects. For instance, control rods were employed in nuclear aircraft engines, such as those developed under Project Pluto, to manage the fission rate in compact, high-power density environments. This demonstrates the versatility of control rod technology across different scales and operational requirements in nuclear engineering.
How do control rods regulate reactor power?
Control rods regulate the rate of fission within the reactor core by modulating the neutron population. These rods are composed of chemical elements such as boron, cadmium, silver, hafnium, or indium, which are capable of absorbing many neutrons without themselves decaying. By inserting these rods into the core, operators can influence the reactivity and the neutron multiplication factor. The specific materials used depend on the energy spectrum of the neutrons in the reactor design. Boiling water reactors (BWR), pressurized water reactors (PWR), and heavy-water reactors (HWR) operate with thermal neutrons, while breeder reactors operate with fast neutrons. Each reactor design can use different control rod materials based on the energy spectrum of its neutrons.
Reactivity States and Neutron Capture
The operating principle relies on the neutron capture cross sections of the control rod materials for neutrons of various energies. When rods are inserted, they absorb neutrons that would otherwise strike the nuclear fuel – uranium or plutonium. This absorption reduces the number of neutrons available to sustain the chain reaction. The relationship between the neutron population and reactivity can be described using the effective neutron multiplication factor, denoted as keff. If keff=1, the reactor is critical. If k_{eff} > 1, the reactor is supercritical. If k_{eff} < 1, the reactor is subcritical.
| Reactivity State | Multiplication Factor (keff) | Neutron Population |
|---|---|---|
| Subcritical | k_{eff} < 1 | Decreasing |
| Critical | keff=1 | Stable |
| Supercritical | k_{eff} > 1 | Increasing |
Operational Procedures
During startup procedures, control rods are gradually withdrawn to increase the neutron multiplication factor and bring the reactor to a critical state. For power adjustment, operators make fine changes to the rod positions to maintain the desired power level. This allows for precise control over the rate of fission. The shutdown times for modern reactors depend on the specific design and the speed of rod insertion. Control rods have also been used in specialized applications, such as nuclear aircraft engines like Project Pluto, as a method of control. The ability to absorb neutrons without decaying ensures that the control rods remain effective throughout the operational life of the reactor.
What materials are used in control rods?
Control rods utilize specific chemical elements and compounds selected for their high neutron capture cross-sections, allowing them to absorb neutrons without immediate decay. The primary materials include boron, cadmium, silver, hafnium, and indium. These elements are chosen based on the reactor's neutron energy spectrum, which varies between thermal neutron reactors like boiling water reactors (BWR), pressurized water reactors (PWR), and heavy-water reactors (HWR), and fast neutron breeder reactors. Different reactor designs employ distinct control rod materials to optimize performance within their specific energy environments.
Common Control Rod Materials
Several key materials are standard in nuclear engineering for neutron absorption. Boron is frequently used, often in the form of boron carbide. Cadmium is another critical element, known for its strong neutron absorption capabilities. Silver, indium, and cadmium are often combined into a ternary alloy (Ag-In-Cd) to leverage the capture strengths of each element. Hafnium is valued for its durability and neutron absorption properties. Indium is also used, either alone or in combination with other metals.
Material Properties and Selection Factors
The selection of control rod materials involves balancing neutron capture efficiency with physical and chemical stability. Materials must exhibit strong corrosion resistance to withstand the harsh reactor environment, which may include high temperatures, radiation, and coolant chemicals. Cost is also a significant factor in material selection, influencing the choice between pure metals and alloys. The neutron capture cross-section, a measure of the probability of neutron absorption, is a critical metric for evaluating these materials. Each element has different cross-sections for neutrons of various energies, necessitating tailored material choices for different reactor types.
| Material | Key Property | Common Form |
|---|---|---|
| Boron | High neutron capture cross-section | Boron carbide (B4C) |
| Cadmium | Strong neutron absorption | Pure metal or alloy |
| Silver-Indium-Cadmium | Combined absorption strengths | Ternary alloy (Ag-In-Cd) |
| Hafnium | High durability and absorption | Pure metal or alloy |
| Indium | Neutron absorption | Pure metal or alloy |
These materials are integral to controlling the rate of fission in nuclear fuel, such as uranium or plutonium. Their ability to absorb neutrons allows for precise regulation of the nuclear chain reaction, ensuring stable and efficient reactor operation. The specific composition and arrangement of control rods are critical to the overall performance and safety of the nuclear reactor.
Alternative methods for reactivity regulation
Control rods are not the sole mechanism for reactivity regulation in nuclear reactors. Reactor designs employ additional methods to manage the neutron population and thermal-hydraulic conditions, often working in tandem with mechanical control rods to achieve precise power distribution and stability.
Soluble Neutron Absorbers
In pressurized water reactors (PWR), soluble neutron absorbers are a primary means of coarse reactivity control. The primary coolant is typically doped with boric acid, which dissolves to release boron-10, a strong neutron absorber. This method allows for the compensation of fuel burnup and xenon poisoning over longer time scales compared to the rapid insertion of control rods. The concentration of boric acid is adjusted during the fuel cycle; it is generally highest at the beginning of the cycle to suppress excess reactivity and decreases as the fuel burns and plutonium builds up.
The effectiveness of boron as an absorber depends on its neutron capture cross-section. The macroscopic absorption cross-section (Σa) of the coolant mixture can be expressed as:
Σa=NB⋅σa,B+NH⋅σa,H+NO⋅σa,O
where N represents the atomic number density and σa represents the microscopic absorption cross-section for boron (B), hydrogen (H), and oxygen (O) atoms in the water-boric acid mixture. By varying the concentration of boron, operators can adjust Σa to maintain criticality without excessive rod movement, thereby flattening the power profile across the core.
Coolant Flow and Void Coefficient in BWRs
Boiling water reactors (BWR) utilize the void coefficient of reactivity as a significant control mechanism. In a BWR, the primary coolant boils directly in the core, creating steam bubbles (voids). Since water is a better neutron moderator and absorber than steam, the formation of voids generally reduces reactivity in most BWR designs (negative void coefficient).
Reactivity can be regulated by varying the coolant flow rate through the core. Increasing the flow rate cools the fuel rods, reducing the amount of steam generated, which increases the water density and thus increases reactivity. Conversely, decreasing the flow rate allows more boiling, increasing the void fraction and decreasing reactivity. This method provides a dynamic and responsive means of power adjustment, complementing the control rods which enter from the bottom of the BWR core. The interplay between rod position and flow rate is critical for managing axial power distribution and preventing localized hot spots in the fuel assemblies.
Safety mechanisms and scramming
Control rods serve as a primary safety mechanism in nuclear reactors, functioning through fail-safe modes designed to halt fission rapidly. The most critical of these modes is "scramming," a process where control rods are fully inserted into the core to absorb neutrons and decrease the reactor's power output. This mechanism ensures that the rate of fission of the nuclear fuel – uranium or plutonium is controlled effectively, preventing overheating and potential meltdown. The compositions of these rods include chemical elements such as boron, cadmium, silver, hafnium, or indium, which are capable of absorbing many neutrons without themselves decaying. These elements have different neutron capture cross sections for neutrons of various energies, allowing for precise control based on the reactor's specific energy spectrum.
Insertion Mechanisms
The method of inserting control rods varies by reactor design. In many systems, electromagnet attachment is used to hold the rods in place; upon power loss, the electromagnets release, allowing gravity to pull the rods into the core. This gravity insertion is a simple, reliable fail-safe. In boiling water reactors (BWR), hydraulic insertion is often employed. Here, hydraulic pressure drives the rods up from the bottom of the core. If the hydraulic system fails, the rods are driven further into the core by the weight of the water or auxiliary springs. Pressurized water reactors (PWR) and heavy-water reactors (HWR) operate with thermal neutrons, while breeder reactors operate with fast neutrons, each requiring specific control rod materials and insertion speeds to manage their unique neutron energy spectra. Control rods have also been used in specialized applications like nuclear aircraft engines, such as Project Pluto, demonstrating their versatility in controlling fission rates in diverse environments.
Criticality accident prevention
Control rods are fundamental to nuclear reactor safety, serving as the primary mechanism to manage the fission rate of uranium or plutonium fuel. By absorbing neutrons without immediate decay, these rods regulate the reactor's power output and provide a means to shut down the chain reaction during emergencies. The effectiveness of a control rod depends on the neutron capture cross-section of its constituent elements, such as boron, cadmium, silver, hafnium, or indium. Different reactor designs, including boiling water reactors (BWR), pressurized water reactors (PWR), and heavy-water reactors (HWR), utilize specific materials optimized for their thermal or fast neutron energy spectra. Proper management of these rods is critical to preventing criticality accidents, where the fission rate escalates uncontrollably.
Historical Failures and Mismanagement
Historical incidents highlight the consequences of control rod mismanagement. The SL-1 accident demonstrated the dangers of rapid rod withdrawal. In this incident, the sudden movement of the control rod introduced excessive positive reactivity, leading to a power surge and steam explosion. This event underscored the need for precise mechanical control and operator training to prevent inadvertent criticality. Similarly, the Chernobyl disaster involved complex interactions between control rods and reactor geometry. The design of the graphite-tipped control rods initially increased reactivity before decreasing it, contributing to the power spike during the test. These failures illustrate that control rods must be carefully designed and operated to ensure that their insertion consistently reduces the neutron population.
Alternative Neutron Absorption Methods
In addition to solid control rods, reactors employ homogeneous neutron absorbers to enhance stability. Borax or cadmium solutions can be dissolved directly into the coolant or moderator, providing a uniform distribution of neutron-absorbing elements. This method allows for finer adjustments to reactivity and can serve as a backup if mechanical control rods fail. For advanced gas-cooled reactors (AGR), nitrogen injection is used as a supplementary control mechanism. Nitrogen acts as a neutron absorber when injected into the reactor core, helping to manage power levels and provide an additional layer of safety. These diverse methods ensure that reactors can maintain criticality control under various operational conditions, reducing the risk of accidents caused by single-point failures in the control system.
Worked examples
The application of control rods varies significantly depending on the neutron energy spectrum and the specific mechanical design of the reactor. The following examples illustrate how control rod composition and operation are adapted for different nuclear systems.
Example 1: Thermal Neutron Control in Pressurized Water Reactors
Consider a Pressurized Water Reactor (PWR), which operates with thermal neutrons. The goal is to select a material with a high neutron capture cross-section for thermal energies. According to the source data, elements such as boron, cadmium, silver, or hafnium are suitable candidates. In a PWR, control rods are typically inserted from the top of the core to absorb excess thermal neutrons. If a reactor design specifies the use of silver-indium-cadmium (Ag-In-Cd) alloys, the control rods will effectively modulate the fission rate of uranium or plutonium fuel by absorbing neutrons without immediate decay. This configuration ensures stable operation within the thermal neutron spectrum characteristic of PWRs.
Example 2: Fast Neutron Control in Breeder Reactors
Contrast this with a breeder reactor, which operates with fast neutrons. The control strategy must account for the different neutron capture cross-sections at higher energies. While boron and cadmium are effective for thermal neutrons, breeder reactors may utilize different material compositions to optimize neutron absorption in the fast spectrum. The source notes that each reactor design uses different control rod materials based on the energy spectrum. Therefore, a breeder reactor’s control rods are engineered to manage the fission rate of uranium or plutonium specifically under fast neutron conditions, differing mechanically and materially from those used in thermal reactors like PWRs or BWRs.
Example 3: Mechanical Control in Nuclear Aircraft Engines
Control rods are also applied in specialized mobile systems, such as nuclear aircraft engines. Project Pluto is a documented example where control rods served as the primary method of control. In this application, the rods regulated the fission rate to manage power output for propulsion. The mechanical insertion and withdrawal of rods containing neutron-absorbing elements like hafnium or boron allowed for precise adjustment of the reactor’s criticality during flight operations. This demonstrates the versatility of control rod technology beyond stationary power plants, extending to dynamic environments requiring rapid response to neutron flux changes.
