Overview
Sulfur hexafluoride circuit breakers are specialized switching devices designed to protect electrical power stations and distribution systems by interrupting electric currents. These devices operate when tripped by a protective relay, utilizing sulfur hexafluoride (SF6) gas as the primary medium to cool and quench the electric arc formed upon opening a circuit. This mechanism distinguishes SF6 breakers from other common media such as oil, air, or vacuum, offering distinct operational characteristics suitable for modern grid infrastructure.
Operational Advantages
The adoption of SF6 gas provides several technical benefits over traditional interruption media. Key advantages include lower operating noise and the absence of hot gas emissions during operation, which enhances environmental conditions within switchgear rooms and outdoor substations. Additionally, SF6 circuit breakers are characterized by relatively low maintenance requirements compared to oil-filled counterparts, reducing long-term operational costs and improving reliability in critical transmission paths.
Application and Voltage Range
Developed in the 1950s, SF6 circuit breakers have become widely used across various segments of electrical grids. They are deployed at transmission voltages reaching up to 800 kV, serving as generator circuit breakers, and are also utilized in distribution systems at voltages up to 35 kV. This versatility allows for consistent performance across different voltage levels, supporting the stability and efficiency of power networks from generation to distribution endpoints.
How do sulfur hexafluoride circuit breakers work?
Sulfur hexafluoride (SF6) circuit breakers interrupt electric currents by utilizing the unique physical and electrical properties of SF6 gas, replacing traditional media such as oil, air, or vacuum. The core operating principle relies on the high electronegativity of the SF6 molecule. When the circuit is opened, an electric arc forms between the contacts. The SF6 gas absorbs free electrons from the arc, forming negative ions. This electron absorption process significantly reduces the number of charge carriers in the arc channel, thereby increasing the dielectric strength of the medium.
Arc Quenching and Cooling
The interruption process involves rapid cooling of the arc. As the contacts separate, the SF6 gas is compressed or drawn through nozzles, creating a flow that convects heat away from the arc column. This cooling process is critical for de-ionizing the gas. The arc temperature, which can reach approximately 20000 K during peak current, is rapidly reduced to less than 2000 K as the current approaches zero. This swift temperature drop facilitates the recombination of ions and electrons into neutral SF6 molecules, restoring the insulating capability of the gap before the recovery voltage rises sufficiently to reignite the arc.
Advantages of SF6 Media
Compared to oil or air breakers, SF6 offers distinct operational benefits. The gas medium results in lower operating noise and eliminates the emission of hot gases, which is particularly advantageous in indoor switchgear installations. Additionally, SF6 circuit breakers require relatively low maintenance due to the chemical stability of the gas and the reduced wear on contact materials.
| Property | SF6 Gas | Traditional Media (Oil/Air) |
|---|---|---|
| Electronegativity | High (strong electron absorption) | Moderate to Low |
| Arc Temperature Reduction | From ~20000 K to <2000 K | Slower cooling rates |
| Maintenance | Relatively low | Higher (oil degradation, carbonization) |
| Noise Emission | Lower | Higher |
History of SF6 circuit breaker development
The development of sulfur hexafluoride (SF6) circuit breakers represents a significant evolution in electrical power infrastructure, shifting away from traditional media such as oil, air, and vacuum. While the foundational patents for SF6 as an interrupting medium were filed in 1938 and 1951, the technology did not see its first industrial application until 1953. This initial deployment marked the beginning of a new era in circuit protection, leveraging the unique dielectric and arc-quenching properties of SF6 gas to manage high-voltage currents more efficiently than its predecessors.
Early Industrial Models and the Puffer Technique
Following the 1953 debut, major manufacturers rapidly integrated SF6 technology into commercial grid solutions. Westinghouse introduced early models in 1956 and 1959, establishing the reliability of SF6 breakers in transmission environments. A critical technical advancement occurred in 1957 with the introduction of the puffer-type technique. This innovation utilized the gas itself to compress and drive the SF6 across the arc, significantly enhancing cooling and quenching efficiency. The puffer mechanism allowed for more compact designs and improved performance at higher voltages, addressing the limitations of earlier static gas systems.
Voltage Scaling and Modern Applications
As the technology matured, engineers achieved significant milestones in voltage handling. By approximately 1983, the industry had successfully developed single-break 245 kV and higher voltage SF6 circuit breakers. This achievement enabled the widespread adoption of SF6 breakers in electrical grids operating at transmission voltages up to 800 kV. Today, these breakers are standard components in power stations and distribution systems, offering advantages such as lower operating noise, reduced maintenance requirements, and the elimination of hot gas emissions common in oil-based systems. The operational status of these units remains robust, continuing to protect critical infrastructure worldwide since their mid-20th-century inception.
Applications in power systems
Sulfur hexafluoride (SF6) circuit breakers are integral to the protection of electrical power stations and distribution systems, functioning by interrupting electric currents when tripped by a protective relay. Unlike traditional media such as oil, air, or vacuum, SF6 circuit breakers utilize sulfur hexafluoride gas to cool and quench the arc during circuit opening. This technology offers distinct advantages, including lower operating noise, the absence of hot gas emissions, and relatively low maintenance requirements. Developed in the 1950s, these breakers have become widely adopted across global electrical grids.
Transmission and Distribution Applications
In transmission networks, SF6 circuit breakers are employed at voltages up to 800 kV. Their ability to handle high-voltage interruptions makes them suitable for long-distance power transmission, where efficient arc quenching is critical for system stability. In distribution systems, SF6 breakers are utilized at voltages up to 35 kV. This range covers a significant portion of medium-voltage distribution networks, providing reliable protection for transformers, feeders, and busbars. The versatility of SF6 allows it to serve both high-capacity transmission lines and localized distribution nodes with consistent performance.
Substation Integration and Generator Circuit Breakers

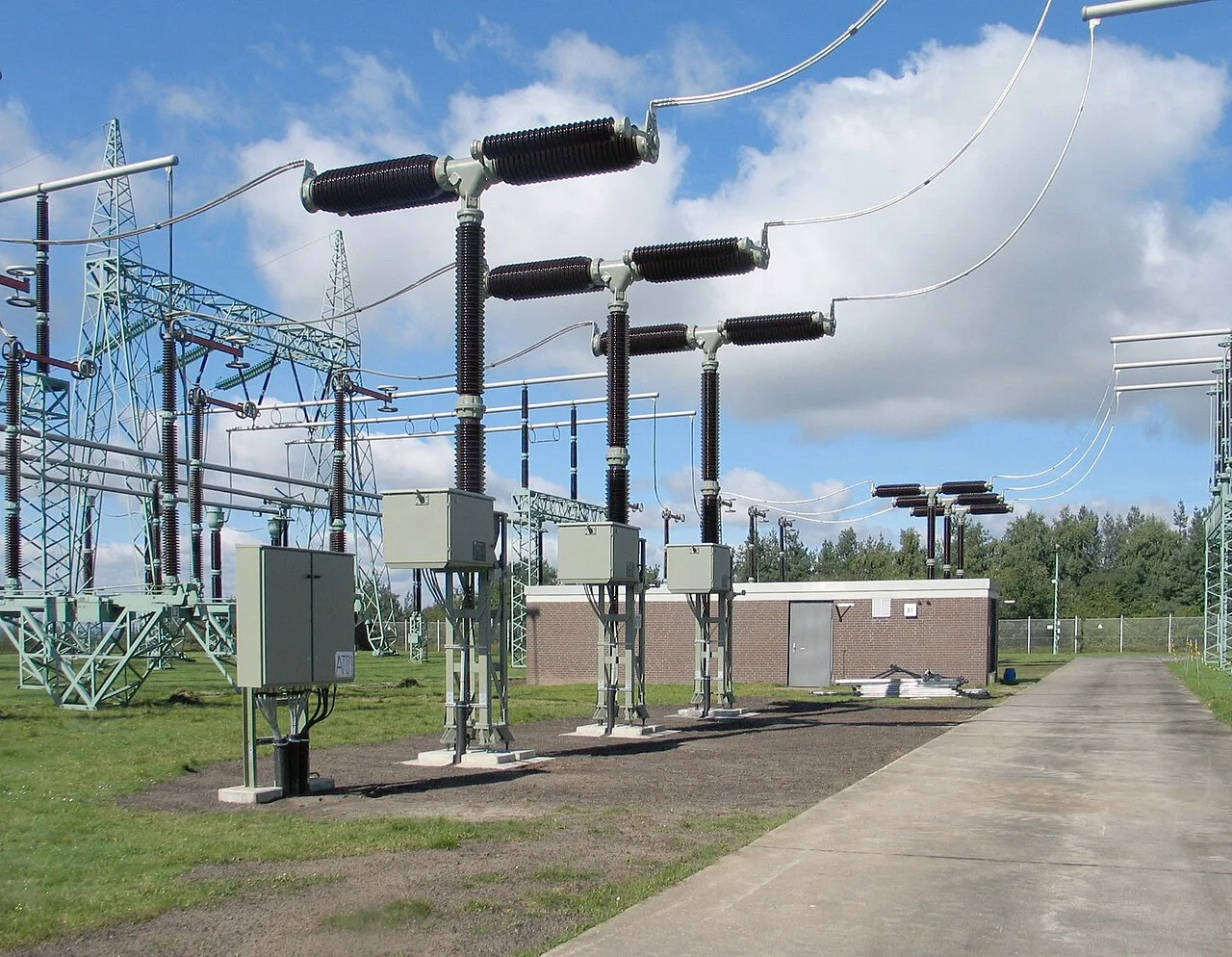

Outdoor air-insulated substations frequently incorporate SF6 circuit breakers due to their compact design and environmental resilience. These breakers integrate seamlessly with air-insulated busbars, offering a cost-effective solution for large-scale substations. In contrast, gas-insulated switchgear (GIS) relies heavily on SF6 for both insulation and arc quenching, enabling highly compact substation footprints in urban or space-constrained environments. The dual role of SF6 in GIS enhances space efficiency while maintaining high dielectric strength.
For high-power generators, SF6 circuit breakers serve as generator circuit breakers (GCBs). Positioned between the generator and the step-up transformer, GCBs provide rapid fault clearance, minimizing thermal and mechanical stress on the generator rotor. This application is critical for protecting expensive generator units during transient faults, ensuring quick restoration of power flow. The low maintenance nature of SF6 breakers further supports the reliability of generator protection schemes, reducing downtime in power generation facilities.
What distinguishes SF6 breakers from other types?
Sulfur hexafluoride (SF6) circuit breakers differ fundamentally from air-blast, oil, and vacuum types by utilizing SF6 gas to cool and quench the electric arc during interruption. While earlier technologies relied on liquid dielectrics or atmospheric air, SF6 offers distinct operational advantages. The primary benefit is lower operating noise compared to the characteristic "bang" of air-blast breakers. Additionally, SF6 systems produce no emission of hot gases, reducing thermal stress on adjacent components. Maintenance requirements are relatively low, enhancing long-term reliability in transmission grids.
Comparison with other media
Unlike oil circuit breakers, which pose fire hazards and require frequent oil sampling, SF6 breakers are cleaner and safer for indoor substations. Vacuum breakers excel at lower voltages but face challenges above 72.5 kV due to voltage distribution across multiple chambers. Air-blast breakers are robust but noisy and require complex compressor systems. SF6 provides superior dielectric strength, making it ideal for transmission voltages up to 800 kV and distribution systems up to 35 kV.
| Feature | SF6 Breaker | Air-Blast | Oil | Vacuum |
|---|---|---|---|---|
| Noise Level | Low | High | Moderate | Low |
| Maintenance | Relatively low | High (compressors) | High (oil quality) | Low |
| Fire Hazard | Low | Low | High | Low |
| Max Voltage | 800 kV | 400 kV | 400 kV | 72.5 kV |
| Arc Quenching | Gas cooling | Air blast | Oil decomposition | Dielectric recovery |
Limitations
Despite its advantages, SF6 has limitations. At low temperatures, the gas can liquefy, reducing dielectric strength. This requires heaters or mixed-gas solutions in cold climates. Environmental concerns also arise due to SF6's high global warming potential, though this does not affect immediate operational performance. Engineers must balance these factors when selecting breaker types for specific grid conditions.
Environmental and operational issues
Sulfur hexafluoride (SF6) is a potent greenhouse gas, with a global warming potential approximately 23900 times that of carbon dioxide (CO2) over a 100-year period. This high potency means that even small leaks from circuit breakers can have a significant environmental impact. The chemical stability that makes SF6 an excellent insulator and arc-quenching medium also contributes to its long atmospheric lifetime. As a result, managing SF6 emissions is a critical consideration in the operational lifecycle of these devices, particularly as electrical grids expand to utilize transmission voltages up to 800 kV and distribution systems up to 35 kV.
Byproducts and Toxicity
While pure SF6 is non-toxic and odorless, the arcing process within the circuit breaker can decompose the gas, creating various byproducts. One notable toxic byproduct is disulfur decafluoride (S2F10), which is significantly more toxic than SF6 itself. Other decomposition products include lower fluorides of sulfur and metal fluorides, depending on the contacts used in the breaker. These byproducts can pose health risks to maintenance personnel if proper ventilation and protective equipment are not utilized. The formation of these compounds is influenced by the intensity and duration of the electric arc, as well as the presence of impurities such as moisture and oxygen within the gas chamber.
Oxygen Displacement Risks
Due to its high molecular weight, SF6 is denser than air. In confined spaces, such as switchgear rooms or underground substations, a significant leak of SF6 can lead to oxygen displacement. This creates a risk of asphyxiation for personnel entering the area, as the heavier gas settles at floor level, pushing the lighter oxygen upwards. Proper ventilation systems and oxygen monitoring devices are essential safety measures in installations using SF6 circuit breakers to mitigate this hazard. The risk is particularly acute during maintenance operations when the gas might be bled off or leaked from the sealed compartments.
Maintenance Requirements
Despite the environmental and toxicity concerns, SF6 circuit breakers are known for their relatively low maintenance requirements compared to oil or air-blast breakers. The gas provides effective cooling and arc quenching, reducing wear on the contacts and minimizing the emission of hot gases during operation. However, regular monitoring of gas pressure and purity is necessary to ensure optimal performance. Leak detection, moisture control, and the analysis of decomposition byproducts are key aspects of the maintenance regime. The development of SF6 circuit breakers, starting in the 1950s, has led to widespread adoption in electrical grids, balancing operational efficiency with the need for careful environmental and safety management.
Testing and reliability
Sulfur hexafluoride circuit breakers undergo rigorous high-power testing to verify their short-circuit interrupting capability under various voltage levels and current magnitudes. These tests simulate real-world fault conditions, ensuring that the SF6 gas effectively cools and quenches the electric arc during circuit interruption. The testing process involves subjecting the breaker to controlled short circuits at transmission voltages up to 800 kV and distribution voltages up to 35 kV, as specified in the grounding data. Each test measures key parameters such as arc duration, contact erosion, and dielectric recovery time, providing critical insights into the breaker's performance and reliability.
Reliability Improvements
The design of SF6 circuit breakers has evolved significantly since their development in the 1950s, leading to notable improvements in reliability. One major advancement is the reduction in the number of interrupting chambers required for higher voltage ratings. Fewer interrupting chambers mean fewer potential failure points, which enhances overall system reliability. This design optimization also contributes to lower maintenance requirements, as there are fewer components that need regular inspection and replacement. The reduced complexity of the interrupting mechanism also minimizes the risk of mechanical failures, further improving the breaker's service life.
Service Life Expectations
Service life expectations for SF6 circuit breakers are generally favorable, with many units remaining operational for several decades. The longevity of these breakers is attributed to the stable chemical properties of SF6 gas, which provides excellent dielectric strength and arc-quenching capabilities. Additionally, the lower operating noise and absence of hot gas emissions contribute to a more stable operating environment, reducing wear and tear on internal components. Proper maintenance practices, including periodic gas refills and contact inspections, can extend the service life of SF6 circuit breakers, making them a cost-effective solution for both transmission and distribution systems. The reliability and durability of SF6 circuit breakers make them a preferred choice for protecting electrical power stations and distribution systems, ensuring continuous and efficient power delivery.
