Silicone rubber keypad: Technology, properties, and industrial applications

Overview

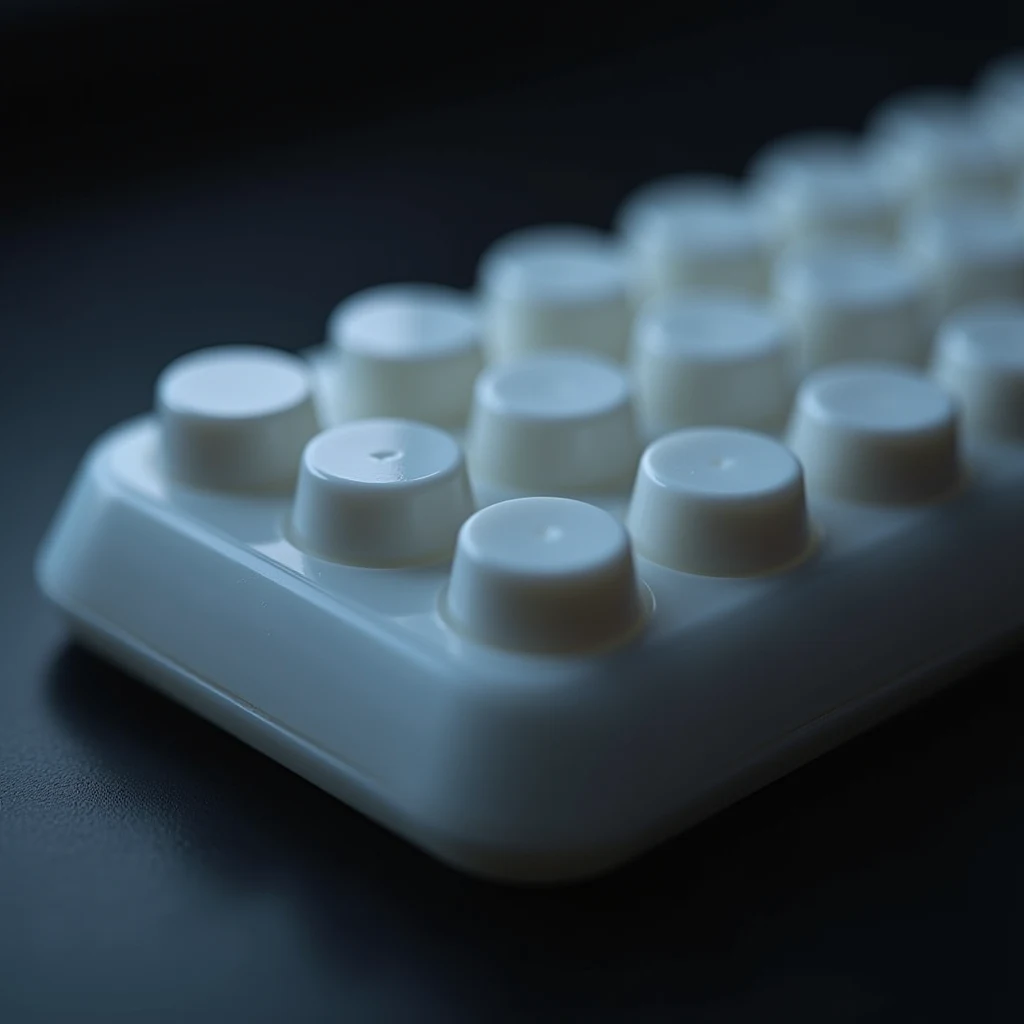

Silicone rubber keypads, frequently referred to as elastomeric keypads, represent a dominant class of user interface components within the global electronics manufacturing sector. These devices are engineered to serve as a cost-effective and highly reliable switching solution for a broad spectrum of applications, ranging from mass-market consumer electronics to ruggedized industrial control panels. The fundamental architecture of a silicone rubber keypad relies on the material properties of silicone elastomers, which provide inherent flexibility, thermal stability, and resistance to environmental degradation. This construction method allows for the integration of conductive elements directly into the key structure, eliminating the need for complex mechanical assemblies often found in traditional membrane or mechanical switch designs.

The widespread adoption of silicone rubber keypads is driven by their dual advantage of low production costs and operational durability. In consumer electronics, these keypads provide a tactile response that enhances user experience while maintaining a slim profile suitable for compact device designs. Industrial applications leverage the material's resilience against dust, moisture, and temperature extremes, ensuring consistent performance in harsh operating environments. The manufacturing process typically involves liquid silicone rubber (LSR) or solid silicone rubber (SSR) injection molding, which enables high-volume production with minimal waste and consistent dimensional accuracy.

From a technical perspective, the switching mechanism functions through the compression of the silicone dome, which bridges electrical contacts on a printed circuit board (PCB) or flexible printed circuit (FPC). This simple yet effective design minimizes failure points, contributing to the long service life characteristic of elastomeric keypads. The material's elasticity ensures that the key returns to its original position after actuation, providing consistent tactile feedback over thousands of cycles. This reliability makes silicone rubber keypads a preferred choice for devices requiring long-term operational stability without frequent maintenance or replacement.

How does a silicone rubber keypad work?

Manufacturing and Structural Design

Silicone rubber keypads are manufactured primarily through compression molding, a process where liquid or pre-formed silicone is cured under heat and pressure within a metal mold. This method allows for the integration of complex geometries, including the "angled webbing" or domes that provide the physical structure of each key. The dome shape is critical; when depressed, the silicone material compresses, creating a non-linear force-deflection curve. This mechanical behavior generates the characteristic "tactile response" or "click" felt by the user, signaling actuation without requiring a separate mechanical switch mechanism. The elasticity of the silicone ensures the key returns to its original position once the load is removed, providing long-term reliability in both consumer and industrial electronic products.

Electrical Contact Mechanisms

The electrical functionality of a silicone rubber keypad relies on establishing a conductive path between the key surface and a printed circuit board (PCB) or membrane layer beneath it. There are two primary methods for achieving this contact: discrete conductive pills and conductive elastomers.

In the "pill" method, small circular patches of conductive material are embedded into the underside of the silicone dome. Carbon rubber pills are the most common, offering a balance of cost and conductivity. The resistance R of a carbon pill can be influenced by the compression force F, often following an empirical relationship where resistance decreases as compression increases, though for simple switching, it is often treated as a near-constant value once the threshold is met. For higher precision or lower resistance requirements, gold-plated or silver-filled pills may be used. These discrete contacts are durable and provide a clear on/off signal.

Alternatively, conductive elastomers involve mixing conductive fillers, such as carbon black or silver particles, directly into the silicone matrix. This creates a bulk conductive material where the entire underside of the key or specific patterned areas act as the contact. This method simplifies assembly and can provide a larger contact area, reducing the likelihood of intermittent connections. The choice between carbon/gold pills and conductive elastomers depends on the required electrical resistance, environmental exposure, and cost constraints of the final product.

What is the snap ratio and how is it calculated?

The snap ratio is a critical performance metric for silicone rubber keypads, defining the tactile feedback and operational reliability of the switch. It quantifies the relationship between the force required to actuate the key and the force maintained during contact. A well-designed snap ratio ensures the user perceives a distinct "click" or change in resistance, confirming the input was registered. This characteristic is essential for both consumer electronics, where user experience is paramount, and industrial environments, where reliable switching under variable loads is required.

Actuation and Contact Forces

Understanding the snap ratio requires defining two primary force components. Actuation force is the initial force applied by the user to move the silicone dome from its resting state to the point where it collapses or "snaps" down to make electrical contact. This is often the peak force felt during the press. Contact force, also known as hold-down force, is the force exerted by the dome on the switch contact after the snap point has been reached. This force ensures consistent electrical continuity between the dome and the printed circuit board (PCB) or membrane layer.

The difference between these two forces creates the haptic sensation. If the actuation force is too high relative to the contact force, the key may feel stiff but lack a crisp snap. If the contact force is too low, the key may feel mushy or prone to false releases. The balance between these forces determines the overall feel and durability of the keypad.

Calculation and Recommended Ranges

The snap ratio is calculated by dividing the actuation force by the contact force and multiplying by 100 to express it as a percentage. This mathematical relationship allows engineers to standardize the tactile profile across different keypad designs and material thicknesses.

Parameter	Description	Formula / Range
Actuation Force (Fa)	Peak force required to collapse the dome and make contact.	Variable (depends on dome geometry and durometer)
Contact Force (Fc)	Force maintaining contact after the snap point.	Variable (typically lower than Fa)
Snap Ratio	Percentage relationship between actuation and contact force.	(Fa / Fc) × 100%
Recommended Range	Optimal range for distinct tactile feedback and reliability.	40% – 60%

An ideal snap ratio typically falls between 40% and 60%. A ratio within this range provides a clear tactile confirmation without requiring excessive finger pressure. Ratios significantly below 40% may result in a soft, less defined press, while ratios above 60% can make the keypad feel overly stiff, potentially leading to user fatigue in high-frequency usage scenarios. Engineers adjust this ratio by modifying the dome thickness, diameter, and the durometer of the silicone material to meet specific application requirements.

Manufacturing techniques and customization

Silicone rubber keypads are manufactured using a combination of molding, surface finishing, and electrical integration techniques to achieve both aesthetic and functional requirements. The base material is typically liquid silicone rubber (LSR) or sheet molded compound (SMC), which is processed through compression or injection molding. During the molding phase, color customization is achieved by adding pigments or dyes directly into the silicone compound before curing. This allows for a wide range of standard colors, as well as translucent options that facilitate light transmission for backlighting systems. The molding process ensures that the keypad maintains its shape and tactile feedback over thousands of actuation cycles, leveraging the elastomeric properties of silicone to return to its original form after each press.

Surface Finishing and Laser Etching

After molding, the keypad surface often undergoes laser etching to create legends, icons, and tactile domes. Laser etching involves using a focused laser beam to ablate or discolor the surface of the silicone, creating high-contrast markings that are durable and resistant to fading. This technique is preferred over screen printing for applications requiring high precision and long-term durability, as the etched marks are integral to the silicone surface rather than a thin layer on top. The laser can also create micro-textures on the keypad surface to enhance grip and reduce slippage, which is particularly useful in industrial environments where gloves are frequently worn.

LED Backlighting Integration

For applications requiring visibility in low-light conditions, silicone rubber keypads are often integrated with LED backlighting. This is achieved by using translucent silicone for the keypad buttons and placing LEDs behind the membrane switch layer. The silicone acts as a light guide, diffusing the light from the LEDs to create an even illumination across the keypad surface. The color of the backlight can be customized by using colored silicone or by placing colored filters over the LEDs. This integration adds a layer of complexity to the manufacturing process but significantly enhances the user experience by providing visual feedback for button presses and status indicators.

Electrical Customization and Sealplast Coating

The electrical performance of silicone rubber keypads is customized through the application of conductive coatings, with Sealplast being a common choice. Sealplast is a silver-filled silicone rubber coating that provides low contact resistance and high durability. The contact resistance can be tailored to specific application requirements by adjusting the thickness of the Sealplast layer and the pressure applied during actuation. Standard contact resistance values range from 20 to 100 ohms, but for high-precision applications, resistance can be reduced to 10 ohms or even 1 ohms. This customization is critical for ensuring reliable switching performance in both consumer electronics and industrial control panels. The formula for contact resistance (R) can be expressed as R = ρ * (L / A), where ρ is the resistivity of the Sealplast material, L is the length of the conductive path, and A is the cross-sectional area of the path. By manipulating these variables, manufacturers can achieve the desired electrical characteristics for each specific keypad design.

Applications in consumer and industrial electronics

Silicone rubber keypads serve as a fundamental input interface in a wide array of electronic devices, valued for their durability, flexibility, and cost-efficiency. Their primary function is to bridge the gap between user interaction and electronic signaling, often utilizing a conductive trace or dome switch mechanism to complete an electrical circuit. This technology is prevalent in both consumer and industrial sectors due to its ability to withstand repetitive mechanical stress and environmental exposure.

Consumer Electronics and Historical Context

In the consumer market, silicone keypads are ubiquitous in remote controls for televisions and audio systems. The material’s tactile feedback and resistance to wear make it ideal for the frequent button presses associated with daily media consumption. Historically, silicone rubber played a significant role in the mobile phone industry. Early mobile devices relied heavily on silicone membranes for their numeric keypads and navigation buttons, offering a reliable alternative to mechanical switches in compact form factors. While modern smartphones have largely transitioned to capacitive touchscreens, silicone keypads remain relevant in feature phones, ruggedized mobile devices, and specialized handheld electronics where physical feedback is critical for accuracy.

Toys and Recreational Devices

The toy industry extensively utilizes silicone rubber keypads due to their resilience against impact and moisture. Children’s electronic toys, educational gadgets, and handheld gaming devices often employ silicone membranes to ensure longevity under rough handling. The material’s ability to be molded into various shapes and colors allows for integrated design aesthetics, where the keypad becomes part of the device’s exterior shell. This reduces assembly complexity and enhances the overall durability of the product, making it a cost-effective solution for mass-produced recreational electronics.

Automotive and Industrial Applications

In the automotive sector, silicone rubber keypads are commonly found in interior control panels, including window lifts, mirror adjustments, and steering wheel controls. The material’s resistance to temperature fluctuations and vibration makes it suitable for the harsh environment inside a vehicle. Industrial electronics also benefit from the robust nature of silicone keypads. Control panels for machinery, medical devices, and outdoor instrumentation often use silicone membranes to protect internal circuitry from dust, moisture, and chemical exposure. The reliability of silicone as a switching solution ensures consistent performance in critical applications, reducing maintenance costs and enhancing user experience across diverse operational settings.

Industrial standards and ruggedized designs

Silicone rubber keypads are engineered to withstand extreme environmental conditions, making them indispensable in sectors where standard membrane switches would fail. In industrial and specialized applications, the material’s inherent flexibility and chemical stability allow for robust sealing against dust, moisture, and temperature fluctuations. These characteristics are critical for maintaining reliable switching performance in consumer and industrial electronic products that operate as low cost and reliable switching solutions.

Medical and Marine Environments

In the medical sector, silicone rubber keypads are favored for their biocompatibility and ease of sterilization. Hospital equipment and diagnostic devices require surfaces that can withstand repeated exposure to disinfectants, such as isopropyl alcohol and hydrogen peroxide, without degrading or becoming tacky. The seamless construction of silicone domes minimizes crevices where bacteria and fluids can accumulate, reducing the risk of cross-contamination. In marine applications, resistance to salt spray and humidity is paramount. Silicone’s hydrophobic nature prevents water ingress, ensuring that control panels on boats and offshore rigs remain functional even after prolonged exposure to seawater.

Military Specifications and Ruggedization

Military-grade silicone keypads are designed to meet stringent durability requirements. These keypads often feature reinforced domes and thicker base sheets to handle the mechanical stress of field use. They are tested for performance across a wide temperature range, ensuring that buttons remain responsive in arctic cold or desert heat. The material’s resistance to UV radiation prevents yellowing and cracking, which is essential for equipment exposed to direct sunlight. Additionally, silicone keypads can be formulated with flame-retardant properties, meeting specific military flammability standards to enhance safety in confined spaces.

NEMA and IP66 Standards

Compliance with industry standards is a key factor in selecting silicone rubber keypads for ruggedized designs. The Ingress Protection (IP) rating system classifies the degree of protection provided by enclosures against solid objects and liquids. An IP66 rating indicates that the keypad is completely dust-tight and protected against powerful water jets, making it suitable for outdoor and washdown environments. Similarly, the National Electrical Manufacturers Association (NEMA) standards define the environmental conditions under which the electrical equipment will operate. NEMA 4X ratings, for instance, denote protection against rain, sleet, windblown dust, and corrosion, often achieved through the use of stainless steel or polycarbonate overlays bonded to the silicone base.

Manufacturing and Customization

Companies like CTI Electronics Corporation specialize in the design and manufacturing of custom silicone rubber keypads. These manufacturers offer a range of customization options, including varying durometer hardness, color coding, and legend printing techniques. Screen printing and pad printing are common methods for applying legends that remain legible over thousands of actuations. The integration of conductive inks or silver-filled domes ensures consistent electrical contact, reducing the need for additional components. This level of customization allows engineers to tailor the keypad’s performance to the specific needs of the application, whether it be a simple consumer remote or a complex industrial control panel.
