Energy management system (electrical grid)

Overview

An energy management system (EMS) is a comprehensive suite of computer-aided tools utilized by operators of electric utility grids to monitor, control, and optimize the performance of generation or transmission systems. These systems serve as the central nervous system for grid operations, integrating real-time data from various components of the electrical infrastructure to ensure stability, efficiency, and reliability. The core function of an EMS involves the continuous acquisition of telemetry data from substations, generators, and transmission lines, which is then processed through advanced algorithms to provide operators with a synchronized view of the grid's state.

The application of EMS technology extends beyond large-scale utility grids to include smaller, more localized energy networks such as microgrids. In these contexts, the system facilitates the coordination of distributed energy resources, storage units, and loads, enabling optimized energy flow and enhanced resilience. By leveraging real-time monitoring and control capabilities, EMS platforms allow operators to make informed decisions regarding dispatch, load balancing, and fault management, thereby minimizing operational costs and improving overall system performance.

The operational status of these systems is currently active, reflecting their critical role in modern power system management. The integration of computer-aided tools within the EMS framework enables the automation of routine tasks and the implementation of sophisticated control strategies. This technological advancement supports the dynamic nature of contemporary electrical grids, accommodating the increasing complexity introduced by variable generation sources and evolving consumer demands. The system's ability to optimize performance across both generation and transmission segments underscores its importance in maintaining grid stability and efficiency.

What is the difference between SCADA and EMS?

The distinction between Supervisory Control and Data Acquisition (SCADA) and Energy Management Systems (EMS) is fundamental to understanding modern grid operations, though the terms are often used interchangeably or as a combined "SCADA/EMS" suite. In strict technical definitions, SCADA represents the foundational layer of data collection and command execution, while EMS constitutes the analytical and optimization layer built upon that data stream.

Terminology and Functional Hierarchy

SCADA systems are primarily responsible for the real-time monitoring and control of physical assets. They gather telemetry data—such as voltage, current, frequency, and breaker status—from Remote Terminal Units (RTUs) and Intelligent Electronic Devices (IEDs) across the transmission and distribution network. This data is aggregated to provide operators with a real-time snapshot of grid conditions. However, SCADA, in its purest form, is largely a data acquisition and command system; it tells the operator what is happening and allows them to decide what to do, but it does not inherently determine the optimal course of action.

An Energy Management System (EMS) is a collection of computer-aided tools used by electric utility grid operators to monitor, control, and optimize the performance of the generation or transmission system. While SCADA provides the raw data, the EMS processes this information through various application modules to support decision-making. The EMS suite typically includes applications for state estimation, load forecasting, unit commitment, economic dispatch, and security analysis. These tools allow operators to not only react to current conditions but also to predict future states and optimize generation scheduling to minimize costs and enhance reliability.

Exclusion of Pure Monitoring/Control in Strict EMS Definitions

In rigorous engineering contexts, the term "EMS" may exclude the basic monitoring and control functions handled by SCADA. This distinction emphasizes that EMS is an analytical engine rather than a mere data logger. While SCADA handles the "supervisory" aspect—turning breakers on and off, adjusting transformer taps—the EMS focuses on the "management" aspect: calculating the most efficient way to distribute power, managing reserves, and ensuring voltage stability. This separation is critical in large-scale transmission systems where the volume of data requires specialized algorithms to derive actionable insights.

The Integrated SCADA/EMS Suite

In practice, these systems are rarely isolated. Modern utilities deploy an integrated SCADA/EMS platform where the boundary between data acquisition and analysis is blurred. The SCADA layer feeds real-time data into the EMS applications, which then issue control commands back through the SCADA infrastructure. This integration is essential for both large transmission grids and smaller scale systems like microgrids. In microgrids, the EMS might handle complex energy storage optimization and distributed generation scheduling, while the SCADA layer manages the immediate switching of inverters and breakers. The combined system ensures that the grid operates efficiently, balancing the need for real-time responsiveness with strategic optimization of generation and transmission assets.

Dispatcher Training Simulators

Dispatcher Training Simulators (DTS) are specialized software environments that replicate the operational behavior of an electrical grid to train control center personnel. These simulators are integral components of modern Energy Management Systems (EMS), leveraging the same SCADA and EMS data models used in real-time operations to provide a high-fidelity training experience. By utilizing the actual topology, equipment parameters, and load profiles of the utility network, DTS allows operators to practice routine procedures and respond to dynamic grid conditions without disrupting live power flow. This technology is supplied by major EMS manufacturers who integrate simulation engines directly into the control center infrastructure, ensuring that the training environment mirrors the operator’s daily interface.

Simulation Architecture and Data Integration

The core of a DTS relies on the synchronization of historical and real-time data streams from the utility’s SCADA system. The simulator uses the network model, which includes transmission lines, transformers, generators, and loads, to compute power flow and state estimation in real time. Operators interact with the simulator through a graphical user interface that is often identical to the production EMS, reducing the learning curve and enhancing muscle memory. The system can inject various disturbance scenarios, such as line tripping, generator outages, and voltage fluctuations, allowing dispatchers to test their decision-making processes under pressure. This integration ensures that the training is not merely theoretical but grounded in the actual performance characteristics of the grid assets.

Operational Scenarios and Performance Metrics

DTS environments support a wide range of training scenarios, from normal day-to-day operations to extreme contingency events. Operators can practice switching sequences, voltage control, and frequency regulation, as well as respond to complex faults that may involve multiple simultaneous outages. The simulator records operator actions and system responses, enabling detailed post-event analysis. Key performance indicators, such as response time, accuracy of load forecasting, and the effectiveness of corrective actions, are tracked to evaluate individual and team performance. This data-driven approach helps utilities identify skill gaps and tailor training programs to specific operational needs, ultimately enhancing the reliability and resilience of the electrical grid. The ability to replay events and analyze decision paths provides valuable insights into operator behavior and system dynamics.

Historical evolution of EMS hardware

The historical evolution of EMS hardware is defined by the transition from bespoke, proprietary mainframes to standardized computing architectures, a shift that gained significant momentum in the early 1990s. During this era, the electrical grid's operational backbone relied heavily on specialized hardware supplied by major industrial and electronics conglomerates. Companies such as Harris Controls (later integrated into GE), Hitachi, Cebyc, Control Data Corporation, Siemens, and Toshiba dominated the market, each offering distinct hardware ecosystems tailored to the rigorous demands of real-time grid monitoring and control.

These primary suppliers often built their proprietary EMS platforms upon the foundational computing power of third-party hardware manufacturers. Digital Equipment Corporation (DEC), Gould Electronics, and MODCOMP were critical enablers of this infrastructure. The industry standard for processing power during this period was heavily influenced by the VAX architecture, particularly the VAX 11/780. This minicomputer became a ubiquitous component in EMS installations due to its robust performance, reliability, and ability to handle the complex data streams generated by the generation and transmission systems.

The reliance on the VAX 11/780 and similar hardware from DEC and Gould Electronics created a period of relative standardization within the proprietary landscape. Operators of electric utility grids utilized these computer-aided tools to optimize the performance of the generation or transmission system, with the hardware serving as the physical interface for these software applications. The architecture of these systems was designed to ensure high availability and fault tolerance, critical attributes for maintaining grid stability. The integration of hardware from suppliers like MODCOMP allowed for modular expansion, enabling utilities to scale their EMS capabilities as the grid grew in complexity.

This hardware-centric era laid the groundwork for the modern EMS, establishing the computational requirements necessary for effective grid optimization. The specific configurations of these early 1990s systems reflected the technological constraints and advancements of the time, with proprietary operating systems and custom-built input/output modules. The dominance of companies like Siemens and Toshiba in this space ensured that the EMS technology was deeply integrated into the broader electrical infrastructure, influencing how operators monitored and controlled the grid for decades to come. The legacy of this period is evident in the continued emphasis on reliability and real-time data processing in contemporary energy management systems, including their application in smaller scale systems like microgrids.

Transition to standard operating systems

Early energy management systems relied heavily on proprietary hardware and software architectures, creating significant vendor lock-in for utility operators. As computational demands grew, the industry began a strategic transition toward more standardized operating systems to enhance interoperability and reduce maintenance costs. During the late 20th century, platforms from Digital Equipment Corporation (DEC), later Compaq, as well as Hewlett-Packard (HP), IBM, and Sun Microsystems became prominent foundations for EMS deployments. DEC OpenVMS and various Unix implementations were widely adopted for their stability and scalability in real-time monitoring and control environments.

Adoption of Windows and Linux Platforms

A significant shift occurred in 2004 when major EMS vendors, including Alstom, ABB, and OSI, introduced solutions built on Microsoft Windows platforms. This move aimed to leverage the widespread familiarity with the Windows interface and its growing enterprise support infrastructure. By 2006, the market had diversified further, with operators choosing between UNIX, Linux, and Windows depending on specific performance requirements, budget constraints, and legacy integration needs. The flexibility of these standard operating systems allowed for more modular system designs and easier software updates compared to earlier proprietary setups.

Continued UNIX and Solaris Offerings

Despite the rise of Windows, UNIX remained a critical component of the EMS landscape. Companies such as ETAP, NARI, PSI-CNI, and Siemens continued to offer robust EMS solutions running on Sun Solaris or IBM-based UNIX systems. These platforms were particularly favored for high-throughput data processing and long-term stability in large-scale transmission networks. The persistence of UNIX-based systems highlighted the importance of performance predictability and backward compatibility in critical grid operations, ensuring that utilities could maintain reliable oversight of generation and transmission assets regardless of the underlying operating system choice.

Modern EMS architecture and model-based approaches

Contemporary energy management systems (EMS) are undergoing a structural shift from siloed software modules to unified, model-based architectures. Historically, utility operators maintained separate digital models for long-term planning and real-time operations. This fragmentation often resulted in data mismatches, where the transmission network model used by planners differed slightly from the one monitored by dispatchers. Modern approaches replace these independent instances with a shared common model, significantly reducing the divergence between planning and operational views.

Benefits of Unified Modeling

The transition to a single, authoritative data model yields measurable operational efficiencies. By maintaining one consistent representation of the grid, utilities can halve the effort required for model maintenance. Engineers no longer need to reconcile discrepancies between the planning department’s network topology and the control room’s real-time state estimator. This alignment facilitates a smoother transition from long-term capacity planning to daily operations, ensuring that investment decisions are reflected accurately in the operational EMS without manual data migration. The reduction in model mismatch enhances the reliability of contingency analysis and load flow calculations, which are critical for maintaining grid stability.

Hardware Integration and Blade Servers

The software consolidation is supported by advances in hardware integration, particularly the adoption of blade server technology. Modern EMS installations leverage high-density computing to reduce the physical footprint of the control room infrastructure. A typical configuration might involve 20 blade servers occupying the rack space previously required for a single MicroVAX mainframe. This density allows utilities to integrate multiple EMS functions—such as SCADA, state estimation, and security-constrained optimal power flow—onto a cohesive hardware platform. The compact nature of blade servers also improves thermal management and power efficiency, which are critical factors for 24/7 operational environments in utility control centers.

These architectural improvements support the core function of the EMS: monitoring, controlling, and optimizing the performance of generation and transmission systems. The integration of robust hardware with unified software models ensures that operators have access to accurate, real-time data, enabling more precise decision-making across the electric utility grid.

Applications in grid operation

Energy management systems serve as the central nervous system for modern electric utility grids, providing operators with computer-aided tools to monitor, control, and optimize the performance of both generation and transmission infrastructure. These systems are critical for maintaining grid stability, ensuring efficient power flow, and facilitating rapid response to dynamic load changes across large-scale networks.

Monitoring and Control Functions

The primary application of an EMS is the real-time monitoring of grid parameters. Operators utilize these systems to track voltage levels, frequency, and power flow across transmission lines and generation units. This continuous data acquisition allows for the immediate detection of anomalies, such as sudden load spikes or generator outages. By integrating supervisory control and data acquisition (SCADA) data, the EMS enables precise control actions, such as adjusting transformer taps or dispatching reserve capacity, to maintain optimal operating conditions.

Performance Optimization

Beyond basic monitoring, EMS platforms are used to optimize the overall performance of the generation and transmission systems. This involves complex algorithms that balance economic efficiency with technical constraints. For instance, economic dispatch functions within the EMS determine the most cost-effective combination of generation units to meet current demand. The system continuously evaluates fuel costs, marginal losses, and unit availability to minimize operational expenses while ensuring reliability. This optimization is essential for managing the variability introduced by renewable energy sources and fluctuating consumer demand.

Microgrid Applications

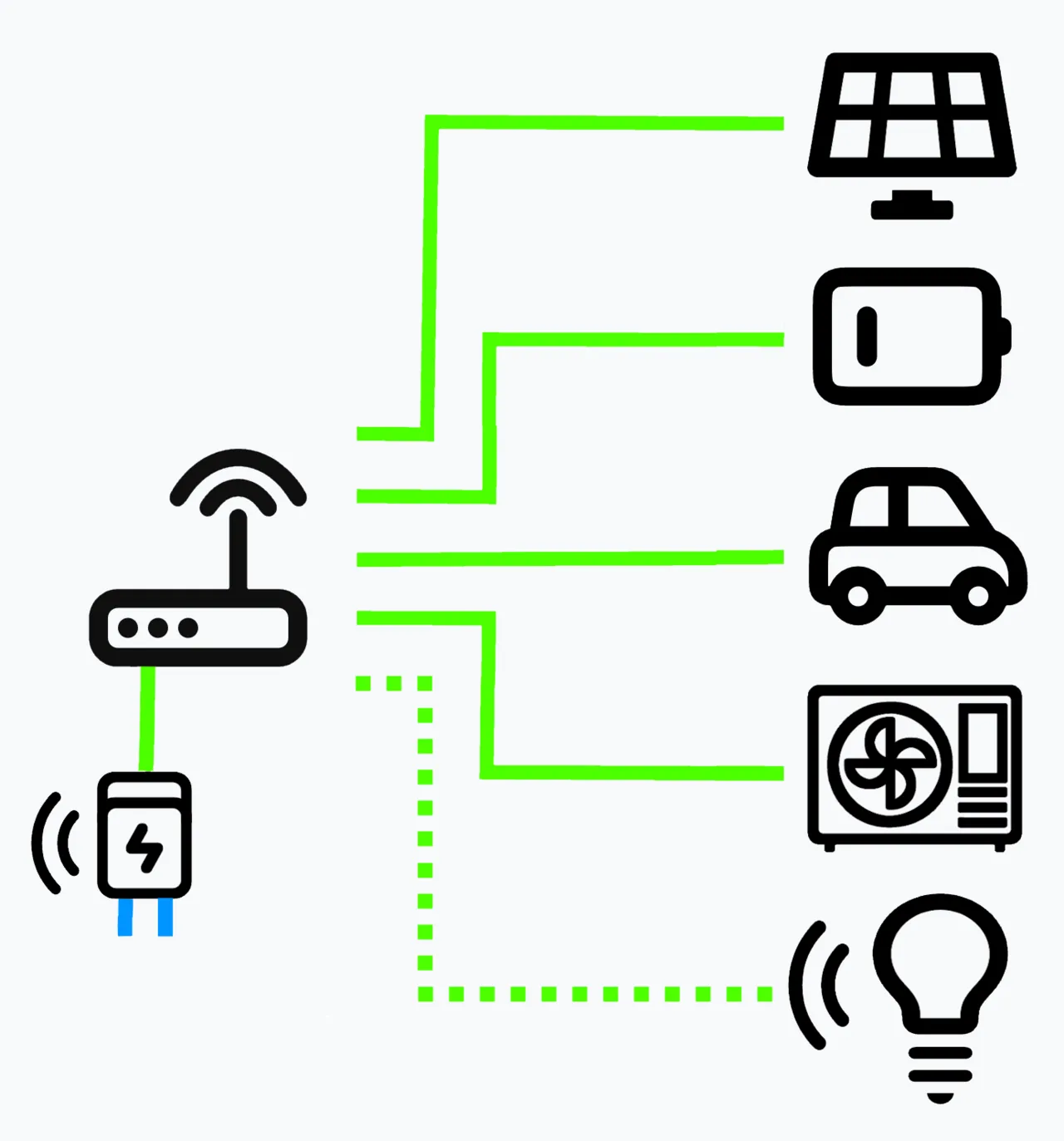

While traditionally associated with large utility-scale grids, energy management systems are increasingly deployed in small-scale systems like microgrids. In these localized networks, the EMS coordinates the interaction between distributed energy resources, such as solar panels, wind turbines, and battery storage, with the local load. This application is crucial for enhancing energy resilience and enabling islanding capabilities, allowing the microgrid to operate independently from the main grid during outages. The scalability of EMS technology ensures that both extensive transmission networks and compact microgrids benefit from advanced monitoring and control mechanisms.

How do EMS systems optimize grid performance?

Energy management systems optimize grid performance by integrating real-time monitoring with advanced computational control algorithms. These systems serve as the central nervous system for electric utility grids, enabling operators to balance generation and load while maintaining stability and efficiency. The optimization process relies on continuous data acquisition from sensors, meters, and communication networks across the transmission and generation infrastructure. This data is processed through specialized applications that provide actionable insights for both immediate operational decisions and longer-term scheduling.

Generation Control and Real-Time Optimization

One of the primary mechanisms for optimization is generation control, which adjusts the output of power plants to match the fluctuating demand on the grid. EMS platforms utilize automatic generation control (AGC) to maintain the system frequency and manage tie-line power exchanges. By continuously comparing actual generation with scheduled values, the system calculates necessary adjustments for each generating unit. This process minimizes fuel consumption and reduces wear on turbine equipment. The control signals are sent to generators, which adjust their output in response to the calculated error signals.

The optimization of generation dispatch often involves economic dispatch algorithms. These algorithms determine the most cost-effective combination of generating units to meet the current load. The system considers the marginal cost of fuel for each unit, transmission losses, and operational constraints such as minimum and maximum output limits. By minimizing the total production cost while satisfying demand, the EMS ensures that the grid operates at peak economic efficiency. This real-time adjustment is critical for integrating variable renewable energy sources, which can introduce significant fluctuations in supply.

Scheduling Applications and Data Integration

Scheduling applications within the EMS facilitate the planning of generation and transmission resources over various time horizons. Short-term scheduling, often referred to as unit commitment, determines which generators should be online and their respective outputs for the upcoming hours or days. This process takes into account forecasted load, generator availability, maintenance schedules, and fuel costs. The EMS integrates these forecasts with real-time data to create an optimal schedule that minimizes operational costs while ensuring reliability.

The integration of planning and operational data through common user interfaces is a key feature of modern EMS platforms. Operators can view historical data, real-time measurements, and forecasted values on a single screen, allowing for more informed decision-making. This integration reduces the cognitive load on operators and enhances situational awareness. The common interface also facilitates the coordination between different departments within the utility, such as generation, transmission, and distribution. By providing a unified view of the grid, the EMS enables more efficient communication and collaboration, leading to faster response times and improved overall performance.

Advanced EMS platforms also incorporate predictive analytics and machine learning algorithms to further optimize grid performance. These tools analyze historical data and real-time inputs to predict future load patterns, equipment failures, and renewable energy generation. By anticipating these factors, the EMS can proactively adjust generation schedules and transmission settings to mitigate potential issues. This predictive capability enhances the resilience of the grid and reduces the need for reactive measures, which can be more costly and disruptive.

The optimization capabilities of EMS are not limited to large-scale transmission systems. They are also increasingly used in microgrids and small-scale distribution networks. In these contexts, the EMS helps to balance local generation, storage, and load, ensuring that the microgrid operates efficiently and reliably. This is particularly important for integrating distributed energy resources, such as solar panels and wind turbines, which can vary significantly in output. By optimizing the performance of these small-scale systems, the EMS contributes to the overall efficiency and stability of the broader energy infrastructure.
