Floating wind turbine

Overview

A floating wind turbine is an offshore wind energy conversion system mounted on a buoyant structure, enabling electricity generation in water depths where traditional fixed-foundation turbines become economically unviable. Unlike bottom-fixed systems that rely on monopiles or jackets anchored to the seabed, floating platforms are moored to the sea floor, allowing deployment in deeper waters where wind resources are often stronger and more consistent. This technological approach significantly expands the potential sea area available for offshore wind farms, particularly benefiting regions with limited continental shelf shallows. Countries such as Spain, Portugal, Japan, France, and the United States' West Coast are identified as having substantial potential for floating wind development due to their deep-water coastal geographies.

Operational and Environmental Advantages

Locating wind farms further offshore using floating technology offers several distinct advantages over near-shore fixed installations. One primary benefit is the reduction of visual pollution, as turbines positioned further from the coastline are less intrusive to coastal communities and scenic landscapes. Additionally, floating wind farms can provide better accommodation for existing maritime activities, including fishing grounds and shipping lanes, by allowing for more flexible site selection and potentially less interference with seabed infrastructure. The ability to reach stronger and more consistent winds in deeper waters can also enhance the capacity factor and overall energy yield of the installations.

Global Operational Status

The concept has transitioned from pilot projects to operational status, with a total operational capacity of 245 MW. The technology was first commissioned in 2007, marking the beginning of the floating wind era. This initial deployment demonstrated the feasibility of mooring systems and floating platforms in real-world marine environments. The operational status remains active, indicating that the technology is not merely experimental but is currently contributing to the global energy mix. The 245 MW capacity represents the cumulative output of various floating wind farms that have successfully navigated the engineering challenges of deep-water deployment. This capacity serves as a baseline for future expansion, as more countries invest in floating wind to harness their deep-water wind resources. The continued operation of these turbines validates the economic and technical viability of floating foundations in specific geographic contexts, paving the way for larger-scale projects in regions with limited shallow-water options.

History of development

The development of floating wind technology traces its conceptual origins to the early 1970s. In 1972, William E. Heronemus introduced the foundational concept of mounting offshore wind turbines on floating structures, aiming to unlock deeper waters where fixed-foundation solutions became economically unviable. This early vision laid the groundwork for decades of engineering refinement, focusing on stability, mooring systems, and power transmission in varying sea states. Initial progress was marked by the emergence of early prototypes in the 2000s. Companies such as Blue H Technologies began testing floating platforms, exploring different hull designs and mooring configurations to address the unique challenges of offshore environments. These early efforts were critical in validating the technical feasibility of floating wind turbines, demonstrating that turbines could operate effectively in water depths exceeding the limits of traditional fixed foundations. A significant milestone in the history of floating wind development was the commissioning of the Hywind project in 2007. This operational milestone demonstrated the viability of floating wind turbines in commercial-scale deployments. The Hywind installation, with a capacity of 245 MW, provided valuable operational data on performance, maintenance, and integration into the grid. This success encouraged further investment and innovation in the sector, leading to a surge in prototype developments and pilot projects globally. The potential of floating wind farms to significantly increase the available sea area for offshore wind generation became increasingly apparent. Countries with limited shallow waters, such as Spain, Portugal, Japan, France, and the United States' West Coast, recognized the strategic advantage of floating technology. Locating wind farms further offshore offered additional benefits, including reduced visual pollution, better accommodation for fishing and shipping lanes, and access to stronger, more consistent winds. These factors contributed to the growing interest in floating wind as a key component of the global energy transition. The evolution from Heronemus's initial concept to the operational Hywind project illustrates the rapid progress in floating wind technology. Each phase of development built upon previous insights, refining designs and improving efficiency. The continued exploration of floating wind turbines promises to expand the reach of offshore wind energy, unlocking new resources and enhancing the sustainability of global power generation.

How do floating wind turbines work?

Floating wind turbines operate by mounting standard offshore wind turbines on buoyant platforms that are anchored to the seabed. This configuration allows deployment in water depths exceeding 50 meters, where fixed foundations become economically unviable. The primary engineering challenge is maintaining stability against wind, wave, and current loads while allowing the turbine to rotate to face the wind.

Mooring Systems

The stability of the floating structure depends on the mooring system, which restrains motion in six degrees of freedom: surge, sway, heave, roll, pitch, and yaw. Three primary mooring configurations are used, each with distinct tension and geometric characteristics.

Mooring Type	Description	Key Characteristic
Catenary	Uses the weight of the mooring line (chain or rope) to create a curve from the platform to the seabed anchor.	Cost-effective for moderate depths; relies on gravity and line weight.
Taut	The mooring line is held nearly straight with high pretension, minimizing the curve.	Provides higher stiffness; suitable for deeper waters and larger platforms.
Tension-Leg	Vertical tethers connect the platform directly to the seabed, with high pretension to minimize heave.	High vertical stiffness; requires significant buoyancy and precise tension control.

The design must balance the buoyant force Fb against the gravitational force Fg and the hydrodynamic drag. The restoring moment provided by the mooring lines counteracts the overturning moment from the wind turbine. Proper motion restraint ensures that the relative motion between the nacelle and the tower remains within operational limits, reducing fatigue on the drivetrain and foundation. These systems enable the utilization of stronger, more consistent winds found further offshore, expanding the viable area for wind energy generation.

What are the main types of floating foundations?

Floating wind turbines utilize several distinct foundation architectures to stabilize the structure in deep waters. The primary design categories include spar-buoy, semi-submersible, and tension-leg platforms, each offering different trade-offs in stability, cost, and deployment depth.

Primary Foundation Types

The spar-buoy design features a long, slender hull that extends deep into the water column, relying on a low center of gravity and a deep draft for stability. This configuration is particularly effective in very deep waters but requires significant mooring tension. The semi-submersible platform consists of multiple columns connected by pontoons, providing a large waterplane area that offers stability through buoyancy and inertia. This type is versatile and can be deployed in a wide range of water depths. The tension-leg platform (TLP) uses vertical tethers anchored to the seabed, keeping the platform in a relatively fixed position with minimal heave motion, though it requires precise tensioning of the mooring lines.

Notable Prototype Projects

Several innovative designs have been tested in pilot projects to validate these concepts. The WindFloat project, a semi-submersible platform, has been a key reference in the industry, demonstrating the viability of floating technology in various locations. The VolturnUS project, developed by the University of Maine, utilizes a semi-submersible design with a unique triangular configuration. The Eolink project in Portugal employs a semi-submersible platform, while the Ideol project in France has tested both semi-submersible and tension-leg configurations. These projects have provided critical data on performance, maintenance, and cost-effectiveness.

Project	Foundation Type	Key Features
WindFloat	Semi-submersible	Triangular pontoon configuration, tested in Portugal and the US.
VolturnUS	Semi-submersible	Developed by the University of Maine, features a compact design.
Eolink	Semi-submersible	Located in Portugal, part of the early commercial-scale deployments.
Ideol	Semi-submersible / TLP	Tested multiple configurations in France, including the TLP design.

The choice of foundation depends on site-specific conditions, including water depth, wind speed, and seabed characteristics. As the technology matures, hybrid designs and optimized structures are emerging to further reduce costs and enhance performance. The potential for floating wind to unlock deep-water resources is significant, particularly for countries with limited shallow coastal areas.

Global deployment and major projects

Global deployment of floating wind technology is advancing rapidly, transitioning from pilot projects to commercial-scale installations. The technology addresses the economic limitations of fixed-foundations in deep waters, expanding viable sea areas for offshore wind in regions such as Spain, Portugal, Japan, France, and the US West Coast.

Operational Projects

Several key projects demonstrate the operational viability of floating turbines. The Hywind Scotland farm was the world’s first commercial floating wind farm, featuring turbines mounted on spar-buoy foundations. It marked a significant milestone in offshore wind, proving the technology's reliability in the North Sea.

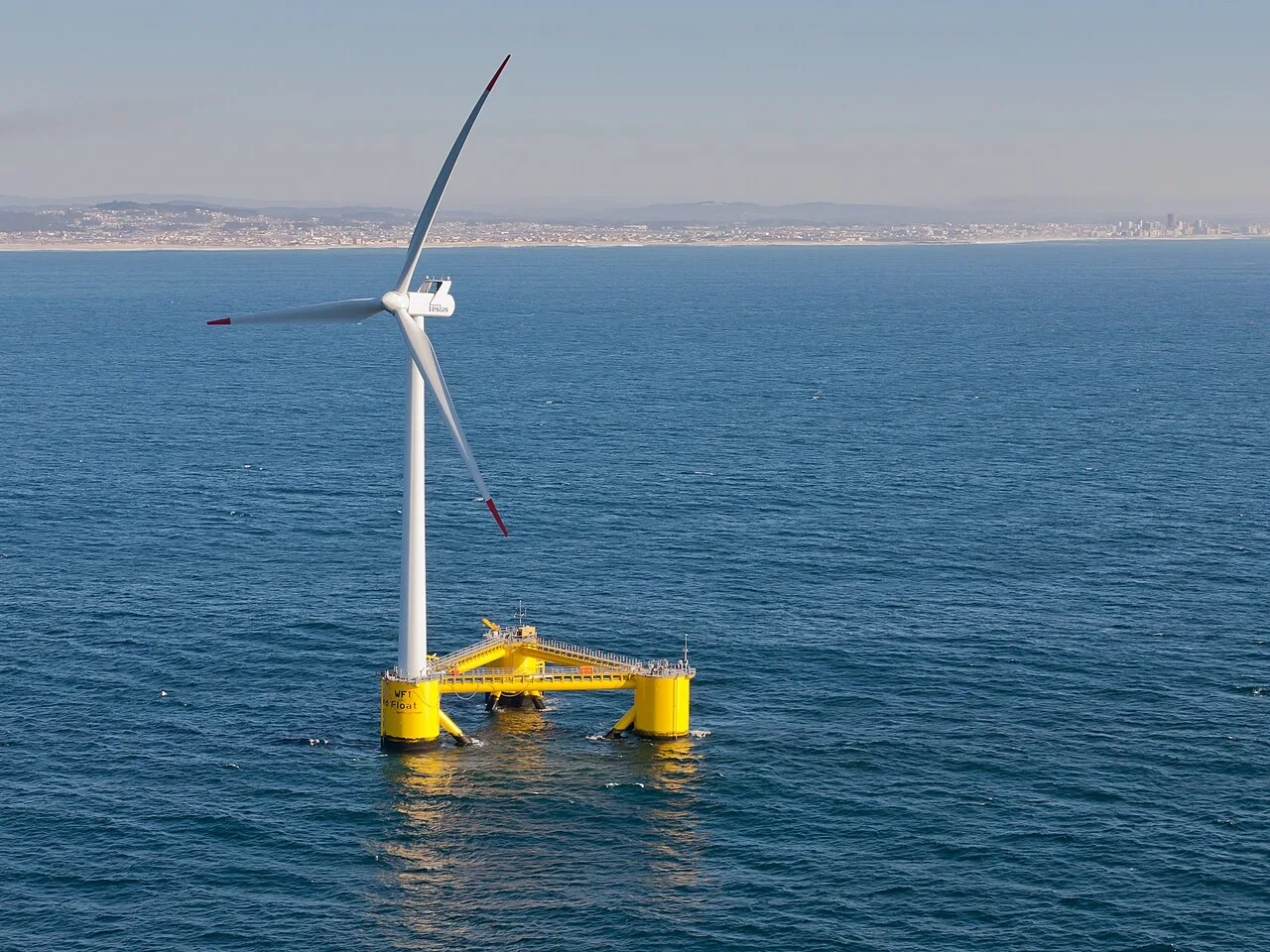

The WindFloat Atlantic project in Portugal utilizes semi-submersible platforms. This installation highlights the adaptability of floating systems to different foundation types, allowing for deployment in varying water depths and seabed conditions.

The Kincardine floating wind farm, located off the coast of Scotland, represents one of the largest floating wind installations globally. It uses semi-submersible foundations and demonstrates the scalability of the technology for significant power generation.

Hywind Tampen is a notable project supplying power to offshore oil and gas platforms in the North Sea. It uses tension-leg platform (TLP) foundations, showcasing the technology's ability to provide stable power in high-wind, deep-water environments.

Global Proposals and Expansion

Proposals for floating wind farms are expanding globally. Japan has identified significant potential for floating wind, particularly along its western coast, where deep waters limit fixed-foundation options. The US West Coast, including states like California and Oregon, is also exploring floating wind to harness strong offshore winds.

European countries, including France and Spain, are advancing numerous proposals. These projects aim to leverage the technology to increase offshore wind capacity, reduce visual pollution, and accommodate fishing and shipping lanes. The expansion of floating wind farms is expected to significantly contribute to the global renewable energy mix.

Applications and future potential

Floating wind technology enables deployment in deep-water zones where fixed foundations become economically unviable, expanding the global offshore wind resource base significantly. This capability is particularly valuable for nations with limited continental shelves, such as Japan, Spain, Portugal, France, and the United States' West Coast. By situating turbines further offshore, operators can access stronger and more consistent wind resources while reducing visual impact on coastal communities and minimizing conflicts with existing shipping lanes and fishing grounds.

Integration with Oil and Gas Platforms

The modular nature of floating wind systems allows for strategic integration with existing offshore infrastructure. Oil and gas platforms can serve as anchor points or hybrid energy hubs, where floating turbines supplement power generation for platform operations or feed electricity directly into subsea transmission cables. This co-location reduces the need for new seabed infrastructure and leverages established grid connections, potentially lowering levelized costs for both energy sectors.

Power-to-Gas Applications

Floating wind farms are well-suited for power-to-gas conversion, particularly in deep-water sites where direct grid connection may be costly. Excess electricity can drive electrolyzers mounted on floating platforms, producing hydrogen that can be stored in subsea caverns or transported via pipeline. This approach enhances grid flexibility and provides a renewable carrier for hard-to-abate sectors. The energy balance for electrolytic hydrogen production can be expressed as:

E_hydrogen = η * P_wind * t

where η represents the overall system efficiency, P_wind is the turbine power output, and t is the operational time.

Artificial Upwelling for Fisheries

Floating structures can incorporate artificial upwelling systems that draw nutrient-rich deep water to the surface, stimulating plankton growth and enhancing fish stocks. This integration creates synergistic benefits for marine ecosystems and local fisheries, turning wind farms into multi-use marine platforms. Such systems support biodiversity while generating renewable energy, maximizing the utility of offshore real estate.
