Overview

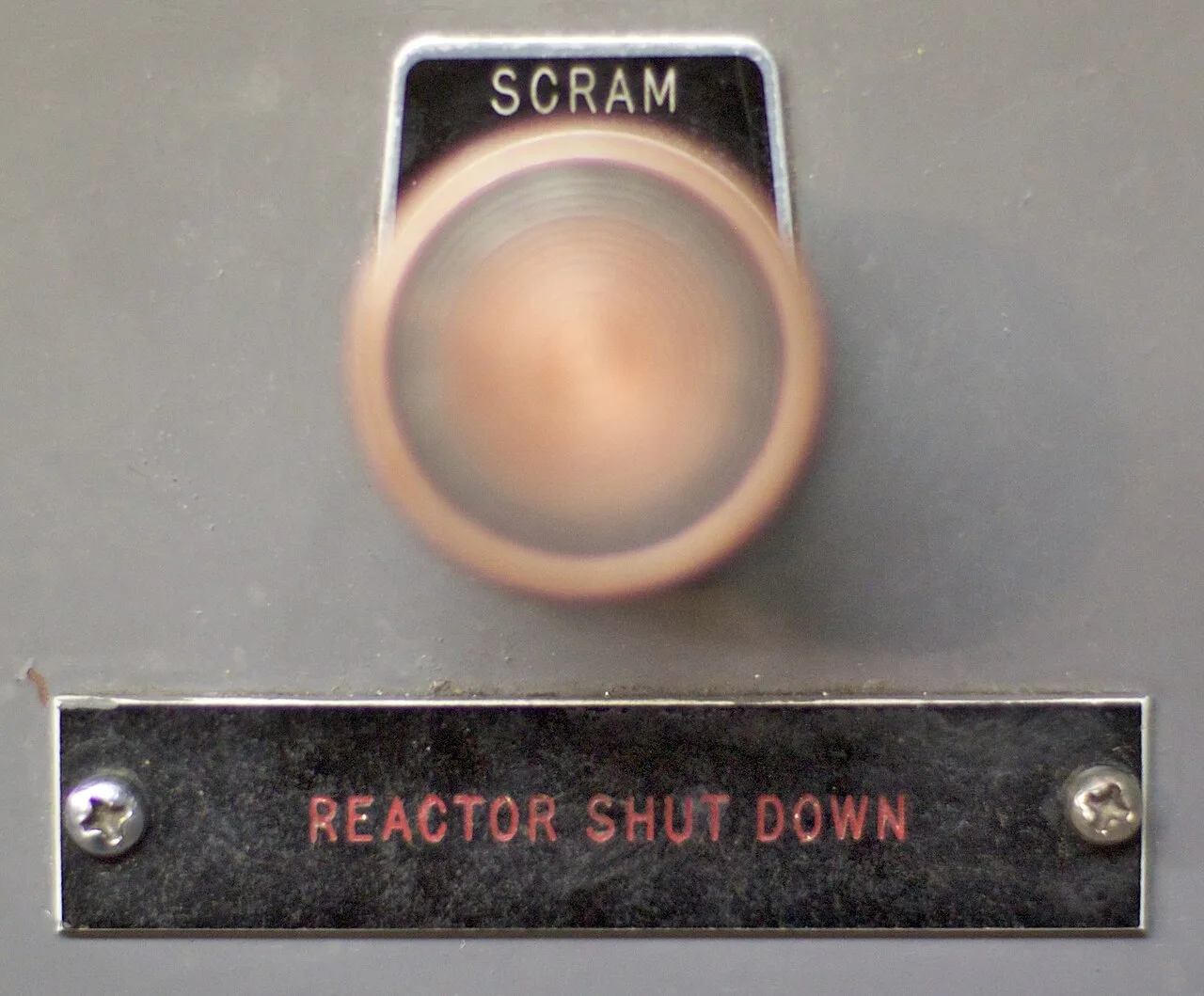

A scram is an emergency shutdown mechanism for a nuclear reactor, designed to terminate the fission reaction rapidly. The term also refers to the manually operated kill switch that initiates this critical safety procedure. This concept is fundamental to nuclear reactor operations, ensuring that the core can be brought to a subcritical state in the event of an anomaly. The primary fuel source for these reactors is uranium, which undergoes fission to generate heat and, subsequently, electricity. The operational status of the scram system is continuously monitored to ensure reliability. The concept was commissioned in 1942, marking a significant milestone in the history of nuclear energy infrastructure. This early development laid the groundwork for modern reactor safety protocols, which are essential for both commercial and research reactors.
Terminology and Usage
In commercial reactor operations, the terminology for an emergency shutdown varies depending on the reactor type. At boiling water reactors, this type of shutdown is commonly referred to as a "scram." In contrast, at pressurized water reactors, the same event is often called a "reactor trip." Despite the difference in nomenclature, the underlying mechanism and purpose remain consistent: to quickly insert control rods or adjust boron concentration to absorb neutrons and halt the chain reaction. This distinction in terminology reflects the specific engineering designs and operational practices associated with each reactor type. Understanding these terms is crucial for engineers, operators, and analysts working in the nuclear energy sector.
Role in Routine Operations
Beyond emergency scenarios, a scram is an integral part of the routine shutdown procedure for many nuclear reactors. This routine use serves to test the emergency shutdown system, ensuring that all components function correctly when needed. By periodically initiating a scram, operators can verify the responsiveness of control rods, the accuracy of neutron flux measurements, and the overall integrity of the safety systems. This proactive approach helps identify potential issues before they escalate into critical failures. The regular testing of the scram system is a key aspect of maintaining high standards of safety and reliability in nuclear power plants. It provides confidence that the reactor can be safely shut down under various operating conditions, thereby minimizing risks to both the plant and the surrounding environment.
Etymology and historical origin
The term "scram" originates from the early days of nuclear reactor operations, specifically referencing the emergency shutdown procedure. While the exact etymology is often debated, one prominent theory suggests it is an acronym for "Safety Control Rod Axe Man." This refers to the personnel responsible for manually dropping control rods into the reactor core to halt the fission reaction in case of an emergency. The term has become synonymous with the rapid termination of the nuclear chain reaction, a critical safety feature in nuclear power plants.
Chicago Pile-1 and the First Scram
The first nuclear reactor, Chicago Pile-1 (CP-1), was commissioned in 1942. During its initial criticality test, the role of Volney Wilson and Norman Hilberry was pivotal. They were designated as the "Safety Control Rod Axe Men," tasked with manually dropping the control rods if the reactor became too active. The control rods were held in place by ropes, and Wilson and Hilberry stood by with axes to cut the ropes, allowing the rods to fall into the core and absorb neutrons, thus slowing down the fission reaction.
This manual intervention was a crucial part of the early reactor design, as it provided a direct and immediate way to control the reactor's power output. The success of the CP-1 test demonstrated the feasibility of a self-sustaining nuclear chain reaction, marking a significant milestone in the history of nuclear energy. The term "scram" has since been adopted to describe similar emergency shutdown procedures in various types of nuclear reactors, including boiling water reactors and pressurized water reactors.
How does a scram mechanism work?
A scram functions by rapidly inserting neutron-absorbing control rods into the reactor core to terminate the fission chain reaction. This process relies on gravity, hydraulics, or electromagnetism to overcome the upward flow of coolant or the weight of the rods. The speed of insertion is critical to reducing reactor power within seconds, minimizing heat generation during an emergency.
| Feature | Pressurized Water Reactor (PWR) | Boiling Water Reactor (BWR) |
|---|---|---|
| Control Rod Direction | Top-down insertion | Bottom-up insertion |
| Primary Driving Force | Gravity and hydraulic pressure | Hydraulic pressure (water flow) |
| Electromagnetic Role | Holds rods up; failure releases them | Opens valves to allow water flow |
| Terminology | Often called "Reactor Trip" | Commonly called "Scram" |
PWR Mechanism
In pressurized water reactors, control rods are suspended from the top of the core. Electromagnetic clutches or hydraulic jacks hold the rods against gravity. During a scram, the power to these holding mechanisms is cut or hydraulic pressure is released. The rods fall into the core under gravity, absorbing neutrons. The insertion time is typically around two to three seconds. This top-down design ensures that if the drive mechanism fails, gravity naturally drives the rods into the core, providing a fail-safe shutdown.
BWR Mechanism
In boiling water reactors, control rods enter from the bottom of the core. They are driven upward by the pressure of the reactor water. During a scram, valves open to allow water to push the rods into the core. The upward flow of water also helps to cool the rods as they insert. This bottom-up insertion is slower than gravity-driven PWR rods but is effective due to the high pressure of the water. The term "scram" is more commonly used for BWRs, while PWR operators often refer to the event as a "reactor trip."
What are the secondary shutdown systems?
While control rods constitute the primary mechanism for effecting a scram, secondary and tertiary shutdown systems provide critical redundancy in nuclear reactor operations. These systems are designed to terminate the fission reaction by introducing additional neutron absorbers into the core, ensuring safety even if the primary rod-driven mechanisms fail or require supplementation for long-term stability. The specific implementation of these secondary systems varies significantly between reactor types, particularly between pressurized water reactors (PWRs) and boiling water reactors (BWRs).
Liquid Neutron Absorbers
In many reactor designs, liquid neutron absorbers are used to supplement or replace control rods during a shutdown. Borax, typically in the form of boric acid dissolved in the reactor coolant, is a common neutron absorber. In PWRs, boric acid is often added to the primary coolant loop to adjust reactivity over the fuel cycle. During a scram, if the control rods insert fully, the concentration of boron can be increased further to provide a negative reactivity margin. This method allows for a more gradual and controllable shutdown compared to the rapid insertion of rods.
Gadolinium is another effective neutron absorber used in nuclear fuels. It is often burned into the fuel pellets as a burnable poison, which helps to flatten the power distribution across the core. In some reactor designs, gadolinium is also used in solution form, similar to borax, to provide additional reactivity control. The use of gadolinium is particularly beneficial in reactors with high fuel enrichment, where the neutron flux is higher, and more precise control is required.
Accumulators in PWRs and BWRs
In PWRs, accumulators play a crucial role in the secondary shutdown system. These are pressurized tanks containing borated water, which are connected to the reactor core. When a scram is initiated, the pressure in the primary coolant loop drops, causing the borated water from the accumulators to be injected into the core. This injection provides a rapid increase in neutron absorption, helping to terminate the fission reaction quickly. The use of accumulators ensures that the shutdown system remains effective even if the primary coolant pumps fail.
In BWRs, the secondary shutdown system often relies on jet pumps and control rod drive mechanisms. However, in some designs, accumulators are also used to inject borated water into the core. This is particularly important in cases where the control rods fail to insert fully or where additional reactivity control is needed. The injection of borated water from accumulators helps to ensure that the reactor remains in a subcritical state, preventing a power surge and maintaining core stability.
The integration of these secondary shutdown systems is essential for the overall safety of nuclear reactors. They provide multiple layers of defense against potential failures in the primary control rod mechanisms, ensuring that the fission reaction can be terminated effectively under a variety of operational conditions. The use of liquid neutron absorbers and accumulators is a testament to the robustness of nuclear reactor design, where redundancy and diversity are key principles in achieving high levels of safety.
Reactor response and physics
A scram terminates the fission chain reaction by rapidly inserting strong neutron absorbers into the core, reducing the neutron population and thus the thermal power output. The effectiveness of this maneuver depends on the kinetics of the neutrons driving the reaction. In a nuclear reactor, neutrons are classified as prompt or delayed. Prompt neutrons are emitted almost instantaneously (< 10⁻⁴ seconds) following fission, while delayed neutrons are emitted by fission product precursors over a longer timeframe (seconds to minutes). Although delayed neutrons constitute a small fraction of the total neutron population (approximately 0.65% for Uranium-235), they are critical for controllable reactor operation. A scram must introduce sufficient negative reactivity to make the reactor "prompt subcritical," meaning the multiplication factor for prompt neutrons alone drops below one, allowing the delayed neutrons to govern the decay of power.
RBMK Design Flaws
Specific design characteristics of the RBMK (Reactor Bolshevik Large Canal) type, notably those at Chernobyl and Ignalina, introduced significant vulnerabilities during a scram sequence. The RBMK utilized graphite as a moderator and water as a coolant, resulting in a positive void coefficient of reactivity. This means that as the coolant water turned to steam (voids), the neutron absorption decreased, and reactivity increased. During a scram, control rods made of graphite-tipped boron carbide were inserted from the bottom of the core. Initially, the graphite tips displaced the neutron-absorbing water before the boron carbide absorbers entered the core. This displacement caused a transient spike in reactivity at the bottom of the core, temporarily increasing the neutron flux and power output rather than immediately suppressing it.
This "positive scram" effect, combined with the positive void coefficient, meant that under certain low-power, high-temperature conditions, the insertion of control rods could paradoxically accelerate the fission reaction for a brief period. This physical flaw was a primary contributor to the power surge observed during the Chernobyl accident, where the scram mechanism, intended as the ultimate safety backup, initially exacerbated the reactivity insertion before the boron absorbers fully engaged to terminate the chain reaction.
What is decay heat and why does it matter?
Following a scram, the fission chain reaction is terminated, but the reactor core does not immediately cool down. This residual thermal energy is known as decay heat, resulting from the radioactive decay of fission products within the fuel. Decay heat persists long after the control rods have been inserted, requiring continuous cooling to prevent fuel cladding failure and potential core meltdown.
Decay Heat Magnitude
The magnitude of decay heat is significant relative to the reactor's steady-state power output. Immediately following a scram, decay heat typically accounts for approximately 7% of the reactor's nominal thermal power. This percentage gradually decreases over time as shorter-lived isotopes decay, but the heat generation remains substantial for hours and even days. For a large commercial reactor, 7% of steady-state power can equate to hundreds of megawatts of thermal energy that must be removed from the core.
Role in Nuclear Accidents
Decay heat management is critical in nuclear reactor safety, as demonstrated by major accidents. At the Three Mile Island Nuclear Generating Station, the loss of coolant system pressure and subsequent steam generator issues led to partial core exposure. The decay heat, though reduced from full power, was sufficient to melt a significant portion of the core due to inadequate cooling.
The Fukushima Daiichi nuclear disaster further highlighted the importance of decay heat. Following the earthquake and tsunami, the primary cooling systems were lost, and the diesel generators failed. The decay heat continued to warm the fuel rods, leading to steam buildup, hydrogen explosions, and core meltdowns in multiple reactor units. The persistence of decay heat meant that even after the initial fission reaction was stopped, the reactors required active cooling for an extended period.
Understanding and managing decay heat is essential for reactor design and operational procedures. It dictates the requirements for emergency core cooling systems, passive cooling mechanisms, and the duration of post-shutdown monitoring. Failure to adequately remove decay heat can lead to fuel cladding oxidation, zirconium-steam reactions, and the release of radioactive isotopes into the containment building and potentially the environment.
Worked examples
The term "scram" describes the emergency shutdown of a nuclear reactor by terminating the fission reaction. In commercial operations, this is often called a "reactor trip" at pressurized water reactors and a "scram" at boiling water reactors. A scram is also the name of the manually operated kill switch that initiates the shutdown. In many cases, a scram is part of the routine shutdown procedure which serves to test the emergency shutdown system.
Example 1: Routine Test Scram
In a typical light-water reactor, a routine test scram is initiated to verify the emergency shutdown system. The operator manually activates the kill switch, which is also known as a scram. This action terminates the fission reaction, effectively shutting down the reactor. This procedure is part of the routine shutdown process, ensuring the system is operational.
Example 2: Commercial Reactor Trip
At a pressurized water reactor, an emergency shutdown is often referred to as a "reactor trip". When a trip is initiated, the fission reaction is terminated, resulting in an emergency shutdown of the nuclear reactor. This process is identical to a scram at a boiling water reactor, where the manually operated kill switch initiates the shutdown.
Example 3: Boiling Water Reactor Scram
The operator uses the manually operated kill switch to initiate the shutdown, terminating the fission reaction. This action effects an emergency shutdown of the nuclear reactor, consistent with the definition of a scram.
Applications in fusion and other reactor types
While the term "scram" is most commonly associated with fission reactors, the concept of an emergency shutdown is also critical in fusion energy research and various other reactor configurations. In magnetic confinement fusion devices, such as tokamaks and stellarators, the equivalent event is often referred to as a "plasma discharge" or "plasma quench." Unlike fission, where the primary concern is the rapid insertion of neutron-absorbing control rods to halt the chain reaction, fusion shutdowns focus on the rapid removal or disruption of the plasma state to terminate the fusion reaction. This process involves manipulating the magnetic fields or introducing impurities to cool the plasma, effectively stopping the fusion of deuterium and tritium nuclei.
Plasma Disruption in Fusion
In fusion reactors, a "scram" or plasma disruption occurs when the stability of the plasma is lost, leading to a rapid loss of energy. This can be triggered by magnetic field fluctuations, thermal instabilities, or the introduction of a "massive gas injection" (MGI) system, which floods the plasma with noble gases like argon or neon to increase radiative cooling. The energy release during a plasma disruption is primarily thermal and kinetic, rather than the neutron flux seen in fission scrams. The equation for the fusion power density, Pfusion=n1n2⟨σv⟩Efusion, highlights that reducing the plasma density (n1,n2) or temperature (affecting ⟨σv⟩) rapidly decreases power output. This mechanism is essential for protecting the first wall and divertor plates from thermal overload during unexpected operational shifts.
Other Reactor Types
In pressurized water reactors (PWRs), the term "reactor trip" is often preferred over "scram," though the mechanical action remains similar: control rods are dropped into the core to absorb neutrons. Boiling water reactors (BWRs) frequently use the term "scram," involving the injection of boron or the insertion of control rods. In fast breeder reactors, the shutdown mechanism may involve the insertion of control blades or the adjustment of sodium coolant flow, depending on the specific design. Each reactor type has unique characteristics that influence the speed and method of the emergency shutdown, but the fundamental goal remains the same: to terminate the nuclear reaction and bring the reactor to a subcritical state to prevent overheating and potential fuel damage.
