Overview
A boiling water reactor (BWR) is a type of nuclear reactor used for the generation of electrical power. It is the second most common type of electricity-generating nuclear reactor after the pressurized water reactor (PWR). The primary fuel source for these systems is uranium. The operational status of the technology is currently operational, with major industry participants including GE Vernova Hitachi Nuclear Energy.
Operating Principle
The fundamental operating principle of a BWR involves a single-loop system where water serves as both the coolant and the working fluid. In this configuration, water circulates through the reactor core, where it is heated by the fission of uranium fuel. Unlike other designs that require a separate steam generator, the BWR allows the water to boil directly within the reactor vessel. This process generates steam that rises directly to the turbine hall, driving the turbine to produce electricity. This direct cycle simplifies the plant layout compared to more complex multi-loop systems.
Comparison to Pressurized Water Reactors
The primary distinction between a BWR and a pressurized water reactor (PWR) lies in the steam generation process. In a PWR, the primary coolant is kept under high pressure to prevent boiling, requiring a secondary loop and steam generators to transfer heat to the turbine. In contrast, the BWR operates at a lower pressure, allowing for direct steam generation. This single-loop design means that the steam driving the turbine in a BWR is in direct contact with the reactor core, which influences the radiation profile of the turbine hall and the overall plant architecture.
Safety and Statistics
As the second most common type of electricity-generating nuclear reactor, BWRs have a substantial operational history. The technology has been widely deployed globally, contributing significantly to the nuclear energy mix. Safety statistics for BWRs reflect the maturity of the design, with continuous improvements in core design and containment structures over decades of operation. The direct cycle design presents unique safety considerations, particularly regarding the management of radioactive steam in the turbine system, but these have been effectively addressed through engineering solutions implemented by operators such as GE Vernova Hitachi Nuclear Energy.
How does a boiling water reactor work?
A boiling water reactor (BWR) operates on a direct-cycle thermodynamic principle where the primary coolant serves as the working fluid for the turbine. Unlike pressurized water reactors, the BWR core operates at a lower pressure, allowing the water to boil directly within the reactor vessel. The core, fueled by uranium, generates heat that converts the surrounding water into a steam-water mixture. This mixture rises through the core and enters the upper plenum of the reactor vessel.
Steam Separation and Drying
Upon exiting the core, the two-phase mixture passes through a series of moisture separators and dryers located in the upper section of the reactor vessel. These components are critical for removing residual water droplets from the steam. The separators utilize centrifugal force to direct water downward, while the dryers further refine the steam quality. This process ensures that the steam reaching the turbine is predominantly dry, minimizing blade erosion and improving thermal efficiency. The separated water, known as recirculated water, returns to the core to maintain the coolant inventory.
Turbine and Condenser Systems
The high-quality steam exits the reactor vessel through steam dryers and flows into the main steam lines, driving the turbine generator set. As the steam expands through the turbine blades, it converts thermal energy into mechanical energy, which is then transformed into electricity by the generator. After passing through the turbine, the exhaust steam enters the condenser. In the condenser, cooling water from an external source (such as a river or cooling tower) absorbs the latent heat of the steam, converting it back into liquid water, known as condensate.
Feedwater and Recirculation
The condensate is then pumped back into the reactor system via the feedwater system. Feedwater heaters may preheat the water using extracted steam from the turbine stages, enhancing overall cycle efficiency. The feedwater is injected into the lower plenum of the reactor vessel, where it mixes with the recirculated water from the separators. This combined flow is driven through the core by recirculation pumps, which control the flow rate and, consequently, the quality of the steam generated. The recirculation flow rate is a key operational parameter, influencing the reactor's power output and stability.
| Parameter | Typical Value |
|---|---|
| Core Pressure | ~7 MPa (70 bar) |
| Steam Temperature | ~280–290 °C |
| Recirculation Flow Rate | Variable (controlled by pumps) |
| Thermal Efficiency | ~33–35% |
The BWR design eliminates the need for large steam generators and pressurizers found in PWRs, simplifying the primary loop. However, because the primary coolant passes directly through the turbine, the turbine hall may require additional shielding to manage radiation levels from activated corrosion products. The operational status of BWRs is generally stable, with many units remaining operational globally, often operated by entities such as GE Vernova Hitachi Nuclear Energy. The direct cycle offers advantages in simplicity and cost, while the recirculation system provides flexible control over reactor power output.
Reactor control and safety systems
Control of power output in a boiling water reactor (BWR) relies on two primary mechanisms: control rod insertion and recirculation flow control. Unlike pressurized water reactors (PWRs), where control rods enter from the top, BWR control rods are inserted from the bottom of the core. This bottom-entry design ensures that in the event of a control rod drive mechanism failure, gravity will cause the rods to fall out of the core, increasing reactivity. To insert the rods into the core, they are lifted against the flow of water and steam. This design choice impacts the reactor's behavior during a loss of coolant accident, as the initial withdrawal of rods can cause a temporary power spike (per standard BWR operational characteristics).
Recirculation Flow and Void Coefficient
Power is also regulated by adjusting the flow rate of the coolant through the core using large recirculation pumps. Increasing the flow rate pushes more water through the core, reducing the amount of steam (voids) present. Since steam is less effective at moderating neutrons than liquid water, reducing voids increases reactivity. This relationship is defined by the negative void coefficient. The negative void coefficient is a key safety feature: if power increases, more steam bubbles form, which reduces moderation and thus reduces power, creating a self-stabilizing effect. The reactivity change can be conceptually represented as αv=ΔαΔρ, where Δρ is the change in reactivity and Δα is the change in void fraction.
Emergency Core Cooling Systems (ECCS)
The Emergency Core Cooling Systems (ECCS) are designed to remove decay heat from the nuclear fuel in the event of a loss of coolant accident (LOCA). The ECCS in a BWR typically includes high-pressure injection pumps and low-pressure injection tanks. These systems inject borated water into the pressure vessel to maintain coverage of the core and absorb neutrons. The following table outlines key safety functions and associated systems in a typical BWR design.
| Safety Function | Primary System Component | Description |
|---|---|---|
| Reactivity Control | Control Rod Drive Mechanisms | Bottom-entry rods for gravity-driven shutdown insertion. |
| Coolant Inventory Maintenance | Recirculation Pumps | Maintain flow rate to control void fraction and heat removal. |
| Decay Heat Removal | Emergency Core Cooling System (ECCS) | High and low-pressure injection to cover fuel during LOCA. |
| Pressure Suppression | Moisture Separator and Dryer | Reduces steam quality before entering the turbine. |
These systems work in concert to ensure that the fuel temperature remains within design limits, preventing cladding failure and the release of fission products. The integration of the negative void coefficient with the ECCS provides a robust defense-in-depth strategy for BWR operational safety (per standard nuclear engineering principles).
History and development of BWR technology
The development of the boiling water reactor (BWR) technology originated primarily through research at the Argonne National Laboratory and subsequent commercialization by General Electric (GE), now part of GE Vernova Hitachi Nuclear Energy. The foundational experimental work was conducted during the BORAX (Boiling Water Reactor Experimental) series of experiments, which demonstrated the feasibility of using water as both the coolant and the moderator in a nuclear fission system. These early tests established the core thermodynamic principles that define the BWR design, distinguishing it from the pressurized water reactor (PWR) by eliminating the need for separate steam generators.
Evolution of BWR Generations
General Electric systematically refined the BWR design through a series of standardized generations, evolving from the initial BWR/1 to the more advanced BWR/6. Each generation introduced improvements in core design, control rod mechanisms, and containment structures to enhance operational efficiency and safety margins. The progression of these models reflects decades of engineering optimization aimed at reducing construction costs and improving thermal performance.
| Generation | Key Characteristics | Typical Containment Type |
|---|---|---|
| BWR/1 | Initial commercial design; direct cycle steam production | Direct Cycle Containment (Mark I) |
| BWR/2 | Refined core geometry; improved control rod drive mechanisms | Direct Cycle Containment (Mark I) |
| BWR/3 | Enhanced steam dryer; optimized turbine hall layout | Direct Cycle Containment (Mark I) |
| BWR/4 | Increased thermal output; advanced fuel assembly design | Direct Cycle Containment (Mark I) |
| BWR/5 | Standardized components; improved maintainability | Direct Cycle Containment (Mark I) |
| BWR/6 | High efficiency; advanced digital instrumentation | Direct Cycle Containment (Mark I) |

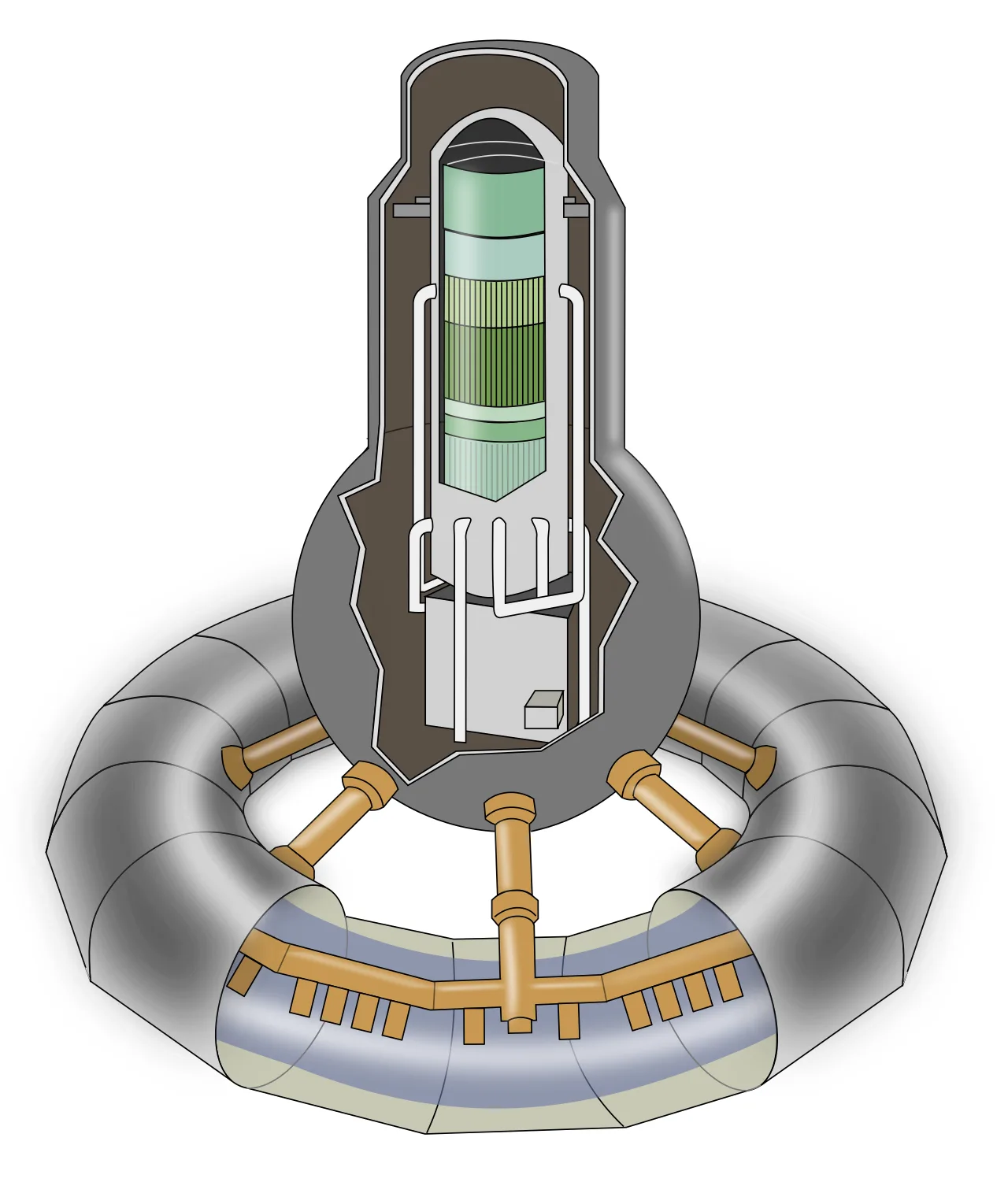

The containment systems used in these reactors, such as the Mark I direct cycle containment, are integral to the BWR's safety profile. These structures are designed to withstand pressure transients and contain radioactive steam in the event of a loss-of-coolant accident. The consistent use of direct cycle containment across these generations highlights the technological continuity within the BWR family, allowing for standardized maintenance procedures and operational protocols. This evolutionary path has solidified the BWR's position as a major type of electricity-generating nuclear reactor globally.
Advanced and simplified BWR designs
Advanced Boiling Water Reactor (ABWR) designs represent a significant evolution in nuclear technology, emphasizing enhanced safety and operational efficiency. These reactors incorporate passive safety systems that rely on natural forces such as gravity and convection to cool the core during accidents, reducing reliance on active mechanical components. The ABWR design was developed to address the limitations of earlier BWR models, offering improved thermal-hydraulic performance and standardized construction processes.
Standardization and Simplification in BWR Designs
The Simplified Boiling Water Reactor (SBWR) and the Economic Simplified Boiling Water Reactor (ESBWR) further refine the BWR concept by integrating modular construction techniques and reducing the number of components required for operation. These designs aim to lower capital costs and shorten construction timelines through the use of pre-fabricated modules and streamlined engineering solutions. The ESBWR, in particular, is recognized for its passive safety features, which include a passive residual heat removal system and a containment building designed to withstand severe accident conditions without external power sources.
Standardization is a key feature of advanced BWR designs, enabling manufacturers to produce reactors with consistent specifications and performance metrics. This approach facilitates easier maintenance, reduces training requirements for operators, and enhances the scalability of nuclear power projects. The integration of digital instrumentation and control systems further improves operational flexibility and reliability, allowing for real-time monitoring and adjustment of reactor parameters.
The development of these advanced designs reflects the industry's focus on enhancing safety, reducing costs, and improving the overall efficiency of nuclear power generation. By leveraging passive safety systems and standardized construction methods, ABWR, SBWR, and ESBWR designs offer a compelling alternative to traditional reactor models, positioning them as key players in the future of nuclear energy.
What are the advantages and disadvantages of BWRs?
Boiling water reactors (BWRs) and pressurized water reactors (PWRs) represent the two dominant designs for light-water nuclear power generation. Both utilize uranium fuel and ordinary water as both coolant and moderator, yet their thermodynamic and structural configurations differ significantly. The BWR design is characterized by a single-loop system where water boils directly in the reactor core, producing steam that drives the turbine. In contrast, PWRs employ a two-loop system with a separate primary circuit kept under high pressure to prevent boiling, transferring heat to a secondary circuit via steam generators.
Comparative Analysis
The primary advantage of the BWR is its relative simplicity. By eliminating the need for large, expensive steam generators and the complex primary loop piping found in PWRs, BWRs often feature a more compact reactor vessel and potentially lower initial capital costs. The direct cycle means the turbine and steam dome are located directly above the core, streamlining the steam path. However, this direct contact introduces radioactivity into the secondary loop. As water boils in the core, small amounts of activated corrosion products and fission gases (such as xenon-135) carry over into the steam, meaning the turbine hall and feedwater systems require more extensive shielding compared to the largely non-radioactive secondary side of a PWR.
Conversely, PWRs offer superior containment of radioactivity. The primary loop remains under high pressure (typically around 155 bar), keeping the water in a liquid state and confining most radioactive isotopes within the primary circuit. This results in a cleaner turbine hall and easier maintenance access for the secondary-side equipment. However, PWRs are mechanically more complex due to the inclusion of four large steam generators, multiple primary coolant pumps, and pressurizers. This complexity can increase both the initial construction cost and the maintenance requirements for the primary loop components.
| Feature | Boiling Water Reactor (BWR) | Pressurized Water Reactor (PWR) |
|---|---|---|
| Coolant Loop | Single loop (Direct Cycle) | Two loops (Indirect Cycle) |
| Steam Generation | Directly in reactor core | Via steam generators |
| Primary Pressure | Lower (~70-75 bar) | Higher (~155 bar) |
| Radioactivity in Turbine | Higher (Direct steam) | Lower (Secondary loop) |
| Mechanical Complexity | Lower (Fewer major components) | Higher (Steam generators, pressurizer) |
| Fuel Utilization | Uniform flow, potential for axial offset | More uniform axial power distribution |
From a fuel utilization perspective, BWRs typically use shorter fuel assemblies with a higher surface-area-to-volume ratio, allowing for more uniform cooling but potentially requiring more frequent shuffling to manage axial power offsets. PWRs generally have longer fuel assemblies and a more stable axial power profile. Both reactor types achieve similar thermal efficiencies, typically around 33-37%, governed by the Carnot efficiency principle η=1−ThotTcold. The choice between BWR and PWR often depends on specific site conditions, supply chain availability, and operator preference for mechanical simplicity versus radiological isolation.
Operational limits and thermal margins
Boiling water reactors operate within strict thermal-hydraulic boundaries to maintain fuel integrity and prevent the transition from efficient nucleate boiling to less efficient film boiling. These operational limits are defined by specific heat flux and power ratios that govern the behavior of the coolant within the core.
Departure from Nucleate Boiling Ratio
The primary metric for preventing dryout on the fuel rod surface is the Departure from Nucleate Boiling Ratio (DNBR). This parameter compares the actual heat flux on the fuel cladding to the critical heat flux (CHF) at which the liquid film breaks down, allowing steam to insulate the fuel. A DNBR greater than 1.0 indicates nucleate boiling is maintained. The relationship is expressed as:
DNBR = q''_CHF / q''_actual
Where q''_CHF is the critical heat flux and q''_actual is the local heat flux. Maintaining a sufficient DNBR margin ensures that the cladding temperature remains relatively low, preventing rapid oxidation and potential rupture.
Local Power Ratios
Reactor protection systems utilize several local power ratios to monitor core conditions in real-time:
- MFLCPR (Minimum Local Critical Power Ratio): This is the minimum ratio of critical power to local power in the core. It is a key parameter for preventing dryout during normal operation and transients. If MFLCPR drops below a setpoint, the reactor may trip or control rods may be inserted to reduce local power density.
- FLLHGR (First Local Linear Heat Generation Rate): This metric monitors the linear heat generation rate in the fuel rods to ensure that the peak power density does not exceed design limits, which could lead to excessive cladding temperatures.
- APLHGR (Average Power Linear Heat Generation Rate): This parameter tracks the average power per unit length of the fuel rod, providing a broader view of core thermal performance and ensuring that the average fuel temperature remains within safe operating ranges.
- PCIOMR (Power Coefficient of Irradiation Margin Ratio): This ratio assesses the margin against fuel cladding failure due to pellet-clad interaction (PCI). PCI occurs when thermal and mechanical stresses between the fuel pellet and the cladding increase, particularly during power ramps. PCIOMR ensures that the power increase rate does not exceed the cladding's ability to accommodate the expanding fuel pellets.
These metrics collectively ensure that the BWR core operates within a safe thermal envelope, balancing electrical output with the physical limits of the fuel assembly design. The integration of these parameters into the reactor protection system allows for rapid response to thermal-hydraulic changes, maintaining the integrity of the fuel rods and the efficiency of the steam generation process.
