Research in lithium-ion batteries

Overview

Research in lithium-ion batteries encompasses a broad spectrum of proposed refinements aimed at optimizing the performance and applicability of this dominant energy storage technology. The primary objectives of current scientific inquiry focus on enhancing energy density, improving safety profiles, increasing rate capability, extending cycle durability, improving flexibility, and reducing overall cost. These areas of interest represent the critical parameters that determine the viability of lithium-ion cells for diverse applications, ranging from portable electronics to electric vehicles and grid-scale storage systems.

Core Research Objectives

The pursuit of higher energy density remains a central theme in battery research. Increasing the amount of energy stored per unit of mass or volume allows for longer operational times and greater range in mobile applications. Concurrently, safety research addresses the thermal stability and chemical reactivity of battery components, aiming to mitigate risks such as thermal runaway. Rate capability, which defines how quickly a battery can be charged or discharged without significant loss of efficiency, is another key area of focus, particularly important for high-power applications.

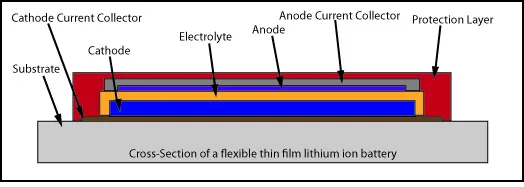

Cycle durability refers to the number of charge-discharge cycles a battery can endure before its capacity degrades significantly. Improving this metric extends the useful lifespan of the battery, thereby reducing the total cost of ownership. Flexibility research explores the mechanical properties of battery components, enabling the development of form factors that can conform to various shapes, which is beneficial for wearable technology and integrated electronic designs. Finally, cost reduction is a critical driver, with research targeting both material costs and manufacturing efficiencies to make lithium-ion technology more accessible across global markets.

What are the main challenges in anode development?

Anode development remains a critical bottleneck in lithium-ion battery research, primarily due to the trade-offs between energy density, cycle life, and interfacial stability. Graphite has served as the dominant anode material for decades, yet its theoretical specific capacity is limited to approximately 372 mAh/g. This limitation arises because graphite forms a staged intercalation compound, LiC₆, where lithium ions insert between graphene layers. While this mechanism offers a stable solid electrolyte interphase (SEI) and low volumetric expansion, the relatively low capacity constrains the overall energy density of the cell. Researchers seek to surpass this limit without sacrificing the structural integrity required for long-term cycling.

Silicon Expansion and Tin Alternatives

Silicon has emerged as a leading candidate to replace or augment graphite due to its significantly higher theoretical capacity of approximately 4200 mAh/g. However, silicon suffers from massive volumetric expansion—up to 300%—during lithiation. This expansion induces mechanical stress, leading to particle cracking and the continuous renewal of the SEI layer, which consumes lithium inventory and electrolyte. Tin also offers a high theoretical capacity of about 960 mAh/g, but it experiences similar expansion issues, though less severe than silicon. Managing these mechanical deformations is essential to prevent electrical isolation of active material and subsequent capacity fade.

Anode Material	Theoretical Capacity (mAh/g)	Primary Challenge
Graphite	372	Low capacity; limited by LiC₆ stoichiometry
Silicon	4200	High volumetric expansion (~300%); SEI instability
Tin	960	Significant expansion; alloying mechanism

Role of SEI Formation

The solid electrolyte interphase (SEI) is a passivation layer formed on the anode surface during the initial cycles. It is crucial for battery performance as it allows lithium-ion transport while blocking electron flow, thereby preventing continuous electrolyte decomposition. In graphite anodes, a stable SEI is vital to prevent co-intercalation of solvent molecules, which can exfoliate the graphite layers. For silicon and tin, the SEI must be mechanically robust to accommodate volume changes. Research focuses on engineering the SEI composition through electrolyte additives and surface coatings to enhance its flexibility and ionic conductivity, thus improving cycle durability and rate capability.

Advanced anode materials and nanostructures

Research into advanced anode materials aims to surpass the theoretical limits of traditional graphite anodes, primarily by leveraging silicon and non-graphitic carbon structures. Silicon offers a significantly higher theoretical specific capacity compared to graphite, making it a leading candidate for next-generation lithium-ion batteries. However, silicon anodes suffer from substantial volume expansion during lithiation, which can lead to mechanical fracture and rapid capacity fading. To mitigate these issues, researchers have developed complex microstructures such as Si@void@C microreactors. In this configuration, silicon nanoparticles are encapsulated within a carbon matrix, with engineered void spaces accommodating the volumetric changes of the silicon during charge and discharge cycles. This encapsulation helps maintain electrical contact and structural integrity, thereby enhancing cycle durability.

Silicon Nanostructures and Porous Silicon

Beyond microreactors, silicon nanowires and porous silicon architectures have been extensively studied to improve rate capability and flexibility. Silicon nanowires provide direct pathways for electron transport and allow for radial expansion, reducing the stress concentration often seen in bulk silicon. Porous silicon structures further enhance this by creating internal voids that buffer the volume expansion, effectively reducing the pulverization of the active material. These nanostructures help address the kinetic limitations of silicon, allowing for faster charging rates without significant loss in energy density. The integration of these nanostructures requires precise control over synthesis methods to ensure uniformity and scalability.

Non-Graphitic Carbon Materials

In addition to silicon, non-graphitic carbon materials such as hard carbon and soft carbon are being explored as alternative anode materials. Hard carbon, characterized by its disordered structure, exhibits a sloping voltage profile and can intercalate lithium ions more effectively at lower potentials compared to graphite. This makes hard carbon particularly suitable for lithium-ion batteries operating at low temperatures or requiring high rate capability. Soft carbon, on the other hand, offers a balance between the ordered structure of graphite and the disorder of hard carbon, providing good cycle life and moderate energy density. These materials are often used in conjunction with silicon or as standalone anodes in specific applications where cost reduction and flexibility are prioritized. The ongoing research focuses on optimizing the microstructure of these carbon materials to maximize their electrochemical performance and integrate them seamlessly into existing battery manufacturing processes.

Cathode innovations and alternative chemistries

Research into lithium-ion battery cathodes focuses on enhancing energy density, safety, and cost-efficiency. Traditional layered oxides are being supplemented by alternative chemistries to address specific performance bottlenecks. Vanadium oxides, disordered materials, sulfur, and lithium-rich compositions represent key areas of investigation.

Vanadium Oxides and Disordered Materials

Vanadium oxides offer structural flexibility and high theoretical capacity. These materials are studied for their ability to accommodate lithium ions with minimal volume expansion. Disordered materials, including disordered rocksalt structures, provide pathways for fast ion diffusion, improving rate capability. These innovations aim to reduce reliance on cobalt and nickel, thereby lowering raw material costs.

Sulfur and Seawater Cathodes

Sulfur cathodes are notable for their high specific capacity and abundance. Sulfur-based systems can significantly increase energy density compared to conventional oxide cathodes. Research also explores seawater cathodes, leveraging the vast availability of lithium in marine environments. These approaches address resource scarcity and potential supply chain disruptions.

Lithium-Rich NMC

Lithium-rich nickel manganese cobalt (NMC) cathodes combine high capacity with improved thermal stability. These materials utilize both cationic and anionic redox reactions to store more energy. Lithium-rich NMC is a leading candidate for next-generation electric vehicles and grid storage.

Cathode Material	Specific Capacity
Vanadium Oxides	Variable
Disordered Materials	Variable
Sulfur	High
Seawater Cathodes	Variable
Lithium-Rich NMC	High

These cathode innovations are critical for advancing lithium-ion battery performance. They address key metrics such as energy density, cycle durability, and cost reduction. Continued research aims to optimize these materials for widespread commercial adoption.

How do electrolyte advancements improve safety?

Electrolyte advancements are central to improving the safety profile of lithium-ion batteries. Traditional liquid electrolytes, typically organic carbonates, are highly flammable and prone to thermal runaway. Research focuses on alternative electrolyte systems that enhance ionic conductivity while suppressing dendrite formation and reducing volatility.

Solid-State and Glassy Electrolytes

Solid-state electrolytes replace liquid counterparts with solid materials, significantly reducing leakage and flammability risks. Glassy electrolytes, such as sulfide-based or oxide-based glasses, offer high ionic conductivity and mechanical stability. These materials can suppress lithium dendrite growth, a primary cause of short circuits. The rigid structure of glassy electrolytes provides a physical barrier that enhances cycle durability and safety under mechanical stress.

Water-in-Salt Electrolytes

Water-in-salt electrolytes utilize highly concentrated salt solutions in water, altering the solvation structure of ions. This concentration reduces the activity of free water molecules, expanding the electrochemical stability window. The result is a non-flammable electrolyte system that maintains high ionic conductivity. This approach addresses the flammability of organic solvents while leveraging the high heat capacity of water, improving thermal management.

Superhalogen Salts

Superhalogen salts involve anions with electron affinity exceeding that of halogen atoms. These salts can enhance the electrochemical stability and ionic conductivity of the electrolyte. By modifying the anion structure, researchers aim to improve the decomposition temperature and reduce volatility. Superhalogen-based electrolytes contribute to safer operation by stabilizing the electrode-electrolyte interface, thereby reducing side reactions that generate heat and gas.

These electrolyte innovations collectively target the core safety challenges of lithium-ion batteries. By reducing flammability, enhancing thermal stability, and suppressing dendrite formation, these advancements support the development of safer, more durable energy storage systems.

Economic factors and repurposing strategies

The economic viability of lithium-ion battery technology is inextricably linked to production scaling, recycling efficiency, and the emergence of second-life applications. As research focuses on reducing cost and improving cycle durability, the industry faces the challenge of translating laboratory refinements into mass-market affordability. Production scaling benefits arise from the economies of scale inherent in manufacturing processes, which help mitigate the high initial capital expenditure required for gigafactories and raw material procurement. However, without strategic repurposing and effective recycling, the cost per kilowatt-hour may remain volatile due to fluctuations in lithium, cobalt, and nickel prices.

Recycling Challenges and Material Recovery

Recycling lithium-ion batteries presents significant technical and economic hurdles. The heterogeneity of battery chemistries and the complexity of cell packaging make automated disassembly difficult. Current recycling methods, such as hydrometallurgy and pyrometallurgy, aim to recover critical raw materials to reduce dependency on primary mining. The efficiency of these processes is often evaluated by the recovery rate of key elements. For instance, the energy balance of recycling can be conceptualized through the net energy gain, where the energy saved by recovering materials (Erecovered) must exceed the energy input required for the recycling process (Einput). If E_{recovered} > E_{input}, the process is energetically favorable. However, the economic return depends on the market price of the recovered metals. Research continues to optimize these pathways to improve safety and rate capability during the recycling phase, ensuring that the environmental footprint is minimized while maintaining material purity for new cells.

Second-Life Applications for EV Batteries

Second-life applications represent a critical strategy for extending the value chain of electric vehicle (EV) batteries. When EV batteries degrade to approximately 70–80% of their original capacity, they may no longer meet the stringent energy density requirements for automotive propulsion but remain highly suitable for stationary energy storage systems. This repurposing strategy leverages the cycle durability and flexibility of lithium-ion cells, allowing them to serve in grid stabilization, renewable energy integration, and residential storage. By utilizing these "used" batteries, the effective cost per kilowatt-hour for stationary storage is reduced, as the initial capital cost is amortized over two distinct life cycles. This approach also enhances safety by managing the thermal and electrical characteristics of aged cells in a more controlled environment compared to the dynamic conditions of an EV. The integration of second-life batteries into the grid supports the increasing share of variable renewables, providing essential rate capability for frequency regulation and peak shaving. Research in this area focuses on advanced battery management systems (BMS) to accurately assess the state of health (SoH) and state of charge (SoC) of repurposed cells, ensuring reliable performance and safety in new configurations.
