Overview
Power-to-X (P2X), also referred to as Power-to-Y (P2Y), encompasses electricity conversion, energy storage, and reconversion pathways derived from surplus renewable energy. These technologies function by linking the power sector to other energy sectors, offering possibilities to exploit synergies across the whole energy system. This integration is central to the concept of sector coupling and fully integrated smart energy systems, where electricity serves as the primary vector for balancing supply and demand across multiple domains.
The operational status of Power-to-X is currently operational, with the concept formally commissioned in 2016. This timeline marks the period where P2X moved from theoretical modeling to practical application in global energy infrastructure. The primary fuel or source for these pathways is mixed, reflecting the diverse nature of renewable inputs such as wind, solar, and hydroelectric power that feed into the conversion processes.
Sector coupling enables the efficient use of surplus renewable energy by converting electricity into other forms of energy carriers. This process helps to address the variability of renewable sources, ensuring that excess power generated during peak production periods is not wasted. Instead, it is stored or converted for later use, enhancing the overall flexibility and resilience of the energy system. Smart energy systems further support this by integrating digital technologies to optimize the flow of energy between different sectors.
The integration of Power-to-X technologies is crucial for achieving a more sustainable and efficient energy landscape. By leveraging the synergies between different energy sectors, these pathways contribute to the reduction of greenhouse gas emissions and the increased utilization of renewable resources. The operational framework of Power-to-X continues to evolve, driven by advancements in technology and the growing demand for integrated energy solutions.
What are the main types of Power-to-X?
Power-to-X (P2X) encompasses a range of conversion pathways that transform surplus renewable electricity into various energy carriers, facilitating sector coupling across power, heat, mobility, and industry. The "X" represents the final energy product, which can be a gas, liquid, solid, or thermal energy. These technologies are critical for storing intermittent renewable generation and decarbonizing hard-to-abate sectors. The primary categories include power-to-gas, power-to-chemicals, power-to-ammonia, power-to-heat, and power-to-food.
Power-to-Gas
Power-to-gas is the most established P2X pathway, primarily producing hydrogen or methane. In power-to-hydrogen, electrolysis splits water into hydrogen and oxygen. The reaction is represented as 2H2O→2H2+O2. The hydrogen can be used directly in fuel cells or industrial processes. In power-to-methane, the hydrogen is combined with carbon dioxide through methanation, often yielding synthetic natural gas (CH4) that can be injected into existing gas grids. This process effectively stores electricity as chemical energy in the form of methane.
Power-to-Chemicals and Ammonia
Power-to-chemicals involves converting electricity into complex hydrocarbons or synthetic fuels. This often builds upon power-to-gas outputs. For instance, the Fischer-Tropsch process can convert hydrogen and carbon monoxide into liquid hydrocarbons like synthetic diesel or kerosene. Power-to-ammonia focuses on producing ammonia (NH3) by combining hydrogen (from electrolysis) with nitrogen (from the air) via the Haber-Bosch process. Ammonia serves as a key fertilizer ingredient and an emerging carbon-free fuel for shipping and power generation.
Power-to-Heat and Food
Power-to-heat utilizes resistive heating or heat pumps to convert electricity directly into thermal energy for buildings or industrial processes. This is often linked to demand response strategies where heating loads are shifted to times of high renewable output. Power-to-food is an emerging concept where electricity drives vertical farming, hydroponics, or even synthetic food production, such as converting hydrogen and carbon dioxide into proteins or lipids, thereby reducing the land and water footprint of agriculture.
Demand Response vs. Electrofuels
A key distinction in P2X is between direct demand response and the creation of electrofuels. Demand response involves using electricity directly to meet energy needs, such as charging electric vehicles (mobility) or operating heat pumps (heating). This is often the most efficient use of surplus power. In contrast, electrofuels (e-fuels) involve converting electricity into chemical carriers like hydrogen, methane, or synthetic liquids. While e-fuels offer greater flexibility in storage and transport, they incur conversion losses, making them essential for sectors where direct electrification is challenging.
How does Power-to-Fuel work?
Power-to-Fuel technologies convert surplus electricity into chemical energy carriers, primarily gases and liquids, enabling long-term storage and sector coupling. The process typically begins with water electrolysis, where direct current splits water molecules into hydrogen and oxygen. This step is fundamental to generating the primary hydrogen feedstock required for subsequent synthesis.
Electrolysis and Methanation
In water electrolysis, the reaction is represented as 2H₂O → 2H₂ + O₂. The resulting hydrogen can be directly utilized or further processed. For methanation, hydrogen reacts with carbon dioxide to produce methane, a process often described by the Sabatier reaction: CO₂ + 4H₂ → CH₄ + 2H₂O. This synthetic methane can be injected into existing natural gas grids or used as a direct fuel source.
Conversion to Methanol
Alternatively, hydrogen and carbon dioxide can be converted into methanol. The synthesis reaction is CO₂ + 3H₂ → CH₃OH + H₂O. Methanol serves as a versatile liquid fuel and chemical feedstock, offering higher energy density than hydrogen and easier storage than compressed gas. These pathways allow renewable energy to be stored chemically, reducing curtailment and enhancing grid flexibility.
| Process Step | Description | Key Reaction |
|---|---|---|
| Electrolysis | Splitting water into hydrogen and oxygen using DC power | 2H₂O → 2H₂ + O₂ |
| Methanation | Combining hydrogen and CO₂ to form methane | CO₂ + 4H₂ → CH₄ + 2H₂O |
| Methanol Synthesis | Converting hydrogen and CO₂ into liquid methanol | CO₂ + 3H₂ → CH₃OH + H₂O |
Efficiency varies by technology and operating conditions. Electrolysis efficiency typically ranges from 60% to 80%, while methanation and methanol synthesis add further conversion losses. Integrating these steps allows for the effective utilization of intermittent renewable sources, such as wind and solar, by converting excess power into stable fuel forms. This integration supports the broader energy transition by linking electricity generation with heating, transport, and industrial sectors.
Storage and Reconversion of Power-to-Fuel
Power-to-X pathways facilitate the conversion of surplus renewable electricity into storable chemical fuels, primarily hydrogen and methane, enabling long-term energy storage and sector coupling. Electrolysis splits water into hydrogen and oxygen, with the hydrogen serving as a primary energy carrier or a chemical feedstock. When hydrogen is combined with captured carbon dioxide via the Sabatier reaction, synthetic methane (power-to-gas) is produced, allowing integration into existing natural gas infrastructure. This reconversion process transforms electrical energy back into thermal or mechanical energy, bridging the gap between variable renewable generation and demand.
Reconversion Technologies and Efficiency
The reconversion of stored chemical energy back into electricity involves technologies such as fuel cells and gas turbines. Fuel cells, particularly proton exchange membrane (PEM) and solid oxide fuel cells (SOFC), offer high efficiency by directly converting chemical energy into electricity. Gas turbines, often used in combined heat and power (CHP) configurations, provide flexibility and scalability. However, the round-trip efficiency of power-to-X systems is inherently lower than that of battery storage. Typical round-trip efficiencies for power-to-hydrogen and power-to-methane pathways range from 35% to 50%. This efficiency loss is attributed to multiple conversion stages: electrolysis, compression, storage, and reconversion. For instance, the efficiency ηrt can be approximated as the product of individual stage efficiencies: ηrt=ηelec×ηcomp×ηstor×ηreconv.
Economic Comparison with Battery Storage
While battery energy storage systems (BESS) offer higher round-trip efficiencies (often 80–90%), their cost-effectiveness diminishes over longer durations due to capital expenditure (CAPEX) scaling. Power-to-X fuels, particularly hydrogen and methane, provide significant advantages for seasonal storage, where energy needs to be retained for weeks or months. The energy density of liquid hydrogen and compressed natural gas allows for compact storage solutions compared to the volumetric requirements of large-scale battery arrays. Although the initial conversion losses are higher, the ability to leverage existing gas infrastructure and the lower cost per kilowatt-hour for long-duration storage make power-to-X a compelling option for balancing renewable energy grids, especially in regions with high wind or solar penetration.
Power-to-Heat Systems and Efficiency
Power-to-Heat (P2H) systems convert surplus renewable electricity into thermal energy, serving as a critical component of sector coupling. These systems integrate with traditional heating infrastructure, utilizing heat accumulators and district heating networks to balance supply and demand. The primary technologies for P2H are electric resistance heating and heat pumps, each offering distinct efficiency profiles and operational characteristics.
Efficiency Comparisons
Electric resistance heating offers a straightforward conversion process with unity efficiency. The electrical energy input is directly converted into thermal output, resulting in a Coefficient of Performance (COP) of approximately 1. This simplicity makes resistance heating ideal for high-temperature applications and as a backup source in hybrid systems. The efficiency can be expressed as:
COP_resistance = Q_out / E_in ≈ 1
Heat pumps, on the other hand, achieve higher efficiencies by extracting ambient thermal energy from air, water, or ground sources. Typical COP values for heat pumps range from 2 to 5, depending on the temperature difference between the heat source and the heating load. The efficiency of a heat pump is defined as:
COP_heat_pump = Q_out / E_in = (Q_source + W_input) / W_input
Where Q_out is the thermal energy output, E_in (or W_input) is the electrical energy input, and Q_source is the thermal energy extracted from the ambient source.
Large-Scale District Heating Applications
Large-scale heat pumps are increasingly deployed in district heating networks to leverage excess renewable electricity. These systems can handle significant thermal loads, making them suitable for urban areas with high heating demands. For example, hybrid systems combining heat pumps with traditional boilers or waste heat recovery units can optimize energy use and reduce carbon emissions. The integration of heat accumulators allows for temporal shifting of heat production, enabling the use of surplus renewable energy during peak generation periods.
The deployment of Power-to-Heat systems supports the transition to fully integrated smart energy systems by enhancing the flexibility and resilience of the thermal sector. By efficiently converting and storing renewable electricity, P2H technologies contribute to the overall decarbonization of the energy landscape.
Power-to-Mobility and Electric Vehicles
Power-to-mobility represents a critical vector within the broader Power-to-X framework, focusing on the electrification of transport to facilitate sector coupling. This pathway primarily involves Battery Electric Vehicles (BEVs), which act as mobile energy storage units that draw surplus renewable electricity from the power grid. By integrating BEVs into the energy system, the mobility sector transitions from a passive consumer to an active participant in grid balancing and energy reconversion.
Charging Flexibility and Grid Integration
A key advantage of BEVs in Power-to-Mobility systems is their inherent flexibility regarding charging times. Unlike immediate consumption in lighting or heating, electric vehicles can often tolerate delayed charging without impacting usability. This allows for shifted charging windows, typically spanning 8 to 12 hours, with an average charging duration of approximately 90 minutes. Such flexibility enables grid operators to align EV charging with peaks in renewable generation, such as midday solar output or nighttime wind surges, thereby smoothing out the variability of renewable sources.
Vehicle-to-Grid (V2G) Dynamics
Beyond simple charging, Vehicle-to-Grid (V2G) technology enables bidirectional energy flow, allowing BEVs to discharge stored energy back into the grid during periods of high demand or low renewable output. This reconversion pathway enhances grid stability and provides ancillary services like frequency regulation. However, V2G implementation introduces considerations regarding battery wear. Frequent charge and discharge cycles can accelerate battery degradation, impacting the long-term capacity and lifespan of the vehicle's battery pack. The economic viability of V2G thus depends on balancing the revenue from grid services against the accelerated depreciation of the battery asset.
Technical Considerations
The efficiency of Power-to-Mobility pathways is influenced by conversion losses at each stage: from electrical generation to battery storage, and from battery to mechanical motion or back to the grid. While specific efficiency values vary by technology and operational conditions, the overall round-trip efficiency is a critical metric for assessing the role of BEVs in integrated smart energy systems. The integration of BEVs into the grid requires advanced charging infrastructure, smart meters, and potentially dynamic pricing models to incentivize optimal charging behavior.
Impact and Sector Coupling

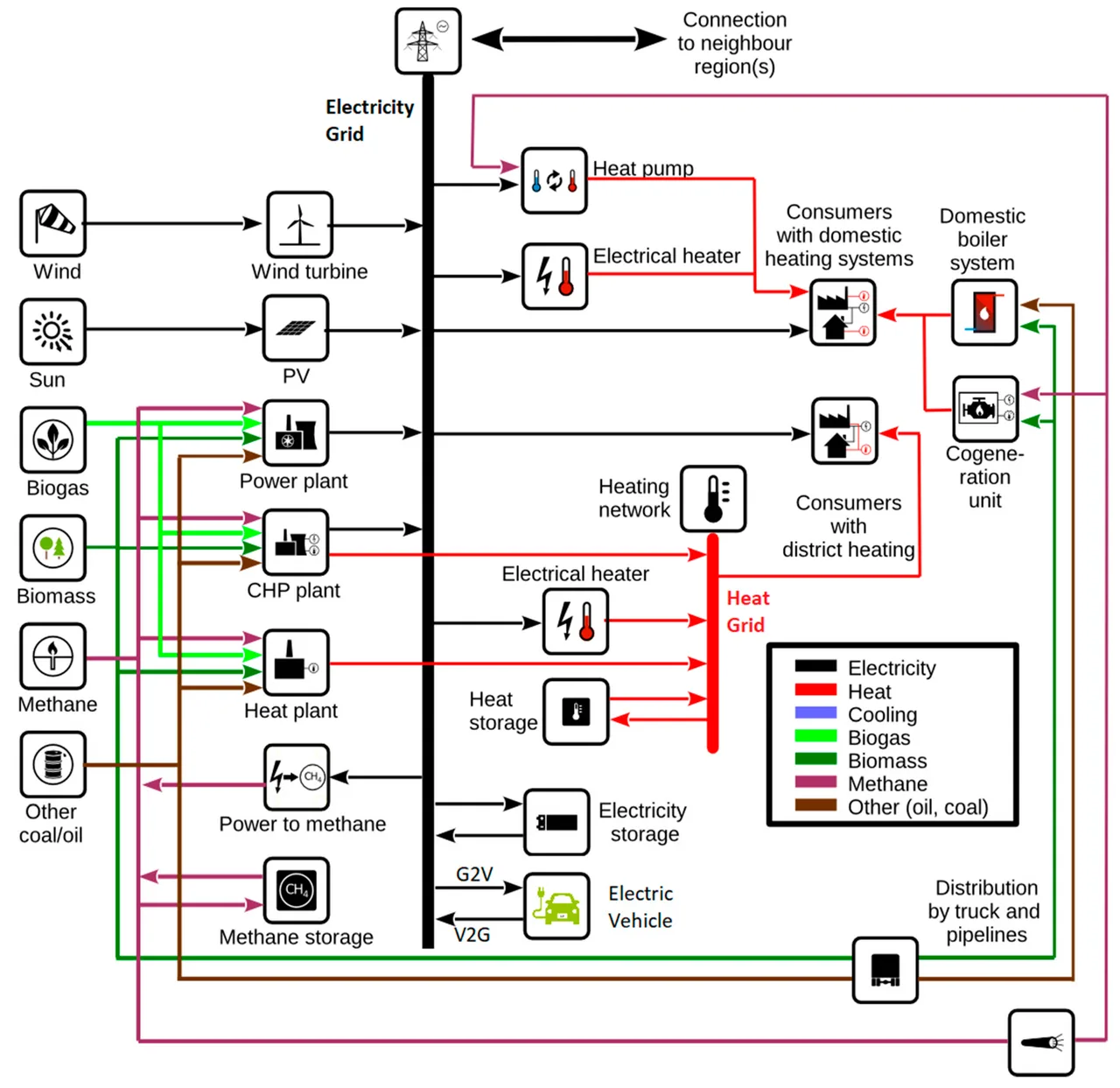

Sector coupling relies heavily on digitalisation and automation to manage the flow of surplus renewable energy across different sectors. These systems integrate power generation with storage and reconversion pathways, creating fully integrated smart energy networks. The automation required allows for the exploitation of synergies across the whole energy system, linking the power sector to other energy domains. This integration is essential for managing variable inputs and ensuring efficient conversion processes.
Japan’s Renewable Energy Study
A 2023 study examined Japan's highly-renewable future energy system, highlighting the role of power-to-X technologies. The research focused on conversion pathways such as Fischer–Tropsch and Haber–Bosch synthesis. These technologies enable the conversion of electricity into liquid and gaseous fuels, facilitating energy storage and reconversion. The study indicated that these pathways could significantly reduce curtailment, with potential reductions of 80% or more. This finding underscores the importance of power-to-X in managing surplus renewable energy and enhancing grid stability.
The integration of these technologies supports the concept of sector coupling, allowing for a more flexible and resilient energy system. By converting excess electricity into various forms of energy, the system can better accommodate the variability of renewable sources. This approach not only reduces waste but also enhances the overall efficiency of the energy infrastructure. The study's findings provide valuable insights into the potential of power-to-X in achieving a highly-renewable energy future.
History and Research Initiatives
Power-to-X (PtX) represents a strategic framework for electricity conversion, energy storage, and reconversion pathways designed to utilize surplus renewable energy. By linking the power sector to other energy sectors, PtX technologies offer the possibilities to exploit synergies across the whole energy system as intended with the concept of sector coupling and fully integrated smart energy systems. The operational status of Power-to-X is currently operational, with the concept being formally commissioned in 2016. This timeframe marks a critical juncture in energy infrastructure research, particularly in Europe, where the need to integrate variable renewable energy sources into a cohesive grid became increasingly urgent. The primary fuel or source for these systems is mixed, reflecting the diverse inputs required to drive various conversion processes.
2016 German Government Research Initiative
A pivotal moment in the historical context of Power-to-X research occurred in 2016 with the launch of a significant German government-funded initiative. This first-phase research project was allocated €30 million, providing substantial financial backing to explore the technical and economic viability of Power-to-X technologies. The funding aimed to accelerate the development of sector coupling strategies, which are essential for creating fully integrated smart energy systems. By investing in this research, the German government sought to address the challenges of energy storage and reconversion, ensuring that surplus renewable energy could be effectively utilized across different energy sectors. This initiative underscored the importance of PtX in the broader energy transition, highlighting its potential to enhance grid stability and reduce dependency on traditional fossil fuels. The €30 million investment served as a catalyst for further research and development, fostering innovation in energy conversion technologies and paving the way for future expansions in the Power-to-X domain.
