Photobioreactor: Systems, Technology and Applications

Overview

A photobioreactor (PBR) is defined as a cultivation system specifically designed for growing photoautotrophic organisms. These systems utilize either artificial light sources or solar light to facilitate the process of photosynthesis. The primary organisms cultivated within these environments include microalgae, cyanobacteria, and certain species of mosses. The fundamental purpose of a photobioreactor is to optimize the growth conditions for these organisms by managing light exposure, which is the primary energy source for their metabolic activity.

System Configurations

Photobioreactors are generally categorized into two main types based on their structural design and environmental control mechanisms. Open systems, such as raceway ponds, rely heavily on natural sources of light and carbon dioxide. These configurations are typically less complex and utilize the ambient environment to support organism growth. In contrast, closed photobioreactors offer greater flexibility and control. These systems can be adjusted to meet the specific physiological requirements of the cultured organism. This level of control results in optimal growth rates and higher purity levels of the final product. The ability to regulate environmental factors makes closed systems particularly valuable for specialized cultivation needs.

Applications and Outputs

The primary application of photobioreactors is the cultivation of bioactive compounds. These compounds are harvested for use in various industrial sectors, including biofuels and pharmaceuticals. The versatility of photobioreactors allows them to support diverse industrial uses beyond these primary categories. By providing controlled environments, these systems enhance the efficiency of producing valuable biological materials. The integration of solar or artificial light enables continuous or batch cultivation processes, depending on the specific requirements of the photoautotrophic organisms being grown. This technological approach supports the growing demand for sustainable biological resources in multiple industries.

What are the main types of photobioreactors?

Open and Closed Photobioreactor Systems

Photobioreactors (PBRs) are cultivation systems designed for growing photoautotrophic organisms, including microalgae, cyanobacteria, and some mosses, using artificial light sources or solar light to facilitate photosynthesis. These systems are broadly categorized into open and closed configurations, each offering distinct operational characteristics for the production of bioactive compounds for biofuels, pharmaceuticals, and industrial uses.

These configurations are generally characterized by their simplicity and lower initial capital expenditure. However, their exposure to the environment introduces specific operational variables. Contamination risks are higher in open systems due to the influx of airborne microbes and invertebrates, which can compete with the cultured organisms for nutrients. Additionally, water loss through evaporation is a significant factor in open raceway ponds, requiring consistent water management strategies to maintain optimal volume and nutrient concentration.

Closed photobioreactors offer a more controlled environment. These flexible systems can be adjusted to meet the specific physiological requirements of the cultured organism, resulting in optimal growth rates and higher purity levels. By enclosing the cultivation medium, closed systems significantly reduce contamination risks from external sources. The controlled environment also allows for more precise management of light intensity, temperature, and carbon dioxide concentration, which can enhance the metabolic output of the photoautotrophic organisms. However, this increased control often comes with higher operational and capital costs compared to open systems.

Feature	Open Systems (e.g., Raceway Ponds)	Closed Systems
Light Source	Natural solar light	Artificial or natural light
Carbon Dioxide Source	Natural sources	Controlled input
Contamination Risk	Higher (airborne microbes, invertebrates)	Lower (enclosed environment)
Water Loss	Significant evaporation	Reduced evaporation
Growth Control	Moderate	High (physiological optimization)
Purity Levels	Variable	Optimal
Cost	Generally lower	Generally higher

The choice between open and closed photobioreactors depends on the specific requirements of the photoautotrophic organism and the desired output for industrial applications. Closed systems are often preferred when high purity and controlled growth rates are critical, while open systems may be selected for cost-effective large-scale cultivation where environmental exposure is manageable.

Closed System Technologies and Designs

Closed photobioreactors offer controlled environments that optimize the physiological requirements of cultured organisms, enhancing growth rates and product purity. These systems shield photoautotrophs from external variables, allowing precise management of light, temperature, and carbon dioxide levels.

Specific Closed System Designs

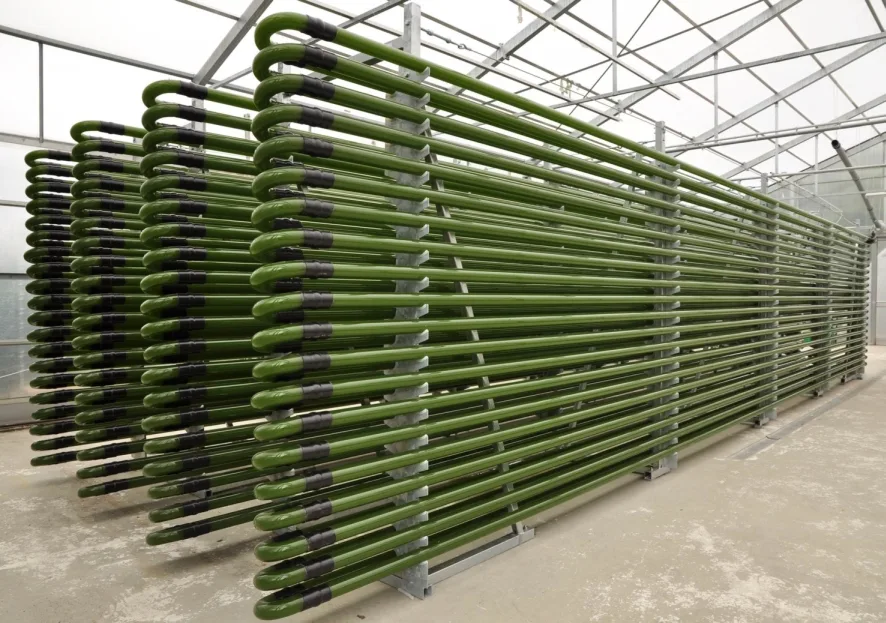

Various architectural configurations exist to maximize light penetration and gas exchange. Tubular bioreactors utilize long, coiled tubes, often made of transparent polymer, to increase the surface-to-volume ratio. The "Christmas tree" design arranges vertical tubes in a tiered fashion to minimize shading between layers. Plate and Flat Panel Airlift (FPA) bioreactors consist of thin, vertical panels that allow light to penetrate deeply into the culture medium. Horizontal and foil bioreactors spread the culture over large, thin surfaces, while porous substrate bioreactors (PSBR) grow organisms on a permeable matrix.

Design Type	Key Feature	Primary Advantage
Tubular	Coiled transparent tubes	High surface-to-volume ratio
Christmas Tree	Tiered vertical tubes	Reduced inter-layer shading
Plate / FPA	Thin vertical panels	Deep light penetration
Horizontal / Foil	Large, thin surfaces	Maximized light exposure
PSBR	Permeable growth matrix	Enhanced gas exchange

These closed systems are critical for cultivating bioactive compounds for biofuels, pharmaceuticals, and industrial applications. By controlling the environment, operators can achieve higher purity levels than in open raceway ponds. The flexibility of closed systems allows for tailored conditions for microalgae, cyanobacteria, and mosses.

How do photobioreactors optimize light and mixing?

Photobioreactors optimize cultivation by precisely managing light distribution and fluid dynamics to match the physiological needs of photoautotrophic organisms. In closed systems, environmental control allows for the regulation of growth rates and purity levels, addressing challenges inherent in open systems like raceway ponds. A critical factor is light attenuation, where light intensity decreases as it penetrates the culture medium. Without proper management, cells near the light source may experience saturation, while those deeper in the reactor remain in the dark. To mitigate this, systems are designed to manage light saturation, often keeping intensities below 2000 W/m² to prevent photoinhibition and ensure uniform exposure across the biomass.

Carbon Dioxide Integration

Efficient carbon fixation requires consistent CO₂ input. In advanced closed photobioreactors, carbon dioxide is introduced via membranes, allowing for precise control over gas exchange. This method minimizes the loss of dissolved gases and maintains optimal pH levels, which is crucial for the metabolic processes of microalgae and cyanobacteria. Unlike open systems that rely on natural diffusion or aeration, membrane-based input enhances the efficiency of carbon utilization, directly impacting the production of bioactive compounds for biofuels and pharmaceuticals.

Mixing Mechanisms and Shear Stress

Mixing is essential to prevent cell settling and to ensure even light distribution. However, excessive mixing can introduce shear stress, which may damage delicate cells. Flat Panel Array (FPA) systems, for instance, utilize shear-free mixing mechanisms to gently circulate the culture. This approach preserves cell integrity while maintaining the dilution effect in horizontal reactors. By balancing mixing intensity with light exposure, these systems optimize the physiological environment, leading to higher yields of industrial products. The interplay between light attenuation and mixing efficiency is fundamental to the performance of modern photobioreactors.

Industrial Applications and Economic Viability

Photobioreactors are typically used for the cultivation of bioactive compounds for biofuels, pharmaceuticals, and other industrial uses. In the high-value market segment, closed photobioreactors are particularly advantageous due to their ability to control physiological requirements, resulting in optimal growth rates and purity levels. This controlled environment is critical for producing specialized microalgae and cyanobacteria for food supplements and cosmetics. For instance, species such as Chlorella vulgaris are cultivated to produce high-purity biomass for nutritional supplements, while other strains are targeted for the extraction of astaxanthin, a potent antioxidant widely used in the cosmetic and nutraceutical industries. The closed nature of these systems minimizes contamination, ensuring the high purity levels required by pharmaceutical and cosmetic manufacturers.

Biofuel Production and Economic Challenges

While photobioreactors offer precision for high-value compounds, their application in biofuel production faces distinct economic hurdles. These open systems are often less capital-intensive than closed systems but may offer less control over environmental variables. The primary challenge in using photobioreactors for biofuels is competing with crude oil on price. The cost of cultivating microalgae in closed systems, which require significant investment in infrastructure and energy for light and temperature control, often results in a higher production cost per liter compared to traditional petroleum extraction. Consequently, while the technology is operational and capable of producing lipid-rich biomass, the economic viability for large-scale biofuel production remains constrained by the fluctuating prices of crude oil and the capital expenditure required for the cultivation systems. The industry continues to evaluate whether the purity and yield benefits of closed photobioreactors can offset these costs in the broader energy market.

Notable Implementations and Case Studies

Photobioreactor technology has transitioned from laboratory curiosities to significant architectural and industrial implementations. One of the most prominent examples of this integration is the IBA (Institute for Bioenergy and Climate Protection) building in Hamburg, Germany. Commissioned in 2013, this facility demonstrates the potential of closed photobioreactor systems in urban environments. The building’s façade incorporates transparent photobioreactor panels that cultivate microalgae, utilizing solar light to facilitate photosynthesis. This application highlights the flexibility of closed systems, which can be controlled to meet the physiological requirements of the cultured organism, resulting in optimal growth rates and high purity levels of bioactive compounds. The IBA building serves as a case study for how photobioreactors can contribute to building energy efficiency and local biofuel production.

Laboratory-Scale Adaptations: The Moss Reactor

Beyond large-scale architectural integrations, photobioreactors are extensively used in laboratory settings for the cultivation of specific photoautotrophic organisms, including cyanobacteria and certain mosses. The "moss reactor" represents a specialized adaptation designed to optimize the growth conditions for moss species, which require precise control over light intensity, carbon dioxide concentration, and moisture levels. These closed systems allow researchers to isolate variables and study the physiological responses of mosses to different environmental conditions. The ability to control these parameters is crucial for producing high-purity bioactive compounds for pharmaceutical and industrial uses. Laboratory-scale photobioreactors provide a scalable platform for testing new cultivation techniques before they are implemented in larger, open systems such as raceway ponds.

Industrial and Research Applications

The deployment of photobioreactors in industrial and research contexts is driven by the need for high-purity cultivation of microalgae and cyanobacteria. Closed photobioreactors offer significant advantages over open systems, such as raceway ponds, by minimizing contamination and allowing for precise control over environmental factors. This control is essential for the production of bioactive compounds used in biofuels, pharmaceuticals, and other industrial applications. The flexibility of closed systems enables the cultivation of a diverse range of photoautotrophic organisms, each with specific physiological requirements. Research continues to optimize the design and operation of photobioreactors to enhance growth rates and improve the economic viability of microalgae cultivation. The integration of photobioreactors into various sectors demonstrates their potential to contribute to sustainable energy production and industrial biotechnology.

Future Outlook and Research Directions

Research into photobioreactor efficiency focuses on integrating biological innovation with process engineering to reduce operational costs. Genetically modified microalgae represent a significant area of development, aiming to enhance lipid accumulation and light-harvesting efficiency under variable solar irradiance. These biological adjustments allow for higher biomass yields per unit of volume, directly impacting the economic viability of biofuel production.

Process Innovations: Dripping Methods

Engineering advancements include the implementation of dripping methods to create ultra-thin liquid layers within the reactor. This technique minimizes the optical path length, ensuring that light penetrates deeper into the culture medium. By reducing self-shading among photoautotrophic organisms, the system achieves more uniform photosynthetic activity. This structural optimization is critical for closed photobioreactors, where controlling physiological requirements is essential for maintaining optimal growth rates and purity levels.

Carbon Sequestration and Feedstock Integration

The integration of flue gas and wastewater into photobioreactor systems offers a dual benefit of carbon dioxide sequestration and nutrient supply. Utilizing flue gas as a primary carbon source reduces the dependency on pure CO2 feeds, lowering input costs while capturing emissions from industrial sources. Simultaneously, introducing wastewater provides essential nitrogen and phosphorus, reducing the need for synthetic fertilizers. This approach aligns with the broader goal of using photobioreactors for bioactive compounds for biofuels, pharmaceuticals, and other industrial uses.

Economic models suggest that combining these biological and engineering strategies can significantly improve the return on investment for large-scale cultivation. The flexibility of closed systems allows operators to adjust parameters in response to the specific needs of the cultured organism, whether microalgae, cyanobacteria, or mosses. As research progresses, the focus remains on scaling these controlled environments to compete with open systems like raceway ponds, which rely upon natural sources of light and carbon dioxide but offer less control over purity.
