Overview

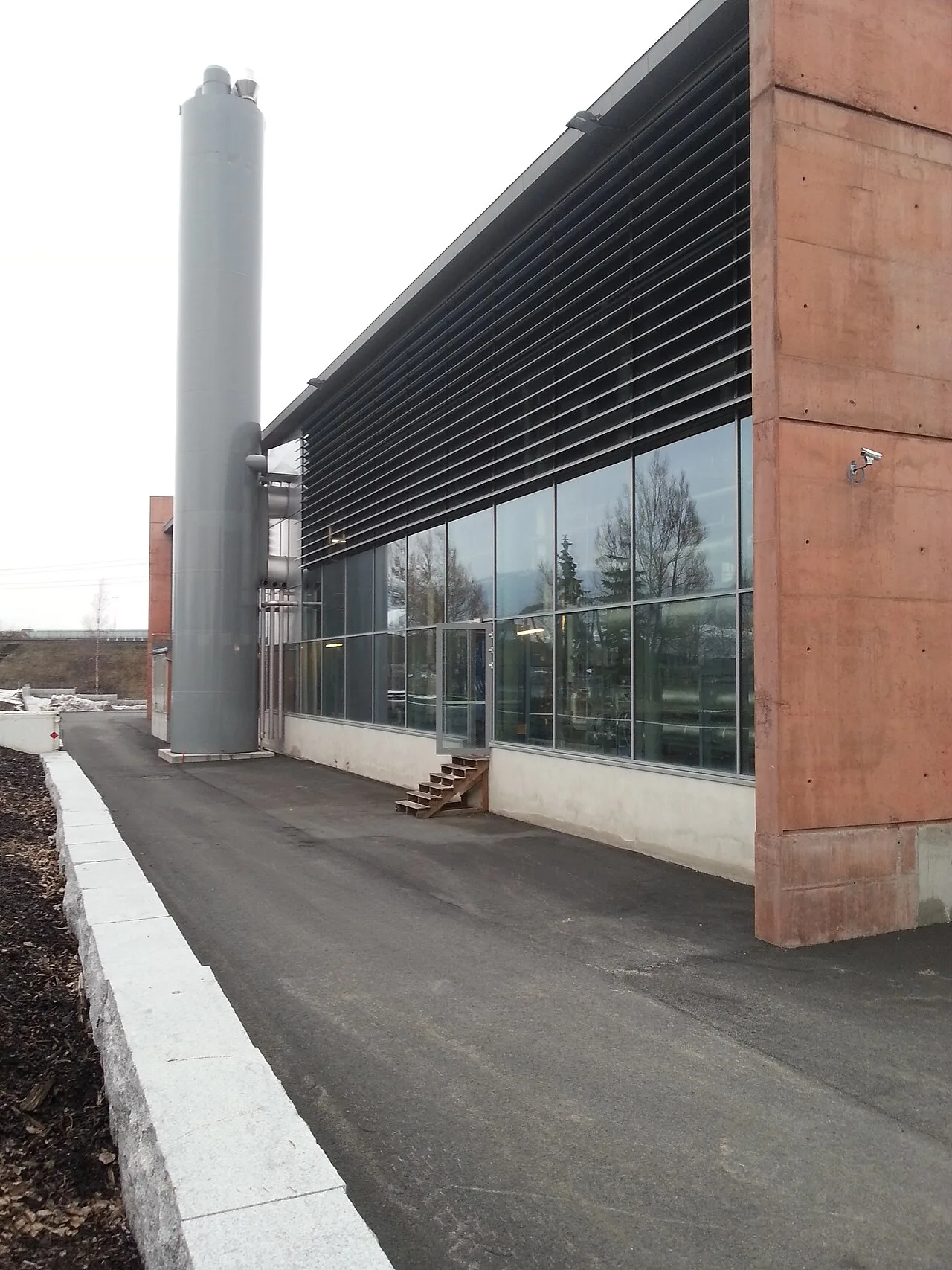

The Drammen Fjernvarme District Heating system is a critical piece of energy infrastructure located in Drammen, Norway. As a regional capital situated approximately 65 km west of Oslo, Drammen relies on this network to deliver thermal energy to its urban center. The system is currently operational and is managed by the operator Drammen Fjernvarme. Since its commissioning in 2011, the facility has served as a primary source of hot water and heating for the city's buildings, contributing to the local energy mix and thermal comfort of residents and commercial entities alike.
The core technology underpinning this district heating network is a heat pump system with an installed capacity of 14 MW. This capacity allows for significant thermal output, leveraging water as the primary fuel or heat source. By utilizing water-based heat extraction, the system aligns with broader trends in Norwegian energy infrastructure that emphasize the integration of renewable and low-carbon thermal sources. The use of water as a heat source is particularly relevant in a country with abundant hydrological resources, allowing for efficient heat transfer and distribution across the district heating grid.
District heating systems like the one in Drammen play a vital role in urban energy planning by centralizing heat production and distributing it through an insulated network of pipes. This method often results in higher overall efficiency compared to individual heating units in buildings, reducing energy waste and lowering greenhouse gas emissions. The 14 MW capacity of the Drammen heat pump represents a substantial contribution to the city's thermal demand, ensuring reliable service during peak heating seasons. The operational status of the system, confirmed as active since 2011, underscores its established role in the local energy landscape.
The location of Drammen, just west of Oslo, places it within one of Norway's most densely populated and economically active regions. This geographic context highlights the importance of efficient energy infrastructure in supporting urban growth and sustainability goals. The Drammen Fjernvarme system exemplifies how regional capitals can integrate modern heating technologies to meet the demands of a growing population while maintaining environmental performance. As part of Norway's broader energy strategy, such systems contribute to the diversification of heat sources and the reduction of dependency on fossil fuels for thermal energy.
Understanding the technical specifications of the Drammen heat pump provides insight into its operational capabilities. The 14 MW capacity indicates the rate at which thermal energy can be delivered to the district heating network, measured in megawatts. This metric is crucial for evaluating the system's ability to meet the heating loads of connected buildings. The reliance on water as a heat source suggests the use of ground-source or water-source heat pump technology, which extracts low-grade heat from water bodies or groundwater and upgrades it to a higher temperature suitable for distribution. This process is governed by thermodynamic principles, where the coefficient of performance (COP) determines the efficiency of the heat transfer. While specific COP values for the Drammen system are not detailed in the available grounding, the general principle applies: for every unit of electrical energy consumed, multiple units of thermal energy are delivered, enhancing overall system efficiency.
History and Development
The Drammen Heat Pump serves as a core component of the Drammen Fjernvarme District Heating system, which supplies thermal energy to the regional capital of Drammen, located approximately 65 km west of Oslo, Norway. The project represents a strategic integration of water-source thermal energy into the municipal grid, leveraging the local hydrological resources to provide consistent heating capacity. The system is operated by Drammen Fjernvarme, which manages the distribution network and the operational parameters of the heat pump facility. The plant achieved operational status in 2011, marking a significant milestone in the city's energy infrastructure modernization. This commissioning date aligns with the broader timeline of district heating expansions in Southern Norway, aiming to reduce reliance on traditional fossil fuel combustion and enhance the efficiency of the urban thermal grid.
Manufacturing and Technical Implementation
The core thermal technology for the facility was manufactured by Star Refrigeration. Star Refrigeration is a prominent engineering firm specializing in large-scale heat pump systems, particularly those utilizing water-to-water or water-to-air configurations for district heating applications. The selection of Star Refrigeration for the 2011 manufacturing contract indicates a focus on robust, industrial-grade thermodynamic cycles capable of handling the 14 MW capacity requirement. The heat pump operates by extracting low-grade thermal energy from the water source and upgrading it to a higher temperature suitable for distribution through the district heating network. This process relies on the vapor-compression cycle, where the coefficient of performance (COP) is a critical metric for efficiency. The COP is defined as the ratio of useful heating output to the electrical power input, expressed as COP=WinQout. High COP values are essential for the economic viability of water-source heat pumps, as they directly influence the operating costs for the end-users in Drammen.
Municipal Concession and Rights
The development of the heat pump and the broader district heating network was facilitated by concession rights granted by the Drammen Municipality. These rights provided the legal and operational framework for Drammen Fjernvarme to extract thermal energy from the local water body and distribute it to connected buildings. The municipal concession typically includes provisions for the duration of the operation, the areas covered by the network, and the pricing mechanisms for the heat supplied. The granting of these rights by the Drammen Municipality underscores the local government's commitment to sustainable energy solutions and the modernization of the city's infrastructure. The 2011 commissioning followed the formalization of these rights, allowing for the integration of the Star Refrigeration-manufactured units into the existing grid. The operational status of the plant has been maintained since its inception, providing a stable source of heating for the region. The collaboration between the municipal authorities and the operator, Drammen Fjernvarme, has been crucial in ensuring the long-term functionality and efficiency of the heat pump system. The water source remains the primary fuel for the thermal extraction process, highlighting the importance of local hydrological conditions in the planning and execution of the project.
How does the seawater heat pump cycle work?
The Drammen Heat Pump operates on a standard vapor-compression refrigeration cycle, adapted for large-scale district heating. This thermodynamic process transfers thermal energy from a lower-temperature source to a higher-temperature sink, enabling the warming of the district heating network. The system extracts heat from the Drammen Fjord, utilizing seawater as the primary thermal reservoir. This method allows for efficient energy conversion, leveraging the relatively stable temperature profile of deep fjord water compared to surface air temperatures.
Heat Source and Extraction
Seawater is drawn from a depth of 18 m in the Drammen Fjord. At this depth, the water temperature remains relatively constant, typically ranging between 8 °C and 9 °C throughout the year. This stability is crucial for maintaining consistent coefficient of performance (COP) for the heat pump units. The extraction process involves pumping the cold seawater into the evaporator section of the heat pump cycle. Here, the refrigerant absorbs heat from the seawater, causing the refrigerant to evaporate at a temperature slightly lower than the source water.
| Parameter | Value |
|---|---|
| Heat Source | Seawater (Drammen Fjord) |
| Extraction Depth | 18 m |
| Source Temperature Range | 8–9 °C |
| Supply Temperature Range | 65–90 °C |
Thermodynamic Cycle and Temperature Lift
The core of the heat pump is the vapor-compression cycle, which consists of four main stages: evaporation, compression, condensation, and expansion. In the evaporator, the refrigerant absorbs heat from the 8–9 °C seawater. The resulting low-pressure vapor is then compressed by a compressor, which raises its pressure and temperature significantly. This compression stage is where the primary electrical energy input is consumed. The high-pressure, high-temperature refrigerant vapor then enters the condenser. In the condenser, the refrigerant releases its thermal energy to the district heating water, condensing back into a liquid. This process raises the temperature of the heating network water to between 65 °C and 90 °C, suitable for radiators and underfloor heating in the Drammen district. Finally, the high-pressure liquid passes through an expansion valve, reducing its pressure and temperature before re-entering the evaporator to repeat the cycle.
The efficiency of this process is often described by the Coefficient of Performance (COP), defined as the ratio of useful heating output to the electrical energy input. While specific COP values depend on the temperature lift required, the relatively small difference between the source temperature (8–9 °C) and the evaporator temperature allows for high efficiency. The ability to lift the temperature from approximately 8 °C to up to 90 °C demonstrates the significant thermodynamic work performed by the compressor units. This temperature lift is essential for integrating the heat pump into the existing district heating infrastructure, ensuring compatibility with various building heating demands in Drammen. The system's design optimizes the balance between electrical input and thermal output, making seawater source heat pumps a viable option for regional heating in coastal areas.
What distinguishes the single-screw compressor technology?
The Drammen Heat Pump utilizes Vilter single-screw compressor technology, a specific engineering choice that distinguishes it from the more common twin-screw or centrifugal compressors often found in large-scale district heating applications. This technology, manufactured by Vilter (now part of Emerson), relies on a unique rotor geometry consisting of a male helical rotor with seven lobes and two female rotors with eleven lobes. This configuration creates a symmetrical force balance on the male rotor, significantly reducing radial loads on the bearings compared to traditional twin-screw designs where forces are often unbalanced. The result is a smoother operation with reduced vibration and noise, which is particularly advantageous for urban installations like the one in Drammen, located just 65 km west of Oslo.
Bearing Life and Mechanical Efficiency
A critical advantage of the Vilter single-screw design is its extended bearing life, cited at approximately 120,000 hours. This figure represents a substantial improvement over normal refrigeration compressors, which often require bearing replacement or overhaul after 60,000 to 80,000 hours of operation. The balanced forces inherent in the single-screw mechanism minimize wear, allowing the compressor to maintain high isentropic efficiency over a longer operational lifespan. For a facility commissioned in 2011 and operated by Drammen Fjernvarme, this durability translates to reduced maintenance downtime and lower lifecycle costs for the 14 MW system.
The thermodynamic performance of the single-screw compressor can be understood through the work done on the refrigerant. The compression process follows a polytropic path, where the work input W is related to the pressure ratio and the specific heat ratio of the refrigerant. The balanced rotor design ensures that the mechanical efficiency ηmech remains high, as less energy is lost to friction in the bearing assemblies. This efficiency is crucial for maximizing the Coefficient of Performance (COP) of the heat pump, ensuring that the energy extracted from the water source is effectively transferred to the district heating network with minimal electrical input.
Applications in District Heating Networks
The Drammen Heat Pump functions as a core component of the Drammen Fjernvarme District Heating system, which serves the regional capital of Drammen, located approximately 65 km west of Oslo, Norway. Commissioned in 2011, this operational facility utilizes water as its primary thermal source, delivering a capacity of 14 MW to the local grid. The system is operated by Drammen Fjernvarme, which manages the integration of this water-based technology into the city’s broader energy infrastructure. This setup exemplifies the strategic use of ambient water sources to provide consistent thermal energy, reducing reliance on traditional fossil fuel combustion for space heating and domestic hot water in urban environments.
Integration with Urban Infrastructure
The integration of the Drammen Heat Pump into the municipal network is supported by specific regulatory measures designed to maximize system efficiency and load stability. A key requirement for new construction within the district heating area mandates that buildings with a floor area larger than 1000 m2 must connect to the water-based heating system. This threshold ensures that significant thermal loads are captured by the grid, allowing the 14 MW capacity of the heat pump to operate closer to its optimal output levels. By forcing larger structures—such as office complexes, residential blocks, and commercial centers—to tap into the district network, the system achieves higher thermal density, which improves the coefficient of performance (COP) of the heat pumps. The relationship between heat output, electrical input, and COP is generally expressed as COP = Q_out / W_in, where maximizing Q_out through aggregated building connections directly enhances overall energy efficiency.
This regulatory approach ensures that the infrastructure investment in the Drammen Fjernvarme system yields consistent returns in terms of energy saved and emissions reduced. The water source provides a relatively stable temperature profile compared to air-source alternatives, allowing the heat pump to maintain steady operation even during colder periods. The requirement for buildings over 1000 m2 to connect helps balance the load, preventing the grid from being overly dependent on smaller, more variable residential units. This structured integration supports the long-term sustainability of the district heating network in Drammen, leveraging the 14 MW capacity to serve a growing urban population while maintaining operational reliability under the management of Drammen Fjernvarme.
Worked examples
The Drammen Fjernvarme district heating system, operational since 2011, utilizes seawater as its primary heat source to deliver thermal energy to the regional capital of Drammen, Norway. The facility, operated by Drammen Fjernvarme, has a total installed capacity of 14 MW. A key performance metric for this water-source heat pump system is its Coefficient of Performance (COP), which is recorded at 3.0. This value indicates that for every unit of electrical energy consumed by the system, three units of thermal energy are delivered to the district heating network.
Understanding the Coefficient of Performance (COP)
The Coefficient of Performance (COP) is a ratio that measures the efficiency of a heat pump. It is calculated by dividing the useful heat output by the electrical energy input. A COP of 3.0 means that the system produces three times more heat energy than the electrical energy it consumes. The remaining energy is extracted from the ambient heat source, in this case, the seawater surrounding the facility.
Worked Example 1: Basic Energy Balance
Consider a scenario where the Drammen heat pump system consumes 1 MW of electrical power. With a COP of 3.0, the total heat output can be calculated as follows:
Total Heat Output = Electrical Input × COP
Total Heat Output = 1 MW × 3.0 = 3 MW
In this example, the system delivers 3 MW of heat to the district heating network. Of this total, 1 MW is derived directly from the electrical input, while the remaining 2 MW is extracted from the seawater. This demonstrates how the system effectively "pumps" thermal energy from the water source to the heating network.
Worked Example 2: Full Capacity Operation
The Drammen Fjernvarme system has a total installed capacity of 14 MW. To determine the electrical power required to achieve this output with a COP of 3.0, we can rearrange the COP formula:
Electrical Input = Total Heat Output / COP
Electrical Input = 14 MW / 3.0 ≈ 4.67 MW
Thus, to deliver the full 14 MW of heat to the district heating network, the system requires approximately 4.67 MW of electrical power. The remaining 9.33 MW of heat is extracted from the seawater. This calculation highlights the energy efficiency of the system, as it delivers more than three times the electrical energy consumed as usable heat.
Worked Example 3: Seawater Heat Extraction
To further illustrate the energy balance, consider the amount of heat extracted from the seawater when the system operates at half capacity. If the total heat output is 7 MW (half of the 14 MW capacity), the electrical input and seawater heat extraction can be calculated as follows:
Electrical Input = Total Heat Output / COP
Electrical Input = 7 MW / 3.0 ≈ 2.33 MW
Seawater Heat Extraction = Total Heat Output - Electrical Input
Seawater Heat Extraction = 7 MW - 2.33 MW ≈ 4.67 MW
In this scenario, the system consumes approximately 2.33 MW of electrical power and extracts approximately 4.67 MW of heat from the seawater to deliver a total of 7 MW of heat to the district heating network. This example reinforces the principle that the majority of the heat delivered by the system is sourced from the ambient seawater, with the electrical input serving to "pump" this energy to a higher temperature.
Why it matters
The Drammen Heat Pump represents a significant case study in the optimization of district heating infrastructure within Norway’s energy landscape. As a 14 MW facility operated by Drammen Fjernvarme, it demonstrates the strategic integration of thermal storage and electric conversion in a market traditionally dominated by direct electric resistance heating and gas-fired back-up boilers. The project’s significance lies not only in its capacity but in its specific technological choices, particularly the utilization of ammonia as a refrigerant with zero global warming potential (GWP). This contrasts sharply with many large-scale heat pump installations that rely on hydrofluorocarbons (HFCs), which can have GWPs hundreds or thousands of times greater than carbon dioxide. By selecting ammonia, the system minimizes the indirect climate impact of refrigerant leakage, aligning thermal infrastructure with broader Norwegian environmental targets.
Economic and Energy Mix Advantages
The economic viability of the Drammen Heat Pump is underpinned by the unique characteristics of the Norwegian electricity grid. Norway’s power system is heavily reliant on hydropower, providing a relatively low-carbon and price-stable foundation compared to regions dependent on natural gas or coal. The coefficient of performance (COP) of a heat pump, defined as the ratio of useful heat output to electrical energy input, typically ranges from 3 to 4 for large-scale installations. This means that for every 1 MWh of electricity consumed, the system delivers approximately 3 to 4 MWh of thermal energy. The thermodynamic efficiency can be expressed as:
COP = Q_heating / W_electric
When compared to a gas boiler with an efficiency of approximately 0.9 (delivering 0.9 MWh of heat per 1 MWh of gas input) or an electric resistance boiler with an efficiency of 0.95, the heat pump offers a substantial reduction in primary energy consumption. In a hydro-dominated grid, this translates to a lower carbon footprint per unit of heat delivered. Furthermore, the economic advantage is amplified when heat pumps are deployed during periods of low electricity prices, such as winter months when hydropower reservoirs are full, allowing operators to arbitrage between thermal and electrical markets. This model provides a replicable framework for other Nordic cities seeking to decarbonize their district heating networks without relying on extensive biomass or geothermal resources.
