Overview

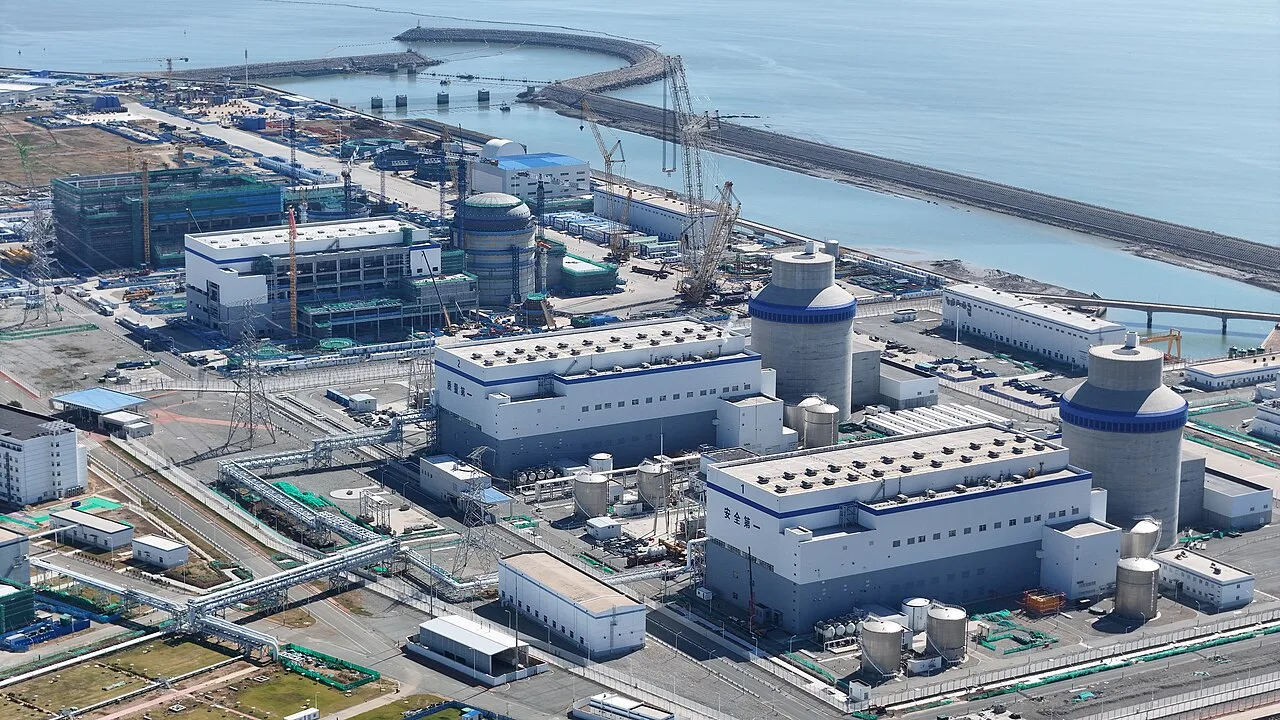

Haiyang Nuclear Power Plant is an operational nuclear power facility located in Haiyang, Shandong province, China. The plant is a significant component of China's expanding nuclear energy infrastructure and serves as a primary example of the deployment of advanced passive safety reactor technology in the region. It is the second site in China to house AP1000 reactor units, following the initial deployment at the Sanmen Nuclear Power Station. This sequential implementation highlights the strategic rollout of the AP1000 design, which utilizes passive safety systems to reduce reliance on active mechanical and electrical components during accident scenarios.
The facility is operated by the State Power Investment Corporation (SPIC), one of the major state-owned power generation enterprises in China. SPIC's involvement underscores the central role of state corporations in driving the nation's nuclear expansion and technology adoption. The plant's operational status confirms its integration into the national grid, contributing to the energy mix of Shandong province and the broader eastern coastal region of China.
Key Facts
| Property | Value |
|---|---|
| Entity Type | Nuclear Power Plant |
| Location | Haiyang, Shandong province, China |
| Operator | State Power Investment Corporation |
| Primary Fuel | Uranium |
| Operational Status | Operational |
| Capacity | 2340 MW |
| Commissioned | 2018 |
| Reactor Technology | AP1000 |
History
It holds the distinction of being the second site to house AP1000 units, following the Sanmen Nuclear Power Station. The facility is operated by the State Power Investment Corporation. The plant is operational with a capacity of 2340 MW, using uranium as its primary fuel source. The plant was commissioned in 2018.
The development of the Haiyang site began with groundbreaking in 2008. This marked the start of construction for the initial units. The project focused on implementing the AP1000 reactor technology. This technology is a type of pressurized water reactor. The construction phase involved significant engineering efforts. The site preparation and foundational work were completed in the early years of the project. The reactor buildings and auxiliary structures were erected during this period. The installation of the reactor vessels and steam generators followed. The piping systems and electrical infrastructure were also installed. The construction process adhered to the AP1000 design specifications. The project timeline was influenced by the complexity of the AP1000 technology. The first two units were the primary focus of the initial construction phase. The progress of these units set the stage for subsequent expansions. The site infrastructure was developed to support the operational needs of the plant. The cooling systems and water intake structures were constructed. The transmission lines were built to connect the plant to the regional grid. The construction of the Haiyang Nuclear Power Plant contributed to the growth of the nuclear sector in China. The project demonstrated the viability of the AP1000 technology in the Chinese market. The successful completion of the first units encouraged further investment in the site. The plant's development was a key part of the regional energy strategy. The facility was designed to provide a stable source of baseload power. The plant's location in Shandong province provided access to a large electricity market. The construction of the plant created jobs and stimulated local economic activity. The project involved collaboration between domestic and international partners. The AP1000 technology was licensed from Westinghouse Electric Corporation. The Chinese nuclear industry played a major role in the construction and operation of the plant. The plant's development was supported by government policies promoting nuclear energy. The project was seen as a model for future nuclear power plants in China. The successful commissioning of the first units was a milestone for the project. The plant's operational status reflects the progress made since groundbreaking. The facility continues to be an important part of the energy infrastructure in Shandong province. The plant's capacity contributes to the overall energy mix of the region. The operational experience gained from the first units is used to optimize the performance of subsequent units. The plant's development is an ongoing process. The construction of Unit 3 began in 2022. This expansion will increase the plant's total capacity. The project continues to evolve with the addition of new units. The plant's history is marked by steady progress and technological advancement. The facility represents a significant investment in nuclear energy in China. The plant's operation is monitored by the State Power Investment Corporation. The plant's performance is tracked through various operational metrics. The plant's safety record is a key aspect of its operational history. The plant's location in Haiyang provides a strategic advantage for power distribution. The plant's development has been a collaborative effort involving multiple stakeholders. The plant's history is documented in various reports and studies. The plant's operational data is used to inform future nuclear projects. The plant's success has contributed to the growth of the nuclear industry in China. The plant's development is a testament to the capabilities of the Chinese nuclear sector. The plant's future expansion will further enhance its role in the regional energy landscape. The plant's history is an important part of the broader narrative of nuclear energy development in China. The plant's operational experience is valuable for the global nuclear industry. The plant's development has been a significant achievement for the State Power Investment Corporation. The plant's history is a reflection of the progress made in nuclear technology and project management. The plant's future will be shaped by the continued operation of its existing units and the construction of new ones. The plant's legacy will be defined by its contribution to the energy security of Shandong province and China. The plant's history is a story of innovation, collaboration, and perseverance. The plant's development has been a complex and challenging process. The plant's success is a result of the efforts of many individuals and organizations. The plant's history is a source of pride for the local community and the national nuclear industry. The plant's future is promising, with continued growth and expansion. The plant's development has been a significant milestone for the AP1000 technology. The plant's operational experience is being used to refine the AP1000 design. The plant's success has encouraged the adoption of the AP1000 technology in other parts of the world. The plant's history is a testament to the potential of nuclear energy to provide a reliable and sustainable source of power. The plant's development has been a significant investment in the future of energy in China. The plant's success is a source of inspiration for future nuclear projects.
| Year | Event |
|---|---|
| 2008 | Groundbreaking for Haiyang Nuclear Power Plant |
| 2018 | Commercial operation of Units 1 and 2 |
| 2019 | Commercial operation of Unit 2 |
| 2022 | Start of Unit 3 construction |
Why it matters
The Haiyang Nuclear Power Plant holds strategic importance as the second site in China to deploy the AP1000 reactor technology, following the initial deployment at the Sanmen Nuclear Power Station. This sequential rollout was critical for validating the AP1000 design within the Chinese energy infrastructure context. The AP1000 represents a significant evolution in pressurized water reactor technology, emphasizing passive safety systems that rely on natural forces—such as gravity, convection, and compression—rather than active mechanical components to cool the core during a shutdown. By establishing Haiyang as the second operational site, Chinese operators and engineers gained essential comparative data on the performance, maintenance requirements, and grid integration capabilities of these units under slightly different geographical and operational conditions than those at Sanmen.
The operational status of the Haiyang plant, commissioned in 2018 and operated by the State Power Investment Corporation, marks a key milestone in the commercialization of the AP1000 design in Asia. The plant’s total capacity of 2340 MW contributes significantly to the Shandong province grid, providing a stable baseload power source that complements the region’s growing mix of renewable energy. The successful commissioning and subsequent operation of Haiyang’s units provided empirical evidence supporting the reliability of the AP1000’s passive safety features, thereby reducing perceived risks for subsequent AP1000 and its derivative, the CAP1400, projects across China. This validation process was vital for standardizing construction practices and operational protocols for this specific reactor type within the Chinese nuclear fleet.
Beyond electricity generation, the Haiyang Nuclear Power Plant plays a pioneering role in demonstrating the viability of nuclear-powered district heating. The integration of district heating applications allows the plant to utilize low-temperature heat from the reactor’s secondary loop to warm residential and commercial buildings in the Haiyang area. This dual-use capability enhances the economic efficiency of the nuclear asset, particularly during winter months when electricity demand might fluctuate, while also reducing the local reliance on coal-fired heating systems. The success of these heating applications at Haiyang provides a replicable model for other coastal nuclear sites in China, illustrating how nuclear infrastructure can contribute directly to urban energy sustainability and air quality improvement. The plant’s ability to effectively manage both electrical output and thermal distribution underscores the versatility of modern nuclear technology in addressing diverse local energy needs.
What are the technical specifications of the Haiyang AP1000 units?
The Haiyang Nuclear Power Plant utilizes the AP1000 reactor technology, representing a significant milestone in China's nuclear energy infrastructure as the second site to house these specific units, following the Sanmen Nuclear Power Station. The facility is operated by the State Power Investment Corporation and has a total installed capacity of 2340 MW. The plant became operational in 2018, marking the entry of this advanced passive safety design into the Chinese grid.
AP1000 Reactor Technology
The AP1000 is a Generation III+ pressurized water reactor (PWR) designed by Westinghouse Electric Corporation. A defining characteristic of the AP1000 is its "passive safety" systems, which rely on natural forces such as gravity, natural convection, and compressed gas to remove decay heat from the reactor core for up to 72 hours without the need for active mechanical pumps or external power sources. This design simplifies the safety systems and reduces the number of components compared to earlier PWR generations. The reactor vessel is housed within a steel containment building, which is further enclosed by a concrete shield building to protect against external impacts and contain potential radioactive releases.
Unit Specifications
Units 1 and 2 at Haiyang are identical in their core technical parameters. Each unit contributes to the plant's total capacity of 2340 MW. The AP1000 design typically features a net electrical output of approximately 1100 MWe per unit, though the specific gross and net capacities can vary slightly based on site-specific conditions and turbine efficiency. The reactors use low-enriched uranium oxide fuel, arranged in a core with a standard number of fuel assemblies. The primary coolant system operates at a high pressure to prevent the water from boiling in the reactor core, transferring heat to the secondary loop via steam generators. The steam then drives a conventional turbine-generator set to produce electricity.
| Parameter | Value |
|---|---|
| Reactor Type | AP1000 (Pressurized Water Reactor) |
| Total Plant Capacity | 2340 MW |
| Number of Units | 2 |
| Operator | State Power Investment Corporation |
| Commissioning Year | 2018 |
| Fuel Source | Uranium |
| Safety Design | Passive Safety Systems |
The operational status of the Haiyang plant is currently active, contributing to the energy mix of Shandong province. The AP1000 technology at Haiyang serves as a reference for subsequent AP1000 constructions in China, providing valuable data on the performance of passive safety systems under commercial operating conditions. The plant's location in Haiyang, Shandong, provides access to seawater for cooling, which is essential for the condenser and auxiliary cooling systems of the nuclear units.
Future expansion plans
The Haiyang Nuclear Power Plant has moved beyond its initial phase of operations, with significant expansion underway to increase the site’s contribution to the Shandong provincial grid. The most notable development in this expansion is the authorization and subsequent construction start of Unit 3. This unit represents a strategic step in scaling up the capacity of the facility, which already houses AP1000 reactor units, making it the second site in China to deploy this specific reactor technology, following the Sanmen Nuclear Power Station.
Construction of Unit 3 commenced in 2022, marking a key milestone in the plant’s growth trajectory. This timeline aligns with broader energy infrastructure goals in the Shandong region, where nuclear power is increasingly viewed as a stable baseload complement to variable renewable sources. The authorization of Unit 3 reflects confidence in the operational performance of the earlier units and the AP1000 design itself, which has been a focal point for China’s nuclear fleet modernization.
While specific technical details regarding the exact capacity addition of Unit 3 are part of the broader plant capacity figures, the unit is expected to enhance the reliability and output of the Haiyang facility. The Shandong grid, one of the most dynamic energy markets in China, benefits from the incremental addition of nuclear capacity, which helps to balance the load and reduce dependence on coal-fired generation during peak demand periods.
The expansion plans for Haiyang are indicative of a larger trend in China’s nuclear energy sector, where existing sites are being upgraded and expanded to maximize infrastructure utilization. The State Power Investment Corporation, as the operator, continues to oversee these developments, ensuring that construction and commissioning schedules meet regulatory and operational standards. The successful start of construction for Unit 3 in 2022 sets the stage for future phases, potentially including Units 4 and beyond, although specific timelines for these later units depend on ongoing performance data and regional energy demand forecasts.
As the Haiyang Nuclear Power Plant continues to evolve, the integration of Unit 3 will play a crucial role in solidifying the site’s position within China’s nuclear landscape. The AP1000 technology, with its passive safety features, remains a key component of this expansion, offering a modern approach to nuclear power generation that aligns with both domestic energy needs and international safety benchmarks. The ongoing construction efforts underscore the plant’s long-term viability and its contribution to the energy security of the Shandong province.
