Overview
A loss-of-pressure-control accident (LOPA) is a specific mode of failure within nuclear reactor operations, characterized by the pressure of the confined coolant falling below its designated specification. This phenomenon is critical to the thermodynamic stability of the reactor core, particularly in designs where maintaining a precise pressure regime is essential to prevent phase changes in the working fluid. Most commercial nuclear reactors utilize a robust pressure vessel to sustain the necessary pressure levels within the reactor plant. This containment strategy is fundamental to the safe operation of pressurized water reactors (PWRs), where the primary function of the pressure boundary is to prevent the coolant from boiling within the core. If the pressure drops significantly below the design threshold, the saturation temperature of the water decreases, potentially leading to the formation of steam bubbles. This boiling can disrupt the neutron moderation process and reduce the heat transfer efficiency from the fuel rods, which may precipitate a nuclear meltdown if not promptly controlled.
The necessity of pressure control extends beyond PWRs to other reactor types, where uncontrolled pressure variations can alter the properties of the moderator in unpredictable ways. In these systems, the moderator's density and thermal characteristics are directly linked to the pressure environment. A deviation from the specified pressure can lead to uncontrolled reactivity feedback, complicating the operational response. The primary fuel source for these reactors is typically uranium, which undergoes fission to generate the thermal energy that the coolant must remove. The integrity of the pressure vessel is therefore a primary safety barrier, ensuring that the coolant remains in the optimal phase for heat extraction and neutron moderation. Understanding the mechanics of a LOPA is essential for analyzing reactor safety margins and designing effective emergency core cooling systems.
How does pressure control work in a pressurized water reactor?

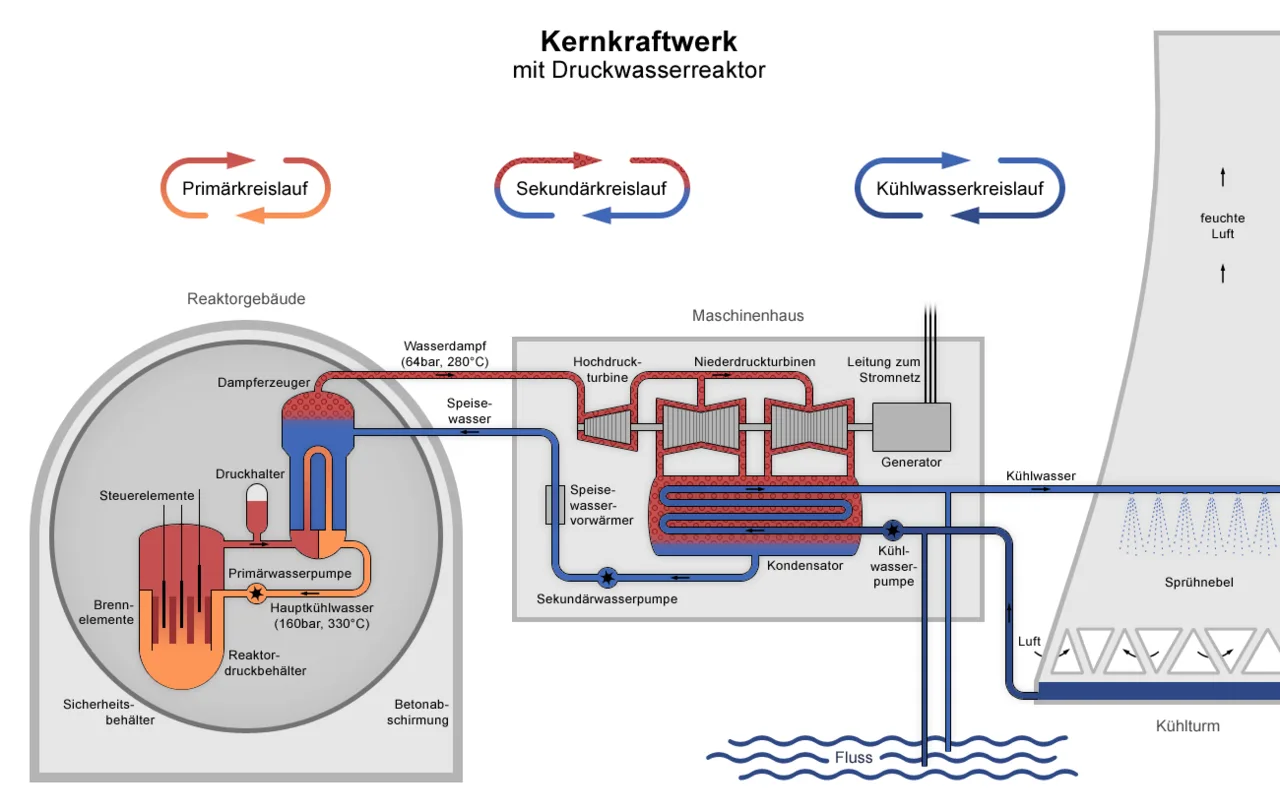

In a pressurized water reactor, maintaining the primary coolant above its saturation temperature is critical to prevent bulk boiling within the core. The system relies on a dedicated pressure vessel, known as the pressurizer, which is connected to the hot leg of the reactor plant. This vessel contains a mixture of water and steam, allowing the liquid coolant to expand and contract while maintaining a stable pressure throughout the primary loop. The pressure control mechanism ensures that the water remains in a liquid state, thereby maximizing heat transfer efficiency from the fuel rods to the steam generators.
Pressurizer Components and Control
The pressurizer employs electric immersion heaters and a spray valve system to regulate pressure. When the reactor power increases or the coolant temperature rises, the water expands, causing pressure to rise. To counteract this, a spray valve opens, introducing cooler water from the cold leg of the primary circuit into the steam space of the pressurizer. This cooler water condenses the steam, reducing the pressure back to the setpoint. Conversely, if the reactor power decreases or the coolant cools, the water contracts, and pressure drops. In this scenario, the electric heaters are activated to boil a portion of the liquid water into steam, thereby increasing the pressure to the required level.
Thermodynamic Principles
The operation is governed by the thermodynamic relationship between temperature and saturation pressure. For a given temperature, there is a specific pressure at which water boils. The pressurizer maintains the system pressure such that the saturation temperature is higher than the maximum coolant temperature in the core. This prevents the formation of vapor bubbles, which could otherwise reduce the moderating effect of the water and lead to localized hot spots. The pressure control system continuously adjusts the balance between the heaters and the spray valves to maintain this equilibrium, ensuring stable reactor operation.
What are the main causes of loss of pressure control?
Loss-of-pressure-control accidents arise when the coolant pressure within the reactor vessel drops below design specifications. In pressurized water reactors, maintaining this pressure is critical to prevent core boiling and subsequent meltdown. Several distinct failure modes can trigger this pressure drop, ranging from mechanical ruptures to control system anomalies.
Primary Failure Modes
One significant cause is the inadvertent isolation of the reactor pressure vessel. This occurs when control valves close unexpectedly, trapping coolant and allowing pressure to fluctuate outside operational limits. Another critical failure point is the pressurizer itself. A rupture in the pressurizer can lead to a rapid depressurization of the primary loop, potentially exposing the core to thermal shock.
Component failures within the pressurizer also contribute to LOPA. Malfunctions in spray nozzles or electric heaters can disrupt the thermal balance. If spray nozzles fail to atomize water effectively, or if heaters fail to maintain saturation temperature, the pressure may drift. Additionally, thermal stratification within the pressurizer can cause uneven heating, leading to cyclic stress and potential pressure instability.
| Failure Mode | Description |
|---|---|
| Inadvertent Isolation | Unexpected closure of control valves trapping coolant |
| Pressurizer Rupture | Physical breach causing rapid depressurization |
| Spray Nozzle Failure | Ineffective atomization disrupting thermal balance |
| Heater Malfunction | Loss of saturation temperature maintenance |
| Thermal Stratification | Uneven heating causing cyclic stress and pressure drift |
These mechanical and thermal failures can interact, compounding the pressure loss. For instance, a pressurizer rupture may exacerbate thermal stratification effects. Understanding these specific causes is essential for designing robust control systems and mitigation strategies in nuclear reactor operations.
Thermal stratification and subcooled water dynamics
Thermal stratification within the pressurizer represents a critical dynamic in loss-of-pressure-control accidents (LOPA), particularly in pressurized water reactors (PWRs) where maintaining coolant pressure is essential to prevent core boiling and subsequent nuclear meltdown. The pressurizer functions as a dedicated volume to stabilize system pressure, but its internal fluid dynamics can become complex during transient events. When thermal stratification occurs, distinct layers of water at different temperatures form within the vessel, often separating a hotter lower region from a cooler upper region. This stratification can lead to a phenomenon where the pressure continues to fall slowly despite active operator intervention, such as the application of electric immersion heaters or spray valve adjustments.
The mechanism behind this slow pressure drop involves the interplay between heat transfer rates and the specific volume of the coolant. In a stratified condition, the heaters may primarily affect the lower, hotter water layer, while the upper layer remains relatively cooler. If the spray system is used to cool the upper portion, it can create a vapor blanket that insulates the liquid below, reducing the efficiency of heat exchange. The pressure in the system is largely determined by the saturation pressure of the vapor space, which is directly related to the temperature of the water surface. If the surface temperature decreases due to cooling or mixing, the saturation pressure drops, leading to a system-wide pressure decline.
Mathematically, the relationship between saturation pressure (Psat) and temperature (T) can be approximated using the Clausius-Clapeyron equation, which describes the phase boundary between liquid and vapor. For water, this relationship is non-linear, meaning small changes in temperature can result in significant pressure variations. During a LOPA, if the thermal stratification causes the effective temperature of the vapor-liquid interface to decrease, the pressure will follow suit. Operators may observe that turning on heaters increases the temperature of the bulk liquid but does not immediately raise the pressure if the vapor space remains cooled by stratification or spray action.
Operator Intervention Challenges
Operators facing a LOPA with thermal stratification must carefully manage the balance between heating and cooling to avoid exacerbating the stratification. Excessive use of the spray system can cool the upper water layer too quickly, increasing the temperature gradient and stabilizing the stratification. Conversely, insufficient heating may allow the lower layer to cool, reducing the overall energy content of the coolant. The goal is to promote mixing within the pressurizer to create a more uniform temperature profile, thereby ensuring that pressure control actions have a predictable and immediate effect on the system pressure. This requires precise control of the spray valve and heater power, often relying on real-time temperature measurements at different heights within the pressurizer.
The dynamics of subcooled water also play a role in this scenario. Subcooled water is liquid water at a temperature below its saturation temperature at the given pressure. In the lower part of the pressurizer, the water may remain subcooled even as the pressure drops, due to the higher density and thermal mass of the liquid. This subcooled region can act as a heat sink, absorbing energy from the heaters without immediately contributing to vapor pressure. As the stratification persists, the interface between the subcooled liquid and the saturated vapor can move, altering the volume of the vapor space and further influencing the pressure. Understanding these subcooled water dynamics is crucial for predicting the pressure trajectory and implementing effective control strategies during a LOPA.
What are the results of a loss of pressure control?
A loss-of-pressure-control accident (LOPA) initiates a thermodynamic sequence where the confined coolant pressure falls below the design specification. When pressure drops, the saturation temperature of the coolant decreases. If the fuel rod surface temperature exceeds this new saturation point, subcooled nucleate boiling begins. This phase change absorbs significant heat, but it also introduces steam bubbles into the liquid coolant.
Progression to Dryout and Steam Blanketing
As the pressure continues to decline or heat flux increases, the boiling regime can shift from nucleate boiling to film boiling. This transition is known as critical heat flux or dryout. During dryout, a continuous layer of steam forms around the fuel cladding, effectively insulating the fuel from the cooler liquid water. This phenomenon is called steam blanketing. The thermal conductivity of steam is significantly lower than that of liquid water, causing the cladding temperature to rise rapidly. If the cladding temperature exceeds the threshold for zirconium-steam reaction, oxidation accelerates, further generating hydrogen and heat.
Potential for Nuclear Meltdown
If the pressure control is not restored and the steam blanket persists, the fuel temperature can rise to the melting point of the uranium dioxide fuel pellets. This leads to a nuclear meltdown, where the fuel structure collapses and potentially interacts with the reactor vessel. The grounding data indicates that preventing boiling in the core is necessary to avoid this outcome. In other reactor types, uncontrolled pressure changes can alter moderator properties, affecting neutron absorption and reactivity. The progression from initial pressure drop to saturation point, then to dryout and steam blanketing, represents the critical thermal-hydraulic pathway to core damage. The severity depends on the rate of pressure loss, the initial core power, and the effectiveness of emergency cooling systems.
Reactor protection systems and residual heat management
Reactor protection systems are engineered to detect deviations in coolant pressure and initiate automatic shutdown sequences to prevent core exposure. When pressure falls below specification, indicating a potential loss-of-pressure-control accident, sensors trigger control rod insertion to reduce thermal power. This action aims to stabilize the pressure-temperature relationship and restore the subcooling margin, which is the difference between the saturation temperature at the current pressure and the actual coolant temperature. A positive subcooling margin ensures that the coolant remains in a liquid state, maximizing heat transfer efficiency from the fuel cladding to the moderator.
The management of residual heat becomes paramount following the automatic shutdown. Even after fission ceases, decay heat continues to generate significant thermal energy within the fuel assemblies. If the pressure vessel cannot maintain the necessary pressure, the boiling point of the coolant drops, potentially leading to flash boiling or void formation. This reduces the density of the moderator, which can introduce positive reactivity in certain reactor designs, complicating the stabilization process. Engineers rely on the residual heat removal systems to circulate coolant and dissipate this decay heat, preventing the cladding temperature from exceeding design limits. The effectiveness of these systems depends on the integrity of the pressure boundary and the availability of makeup water to compensate for any losses.
Failure to manage residual heat during a pressure excursion can lead to localized dryout of the fuel rods. As the coolant film evaporates, the heat transfer coefficient decreases sharply, causing a rapid rise in cladding temperature. This scenario increases the risk of zirconium-steam reactions, which generate hydrogen and further heat, potentially leading to a nuclear meltdown if not corrected. Protection logic often includes multiple redundant channels to ensure that the shutdown signal is received even if primary sensors fail. The coordination between pressure relief valves and feedwater pumps is essential to balance the mass and energy inventory within the primary loop, ensuring that the reactor returns to a stable operating condition or safely transitions to a cold shutdown state.
Worked examples
Conceptual Illustration: Coolant Pressure Drop
The provided grounding defines a loss-of-pressure-control accident (LOPA) as a failure mode where confined coolant pressure falls below specification. In a pressurized water reactor (PWR), maintaining high pressure is critical to prevent the water in the core from boiling. If the pressure vessel integrity is compromised or the pressurizer fails, the saturation temperature of the water drops.
Consider a hypothetical scenario where a PWR operating at 155 bar experiences a sudden leak. As pressure decreases, the boiling point of the coolant lowers. If the pressure drops below the threshold required to keep the fuel rods submerged in liquid water, steam bubbles form. This introduces voids in the core. In a PWR, water acts as both coolant and moderator. The formation of steam can alter the neutron moderation properties, potentially affecting reactivity. More critically, if the liquid level falls too low, the fuel rods may become exposed to steam rather than liquid water. Since steam is less efficient at removing heat than liquid water, the fuel temperature rises. If the pressure control is not restored, the cladding may overheat, leading to oxidation and potential meltdown. This sequence illustrates why pressure vessels are essential for maintaining the thermodynamic state of the coolant.
Generalized Mechanism: Moderator Property Control
The grounding also notes that pressure control is necessary in other reactor types to prevent moderators from having uncontrolled properties. In a generic reactor system, the moderator slows down neutrons to sustain the chain reaction. If the pressure of the confined coolant/moderator mixture falls, its density may change. For example, in a boiling water reactor (BWR) or a heavy water reactor, pressure loss can lead to the expansion of the moderator. This changes the neutron flux distribution and the reactivity coefficient. A hypothetical failure in a secondary system could lead to a feedback loop where pressure loss causes density changes, which in turn affects heat generation. Without active control, the reactor may experience unstable power levels. The key takeaway is that pressure is not just a mechanical constraint but a thermodynamic variable that directly influences the nuclear and thermal-hydraulic behavior of the core.
These examples demonstrate that LOPA is not a single event but a cascade of thermodynamic and nuclear effects triggered by a deviation in pressure. The specific outcome depends on the reactor design, but the fundamental risk—loss of cooling efficiency and potential core damage—remains consistent across types.
