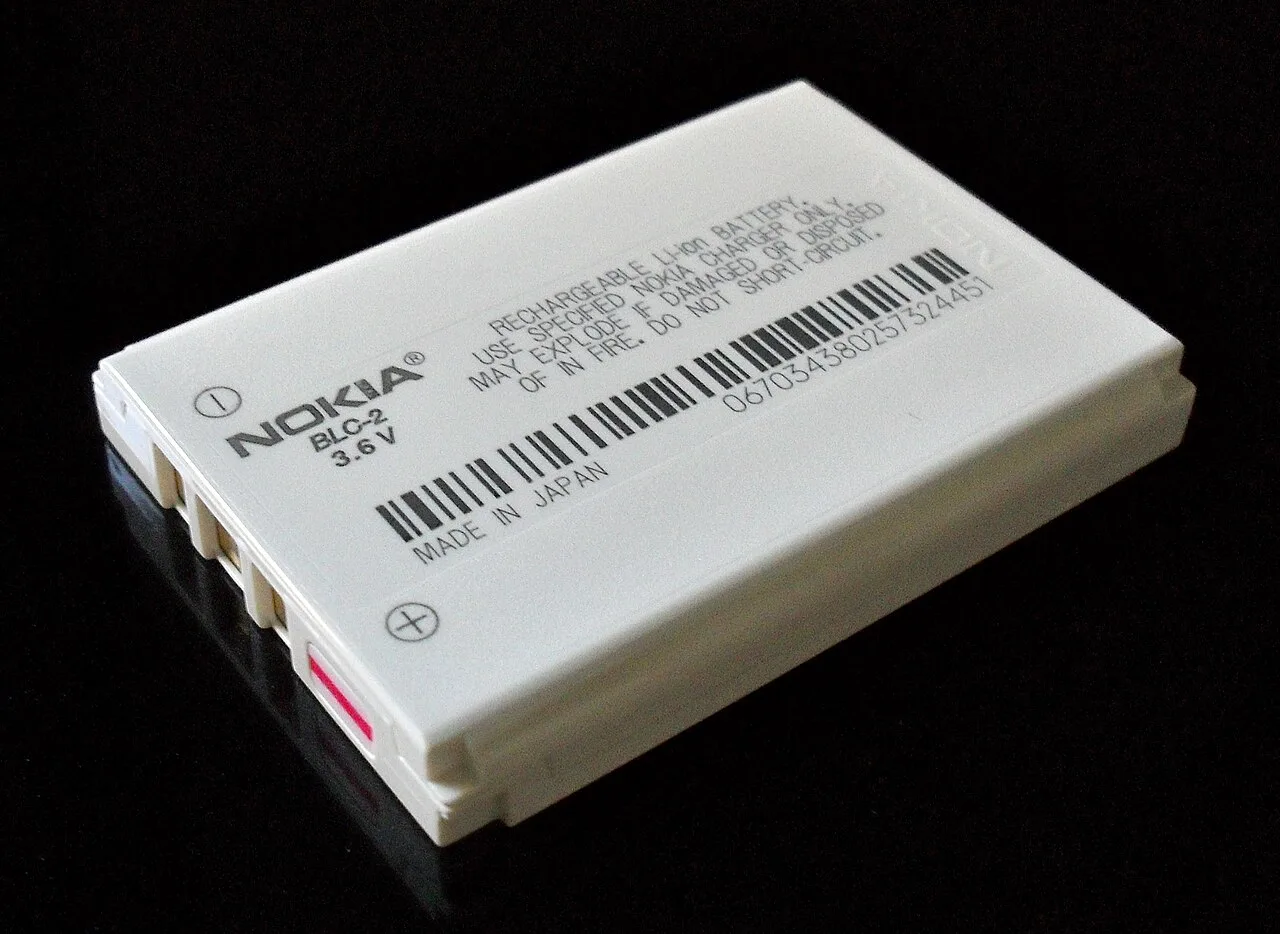

Overview
Lithium-ion batteries are constructed of several key components, including an anode, cathode, separator, casing, electrolyte, and a pair of current collectors. These elements work in concert to store and release energy through the reversible movement of lithium ions. The system operates as an electrochemical cell where the flow of ions between the electrodes generates an electric current in the external circuit. This configuration has defined the standard architecture for modern portable power and grid storage solutions.
Electrodes and Current Collectors
The anode and cathode serve as the primary active materials within the cell. During discharge, lithium ions migrate from the anode to the cathode, while electrons travel through the external circuit, powering the load. The current collectors provide the conductive pathway for electrons to enter and exit the electrode materials. One current collector is typically associated with the anode, and the other with the cathode, ensuring efficient electron transport. The specific materials used for these collectors influence the battery's weight, conductivity, and overall energy density.
Separator and Electrolyte
The separator is a critical component that physically divides the anode and cathode to prevent electrical short circuits while allowing ionic conductivity. It must be porous enough to let lithium ions pass through but robust enough to withstand mechanical stress. The electrolyte fills the pores of the separator and the voids in the electrodes, creating the medium for ion transport. It consists of lithium salts dissolved in organic solvents, facilitating the movement of lithium ions between the electrodes during charge and discharge cycles. The stability of the electrolyte is essential for the battery's lifespan and safety.
Casing and Structural Integrity
The casing encloses all internal components, providing mechanical protection and environmental sealing. It keeps the electrolyte from leaking and shields the internal chemistry from external factors such as moisture and oxygen. The design of the casing can vary, influencing the form factor of the battery, whether it is cylindrical, prismatic, or pouch-style. Together with the other components, the casing ensures the structural integrity of the cell, allowing it to function reliably under various operational conditions. The combination of these six key components defines the fundamental structure of lithium-ion battery technology.
Cathode materials and chemistry
The cathode is the primary determinant of a lithium-ion battery's voltage, capacity, and stability. Commercial cathodes are broadly classified into three structural families: layered oxides, spinels, and oxoanions. Each chemistry offers distinct trade-offs between energy density, power, cost, and thermal stability.
Layered Oxides
Layered oxides dominate the portable electronics and electric vehicle markets due to their high specific capacity. Lithium cobalt oxide (LiCoO2) was the first commercially successful cathode, offering a nominal voltage of ~3.7 V and a theoretical capacity of ~148 mAh/g. However, cobalt’s cost and supply chain volatility led to the development of mixed-metal layered oxides.
Nickel-cobalt-manganese oxide (NCM, LiNixCoyMnzO2) and nickel-cobalt-aluminum oxide (NCA, LiNiCoAlO2) increase nickel content to boost energy density, often exceeding 200 mAh/g. NCM variants (e.g., NCM 111, 622, 811) adjust the ratio of nickel, cobalt, and manganese to balance power, stability, and cost. NCA is favored in automotive applications for its high specific energy, though it requires careful thermal management.
Spinel Structure
Lithium manganese oxide (LiMn2O4) features a 3D spinel structure that allows for rapid lithium-ion diffusion, providing high power density and lower cost compared to cobalt-rich layered oxides. Its nominal voltage is higher (~4.0 V), but its specific capacity is lower (~120–148 mAh/g). Spinel cathodes are prone to manganese dissolution at elevated temperatures, which can reduce cycle life, making them suitable for power tools and early-generation electric vehicles.
Oxoanions (Phosphates)
Lithium iron phosphate (LiFePO4, or LFP) utilizes a strong P-O bond, resulting in exceptional thermal and chemical stability. While its nominal voltage is lower (~3.4 V) and specific capacity is moderate (~140–160 mAh/g), LFP offers superior cycle life and safety, with less risk of thermal runaway. It is widely used in stationary storage and cost-sensitive electric vehicles where maximum energy density is secondary to longevity and safety.
| Cathode Type | Chemical Formula | Nominal Voltage (V) | Specific Capacity (mAh/g) |
|---|---|---|---|
| Layered Oxide | LiCoO2 | ~3.7 | ~148 |
| Layered Oxide | NCM (various) | ~3.6–3.8 | ~160–220 |
| Layered Oxide | NCA | ~3.6–3.7 | ~180–200 |
| Spinel | LiMn2O4 | ~4.0 | ~120–148 |
| Oxoanion | LiFePO4 (LFP) | ~3.4 | ~140–160 |
Anode materials and silicon integration
The anode serves as the primary lithium-ion storage site during battery operation. Commercial lithium-ion batteries rely predominantly on graphite as the anode material, a choice driven by its layered crystal structure, which facilitates the intercalation of lithium ions. This intercalation process allows lithium ions to insert themselves between the graphene layers of the graphite anode, forming a lithium-graphite intercalation compound. The theoretical specific capacity of graphite is approximately 372 mAh/g, corresponding to a stoichiometry of LiC6. This capacity represents the amount of charge stored per unit mass of the active material, making graphite a benchmark for anode performance in terms of energy density and cycle life.
Silicon-based anodes
Silicon has emerged as a leading candidate to augment or replace graphite due to its significantly higher theoretical capacity. The theoretical specific capacity of crystalline silicon is approximately 4200 mAh/g, which is more than ten times that of graphite. This high capacity stems from the alloying mechanism between lithium and silicon, forming a lithium-silicon alloy with a stoichiometry of Li22Si5. However, the integration of silicon into commercial anodes faces a critical challenge: volume expansion. During the lithiation process, silicon undergoes a substantial volume expansion of up to 300%. This repeated expansion and contraction during charge and discharge cycles induce significant mechanical stress on the silicon particles, leading to particle pulverization and the formation of a thick, unstable solid electrolyte interphase (SEI) layer. These factors contribute to capacity fading and reduced cycle life, necessitating advanced engineering solutions such as nanostructuring and composite materials to mitigate the volumetric changes.
High-entropy metal oxides
Beyond graphite and silicon, high-entropy metal oxides (HEMOs) represent an emerging class of anode materials. These complex oxides consist of five or more metal cations distributed in a single crystal lattice, offering a "cocktail effect" that enhances structural stability and electrochemical performance. The multi-principal element composition of HEMOs can lead to improved ionic and electronic conductivity, as well as enhanced mechanical robustness. Research into HEMOs focuses on leveraging their configurational entropy to stabilize the crystal structure during lithium insertion and extraction. This stabilization can potentially reduce the volume expansion issues seen in silicon anodes and improve the overall cycle life of the battery. The development of HEMOs involves optimizing the ratio of metal cations to achieve the desired electrochemical properties, making them a promising avenue for next-generation lithium-ion battery anodes.
Electrolytes and the solid electrolyte interphase
Lithium-ion batteries rely on an electrolyte to facilitate ion transport between the anode and cathode. The most common liquid electrolytes consist of lithium salts, primarily lithium hexafluorophosphate (LiPF6), dissolved in organic carbonate solvents. These solvents, such as ethylene carbonate and dimethyl carbonate, provide a wide electrochemical stability window and good ionic conductivity. The electrolyte must remain stable under the operating voltage of the cell while allowing lithium ions to move freely during charge and discharge cycles.
Formation of the Solid Electrolyte Interphase
A critical feature of lithium-ion batteries is the formation of the solid electrolyte interphase (SEI) on the anode surface. This layer forms during the initial charging cycles through the reduction of electrolyte components. The SEI acts as a semi-permeable membrane, allowing lithium ions to pass through while preventing further decomposition of the electrolyte. Without a stable SEI, the electrolyte would continuously decompose, leading to capacity fade and potential thermal runaway.
The discovery and characterization of the SEI involved several key researchers. John O. Besenhard and colleagues, along with L. A. K. Dey, made early contributions to understanding the passivation layer on lithium anodes. Later, L. Peled provided a comprehensive model explaining the formation and properties of the SEI, highlighting its role in stabilizing the lithium anode. Sullivan also contributed to the understanding of SEI formation mechanisms, emphasizing the importance of solvent choice and salt concentration.
Solid Electrolyte Alternatives
In addition to liquid electrolytes, solid electrolytes offer potential advantages in terms of safety and energy density. Solid electrolytes can be categorized into three main types: polymers, ceramics, and glasses. Polymer electrolytes, such as polyethylene oxide (PEO) blended with LiPF6, offer flexibility and ease of processing but often exhibit lower ionic conductivity at room temperature. Ceramic electrolytes, including garnet-type (e.g., Li7La3Zr2O12) and perovskite-type (e.g., Li3xAlxTi2-x(PO4)3) materials, provide high ionic conductivity and thermal stability but can be brittle and challenging to manufacture. Glass electrolytes, such as sulfide-based glasses, offer high ionic conductivity but may be sensitive to moisture.
The development of solid-state batteries using these electrolytes aims to replace the liquid electrolyte, potentially enabling the use of lithium metal anodes for higher energy density. However, challenges remain in achieving low interfacial resistance and ensuring long-term stability. Research continues to optimize the composition and structure of solid electrolytes to enhance their performance in commercial applications.
How do different cathode chemistries affect battery performance?
The choice of cathode chemistry involves trade-offs between specific capacity, operating voltage, and structural integrity during ion intercalation. Common cathode types include Lithium Cobalt Oxide (LCO), Lithium Iron Phosphate (LFP), and Nickel-rich layered oxides.
Voltage and Energy Density Trade-offs
The nominal voltage of a cell is largely defined by the difference in electrochemical potential between the cathode and anode. LCO cathodes typically offer a high nominal voltage of approximately 3.7 V, contributing to high volumetric energy density, making them suitable for consumer electronics. In contrast, LFP cathodes operate at a lower nominal voltage of approximately 3.2 V. While LFP offers superior thermal stability and longer cycle life, its lower voltage and specific capacity result in lower overall energy density compared to cobalt-based chemistries.
Nickel-rich cathodes, such as Lithium Nickel Manganese Cobalt Oxide (NMC) and Lithium Nickel Cobalt Aluminum Oxide (NCA), are engineered to balance these factors. Increasing the nickel content in the layered oxide structure enhances specific capacity, as nickel is the primary redox-active element. The theoretical specific capacity of nickel can be expressed in relation to the molar mass of the lithium ion (Li+) and the working voltage window.
Stability and the Rise of Nickel-Rich Chemistries
Thermal stability is critical for safety, particularly in electric vehicle applications. LFP cathodes exhibit strong covalent P–O bonds, providing high thermal stability and resistance to oxygen release at elevated temperatures. However, this stability comes at the cost of energy density. Nickel-rich cathodes, while offering higher energy density, are more prone to thermal runaway due to weaker metal-oxygen bonds and structural phase transitions at high states of charge.
By 2023, nickel-rich cathodes became the favored choice for many high-performance applications due to the need for extended range in electric vehicles. The drive to reduce cobalt usage, both for cost reduction and supply chain diversification, further accelerated the adoption of Ni-rich formulations. Engineers mitigate the stability issues of nickel-rich cathodes through doping with elements like aluminum or manganese, and through advanced electrolyte formulations to stabilize the solid-electrolyte interphase.
What are the challenges with silicon anodes?
Volume Expansion and Mechanical Stress
Silicon anodes offer a significantly higher theoretical specific capacity compared to traditional graphite, but they suffer from extreme volumetric expansion during lithiation. This expansion can reach approximately 400% of the initial volume, creating substantial mechanical stress within the electrode structure (per standard materials science data on silicon anodes). Such drastic dimensional changes lead to particle pulverization and the formation of micro-cracks, which disrupt the electrical contact between active material and current collectors, resulting in rapid capacity fade.
Electrolyte Decomposition and SEI Growth
The continuous expansion and contraction of silicon particles cause the Solid Electrolyte Interphase (SEI) layer to repeatedly fracture and reform. This dynamic process consumes lithium ions and electrolyte components, leading to a thick and unstable SEI layer. The chemical reaction for SEI formation involves the reduction of electrolyte salts and solvents on the anode surface, often represented by simplified equations such as LiPF6+e−→Li++PF6−. The instability of this layer increases internal resistance and reduces the overall Coulombic efficiency of the battery cell.
Mitigation Strategies
To address these challenges, researchers have developed various structural and coating solutions. One effective approach involves applying diamond-like carbon (DLC) coatings to silicon particles. These coatings provide a flexible yet robust barrier that accommodates volume changes while maintaining electrical conductivity. Additionally, nanostructuring silicon into wires, nanoparticles, or porous spheres helps mitigate mechanical stress by providing more free space for expansion. These engineering solutions aim to stabilize the electrode architecture and extend the cycle life of silicon-based lithium-ion batteries.
Worked examples
Theoretical Capacity Calculation for Graphite Anodes
The theoretical specific capacity of an electrode material is determined by the ratio of the molar charge passed to the molar mass of the active material. For graphite (LiC6), one mole of lithium ions intercalates into six moles of carbon atoms. The Faraday constant (F) is approximately 96,485 C/mol. The molar mass of carbon is 12.01 g/mol. The calculation proceeds as follows:
Capacity (C/g) = (n × F) / MC
Where n is the number of electrons per formula unit (1 for LiC6), F is 96,485 C/mol, and MC is the molar mass of the carbon unit involved in the stoichiometry. For LiC6, the mass is 6 × 12.01 g = 72.06 g per mole of Li.
Capacity = 96,485 C/mol / 72.06 g/mol ≈ 1,339 C/g.
To convert Coulombs to milliamp-hours (mAh), divide by 3.6 (since 1 Ah = 3,600 C):
1,339 C/g / 3.6 ≈ 372 mAh/g.
This matches the standard theoretical capacity of graphite anodes.
Comparative Capacity: Silicon vs. Graphite
Silicon anodes offer significantly higher theoretical capacity due to the formation of Li22Si5 or Li12Si phases. Using the Li12Si phase as a reference: 12 moles of Li react with 1 mole of Si. The molar mass of Si is 28.09 g/mol.
Capacity (C/g) = (12 × 96,485 C/mol) / 28.09 g/mol
Capacity = 1,157,820 C/mol / 28.09 g/mol ≈ 41,218 C/g.
Converting to mAh/g:
41,218 C/g / 3.6 ≈ 11,449 mAh/g.
However, practical capacity is often cited between 900–1,500 mAh/g depending on the specific lithiation phase (e.g., Li4.4Si yields ~900 mAh/g). The discrepancy arises because not all silicon atoms fully lithiate to Li12Si in practical cells, and volume expansion affects effective density. Graphite’s 372 mAh/g is thus roughly 2.4 to 4 times lower than silicon’s practical range.
Diffusion Coefficient Example
The diffusion coefficient (D) of lithium ions in graphite can be estimated using the Fickian diffusion model. If the characteristic diffusion length (L) is 10 µm (10-5 m) and the time constant (t) for diffusion is 100 seconds, D is calculated as:
D ≈ L2 / (4 × t)
D ≈ (10-5 m)2 / (4 × 100 s) = 10-10 m2 / 400 s ≈ 2.5 × 10-13 m2/s.
This value is consistent with typical Li-ion diffusion coefficients in graphite anodes, which range from 10-10 to 10-14 m2/s depending on temperature and state of charge.
Applications and future directions
Lithium-ion battery technology has become foundational to modern energy infrastructure, particularly in electric vehicles (EVs) and stationary energy storage systems. The operational status of these components, commissioned in 1991, supports a wide range of applications that rely on high energy density and efficient charge-discharge cycles. In the automotive sector, lithium-ion batteries enable extended driving ranges and improved performance, making them the dominant power source for EVs. These batteries are also critical for stationary storage, where they help balance grid loads and integrate variable renewable energy sources.
Electric Vehicles and Stationary Storage
Electric vehicles utilize lithium-ion batteries to store electrical energy, which is then converted into mechanical energy to drive the vehicle. The anode, cathode, separator, casing, electrolyte, and current collectors work together to ensure efficient energy storage and release. In stationary storage applications, lithium-ion batteries are used to store excess energy generated by renewable sources such as solar and wind power. This stored energy can be discharged during peak demand periods, helping to stabilize the grid and reduce reliance on fossil fuels.
Emerging Technologies
Research and development in lithium-ion battery technology continue to advance, with emerging technologies such as solid-state batteries and nanotechnology architectures showing promise. Solid-state batteries replace the liquid electrolyte with a solid material, potentially offering higher energy density and improved safety. Nanotechnology architectures involve the use of nanomaterials to enhance the performance of battery components, such as increasing the surface area of the anode and cathode to improve ion flow. These advancements aim to address current limitations, including energy density, charging speed, and lifespan.
Technical Considerations
The performance of lithium-ion batteries is influenced by several technical factors, including the composition of the anode and cathode, the type of electrolyte used, and the design of the separator. The energy density of a lithium-ion battery can be expressed as the amount of energy stored per unit volume or mass, which is critical for both EVs and stationary storage applications. The efficiency of charge-discharge cycles is also a key consideration, as it affects the overall lifespan and performance of the battery. Ongoing research focuses on optimizing these components to enhance battery performance and reduce costs.
