Overview
Grid code requirements for wind power integration represent a critical technical and regulatory framework designed to ensure the stability, reliability, and efficiency of electrical power systems as wind energy penetration increases. In the European context, these codes have evolved from simple connectivity standards into sophisticated sets of technical specifications that dictate how wind power plants (WPPs) must interact with the transmission and distribution networks. The primary objective is to mitigate the inherent variability and intermittency of wind resources, ensuring that the integration of large-scale wind generation does not compromise the quality of supply or the dynamic stability of the grid.
Evolution of Technical Specifications
Historically, wind turbines were often treated as passive loads or simple generators with minimal control capabilities. Early grid codes focused primarily on basic electrical characteristics, such as voltage and frequency tolerance, and simple on/off switching behaviors. However, as the share of wind power in the European energy mix grew, particularly in countries like Denmark, Germany, and Spain, the need for more active participation from wind farms became apparent. Modern grid codes now require wind power plants to provide essential ancillary services, including reactive power support, frequency response, and fault ride-through (FRT) capabilities.
Key Technical Requirements
Reactive power control is a fundamental requirement, mandating that wind turbines maintain voltage levels within specified limits by adjusting their power factor. This is crucial for minimizing transmission losses and stabilizing voltage profiles across the network. Frequency response requirements have also become increasingly stringent, with wind turbines expected to contribute to primary frequency control by adjusting their active power output in response to grid frequency deviations. This involves both under-frequency and over-frequency reserve mechanisms, allowing wind farms to act more like conventional synchronous generators.
Fault Ride-Through and Dynamic Stability
Fault ride-through (FRT) capability is another critical aspect of modern grid codes. Wind turbines must remain connected to the grid during short-circuit faults and other transient disturbances, providing reactive power support to help restore voltage levels. This requirement prevents mass disconnection of wind farms during grid disturbances, which could otherwise lead to cascading failures and significant frequency deviations. Additionally, grid codes specify requirements for harmonic distortion, flicker, and unbalance, ensuring that the electrical quality of the power injected by wind farms meets the standards necessary for sensitive downstream equipment.
Regional Variations and Harmonization
While there is a trend toward harmonization across Europe, significant regional variations in grid code requirements persist. Different Transmission System Operators (TSOs) have developed specific technical specifications tailored to the unique characteristics of their networks and the level of wind penetration. For example, the German grid code places a strong emphasis on frequency response and reactive power control, while the Spanish code has historically focused on voltage stability and FRT capabilities. These variations can create challenges for wind turbine manufacturers and developers, who must often customize their equipment to meet the specific requirements of different markets.
What are grid codes?
Grid codes are the technical specifications and regulatory frameworks that define how electricity generators, including wind farms, must connect to and interact with the transmission and distribution networks. These codes establish the minimum performance standards required to ensure the stability, reliability, and quality of the electrical power supplied to end-users. For wind power integration, grid codes are critical because wind energy is inherently variable and often located far from major load centers, requiring specific technical capabilities to maintain system balance. The primary purpose of a grid code is to translate the physical characteristics of the power system into actionable requirements for generator operators, ensuring that the collective behavior of all connected units supports the overall network health.
Core Objectives of Grid Codes
The fundamental objectives of grid codes in the context of wind power include maintaining voltage and frequency stability, ensuring power quality, and facilitating effective fault ride-through capabilities. Voltage stability requires wind turbines to provide reactive power support, helping to regulate voltage levels at the point of common coupling. Frequency stability involves the ability of wind generators to respond to changes in system frequency, often through primary frequency control mechanisms. Power quality standards address issues such as harmonic distortion, flicker, and unbalance, which can be introduced by the power electronic converters used in modern wind turbines. Fault ride-through (FRT) capabilities mandate that wind turbines remain connected to the grid during short-circuit faults, providing support to the network rather than disconnecting, which could exacerbate the disturbance.
Key Technical Requirements
Specific technical requirements within grid codes for wind power typically cover active and reactive power control, power factor ranges, and dynamic performance during grid disturbances. Active power control allows grid operators to curtail or increase wind generation to match system demand or transmission capacity. Reactive power control ensures that wind farms can supply or absorb reactive power to maintain voltage profiles. Power factor requirements specify the range within which wind turbines must operate, often requiring a power factor between 0.95 leading and 0.95 lagging. Dynamic performance requirements define how wind turbines should behave during voltage dips, specifying the minimum voltage level and duration for which turbines must remain connected. These requirements are essential for integrating high penetrations of wind power into the grid, ensuring that the variability of wind energy does not compromise the overall reliability of the power system.
Adaptation to Wind Characteristics
Grid codes have evolved to address the unique characteristics of wind power, such as its intermittency and the widespread use of power electronics. Traditional synchronous generators provided inertia and natural frequency response, whereas wind turbines, particularly those with doubly-fed induction generators (DFIGs) and full-converter systems, require specific control strategies to emulate these characteristics. Modern grid codes often include requirements for synthetic inertia, primary frequency response, and voltage support during both steady-state and transient conditions. These adaptations ensure that wind power can contribute to the stability of the grid, similar to conventional generation sources. The continuous refinement of grid codes reflects the growing share of wind energy in the global power mix and the need for flexible, responsive generation assets to maintain system balance.
Why are grid codes important for wind power?
Grid codes are the technical rulebooks that define how power plants must behave to keep a transmission network stable. For wind power, these requirements are critical because wind turbines are primarily connected via power electronics rather than the synchronous generators used in traditional coal or nuclear plants. This fundamental difference means wind farms do not naturally provide the same level of inertia or voltage support, making strict adherence to grid codes essential for system reliability.
Frequency and Voltage Stability
One of the primary functions of grid codes is to ensure frequency stability. In a traditional grid, the rotating mass of synchronous generators provides inertia, which resists sudden changes in frequency. Wind turbines, particularly those with doubly-fed induction generators or full-converter systems, have lower inherent inertia. Grid codes therefore mandate that wind farms contribute to frequency response, often through active power control and fast frequency response mechanisms. This allows wind power to help balance supply and demand fluctuations, preventing frequency deviations that could trigger under-frequency load shedding or even blackouts.
Voltage stability is another critical aspect. Wind farms must maintain voltage levels within specified limits at the point of common coupling. Grid codes require wind turbines to provide reactive power support, either through the generator’s power electronics or external capacitors and reactors. This capability helps regulate voltage during normal operation and disturbances, ensuring that the grid voltage remains stable even when wind output varies significantly.
Fault Ride-Through Capability
Fault ride-through (FRT) is a key requirement in modern grid codes for wind power. It dictates how wind turbines must behave during voltage dips caused by grid faults, such as short circuits. Instead of disconnecting immediately, wind turbines are required to remain connected to the grid for a specified duration while injecting reactive current to support voltage recovery. This prevents a cascade of disconnections that could overwhelm the grid, especially in regions with high wind penetration. FRT requirements ensure that wind farms contribute to grid resilience rather than becoming a source of instability during disturbances.
Integration and Forecasting
Grid codes also address the variability and intermittency of wind power through forecasting and dispatch requirements. Wind farms must provide accurate power forecasts to system operators, enabling better unit commitment and reserve allocation. Additionally, grid codes often specify ramp rate limits, controlling how quickly wind output can change. This helps system operators manage the balance between generation and load, reducing the need for fast-acting reserve resources. By standardizing these operational aspects, grid codes facilitate the seamless integration of wind power into the broader European electricity market.
Key requirements in European grid codes
European grid codes establish a rigorous technical framework to ensure wind power integration does not destabilize the continental synchronous grid. These requirements, largely harmonized under the Network Code on Requirements for Generation (RfG) and the Network Code on Demand Connection (DC), mandate that wind power plants (WPPs) behave increasingly like conventional synchronous generators. The primary objective is to maintain frequency and voltage stability, manage reactive power, and ensure fault ride-through capabilities across diverse network topologies.
Frequency and Active Power Control
Wind turbines must contribute to primary frequency response (PFR) to counteract the inertia deficit caused by the high penetration of variable renewable energy. Grid codes require WPPs to provide frequency-watt (f-P) characteristics, where active power output adjusts automatically in response to grid frequency deviations. This often involves reserve margins, where wind farms operate below maximum available power to release energy during frequency drops. Additionally, secondary and tertiary frequency control may be required for larger aggregations, necessitating advanced power electronics and communication systems to coordinate with transmission system operators (TSOs).
Voltage and Reactive Power Management
Reactive power capability is critical for voltage support. European standards typically require wind turbines to operate within a defined power factor range, often between 0.95 leading and 0.95 lagging, across a wide active power output range. This ensures that wind farms can inject or absorb reactive power (VARs) to stabilize local and transmission-level voltages. Static Var Compensators (SVCs) and Static Synchronous Compensators (STATCOMs) are frequently employed to provide fast-reacting reactive power support, particularly during voltage dips or swells.
Fault Ride-Through (FRT)
Unlike early wind turbines that disconnected during grid disturbances, modern European grid codes mandate Fault Ride-Through (FRT) capability. Wind turbines must remain connected to the grid during specified voltage dips for a defined duration, typically up to 150 milliseconds for a complete voltage collapse, depending on the specific TSO requirements. This prevents widespread tripping that could exacerbate frequency instability. During FRT events, wind turbines must also inject reactive current to support voltage recovery, with the magnitude of reactive current often proportional to the depth of the voltage dip.

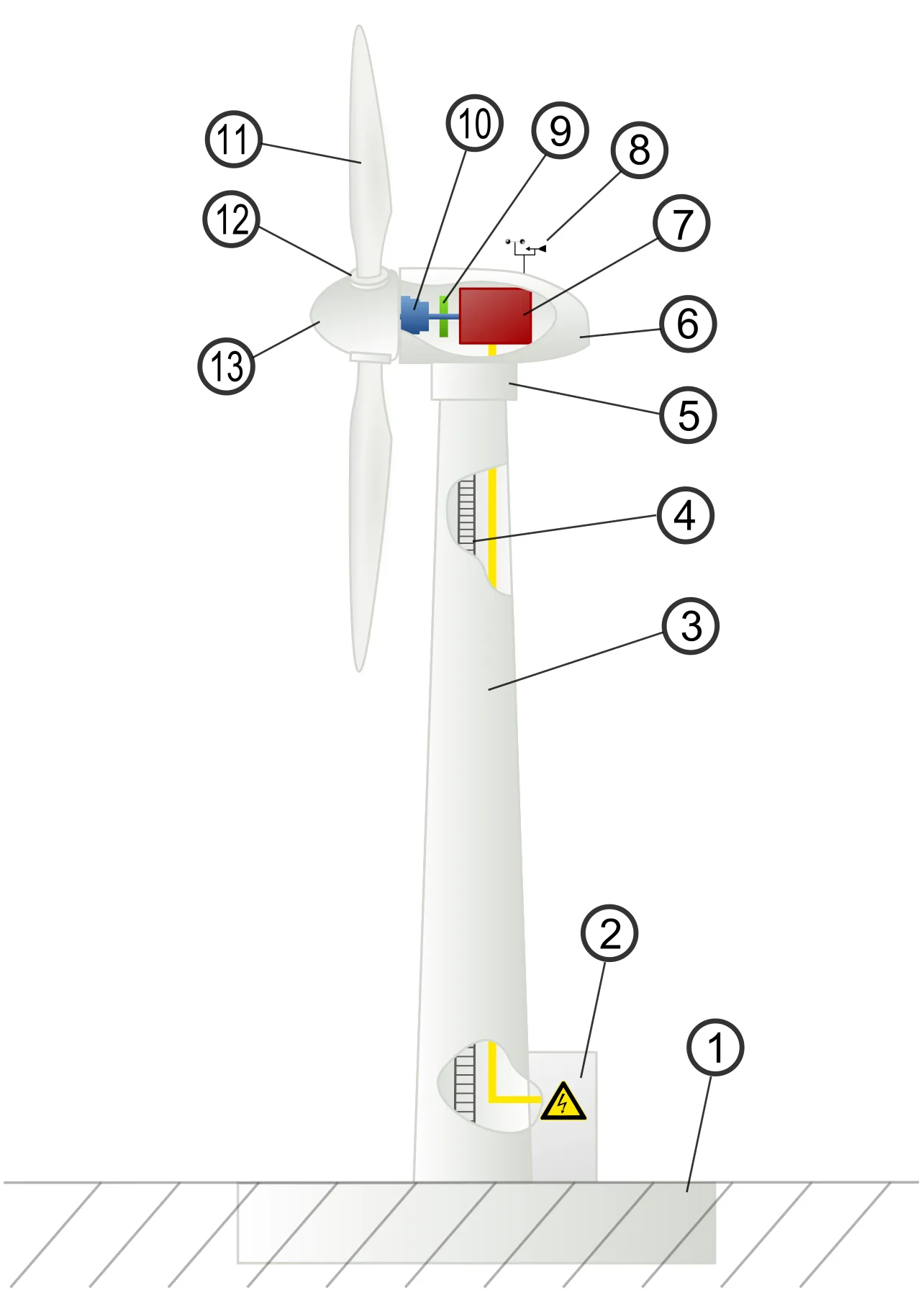

How do grid codes affect wind farm design?
Grid codes fundamentally dictate the electrical architecture of modern wind farms, shifting design priorities from simple energy capture to complex grid support. Compliance requires wind turbine generators (WTGs) to exhibit specific behaviors during voltage and frequency disturbances, which directly influences the selection of power electronics and control systems.
Power Electronics and Converter Topology
The requirement for high penetration of wind power has accelerated the adoption of Full Converter systems, particularly in Direct Drive and Geared Permanent Magnet Synchronous Generators (PMSG). Unlike traditional Doubly Fed Induction Generators (DFIGs), which rely on a partial converter covering only the slip frequency, full converters decouple the generator from the grid frequency. This topology allows for superior control over active and reactive power, enabling wind farms to meet stringent grid code mandates for inertia emulation and fast frequency response. The design must account for the thermal ratings of the converter semiconductors to handle continuous reactive power injection without excessive losses.
Voltage Ride-Through and Reactive Power Control
Grid codes often mandate Low Voltage Ride-Through (LVRT) capabilities, requiring turbines to remain connected during short-circuit faults. This necessitates robust DC-link capacitor sizing and advanced control algorithms to manage the surge of reactive current. Designers must integrate Static Var Compensators (SVCs) or Static Synchronous Compensators (STATCOMs) at the point of common coupling to stabilize voltage profiles. The reactive power characteristic curve, typically defined as Q(U) or Q(P), forces wind farms to provide or absorb reactive power based on grid voltage levels, impacting the sizing of the generator’s excitation system and the thermal capacity of the stator windings.
Frequency Response and Inertia Emulation
As wind power shares increase, grid codes increasingly demand frequency support. Wind turbines must be designed to release kinetic energy from the rotor or utilize battery energy storage systems (BESS) to provide primary frequency response. This requires sophisticated control logic to coordinate between the mechanical drive train and the electrical output, ensuring that the turbine does not stall during rapid power extraction. The design must balance the need for fast response times with the mechanical stress on the nacelle components, influencing the selection of gearboxes and generator types.
Challenges in implementing grid codes
Implementing grid codes for wind power integration presents significant technical and economic hurdles for both developers and system operators. A primary challenge is the cost of compliance, particularly for older wind farms retrofitted to meet modern standards. Unlike synchronous generators in conventional thermal plants, wind turbines often require Power Electronic Converters (PECs) to interface with the grid. These converters must be sized and controlled to provide reactive power support, frequency response, and voltage regulation, which increases capital expenditure (CAPEX) and operational expenditure (OPEX) for developers. The financial burden can be unevenly distributed, potentially affecting the levelized cost of energy (LCOE) and competitive bidding outcomes.
Technical Complexity and Interoperability
The diversity of wind turbine manufacturers and generator types—such as Doubly Fed Induction Generators (DFIGs) and Permanent Magnet Synchronous Generators (PMSGs)—complicates standardization. Each technology responds differently to grid disturbances, making it difficult to define uniform performance criteria. For instance, the inertia emulation provided by full-converter turbines differs significantly from that of DFIGs. Grid operators must ensure that these diverse assets can communicate effectively with the Transmission System Operator (TSO) through standardized protocols like IEC 61400-21 or IEC 61400-27. Incompatibilities can lead to suboptimal performance during faults, such as unintended tripping or delayed reactive power injection.
Forecasting and Variability
Wind power's inherent variability imposes strict requirements on forecasting accuracy within grid codes. Developers must provide short-term and long-term generation forecasts to aid in unit commitment and economic dispatch. However, inaccuracies in forecasting lead to balancing costs, which are often penalized under grid code provisions. The challenge is exacerbated in regions with high wind penetration, where the "net load" curve becomes more volatile. Grid operators must balance the need for precise forecasting against the meteorological uncertainties that affect wind speed and direction, requiring advanced data analytics and real-time communication infrastructure.
Grid Stability and Fault Ride-Through
Fault Ride-Through (FRT) capabilities are critical for maintaining grid stability during voltage sags. Wind turbines must remain connected to the grid for a specified duration and voltage profile during a fault, providing reactive current support. Implementing robust FRT requires sophisticated control algorithms and hardware upgrades. For grid operators, the challenge lies in verifying that each turbine meets these dynamic performance standards through type testing and field measurements. Failure to comply can result in widespread disconnections during transient events, potentially triggering cascading failures or frequency deviations that threaten overall system reliability.
