CO2 reforming of methane

Overview

CO2 reforming of methane, widely recognized in chemical engineering and energy infrastructure literature as dry reforming of methane (DRM), is a thermochemical process designed to convert two of the most prevalent greenhouse gases—methane (CH4) and carbon dioxide (CO2)—into synthesis gas, commonly referred to as syngas. This process represents a strategic intersection of carbon capture utilization and hydrogen production, offering a pathway to mitigate the environmental impact of natural gas reserves while generating valuable feedstocks for downstream chemical synthesis. The primary fuel source for this reaction is natural gas, which provides the methane component, while the carbon dioxide can be sourced from flue gases, biogas, or captured industrial emissions, thereby linking the natural gas infrastructure with broader carbon management strategies. The fundamental chemical reaction driving this process involves the stoichiometric interaction of methane and carbon dioxide to produce carbon monoxide and hydrogen. The basic chemical equation is expressed as: CH4+CO2⇌2CO+2H2 This reaction is notably endothermic, meaning it requires a continuous input of thermal energy to proceed, typically operating at elevated temperatures ranging from 700°C to 900°C, depending on the catalyst and reactor design. The resulting syngas is characterized by a molar ratio of hydrogen to carbon monoxide (H2/CO) of approximately 1:1, which is particularly advantageous for Fischer-Tropsch synthesis and methanol production, distinguishing it from the higher H2/CO ratio produced in steam reforming. The role of CO2 reforming of methane in the global energy infrastructure is multifaceted. It serves as a mechanism for valorizing biogas, which consists primarily of methane and carbon dioxide, by upgrading it into high-value syngas without the need for extensive pre-separation of the two gases. This capability is critical for natural gas processing facilities and biogas plants seeking to enhance the economic viability of their outputs. Furthermore, by simultaneously consuming methane, a potent greenhouse gas, and carbon dioxide, the process contributes to the reduction of the overall carbon footprint of natural gas utilization. The technology is integral to the development of flexible energy systems, where natural gas acts as a bridge fuel, and carbon capture technologies are integrated directly into the reforming process to optimize efficiency and environmental performance. The process enables the conversion of two major greenhouse gases into synthesis gas, thereby transforming waste streams into essential chemical building blocks for the energy sector.

How does CO2 reforming of methane work?

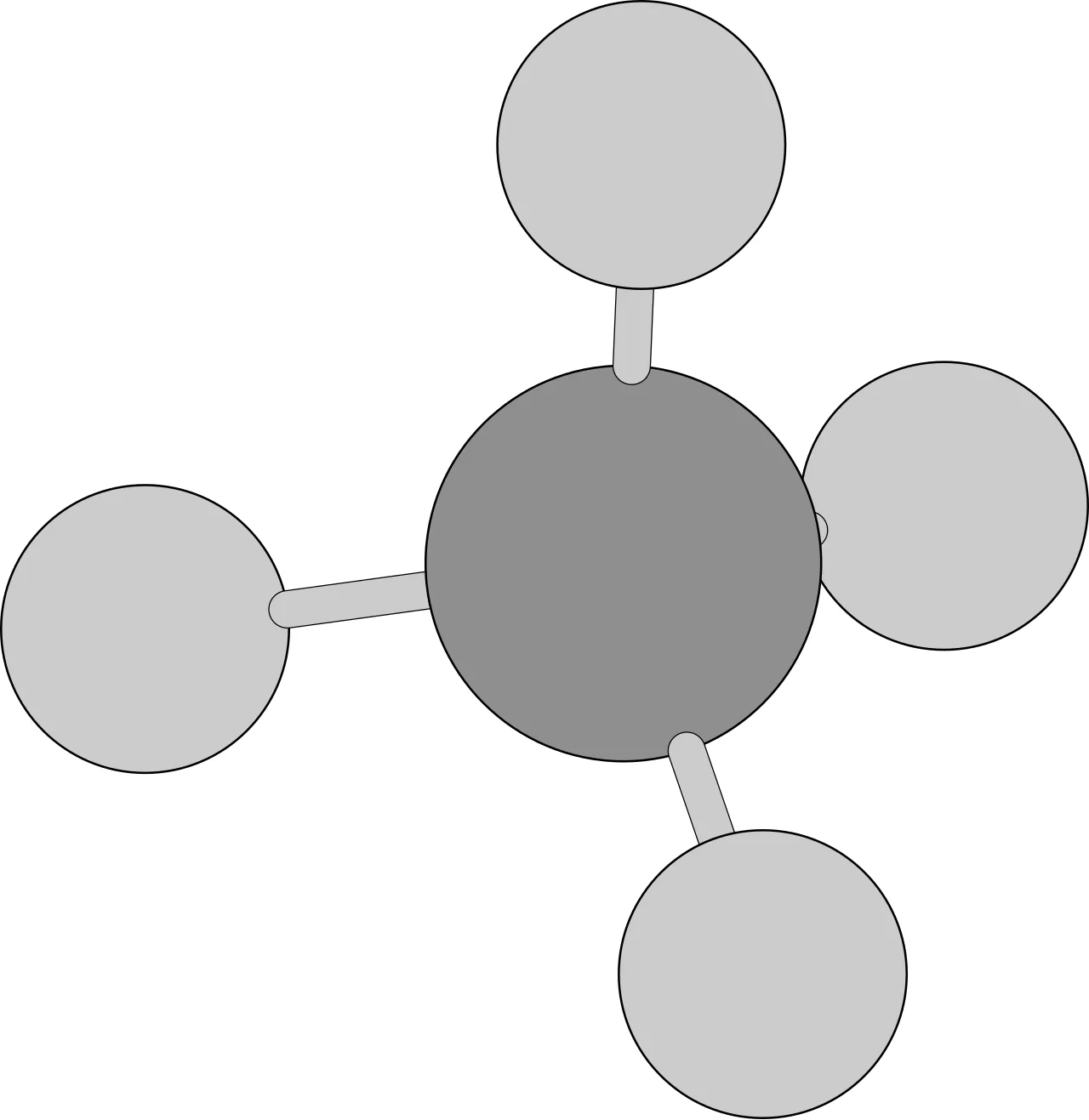

Carbon dioxide reforming of methane, also known as dry reforming, is a chemical process that converts two greenhouse gases, methane (CH4) and carbon dioxide (CO2), into synthesis gas (syngas). The overall stoichiometric reaction is represented by the equation: CH4+CO2⇌2CO+2H2. This reaction is fundamentally endothermic, requiring significant heat input to drive the conversion forward. The standard enthalpy change (ΔH∘) is approximately +247 kJ/mol, meaning the system absorbs energy, typically raising the temperature of the reactor bed unless external heating is applied.

Thermodynamic Equilibrium

The thermodynamics of dry reforming are governed by the interplay between temperature and pressure. Because the reaction results in an increase in the number of moles of gas (from two moles of reactants to four moles of products), lower pressures theoretically favor higher conversion rates according to Le Chatelier’s principle. However, industrial operations often utilize moderate pressures to optimize downstream processing. Temperature plays a more critical role; since the reaction is endothermic, higher temperatures shift the equilibrium toward product formation. At temperatures above 600 °C, the conversion of both methane and carbon dioxide increases significantly. However, thermodynamic limits suggest that complete conversion is rarely achieved without extremely high temperatures, which can lead to energy inefficiencies and catalyst degradation.

Reaction Kinetics and Catalysts

Kinetic barriers are substantial in dry reforming due to the relative stability of the CO2 molecule compared to O2. Without a catalyst, the reaction requires temperatures exceeding 800 °C to achieve reasonable rates, which can be energetically costly. Catalysts are therefore essential to lower the activation energy and enhance reaction rates at more moderate temperatures. Nickel-based catalysts are the most widely used due to their high activity and cost-effectiveness. The catalytic mechanism typically involves the adsorption of methane and carbon dioxide on active metal sites, followed by dissociation into intermediate species such as methyl (CH3) and formate (HCOO) groups, which then recombine to form carbon monoxide and hydrogen.

A major kinetic challenge is catalyst deactivation, primarily through carbon deposition, or "coking." The Boudouard reaction (2CO⇌C+CO2) and methane cracking (CH4⇌C+2H2) compete with the main reforming reaction, leading to the accumulation of solid carbon on the catalyst surface. This carbon can encapsulate active sites or cause mechanical fragmentation of the catalyst pellet. To mitigate this, catalyst supports such as alumina (Al2O3), magnesia (MgO), and ceria (CeO2) are employed to enhance thermal stability and oxygen storage capacity, thereby promoting the gasification of deposited carbon.

What are the main types of catalysts used?

Catalytic materials are central to the efficiency and stability of CO2 reforming of methane, a process that converts two greenhouse gases into synthesis gas. The reaction is typically represented as CH4 + CO2 → 2H2 + 2CO, requiring a catalyst to lower the activation energy and manage the thermodynamic equilibrium. Among the various catalytic systems explored in scholarly literature, nickel-based catalysts remain the most prominent due to their high activity and relative cost-effectiveness compared to noble metals like rhodium and ruth.

Nickel-Based Catalysts

Nickel serves as the primary active phase in many industrial and research-scale reforming catalysts. Its effectiveness stems from its ability to dissociate methane molecules efficiently. However, nickel is susceptible to deactivation mechanisms, particularly carbon deposition (coking) and sintering at high operating temperatures. To mitigate these issues, nickel is rarely used in its pure form; instead, it is dispersed on various support materials that enhance thermal stability and modify the electronic properties of the nickel particles.

Support Materials and Nanocrystalline MgAl2O4

The choice of support material significantly influences catalyst performance. Common supports include alumina, silica, and mixed oxides. Scholarly literature highlights the use of nanocrystalline MgAl2O4 spinel as a particularly effective support for nickel catalysts. The spinel structure provides high thermal stability, preventing the sintering of nickel particles during prolonged operation. Additionally, the basicity of the MgAl2O4 surface can help adsorb CO2, thereby enhancing the overall reaction rate and reducing carbon deposition. The interaction between the nickel nanoparticles and the nanocrystalline support creates a synergistic effect that improves both the activity and the longevity of the catalyst in the harsh reforming environment.

Applications

The primary industrial application of CO2 reforming of methane is the production of synthesis gas (syngas), a versatile mixture of hydrogen (H2) and carbon monoxide (CO). This process is particularly valued for its ability to simultaneously utilize two major greenhouse gases, methane (CH4) and carbon dioxide (CO2), thereby improving the overall carbon efficiency of natural gas utilization. The resulting syngas serves as a fundamental feedstock for a wide range of downstream chemical and energy applications.

Hydrogen Production

One of the most significant applications is the production of high-purity hydrogen. The dry reforming reaction produces a syngas mixture with a H2/CO molar ratio of approximately 1:1, which is ideal for certain chemical syntheses but requires adjustment for dedicated hydrogen production. In hydrogen-focused applications, the carbon monoxide is often removed via the water-gas shift reaction, where CO reacts with water vapor to produce additional hydrogen and carbon dioxide. This method offers a pathway to "blue" or "dry" hydrogen, depending on the source of the CO2 and the extent of carbon capture, making it a strategic option for decarbonizing the hydrogen economy.

Liquid Fuel Synthesis

The syngas generated from CO2 reforming is a key intermediate for the synthesis of liquid fuels through the Fischer-Tropsch process. In this catalytic process, CO and H2 are converted into long-chain hydrocarbons, including diesel, jet fuel, and gasoline. The 1:1 H2/CO ratio from dry reforming is particularly well-suited for Fischer-Tropsch synthesis, often reducing the need for extensive gas conditioning compared to steam reforming. This application is central to the concept of Gas-to-Liquid (GTL) and Power-to-Liquid (PtL) technologies, where natural gas or captured CO2 is converted into high-value liquid transport fuels.

Chemical Feedstocks

Beyond fuels, the syngas serves as a primary feedstock for the chemical industry. It is used to produce methanol (CH3OH), a crucial building block for plastics, solvents, and other chemicals. The reaction CO+2H2→CH3OH benefits from the specific composition of dry reformed syngas. Additionally, syngas can be converted into olefins (ethylene and propylene) through Methanol-to-Olefins (MTO) processes, providing an alternative route for petrochemical production. These applications highlight the role of CO2 reforming in integrating natural gas infrastructure with broader chemical value chains, enhancing the flexibility and carbon efficiency of industrial operations.

What distinguishes CO2 reforming from steam reforming?

Dry reforming of methane (DRM), also known as CO2 reforming, and steam methane reforming (SMR) are the two primary thermochemical pathways for converting natural gas into synthesis gas (syngas). While both processes utilize methane (CH4) as the primary feedstock, they differ fundamentally in the oxidant used, the resulting syngas composition, and the thermodynamic challenges associated with carbon deposition. Understanding these distinctions is critical for selecting the optimal reforming technology based on downstream application, whether for ammonia production or Fischer-Tropsch liquid fuels.

Oxidant and Reaction Stoichiometry

The primary distinction lies in the oxidant. Steam reforming employs water vapor (H2O) as the oxidant, reacting with methane to produce hydrogen and carbon monoxide. The primary reaction is: CH4 + H2O → CO + 3H2. This process yields a high hydrogen-to-carbon monoxide ratio (H2/CO ≈ 3:1), which is ideal for ammonia synthesis but often requires the water-gas shift reaction to adjust ratios for other applications. In contrast, dry reforming uses carbon dioxide (CO2) as the oxidant. The reaction is: CH4 + CO2 → 2CO + 2H2. This results in an equimolar H2/CO ratio of approximately 1:1, which is highly advantageous for Fischer-Tropsch synthesis and methanol production, reducing the need for additional shift reactions.

Thermodynamics and Temperature Requirements

Both reactions are endothermic, requiring significant heat input, but dry reforming is generally more endothermic than steam reforming. The standard enthalpy change for dry reforming is approximately +164 kJ/mol, compared to +206 kJ/mol for steam reforming (depending on temperature). However, due to the lower thermal conductivity of CO2 compared to H2O and the higher activation energy required to break the C=O bond, dry reforming often operates at slightly higher temperatures, typically between 700 °C and 900 °C, to achieve comparable conversion rates. Steam reforming typically operates between 700 °C and 850 °C. The higher temperature requirement in DRM can lead to greater energy consumption and specific catalyst deactivation mechanisms.

Carbon Deposition and Catalyst Deactivation

Carbon deposition, or coking, is a major operational challenge in both processes but manifests differently. In steam reforming, the presence of excess steam helps gasify carbon deposits via the water-gas shift reaction (C + H2O → CO + H2) and the Boudouard reaction (2CO → C + CO2), generally keeping carbon deposition lower under optimal steam-to-carbon ratios. In dry reforming, the equimolar ratio of reactants and the high temperature favor the Boudouard reaction and methane cracking (CH4 → C + 2H2), leading to more rapid carbon accumulation on the catalyst surface. This often requires more robust catalyst formulations, such as nickel-based catalysts supported on basic oxides (e.g., MgO, La2O3) or the addition of noble metals (e.g., Rh, Ru) to enhance carbon gasification and thermal stability.

Challenges and limitations

The industrial deployment of CO2 reforming of methane (CRM) is primarily constrained by three interrelated technical hurdles: catalyst deactivation via carbon coking, thermal management complexities arising from the reaction's thermochemical profile, and catalyst sintering. These challenges directly impact the long-term stability and energy efficiency of the process, necessitating advanced material science and reactor engineering solutions.

Carbon Coking and Catalyst Deactivation

Carbon coking is the most persistent operational challenge in CRM. The reaction, typically represented as CH4 + CO2 → 2CO + 2H2, is prone to side reactions that deposit solid carbon on the catalyst surface. Two primary mechanisms drive this: the Boudouard reaction (2CO → C + CO2) and methane cracking (CH4 → C + 2H2). These deposits physically block active sites, leading to a rapid decline in conversion rates and increased pressure drop across the reactor bed. Severe coking can even encapsulate catalyst particles, rendering them inactive. The tendency to coke is highly dependent on the H2/CO ratio and the partial pressures of reactants, making the process sensitive to feedstock composition.

Thermal Management Requirements

The CRM reaction is strongly endothermic, with a standard enthalpy change of approximately +245.7 kJ/mol. This significant heat demand creates steep temperature gradients within the catalyst bed if not properly managed. In conventional fixed-bed reactors, the outer layers of the catalyst may overheat while the core remains cooler, leading to non-uniform conversion and localized hot spots. These thermal inconsistencies can accelerate catalyst degradation and influence product selectivity. Efficient heat transfer is therefore critical, often requiring sophisticated reactor designs such as multi-tubular fixed beds or fluidized beds to ensure uniform temperature distribution and maximize thermal efficiency.

Catalyst Sintering

At the typical operating temperatures of 700–900 °C, catalyst particles are susceptible to sintering, a process where metal crystallites agglomerate to reduce surface free energy. This phenomenon significantly reduces the specific surface area of the active phase, thereby decreasing the number of available active sites for the reaction. Sintering is particularly pronounced in noble metal catalysts like rhodium and ruthenium, as well as transition metals like nickel. The loss of surface area leads to a gradual but often irreversible decline in catalytic activity over time, necessitating periodic regeneration or replacement of the catalyst to maintain optimal performance.

Recent research and scholarly context

Academic interest in the dry reforming of methane (DRM) has intensified as a strategic pathway to mitigate greenhouse gas emissions while producing syngas. The process involves the reaction of methane with carbon dioxide, represented by the equation: CH4+CO2→2CO+2H2. This reaction is endothermic, requiring significant thermal energy input, which presents both opportunities for heat integration and challenges for catalyst stability. Research efforts have largely focused on optimizing catalyst composition to enhance activity, selectivity, and resistance to coking, which is the primary deactivation mechanism in DRM systems.

Catalyst Development and Nickel-Based Systems

Nickel remains the most widely studied active phase for DRM due to its high activity and relative cost-effectiveness compared to noble metals. However, nickel catalysts are prone to sintering and carbon deposition. To address these issues, researchers have explored various support materials that can interact with nickel particles to stabilize them. A notable contribution to this field is the 2012 study by Hadian et al., which investigated nickel catalysts supported on nanocrystalline MgAl2O4 spinel. This research highlighted the importance of the support’s structural properties in influencing the dispersion and reducibility of nickel species.

The use of MgAl2O4 as a support offers advantages such as high thermal stability and strong metal-support interactions. Nanocrystalline structures provide a high surface area, which can lead to better dispersion of nickel particles, thereby increasing the number of active sites available for the reaction. Hadian et al. demonstrated that the specific preparation methods and the crystallinity of the MgAl2O4 support significantly affect the catalytic performance. The study provided insights into how the spinel structure can mitigate carbon deposition by promoting the gasification of carbon species, thus enhancing the longevity of the catalyst.

Following this work, subsequent studies have continued to refine nickel-based catalysts by doping with other metals or modifying the support with oxides such as ceria or zirconia to introduce oxygen vacancies. These modifications aim to further improve the redox properties of the catalyst, facilitating the removal of carbon deposits. The academic community continues to evaluate these systems under various operating conditions to determine their viability for industrial application. The focus remains on balancing catalytic activity with structural stability to achieve efficient conversion of methane and carbon dioxide into valuable syngas components.
