Overview

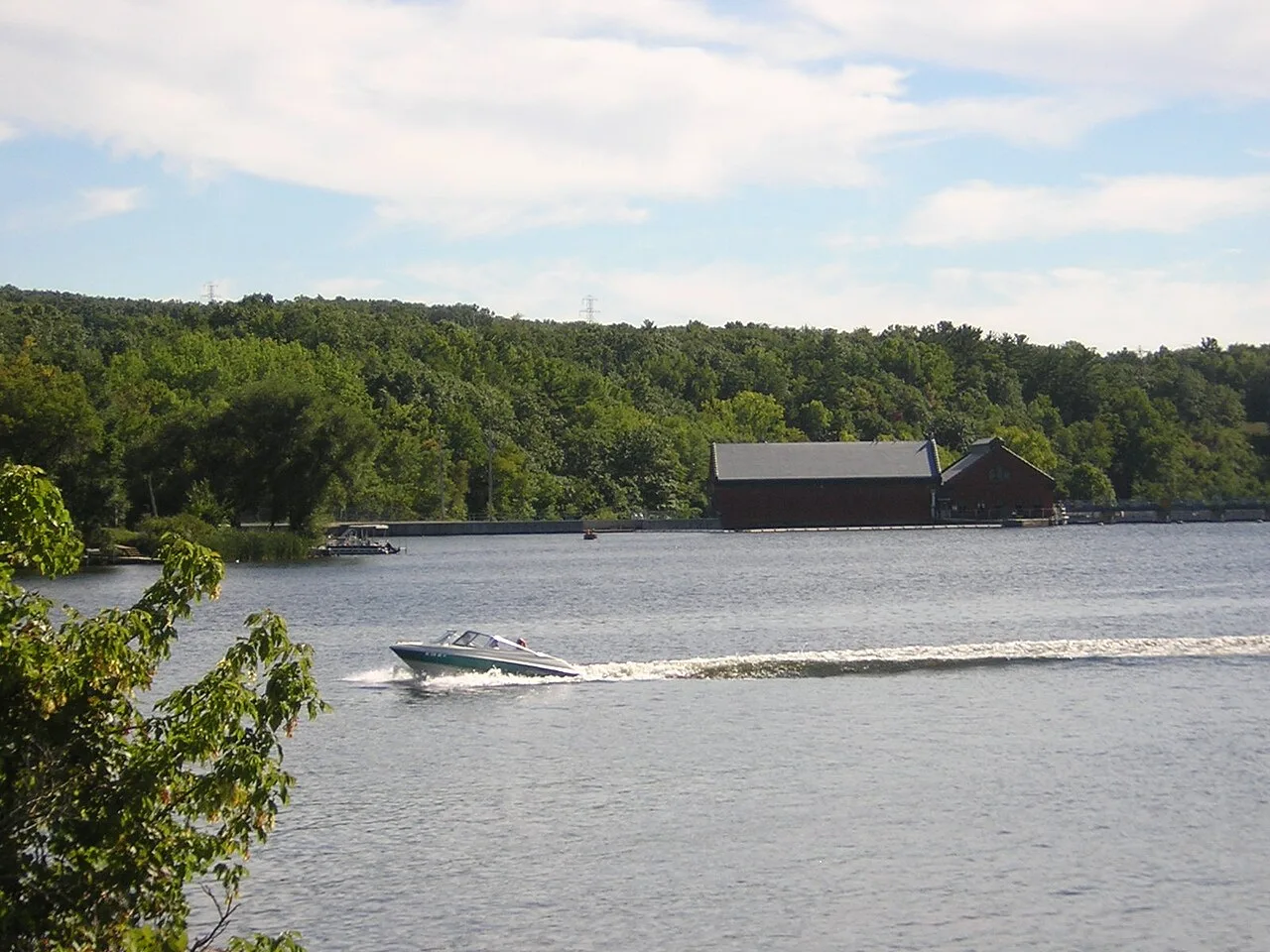

Croton Dam is an earth-filled embankment dam and powerplant complex situated on the Muskegon River in Croton Township, Newaygo County, Michigan. The facility represents a significant historical and operational asset in the regional energy infrastructure, having been constructed in 1907 under the direction of William D. Fargo. The original developer was the Grand Rapids - Muskegon Power Company, which serves as a predecessor to the current operator, Consumers Energy.

The dam structure stands 40 feet (12 m) high and impounds a substantial volume of water, storing 7.2 billion U.S. gallons (6 billion imperial gallons or 27 billion liters) within its reservoir. This reservoir covers an area of 1,209 acres (489 hectares). The hydroelectric powerplant component of the complex is capable of producing 8,850 kilowatts at peak outflow, contributing to the local grid with a capacity of 8.85 MW. The facility remains operational, continuing to harness the water resource of the Muskegon River for energy generation.

In recognition of its historical significance and engineering value, the Croton Dam was listed on the National Register of Historic Places in 1979. This designation highlights the dam's role in the development of the region's power infrastructure during the early 20th century. The complex continues to function as both a water management structure and a source of renewable hydroelectric power, maintaining its status as an active energy asset under the management of Consumers Energy.

History

The Croton Dam project originated with the visionary efforts of the Foote brothers, William A. and James B. Foote, who were instrumental in developing the regional power infrastructure that would eventually become Consumers Energy. Their early ventures focused on localized energy solutions, including street lighting projects in Michigan cities such as Jackson and Battle Creek. These initial successes demonstrated the viability of hydroelectric power for urban illumination and laid the groundwork for larger, more ambitious regional developments. The brothers recognized that to sustain growth and provide reliable power to expanding industrial centers, a more robust and centralized generation capacity was required. This strategic insight led to the exploration of major river systems for dam construction, shifting the focus from small-scale municipal projects to significant hydroelectric complexes.

William D. Fargo served as the key engineer and director for the construction of the Croton Dam. Under his direction, the project was executed in 1907 by the Grand Rapids-Muskegon Power Company, a direct predecessor of the modern Consumers Energy operator. The decision to dam the Muskegon River was a strategic move to secure a steady power supply for the city of Grand Rapids. The location in Croton Township, Newaygo County, was selected for its geographical suitability, allowing for the creation of a substantial reservoir. The resulting earth-filled embankment dam stands 40 feet (12 m) high and impounds 7.2 billion U.S. gallons (27 billion liters) of water. This reservoir spans 1,209 acres (489 hectares), providing the necessary head and volume to generate 8,850 kilowatts (8.85 MW) at peak outflow. The construction marked a significant expansion from the Foote brothers' earlier street lighting initiatives to a major regional power asset. The dam's enduring operational status since 1907 underscores the quality of Fargo's engineering and the strategic foresight of the Grand Rapids-Muskegon Power Company in harnessing the Muskegon River for long-term energy production. The site's historical significance was further recognized when it was listed on the National Register of Historic Places in 1979.

How was the Croton Dam constructed?

The construction of the Croton Dam was directed by William D. Fargo for the Grand Rapids - Muskegon Power Company, a predecessor of the current operator, Consumers Energy. Completed in 1907, the project utilized an innovative hydraulic sluicing method to achieve significant cost efficiency. This technique involved using high-pressure water jets to move soil, allowing the earth-filled embankment to be formed with minimal manual labor compared to traditional methods of the era.

Construction Parameters and Efficiency

The total cost for the construction was recorded as $7,076, reflecting the efficiency of the hydraulic sluicing process. The resulting structure is a 40-foot-high (12 m) earth-filled embankment dam. It impounds a reservoir covering 1,209 acres (489 ha) with a capacity of 7.2 billion U.S. gallons (6 billion imp. gal/27 billion L) of water.

Parameter Value
Construction Cost $7,076
Dam Height 40 feet (12 m)
Reservoir Area 1,209 acres (489 ha)
Water Volume 7.2 billion U.S. gallons (27 billion L)
Peak Power Output 8,850 kilowatts

Structural Components

The complex includes a powerhouse and spillway designed to manage the peak outflow required to produce 8,850 kilowatts of power. The hydraulic sluicing method allowed for the precise formation of the earth-filled embankment, which serves as the primary structural element. The dam's design ensures stable water retention for hydroelectric generation, maintaining operational status since its commissioning in 1907.

What was the significance of the 100,000-volt transmission line?

The construction of the Croton Dam was not merely a local infrastructure project but a landmark event in early 20th-century electrical engineering, primarily due to the ambitious transmission line that connected the plant to the growing city of Grand Rapids. This connection spanned approximately 50 miles, a considerable distance for the era, and required a significant voltage to minimize power loss. The initial transmission line operated at 100,000 volts, a technological breakthrough that allowed for efficient long-distance power delivery from the Muskegon River to the load centers in Grand Rapids. This high-voltage system was later upgraded to 110,000 volts to further enhance efficiency and capacity, solidifying the project's status as a pioneer in high-voltage direct current and alternating current transmission experiments of the time.

Engineering Leadership and International Recognition

The technical success of the Croton transmission project was heavily influenced by the involvement of Dr. Charles Steinmetz, a renowned electrical engineer whose work on the mathematical theory of alternating current was instrumental in optimizing the system's performance. Steinmetz's expertise helped address the complex challenges of maintaining voltage stability over the 50-mile stretch, making the Croton line a practical demonstration of theoretical advancements in electrical engineering. The project attracted significant international attention, drawing engineers and industry observers from across the globe. Professionals from Russia, England, France, Italy, Japan, and India traveled to Michigan to study the dam and its transmission infrastructure. This international interest highlighted the global significance of the Croton project, serving as a case study for emerging hydroelectric developments worldwide. The visibility of the Croton Dam on the world stage underscored the role of the Grand Rapids - Muskegon Power Company, a predecessor of Consumers Energy, as a forward-thinking entity in the energy sector. The combination of a robust earth-filled embankment dam and an innovative high-voltage transmission network established a model for future hydroelectric projects, demonstrating the viability of large-scale power generation and distribution in the early 1900s.

Modifications and operational evolution

The initial 1907 commissioning established the foundational infrastructure, but significant technical enhancements followed to maximize energy output. In 1915, the facility underwent a major expansion involving the installation of Allis-Chalmers turbines. This upgrade was accompanied by strategic increases in voltage, which improved transmission efficiency and allowed the plant to deliver more power to the growing regional grid. These modifications reflected the evolving demands of early 20th-century hydroelectric generation, transitioning the site from a simple embankment structure into a more sophisticated power production complex.

Further infrastructure developments occurred in the early 1930s to enhance grid connectivity and operational coordination. In 1930, a new switchyard was added to the Croton Dam complex. This addition facilitated better control over power distribution and voltage regulation. Subsequently, in 1931, the Croton Dam was integrated with the nearby Hardy Dam. This integration created a coordinated hydroelectric system along the Muskegon River, allowing for more efficient water management and power generation across the two sites.

The operational dynamics of the Croton and Hardy Dams have evolved to optimize energy production based on river flow and demand patterns. Currently, the Hardy Dam operates primarily in peaking mode. This means it is often used to generate maximum power during periods of high electricity demand. In contrast, the Croton Dam operates in re-regulation mode. This operational strategy involves managing water flow fluctuations caused by the Hardy Dam's upstream releases. By adjusting its own output, Croton stabilizes the river flow downstream, ensuring consistent water levels and optimizing the overall efficiency of the hydroelectric system. This complementary operational approach allows Consumers Energy to maximize the utility of the Muskegon River's water resources.

Why it matters

Croton Dam holds significant historical value as an early milestone in Michigan’s hydroelectric development. Constructed in 1907, the facility was directed by William D. Fargo and built by the Grand Rapids - Muskegon Power Company, which later evolved into Consumers Energy. This project represents one of the pioneering efforts in hydraulic sluicing east of the Mississippi River, showcasing the engineering capabilities of the era. The dam’s design and construction contributed to the advancement of high-voltage transmission systems, enabling more efficient power distribution across the region.

Historical Engineering Significance

The dam is an earth-filled embankment structure, 40 feet (12 m) high, which impounds a substantial volume of water. The reservoir covers 1,209 acres (489 ha) and holds 7.2 billion U.S. This capacity allowed for consistent power generation, producing 8,850 kilowatts at peak outflow. The technical specifications of Croton Dam reflect the innovative approaches to hydroelectric power in the early 20th century, balancing water management with energy output. Its role in the broader context of hydraulic engineering highlights its importance in the evolution of power infrastructure.

Current Operational Status

Today, Croton Dam remains operational and is a key component of the Muskegon River hydroelectric chain. Operated by Consumers Energy, the plant continues to contribute to the regional power grid with a capacity of 8.85 MW. The dam’s longevity and continued functionality underscore its robust design and the effective maintenance practices employed over the decades. As part of the Muskegon River system, it plays a vital role in harnessing the river’s potential for renewable energy production.

Historic Recognition

This designation highlights its importance not only as a functional power plant but also as a cultural and historical landmark. The listing ensures that the dam’s legacy is preserved, providing insight into the early days of hydroelectric power generation in the United States. It serves as a testament to the vision of engineers like William D. Fargo and the companies that pioneered this sector.
