Carbon monitoring: Methods, systems and global implementation

Overview

Carbon monitoring is a critical component of broader greenhouse gas monitoring frameworks, defined as the systematic tracking of carbon dioxide and methane production resulting from specific activities at defined times. This process encompasses a wide range of sources, including agricultural methane emissions, carbon dioxide released through land use changes such as deforestation, and emissions from the combustion of fossil fuels in power plants, automobiles, and other devices. Because carbon dioxide is emitted in the largest quantities and methane is an even more potent greenhouse gas, accurate monitoring is widely regarded as crucial for any effort to reduce emissions and slow climate change.

Scope and Methodology

The scope of carbon monitoring extends beyond simple point-source measurement. It involves tracking emissions from diverse sectors, ensuring that both direct emissions, such as those from burning fossil fuels, and indirect emissions, such as those from land use changes, are accounted for. This comprehensive approach allows for a more accurate assessment of the carbon footprint of various activities. The monitoring process is operational and has been a key focus since around 2010, reflecting the growing need for precise data in climate science and policy.

Importance for Climate Mitigation

Accurate carbon monitoring is fundamental to climate change mitigation strategies. It provides the data necessary to evaluate the effectiveness of emission reduction efforts and to inform policy decisions. This includes supporting cap-and-trade programs, where precise measurement of emissions is essential for allocating and trading carbon credits. By providing a clear picture of emission sources and quantities, carbon monitoring enables targeted interventions and helps in setting realistic targets for reducing greenhouse gas concentrations in the atmosphere.

What are the main methods for monitoring carbon emissions?

Carbon monitoring employs two primary methodological frameworks: bottom-up accounting and top-down atmospheric measurement. These approaches serve as complementary tools for verifying emissions data and identifying discrepancies in national inventories.

Bottom-Up Approaches

Bottom-up monitoring calculates emissions by multiplying activity data with specific emission factors. This method relies on ground-level records, such as the mass of coal burned in a power plant or the volume of gasoline sold in a transport sector. The calculation follows the formula: Emissions = Activity Data × Emission Factor. This approach is widely used in national greenhouse gas inventories because it provides detailed sectoral breakdowns. However, its accuracy depends heavily on the quality of the input data and the specificity of the emission factors applied to each source.

Top-Down Approaches

Top-down monitoring measures the actual concentration of greenhouse gases in the atmosphere. This method uses satellite sensors, ground-based flux towers, and aircraft campaigns to quantify the total amount of carbon dioxide or methane in a specific region. By analyzing atmospheric transport models, researchers can estimate the net flux of gases entering the air. Top-down approaches are particularly useful for validating bottom-up estimates and detecting unexpected emission sources, such as methane leaks from oil and gas infrastructure or changes in land use patterns.

Double-Counting Issues

Integrating bottom-up and top-down data often reveals double-counting issues in sectoral accounting. For example, when carbon is sequestered in a forest but the resulting timber is exported to another country, both nations might claim the carbon credit. Similarly, in energy trading, the same unit of electricity might be counted as low-carbon in both the producing and consuming regions if not properly tracked. Resolving these discrepancies requires robust tracking systems and standardized accounting rules to ensure that each unit of emission reduction is attributed to only one source or sink.

Global data sources and databases

Global carbon monitoring relies on specialized databases that aggregate emissions data from diverse sources, including power generation, industrial processes, and transportation. These systems provide the empirical foundation for climate policy and corporate accountability.

Major Emissions Databases

Several prominent databases track carbon emissions at national and global scales. The CARMA (Carbon Accounting and Reporting for Market Advancement) database is a significant resource, covering approximately 50,000 power plants and 4,000 companies. According to available data, these entities account for roughly 25% of global CO2 emissions, providing a substantial snapshot of the energy sector's carbon footprint. CARMA integrates data from regulatory filings and corporate reports to offer high-resolution insights into emissions trends.

In Europe, regional systems play a crucial role. ETSWAP (Emissions Trading Scheme Web Application Platform) serves the UK and Ireland, offering detailed data on emissions under the European Union Emissions Trading System (EU ETS). This platform enables stakeholders to analyze emissions from power plants, industrial facilities, and aviation sectors within these regions. Similarly, the FMS (Facility Monitoring System) in Germany provides granular data on emissions from individual facilities, supporting the country's efforts to meet its climate targets. These systems enhance transparency and facilitate the verification of emissions reductions.

Database	Region/Coverage	Key Features
CARMA	Global (50,000 plants, 4,000 companies)	Covers ~25% of global CO2; integrates regulatory and corporate data
ETSWAP	UK and Ireland	Focuses on EU ETS data; supports analysis of power, industry, and aviation
FMS	Germany	Granular facility-level data; supports national climate targets

These databases often use standardized metrics to ensure comparability. For instance, emissions are typically reported in megatons of CO2 equivalent (MtCO2e), allowing for the aggregation of different greenhouse gases based on their global warming potential (GWP). The formula for calculating CO2e is generally expressed as:

CO2e = Σ (Emission_i × GWP_i)

where Emission_i is the quantity of greenhouse gas i and GWP_i is its global warming potential over a specific time horizon. This approach enables policymakers and analysts to assess the overall impact of carbon emissions across various sectors and regions.

The integration of these databases into global monitoring frameworks enhances the ability to track progress toward climate goals. By providing accessible and reliable data, these systems support evidence-based decision-making and foster greater transparency in the global effort to mitigate climate change.

Carbon monitoring in the United States

Carbon monitoring in the United States operates within a framework of international commitments and federal scientific initiatives. Under the Paris Agreement, the United States committed to reducing greenhouse gas emissions by 26-28% by 2025 relative to 2005 levels, with a specific target of a 40-45% reduction in methane emissions by 2025 relative to 2012 levels. These targets necessitate robust tracking of carbon dioxide and methane from diverse sources, including fossil fuel combustion in power plants and automobiles, as well as agricultural and land-use changes. However, significant uncertainty persists in emissions data at both state and national levels, complicating the verification of progress toward these goals. Accurate monitoring is crucial for understanding the efficacy of mitigation efforts and for informing policy adjustments.

Federal Scientific Initiatives

To address these monitoring challenges, the National Aeronautics and Space Administration (NASA) established the Carbon Monitoring System (CMS) in 2010. The CMS was designed to integrate data from satellites, aircraft, and ground-based sensors to provide a comprehensive view of carbon fluxes. The initiative was funded through the 2019 federal budget, which allocated resources to enhance the system's capabilities. NASA CMS has distributed $500,000 annual grants to support research and development in carbon monitoring technologies. These grants have facilitated the advancement of measurement techniques and the integration of multi-source data, improving the resolution and accuracy of emissions tracking. The system aims to reduce uncertainties in national and regional carbon budgets, supporting both scientific understanding and policy-making processes.

How does the European Union monitor carbon emissions?

The European Union monitors carbon emissions through the European Union Emissions Trading System (EU-ETS), which serves as the primary policy instrument for pricing carbon and tracking reductions across member states. Compliance with the EU-ETS relies on a multi-layered monitoring framework that integrates atmospheric measurements, bottom-up emission maps, and advanced data-assimilation systems. This integrated approach allows regulators to verify reported emissions against independent atmospheric data, enhancing the transparency and accuracy of the carbon market.

Atmospheric Measurements and Bottom-Up Maps

Atmospheric measurements provide a "top-down" view of carbon dioxide and methane concentrations, often using satellite imagery and ground-based sensors. These measurements are cross-referenced with "bottom-up" maps, which aggregate emission data from individual sources such as power plants, industrial facilities, and land-use changes. The EU-ETS requires detailed reporting from these sources, creating a comprehensive dataset that reflects actual combustion and process emissions. This dual approach helps identify discrepancies between reported figures and observed atmospheric levels, ensuring that compliance data is robust and verifiable.

Data-Assimilation Systems and Model Limitations

Data-assimilation systems combine atmospheric measurements with bottom-up maps to create a unified picture of carbon fluxes. These systems use complex algorithms to integrate diverse data streams, improving the spatial and temporal resolution of emission estimates. However, current top-down models face limitations, particularly regarding grid resolution. Many existing models operate at a 1 km grid resolution, which may not capture localized emission hotspots or rapid fluctuations in real-time. This resolution constraint can affect the precision of compliance monitoring, especially in densely populated industrial regions or areas with significant land-use changes.

Future Improvements and Operational Systems

To address these limitations, the EU plans to enhance real-time bottom-up maps and develop more sophisticated operational systems by the 2030s. These improvements aim to increase the granularity of emission data, allowing for more accurate tracking of carbon dioxide and methane sources. Advanced data-assimilation techniques will be integrated with higher-resolution atmospheric measurements, reducing the reliance on coarse grid models. These advancements are expected to strengthen the EU-ETS by providing regulators with more precise, real-time insights into emission trends, thereby supporting more effective climate change mitigation strategies.

Satellite-based carbon monitoring

Satellite-based carbon monitoring serves as a critical component of global greenhouse gas tracking, addressing significant data gaps that ground-based measurements often miss. By observing carbon dioxide and methane emissions from space, these systems provide a comprehensive view of how much carbon is produced by particular activities at specific times, whether from burning fossil fuels in power plants or methane emissions from agriculture. This spatial coverage is widely seen as crucial for efforts to reduce emissions and slow climate change, offering data on land use changes such as deforestation that are difficult to quantify from the surface alone.

Key Satellite Missions

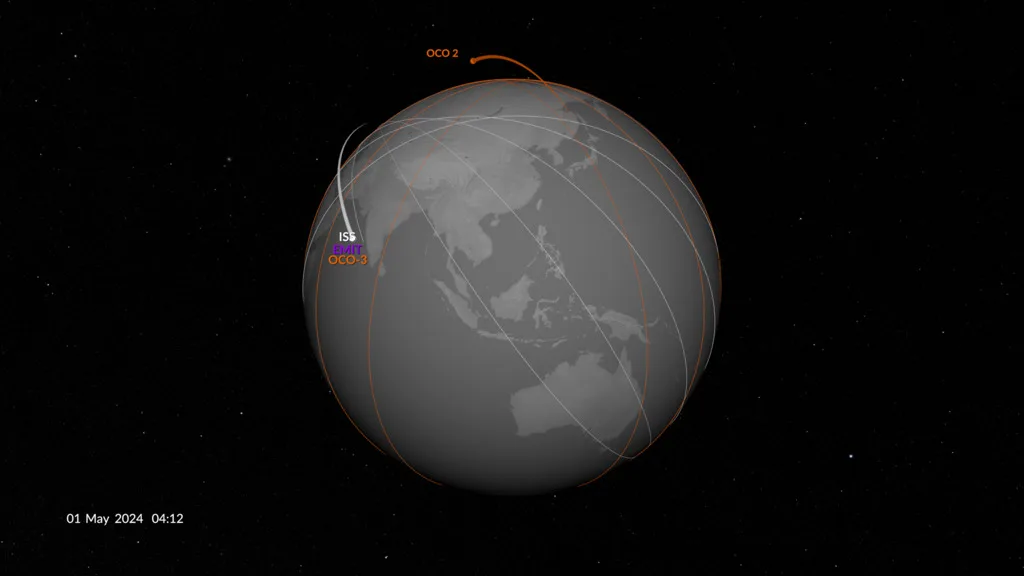

Several major space agencies have deployed dedicated satellites to enhance the precision of carbon monitoring. NASA’s Orbiting Carbon Observatory-2 (OCO-2) has been instrumental in mapping carbon dioxide concentrations with high resolution. Similarly, Japan’s Greenhouse Gases Observing Satellite (GOSAT) has provided long-term data on global carbon fluxes. China entered the arena with the launch of TanSat in December 2016. The TanSat mission was designed for a 3-year duration, delivering readings every 16 days to capture temporal variations in atmospheric carbon levels.

Precision and Measurement Errors

The accuracy of satellite data is paramount for validating national emissions reports. These missions aim to minimize measurement errors, with initial targets set at 0.5% and subsequent goals aiming for 0.25% precision. Achieving this level of accuracy allows scientists to distinguish between different sources of emissions, such as distinguishing between carbon dioxide from an automobile and that from a large industrial device. The reduction in error margins enhances the reliability of the data used by energy researchers and policy analysts to assess the effectiveness of climate mitigation strategies.

Regional Findings: The Middle East

Satellite data has revealed significant regional insights into carbon fluxes. For example, OCO-2 identified strong carbon dioxide fluxes in the Middle East, a region where ground-based monitoring stations were historically sparse. This finding highlighted the intensity of fossil fuel combustion in the area, providing concrete evidence of emissions patterns that might otherwise have been underestimated. Such discoveries underscore the value of space-based observation in identifying hotspots of carbon production, enabling more targeted efforts to track and reduce emissions from key global regions.

Worked examples

Carbon monitoring relies on translating activity data into emission quantities using standardized factors. The following examples illustrate how these calculations are performed for different sectors, ensuring accuracy and avoiding common accounting errors.

Vehicle Emission Calculation

Calculating emissions from light-duty vehicles involves multiplying the distance traveled by the specific emission factor for the fuel type. For gasoline, the standard emission factor is approximately 2.31 kilograms of carbon dioxide per liter consumed. If a vehicle travels 100 kilometers with a fuel efficiency of 8 liters per 100 kilometers, the fuel consumption is 8 liters. The total carbon dioxide emitted is calculated as 8 liters multiplied by 2.31 kg CO2/liter, resulting in 18.48 kilograms of carbon dioxide. This method allows for precise tracking of mobile source emissions in urban transport inventories.

Avoiding Double Counting in Hybrid Systems

In industrial processes like coal gasification mixed with natural gas, careful accounting is required to avoid double counting. When coal is gasified, the carbon content is converted into syngas, which is then burned. If natural gas is also burned in the same system, emissions must be attributed to the specific fuel source. For example, if a plant uses 1 ton of coal and 100 cubic meters of natural gas, the emissions from coal are calculated based on the coal's carbon content and oxidation rate, while natural gas emissions are calculated using its methane content and combustion efficiency. Separating these streams ensures that the carbon from coal is not mistakenly attributed to the natural gas, providing a clear picture of each fuel's contribution to total emissions.

Satellite Data Correction

Satellite data can correct bottom-up inventories by providing independent measurements of atmospheric carbon dioxide concentrations. For instance, if a bottom-up inventory estimates that a power plant emits 1 million tons of carbon dioxide annually, but satellite data shows a higher concentration downwind, the inventory can be adjusted. This involves comparing the satellite-derived flux with the reported emissions. If the satellite data indicates a 10% higher flux, the inventory is updated to reflect 1.1 million tons. This correction process enhances the reliability of emission reports and helps identify discrepancies between reported and actual emissions.

Challenges and future developments

Reliable carbon monitoring is fundamentally constrained by the scarcity of consistent, high-quality data across diverse emission sources. As noted in the grounding material, tracking activities ranging from agricultural methane release to deforestation-related carbon dioxide output requires integrating disparate datasets that often lack temporal and spatial alignment. This data fragmentation creates significant barriers to establishing a unified view of global or regional carbon fluxes, complicating efforts to verify emission reductions and attribute sources accurately.

Technical Limitations in Atmospheric Modeling

Atmospheric models used to interpret carbon concentrations frequently struggle with spatial resolution limitations. These models must reconcile point-source measurements with broader atmospheric transport patterns, often resulting in smoothed data that may obscure localized emission hotspots. The discrepancy between the granular nature of certain emission activities—such as burning fossil fuels in individual power plants or automobiles—and the coarser grid cells of global models introduces uncertainty in source attribution. This technical gap means that while total emissions may be estimated with reasonable accuracy, pinpointing specific contributors remains challenging.

Future Developments in EU Data Assimilation

Future improvements in carbon monitoring are expected to stem from advancements in data assimilation techniques, particularly within the European Union. Enhanced algorithms will better integrate satellite observations with ground-based measurements, reducing errors associated with individual data streams. The reduction of satellite error is a key focus, as satellite-based monitoring offers global coverage but is subject to atmospheric interference and sensor calibration drift. By refining these assimilation processes, researchers aim to produce more robust and consistent carbon emission estimates, supporting more effective climate change mitigation strategies.
