Overview

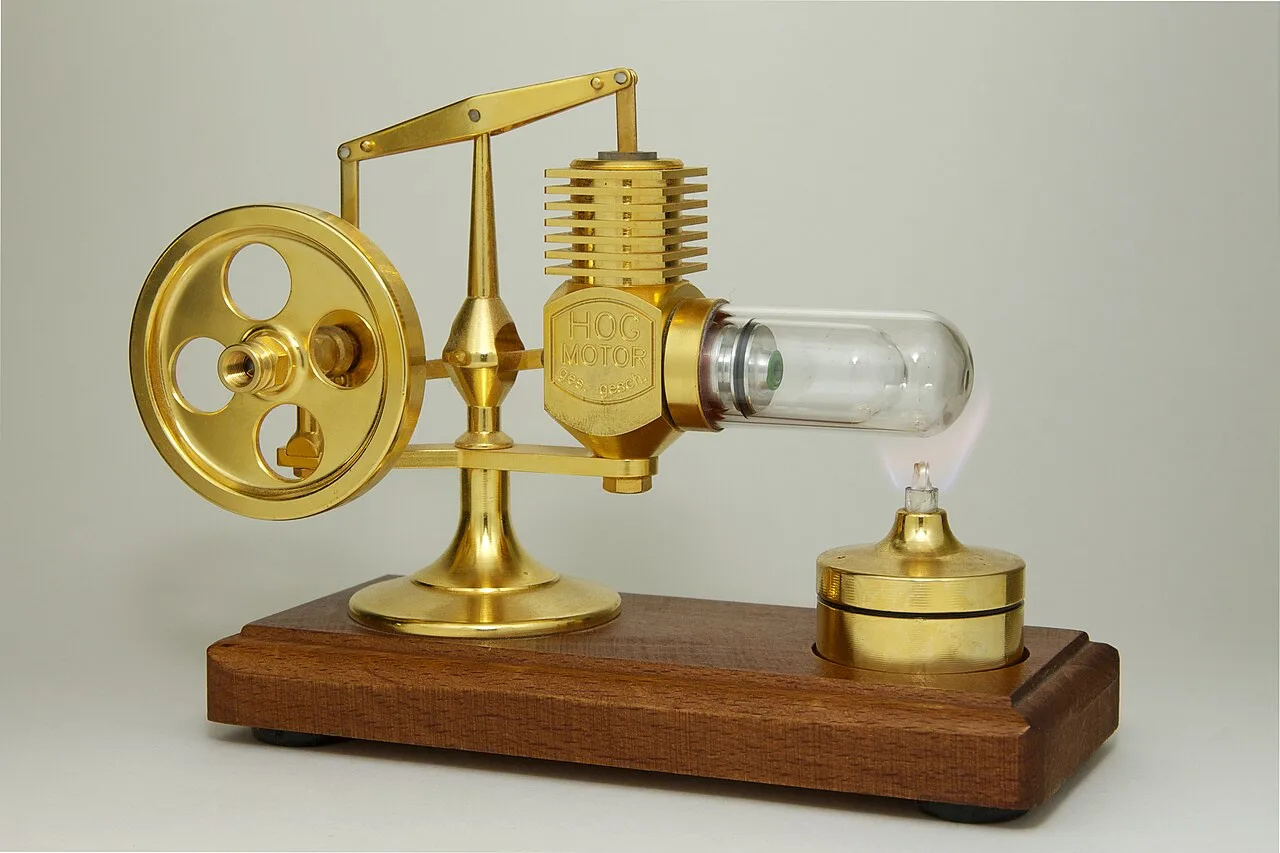

The Stirling engine is a closed-cycle heat engine that converts thermal energy into mechanical work through the cyclic compression and expansion of a working fluid, typically air or another gas, at different temperature levels. This thermodynamic cycle operates by transferring heat to and from the working fluid, resulting in a net conversion of heat to mechanical work. The system is characterized by its external combustion nature, allowing for flexibility in heat source selection.
Thermodynamic Principles and Reversibility
The fundamental operation of the Stirling engine relies on the Stirling cycle, which involves isothermal and constant-volume processes. The engine can also function in reverse, operating as a heat pump or refrigerator. In this reversed mode, mechanical energy is input to drive heat transfer in the opposite direction, moving thermal energy from a cooler region to a warmer one. This reversibility makes the Stirling cycle versatile for both power generation and thermal management applications.
General Categories of Application
Applications of the Stirling engine span multiple sectors, including mechanical propulsion, heating, cooling, and electrical generation systems. In mechanical propulsion, the engine converts heat directly into motion, suitable for various transport and machinery needs. For electrical generation, the mechanical work produced drives a generator, converting thermal energy into electricity. The engine’s ability to utilize diverse heat sources supports its use in power generation, where it can convert thermal input from mixed fuel types into electrical output.
In heating and cooling applications, the Stirling engine leverages its thermodynamic cycle to manage thermal energy efficiently. As a cooling device, it operates in reverse to provide refrigeration or air conditioning. As a heating system, it can capture and distribute waste heat or utilize external heat sources for thermal comfort. These applications highlight the engine’s adaptability across different energy infrastructure needs, supporting operational status in various systems.
How do Stirling engines work in propulsion systems?
Stirling engines function as external combustion heat engines, relying on the cyclic compression and expansion of a working fluid, typically air or helium, across distinct temperature gradients to convert thermal energy into mechanical work. In propulsion systems, this mechanism offers significant advantages in fuel flexibility and operational silence, making them suitable for automotive, marine, and aerospace applications. The engine’s ability to operate on any heat source allows for diverse fuel utilization, though the thermal inertia of the regenerator and the working fluid dictates specific performance characteristics for each domain.
Automotive and Aerospace Development
In the automotive sector, the Stirling engine was investigated for its potential to improve fuel efficiency and reduce emissions compared to internal combustion engines. Notable historical efforts include collaborations between NASA and Ford Motor Company, which explored the use of Stirling engines in passenger vehicles. These projects highlighted the engine’s high thermal efficiency, often exceeding that of contemporary Otto cycle engines, but also revealed challenges related to startup time and power density. The mechanical simplicity and low vibration levels were advantageous, yet the complexity of the heat exchangers and the need for precise sealing of the working fluid posed engineering hurdles.
Aerospace applications have also utilized Stirling technology, particularly in experimental aircraft and auxiliary power units. The quiet operation and ability to burn a variety of fuels made Stirling engines attractive for specific niche applications where noise reduction and fuel flexibility were paramount. However, the weight-to-power ratio has often been a limiting factor for widespread adoption in main propulsion systems for aircraft.
Marine Propulsion and Submarine AIP
In marine environments, Stirling engines have found a prominent role in Air-Independent Propulsion (AIP) systems for submarines. These systems allow non-nuclear submarines to remain submerged for extended periods without surfacing or using a snorkel, significantly enhancing their stealth capabilities. The Stirling engine’s external combustion means that the oxygen supply can be drawn from stored liquid oxygen or generated from seawater, while exhaust gases are expelled quietly through the hull. This results in a much lower acoustic signature compared to diesel-electric or gas turbine systems, making Stirling-based AIP a preferred choice for several naval forces worldwide.
The efficiency of Stirling engines in these applications is influenced by the temperature difference between the heat source and the sink, as described by the Carnot efficiency formula: η=1−THTC, where TC is the cold temperature and TH is the hot temperature. Maximizing this differential is critical for optimizing performance in both automotive and marine contexts.
| Application | Key Advantage | Primary Challenge |
|---|---|---|
| Automotive | High thermal efficiency | Startup time and power density |
| Marine (AIP) | Quiet operation | Complexity of oxygen management |
| Aerospace | Fuel flexibility | Weight-to-power ratio |
What are the power generation applications?
Stirling engines are utilized for electrical generation by converting thermal energy into mechanical work, which then drives a generator. The system operates on the Stirling cycle, involving the cyclic compression and expansion of a working fluid, such as air or helium, across different temperature levels to achieve a net conversion of heat to mechanical energy. This mechanism allows for efficient power generation in various configurations, including combined heat and power (CHP) systems and specialized thermal plants.
Solar Thermal Power Generation
In solar energy systems, Stirling engines are employed in solar thermal power plants, often referred to as Solar Electric Systems (SES). These systems concentrate solar radiation onto a receiver, heating the working fluid to drive the engine. The technology enables decentralized and modular power generation, making it suitable for diverse geographic locations. The efficiency of these systems depends on the temperature differential between the heat source and the sink, optimizing energy conversion under direct sunlight.
| Parameter | Description |
|---|---|
| Technology Type | Solar Thermal (SES) |
| Working Fluid | Air or other gas |
| Heat Source | Concentrated Solar Radiation |
| Output | Mechanical and Electrical Energy |
Nuclear and Radioisotope Generators
Stirling engines are also applied in nuclear power generation, particularly in radioisotope thermoelectric generators (RTGs) and small modular nuclear reactors. In these applications, the heat from radioactive decay or nuclear fission drives the Stirling cycle, providing a reliable power source for space missions and remote terrestrial locations. The engine's ability to operate with a wide range of heat sources makes it versatile for nuclear thermal conversion.
Combined Heat and Power (CHP)
In CHP systems, Stirling engines simultaneously produce electricity and useful thermal energy. This dual output enhances overall system efficiency by utilizing waste heat for heating or cooling purposes. The flexibility of the Stirling engine allows it to integrate with various fuel sources, supporting mixed fuel applications in residential, commercial, and industrial settings. The reversed Stirling cycle can also be used for mechanical energy input to drive heat transfer, further expanding its utility in thermal management systems.
How are Stirling engines used for heating and cooling?
Stirling engines function not only as prime movers for mechanical propulsion and electrical generation but also as versatile devices for heating and cooling through the reversal of the thermodynamic cycle. In this reversed mode, mechanical energy is input into the system to drive heat transfer in the opposite direction, effectively transforming the engine into a heat pump or a refrigerator. This operational flexibility allows the Stirling cycle to be applied across a wide spectrum of thermal management needs, from industrial cryogenics to portable refrigeration units.
Cryocoolers and Low-Temperature Applications
One of the most significant applications of the reversed Stirling cycle is in cryocoolers, where the engine is used to achieve extremely low temperatures. These systems are critical in various scientific and industrial fields, including superconductivity, infrared detection, and space exploration. The Stirling cryocooler operates by compressing and expanding the working fluid, typically helium or hydrogen, at different temperature levels. The efficiency of these systems is often evaluated using the Coefficient of Performance (COP), which can be expressed as COP = Q_L / W, where Q_L is the heat absorbed at the low temperature and W is the mechanical work input.
Heat Pumps and Portable Refrigeration
Stirling heat pumps are utilized for heating and cooling buildings, offering a quiet and potentially high-efficiency alternative to vapor-compression systems. The same principle applies to portable refrigeration, such as in the Free-Piston Stirling Cooler (FPSC), which is commonly found in caravans and small refrigerators. These devices benefit from the simplicity and reliability of the Stirling cycle, which uses a single working fluid and requires minimal moving parts compared to traditional refrigeration systems.
Efficiency and Temperature Ranges
The efficiency of Stirling engines in heating and cooling applications depends on the temperature difference between the hot and cold reservoirs. The theoretical maximum efficiency is given by the Carnot efficiency formula: η = 1 - (T_C / T_H), where T_C is the absolute temperature of the cold reservoir and T_H is the absolute temperature of the hot reservoir. In practice, Stirling engines can operate over a wide range of temperatures, from near absolute zero in cryocoolers to several hundred degrees Celsius in solar thermal applications. This versatility makes them suitable for diverse environments and energy sources, including solar, geothermal, and waste heat recovery.
What are the niche and emerging applications?
Stirling engines exhibit unique versatility in niche applications where the external heat source or specific thermodynamic requirements differ from internal combustion norms. This flexibility allows for deployment in environments ranging from micro-electronics to large-scale fluid dynamics, leveraging the engine's ability to operate on low temperature differences and function as a reversible heat pump.
Low Temperature Difference and Acoustic Engines
Low temperature difference (LTD) Stirling engines are designed to extract mechanical work from small thermal gradients, often as low as 10 °C to 20 °C. These systems are critical in waste heat recovery and solar thermal applications where high-temperature concentrators are not feasible. In LTD applications, maximizing the surface area of the heat exchangers is essential to minimize thermal resistance.
Acoustic Stirling engines convert thermal energy directly into acoustic power (sound waves) before converting it into mechanical or electrical energy. These systems utilize a resonant cavity and a thermoacoustic stack, eliminating the need for complex mechanical linkages. This configuration is particularly advantageous in environments requiring high reliability and minimal moving parts, such as space exploration or remote sensing, where maintenance access is limited. The acoustic wave amplitude drives a linear alternator, providing a direct path to electrical generation.
Micro-Scale Cooling and Desalination
In the realm of micro-electronics, Stirling coolers are employed for precise thermal management of high-power density chips. Operating in reverse, the Stirling cycle acts as a heat pump, transferring heat from the cold plate (the chip) to a hot sink. This method offers superior cooling capacity compared to traditional Peltier effects, making it suitable for laser diodes, infrared sensors, and high-performance computing processors. The compact size of micro-Stirling engines allows for integration directly onto printed circuit boards or within packaging modules.
Stirling engines also play a role in desalination systems, particularly in hybrid solar-thermal plants. The mechanical work generated by the engine can drive a pump or a membrane compression unit, while the waste heat from the engine's hot end preheats the feed water. This dual-use of energy improves the overall exergy efficiency of the desalination process. In pump engines, the Stirling cycle provides a reliable means of moving fluids in remote locations, such as oil wells or agricultural irrigation systems, where the consistency of the stroke volume is advantageous over variable-speed electric motors.
Why it matters
The Stirling engine holds a distinct position in energy infrastructure due to its inherent thermodynamic properties and operational versatility. Unlike internal combustion engines, the Stirling cycle operates through the cyclic compression and expansion of a working fluid—typically air or another gas—at different temperature levels, resulting in a net conversion of heat to mechanical work. This external combustion mechanism grants the engine significant fuel flexibility, allowing it to utilize a mixed range of heat sources without requiring major mechanical modifications. This adaptability is critical for decentralized energy systems and hybrid configurations where fuel consistency may vary.
Thermodynamic Efficiency and Reversibility
This high potential efficiency makes the engine particularly suitable for high-temperature heat recovery applications. Furthermore, the Stirling cycle is inherently reversible. By inputting mechanical energy, the engine can drive heat transfer in a reversed direction, functioning effectively as a heat pump or refrigerator. This dual capability allows a single device to serve multiple roles in building energy systems, providing both electrical generation and thermal conditioning.
Role in Renewable and Hybrid Systems
In the context of renewable energy infrastructure, the Stirling engine is extensively used in Concentrated Solar Power (CSP) systems. Its ability to operate quietly and with minimal lubrication makes it ideal for solar dish systems, where direct drive generators convert solar thermal energy into electricity. The engine’s operational status as a mature, yet evolving technology, supports its integration into hybrid energy systems. It can bridge gaps in power supply by utilizing waste heat from industrial processes or biomass combustion, thereby enhancing the overall energy density of a site. The flexibility to switch between fuel types or heat sources without shutting down the system reduces downtime and increases the resilience of local energy grids.
Infrastructure Advantages
The mechanical simplicity of the Stirling engine contributes to its reliability in remote or off-grid infrastructure. With fewer moving parts compared to reciprocating internal combustion engines, maintenance requirements are reduced, which is a critical factor for energy projects in less accessible locations. The engine’s capability to convert heat to mechanical work efficiently supports its application in mechanical propulsion, heating, cooling, and electrical generation systems, making it a versatile component in modern energy infrastructure planning.
