Acceptance angle (solar concentrator)

Overview

Acceptance angle is a fundamental geometric parameter in the design and operation of solar concentrators, defining the maximum angular deviation at which incoming sunlight can be effectively captured by the optical system. In practical terms, this angle determines the range of directions from which solar radiation enters the concentrator and is successfully directed toward the receiver. If the sun’s position falls within this angular limit relative to the optical axis, the light is concentrated; if it exceeds this limit, the light may miss the receiver or be scattered, reducing the system’s optical efficiency. The acceptance angle is critical for both static and tracking solar concentration systems, as it directly influences the required precision of solar tracking mechanisms and the tolerance for manufacturing and installation errors.

The value of the acceptance angle is not arbitrary; it is intrinsically linked to the concentration ratio of the optic and the refractive index of the medium in which the receiver is immersed. Higher concentration ratios generally result in narrower acceptance angles, meaning the system becomes more sensitive to the sun’s position. Conversely, a lower concentration ratio allows for a wider acceptance angle, offering greater flexibility in tracking or static alignment. The refractive index of the receiver’s surrounding medium also plays a role: a higher refractive index can effectively widen the acceptance angle, allowing more light to be captured at oblique angles. This relationship is governed by fundamental optical principles, including the etendue conservation law, which balances the product of the area and the solid angle of the light beam as it passes through the optical system.

Maximizing the acceptance angle is a key objective in practical solar concentration systems, as it enhances the system’s ability to capture sunlight over a broader range of angles, thereby improving energy yield and reducing the complexity of tracking mechanisms. One effective approach to achieving a larger acceptance angle is the use of nonimaging optics. Unlike traditional imaging optics, which focus light to a precise point or line, nonimaging optics are designed to collect and direct light with minimal loss, prioritizing the capture of rays within a specific angular range. This makes nonimaging optics particularly well-suited for solar concentrators, where the goal is to maximize light collection efficiency rather than achieve perfect image formation. By optimizing the shape and arrangement of optical elements, nonimaging optics can significantly enhance the acceptance angle, leading to more robust and efficient solar concentration systems.

How does the acceptance angle define light capture?

The acceptance angle is the fundamental geometric parameter that determines the range of incident directions from which a solar concentrator can effectively capture sunlight. It is defined as the maximum angle at which incoming parallel rays of sunlight can strike the optic and still be directed onto the receiver. This concept is critical for understanding how concentrators track the sun and how much tolerance they have for mechanical misalignment or the angular size of the sun itself.

Geometric Definition and Optical Axis

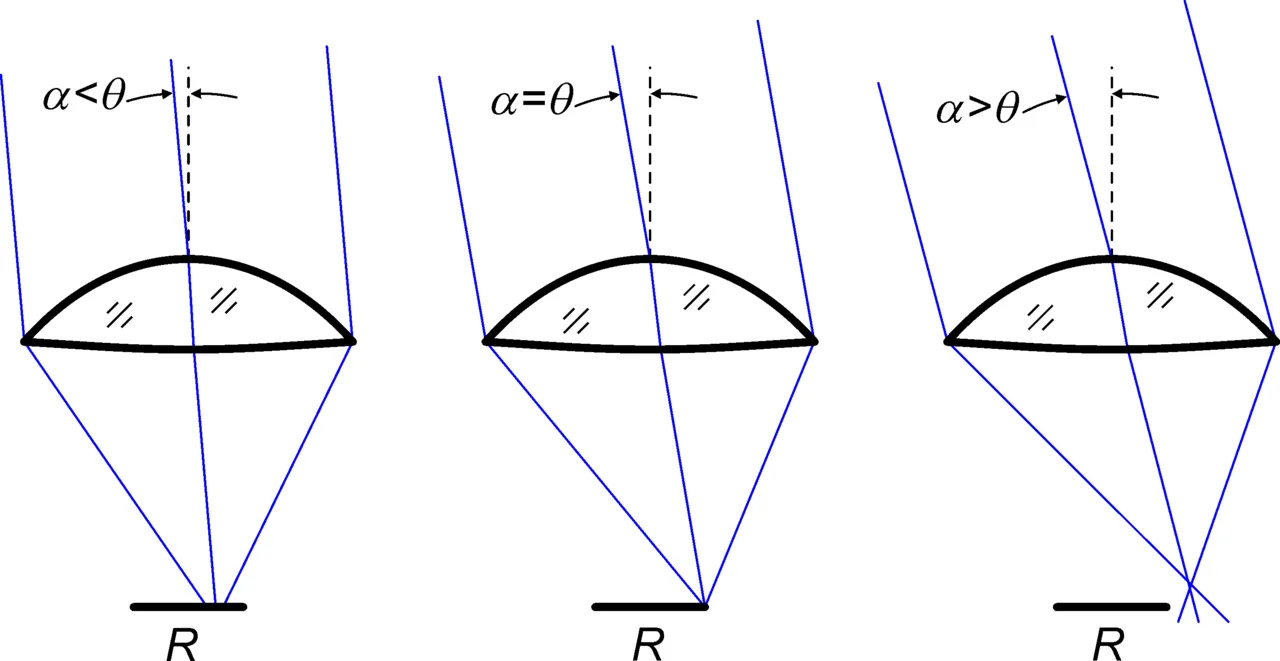

In an idealized system, the acceptance angle is measured relative to the optical axis of the concentrator. The optical axis is the central line along which the optic is symmetrically arranged. When sunlight arrives exactly parallel to this axis, the rays are focused onto the center of the receiver. As the sun moves across the sky, the angle of incidence changes. If the angle of incidence exceeds the acceptance angle, the focused image of the sun begins to spill off the edge of the receiver, leading to optical losses.

The acceptance angle is often expressed in two ways: the half acceptance angle and the total acceptance angle. The half acceptance angle is the maximum deviation from the optical axis on one side. The total acceptance angle is the full angular width of the cone of light that the optic can capture. For a symmetric optic, the total acceptance angle is twice the half acceptance angle. This distinction is important when specifying the tracking precision required for a solar power plant.

Ideal vs. Real Transmission Curves

The performance of a solar concentrator can be described by its transmission curve, which plots the fraction of light captured as a function of the angle of incidence. In an ideal system with a sharp cutoff, the transmission curve is a rectangular function. The optic captures 100% of the light for all angles within the acceptance angle and 0% for all angles outside it. This creates a "step" in the curve at the boundary of the acceptance angle.

In real-world systems, the transmission curve is rarely a perfect rectangle. Due to optical aberrations, manufacturing tolerances, and the finite size of the receiver, the transition from full capture to zero capture is more gradual. This results in a "smeared" transmission curve, where the acceptance angle is defined by the point at which the transmission drops to a specific value, often 50% or 90%, depending on the design. Nonimaging optics are frequently used to maximize the acceptance angle and create a sharper transition, improving the efficiency of the concentrator in practical applications.

Higher concentration ratios generally lead to smaller acceptance angles, requiring more precise solar tracking. Understanding these relationships allows engineers to optimize the design of solar concentrators for specific applications, balancing the need for high concentration with the mechanical complexity of tracking systems.

What are the differences between line-focus and point-focus systems?

Solar concentrators are broadly categorized by their geometric dimensionality: one-dimensional (line-focus) and two-dimensional (point-focus) systems. This distinction fundamentally dictates optical performance, mechanical tracking requirements, and sensitivity to angular misalignment. Line-focus systems, such as parabolic troughs and linear Fresnel reflectors, concentrate sunlight along a single axis. Point-focus systems, including parabolic dishes and heliostat fields, concentrate light onto a small receiver area in two orthogonal axes.

Dimensionality and Tracking Requirements

Line-focus systems operate in one dimension. They require single-axis tracking, typically aligning the aperture to follow the sun’s daily path. Because concentration occurs along a line, the optical design is inherently less sensitive to errors perpendicular to the axis of rotation. In contrast, point-focus systems demand two-axis tracking to maintain alignment with the sun in both azimuth and elevation. This ensures that the concentrated flux remains centered on the receiver, which is critical for achieving high temperature gradients.

Acceptance Angle and Off-Pointing Sensitivity

The acceptance angle defines the maximum angular deviation from the optimal pointing direction where incoming sunlight is still effectively captured. For line-focus systems, the acceptance angle is generally larger in the direction perpendicular to the focal line compared to the direction along the line. This anisotropy arises because the optical path length variations are more forgiving across the width of the trough or Fresnel lens array. Point-focus systems exhibit a more symmetric but typically smaller acceptance angle in both orthogonal directions. This makes them more sensitive to off-pointing errors; a small angular deviation can cause significant flux spillage off the receiver.

Mathematically, the acceptance angle θa is related to the concentration ratio C and the refractive index n of the medium surrounding the receiver. For ideal nonimaging optics, the relationship is approximated by sin(θa)=n/C. In line-focus systems, the concentration ratio C1D is generally lower than in point-focus systems C2D, leading to a larger acceptance angle for the former. This allows line-focus systems to tolerate greater tracking errors or sun shape variations, reducing the mechanical precision required for the drive systems.

Practical Implications for System Design

The difference in acceptance angles influences the choice of optical components and receiver design. Line-focus systems often use evacuated tube receivers that can accommodate a wider range of incident angles, simplifying the thermal interface. Point-focus systems, with their tighter angular constraints, frequently employ nonimaging secondary concentrators to widen the effective acceptance angle at the receiver stage, thereby compensating for the primary optic's smaller acceptance cone. This design trade-off is critical for maximizing optical efficiency in practical deployments where perfect tracking is rarely achieved.

How is the acceptance angle used as a tolerance budget?

The acceptance angle defines the fundamental tolerance budget for the precision of a solar concentrator’s tracking system and its structural stability. In practical operation, the total deviation of the incoming solar rays must remain within this angular limit to ensure that the concentrated flux reaches the receiver. This budget is not consumed by tracking error alone; it is shared among optical imperfections, manufacturing tolerances, structural deflection, and environmental factors. If the sum of these errors exceeds the acceptance angle, the concentrator begins to lose optical efficiency, as light spills off the receiver or strikes the edges, reducing the effective concentration ratio.

Tracking Precision and Structural Deflection

The primary consumer of the acceptance angle is the tracking error, which is the angular difference between the sun’s instantaneous position and the optical axis of the concentrator. For systems with narrow acceptance angles, such as parabolic troughs or linear Fresnel reflectors, the tracking mechanism must maintain high precision, often requiring drive systems with low backlash and high-resolution encoders. In two-axis tracking systems, the error is a vector sum of azimuth and elevation deviations. Structural deflection, caused by wind loads and the weight of the optics, introduces a dynamic component to this error. The stiffness of the support structure determines how much the mirror or lens deforms under load, effectively shifting the focal point. If the structure is too flexible, wind-induced oscillations can cause the sun’s image to wander across the receiver, consuming a significant portion of the angular budget.

Optical and Manufacturing Imperfections

Manufacturing errors in the reflective or refractive surfaces also reduce the effective acceptance angle. Surface slope errors, often measured in milliradians, cause individual rays to deviate from their ideal path. These errors are additive to the tracking error. For nonimaging optics, which are designed to maximize the acceptance angle for a given concentration ratio, the tolerance to these imperfections is generally higher than in traditional imaging optics. However, as the concentration ratio increases, the acceptance angle typically decreases, making the system more sensitive to both tracking and manufacturing variances. The relationship is governed by the etendue conservation, where a higher concentration requires a narrower range of incoming angles. Aging of materials, such as the yellowing of polymer lenses or the oxidation of metallic mirrors, can further degrade the optical performance, effectively shrinking the usable acceptance angle over the system’s lifetime.

What is the effect of sunlight's angular dispersion?

Sunlight does not arrive at a solar concentrator as a set of perfectly parallel rays, as is often assumed in simplified geometric optics. Instead, the solar disk subtends a finite angular aperture of approximately 0.53 degrees (or about 9.3 milliradians) as viewed from the Earth. This inherent angular dispersion of solar radiation has significant implications for the optical performance of concentrating systems. When the acceptance angle of the concentrator is smaller than the angular spread of the incoming sunlight, a portion of the solar flux falls outside the optical capture cone, resulting in partial light loss. This effect becomes increasingly pronounced at wider incidence angles, where the effective projection of the solar disk shifts relative to the optic’s axis.

Impact on Optical Efficiency

The angular dispersion of sunlight introduces a fundamental limit on how sharply a solar concentrator can focus light without sacrificing throughput. In idealized systems with parallel-ray assumptions, all incident rays within the geometric aperture are directed toward the receiver. However, because solar rays arrive over a range of angles, some rays that would otherwise be captured under parallel-ray conditions may miss the receiver or strike it at non-optimal angles. This leads to a reduction in the effective concentration ratio and can cause thermal non-uniformity on the receiver surface.

For a concentrator with a given acceptance angle θₐ, the fraction of solar energy captured depends on the overlap between the solar angular distribution and the acceptance cone. If the solar angular radius is denoted by θₛ ≈ 0.27 degrees, then the condition for full capture is θₐ ≥ θₛ. When θₐ < θₛ, the system operates in a "truncated" regime where edge rays are partially excluded, leading to a gradual decline in optical efficiency as the incidence angle increases.

Mitigation Through Nonimaging Optics

To maximize the acceptance angle and minimize losses due to solar angular dispersion, nonimaging optics are often employed. Unlike traditional imaging optics, which prioritize forming a sharp image of the source, nonimaging optics are designed to concentrate as much flux as possible onto the receiver within a defined acceptance angle. This approach allows for a broader tolerance to incidence angles, making the system more robust to tracking errors and the intrinsic spread of solar radiation. By optimizing the shape of the concentrator—such as using compound parabolic concentrators (CPCs) or freeform surfaces—the acceptance angle can be tailored to match or exceed the solar angular aperture, thereby reducing partial light loss and enhancing overall system performance.

How is the Concentration Acceptance Product (CAP) calculated?

The Concentration Acceptance Product (CAP) quantifies the trade-off between optical concentration and angular tolerance in solar concentrators. It is derived from the conservation of etendue, a fundamental principle in nonimaging optics.

Mathematical Formulation

For a one-dimensional concentrator, the theoretical maximum concentration is given by Cmax=n/sin(θa). For a two-dimensional (point-focus) concentrator, the relationship is Cmax=n2/sin2(θa). The CAP is therefore proportional to n2 for 2D systems, indicating that increasing the refractive index allows for a wider acceptance angle for a given concentration level.

Variable	Description	Typical Value / Range
C	Geometric concentration ratio	1 to ~46,000
θa	Half-acceptance angle	0.27° to 90°
n	Refractive index of receiver medium	1.0 (air) to 1.5 (glass)
Cmax	Maximum theoretical concentration	Depends on n and θa

Maximum Theoretical Limits

In air or vacuum, where n=1, the maximum concentration for a 2D concentrator with a small acceptance angle is approximately 1/sin2(θa). For a 3D point-focus system, the absolute maximum concentration in air is n2=1, but practical systems achieve much higher values due to the angular dependency. When the receiver is immersed in a medium with a higher refractive index, such as glass (n≈1.5) or silicon (n≈1.9), the maximum concentration increases by a factor of n2. This allows for more compact receiver designs and wider acceptance angles, which reduces tracking precision requirements in practical solar thermal and photovoltaic systems.

The conservation of etendue ensures that the product of the area and the solid angle of the light beam remains constant. This principle dictates that increasing the concentration ratio inevitably narrows the acceptance angle, unless the refractive index of the receiver medium is increased. Nonimaging optics are specifically designed to maximize this product, approaching the theoretical limits defined by the CAP.

Worked examples

Theoretical Limits of Concentration

The maximum concentration ratio (Cmax) for a solar concentrator is fundamentally limited by the acceptance angle (θhalf) and the refractive index (n) of the medium surrounding the receiver. This relationship is governed by the etendue conservation principle, expressed as Cmax=n2/sin2(θhalf). This inequality defines the thermodynamic limit of how much sunlight can be focused onto a receiver without significant optical losses.

Example 1: System in Air

Consider a standard solar concentrator operating in air, where the refractive index n≈1. If the system is designed with a half-acceptance angle of 3∘ (θhalf=3∘), we can calculate the maximum theoretical concentration. First, determine the sine of the half-angle: sin(3∘)≈0.0523. Squaring this value yields sin2(3∘)≈0.00273. Applying the formula Cmax=12/0.00273, the result is approximately 366. This indicates that a system in air with a 3∘ acceptance angle can theoretically concentrate sunlight up to 366 times its original intensity.

Example 2: System with Refractive Secondary Concentrator

Now consider a system utilizing a refractive secondary concentrator, such as a glass lens or a glass-encapsulated receiver, where the refractive index n≈1.5. Using the same half-acceptance angle of 3∘, the calculation changes significantly. The term n2 becomes 1.52=2.25. Using the previously calculated sin2(3∘)≈0.00273, the formula becomes Cmax=2.25/0.00273. This results in a maximum concentration of approximately 824. The introduction of the refractive medium more than doubles the theoretical concentration limit compared to the air system, demonstrating the advantage of nonimaging optics in practical solar thermal systems.

Applications in solar energy systems

In solar thermal and photovoltaic concentrator systems, the acceptance angle dictates the precision required for optical alignment and tracking. A narrow acceptance angle demands high-precision single-axis or dual-axis trackers to ensure incident sunlight remains within the capture cone, increasing mechanical complexity and energy consumption for motorization. Conversely, a wider acceptance angle allows for more tolerant tracking systems or even static mounting configurations, reducing balance-of-system costs and maintenance requirements. This trade-off is central to the design of Concentrated Solar Power (CSP) plants and Concentrated Photovoltaic (CPV) modules, where optical efficiency must be balanced against structural and mechanical expenditures.

Nonimaging Optics and System Efficiency

Maximizing the acceptance angle is a primary objective in practical concentrator design, often achieved through nonimaging optics. Unlike traditional imaging optics, which prioritize image quality, nonimaging optics optimize the distribution of light onto the receiver. This approach allows for higher concentration ratios while maintaining a broader angular tolerance. The theoretical limit of concentration is governed by the refractive index of the medium in which the receiver is immersed. For a given concentration ratio, the acceptance angle determines the range of incidence over which the optical system effectively channels photons to the absorber or cell. Optimizing this parameter ensures that diffuse sunlight and minor tracking errors do not significantly degrade system output, enhancing the annual energy yield of the installation.
