Single axis solar tracker

Overview

A single-axis solar tracker is a mechanical system designed to orient a solar energy payload, typically photovoltaic modules or concentrated solar power mirrors, toward the sun along a single rotational axis. Unlike fixed-tilt installations that remain stationary throughout the day, these trackers adjust their angle to maximize the incidence of solar irradiance on the receiver surface. This dynamic alignment reduces the angle of incidence between the sun’s rays and the normal vector of the panel, thereby increasing the effective cosine factor of the incoming radiation. The primary operational goal is to enhance energy yield per unit area compared to static systems, particularly in regions with high direct normal irradiance.

Mechanical Configuration and Motion

Single-axis systems generally rotate around either a horizontal or a tilted axis. Horizontal single-axis trackers (HSAT) typically align the axis north-south, allowing the panels to follow the sun’s east-west diurnal path. This configuration is common in utility-scale photovoltaic farms where land availability permits long rows of modules. Tilted single-axis trackers (TSAT) orient the axis at an angle optimized for the local latitude, which can improve performance in higher-latitude regions by better capturing the seasonal variation of the sun’s elevation. The movement is driven by motors, gears, or linear actuators, often controlled by a central controller or individual sensors that calculate the optimal position based on the time of day and the geographic coordinates.

Performance and Energy Yield

The energy gain from single-axis tracking depends on the solar resource characteristics of the site. In areas with a high proportion of direct beam radiation, trackers can increase annual energy production by approximately 15% to 25% compared to fixed-tilt systems. This improvement stems from the ability to keep the panels more perpendicular to the sun’s rays during peak production hours. However, the benefit diminishes in regions with significant diffuse radiation, such as cloudy or hazy climates, where the directional advantage of tracking is less pronounced. The mechanical complexity also introduces operational expenditures, including motor wear, gearbox maintenance, and potential shading losses between adjacent rows if not properly spaced.

Application in Solar Infrastructure

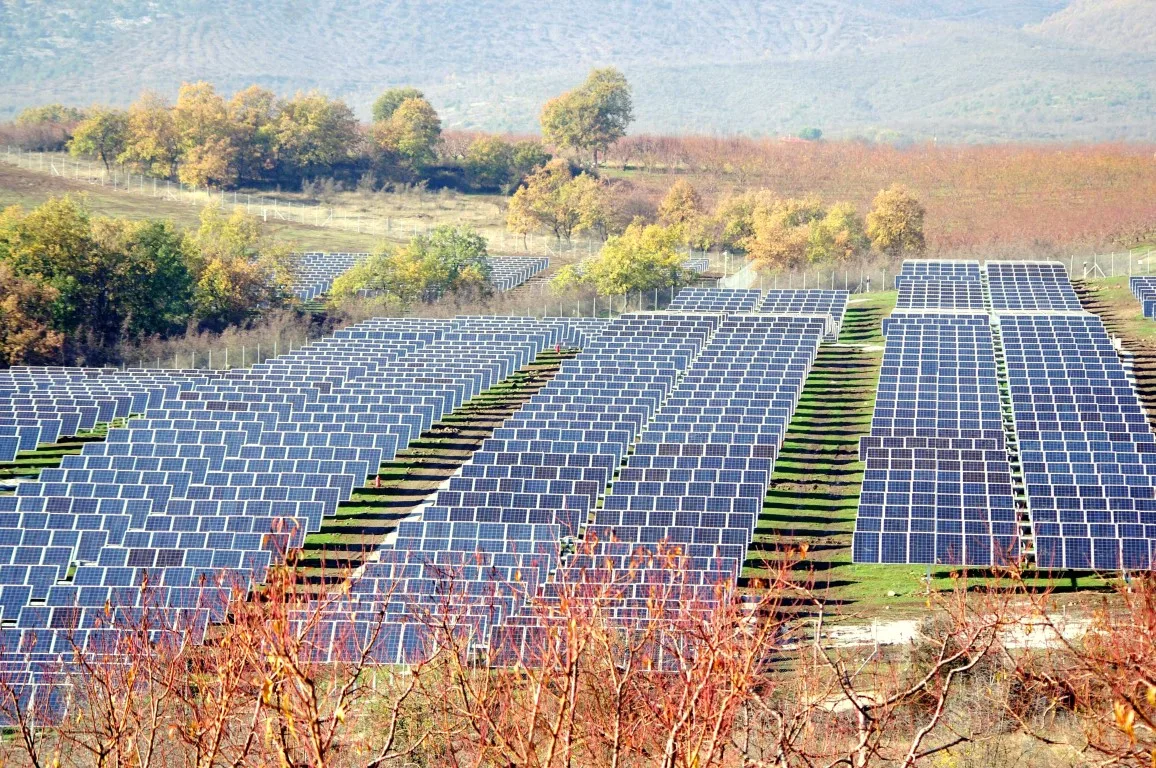

Single-axis trackers are widely deployed in utility-scale solar photovoltaic plants and concentrated solar power (CSP) facilities. In CSP applications, such as parabolic trough systems, precise tracking is critical to focus sunlight onto a receiver tube to generate heat. For photovoltaic installations, the choice between fixed-tilt and tracking systems involves a trade-off between capital expenditure, land use efficiency, and energy yield. The operational status of these systems is generally robust, with modern designs incorporating wind-stow mechanisms to protect panels from high winds and snow loads, ensuring long-term reliability in diverse environmental conditions.

How does a single axis solar tracker work?

A single axis solar tracker is a mechanical system that rotates a photovoltaic module or solar thermal collector along a single rotational degree of freedom to follow the apparent path of the sun across the sky. Unlike fixed-tilt installations, which remain static after initial installation, or dual-axis trackers that adjust for both azimuth and elevation, single-axis systems typically optimize for the sun's east-west movement. This orientation mechanism significantly increases the angle of incidence between the incoming solar radiation and the panel surface, thereby maximizing energy capture throughout the day.

Mechanical Orientation and Drive Systems

The core of the tracking mechanism consists of a drive unit, a gear system, and a structural frame. The drive unit, often an electric motor coupled with a gearbox or a hydraulic actuator, provides the torque required to rotate the array. In many large-scale installations, a central drive unit powers a series of panels connected by a linkage bar, reducing the number of motors needed per row. The rotation occurs around an axis that is generally aligned with the Earth's rotational axis (polar mount) or positioned horizontally (horizontal single-axis tracker, HSAT). The choice of axis alignment affects the complexity of the drive system and the optimal tilt angle of the panels.

Sun-Tracking Principles and Control Logic

Single-axis trackers employ either open-loop or closed-loop control strategies to determine the optimal panel angle. Open-loop systems rely on astronomical algorithms that calculate the sun's position based on the geographic coordinates, date, and time. These systems assume the sun is at its theoretical position, making them cost-effective but susceptible to errors due to atmospheric refraction or mechanical play. Closed-loop systems, conversely, use sensors—such as light-dependent resistors (LDRs) or photodiodes—mounted on the panel frame. These sensors compare the light intensity on opposite sides of the array, driving the motor until the light levels are equalized, effectively centering the sun's rays on the panel surface.

Geometric Optimization

The efficiency gain from single-axis tracking is derived from reducing the angle of incidence, θ. The power output P is proportional to the cosine of this angle, expressed as P ∝ cos(θ). By continuously adjusting the panel's azimuth, the tracker minimizes θ during peak sunlight hours. While a fixed panel might face the sun directly only at solar noon, a single-axis tracker maintains a near-optimal angle from sunrise to sunset. This geometric advantage typically results in a 15% to 25% increase in energy yield compared to fixed-tilt systems, depending on the latitude and seasonal variations. The system also includes a backtracking algorithm to minimize shading between adjacent rows, further optimizing the energy harvest in dense array configurations.

What are the main types of single axis trackers?

Single-axis solar trackers are classified primarily by the orientation of their rotational axis relative to the horizon and the cardinal directions. This geometric distinction dictates the tracking strategy, structural requirements, and optimal geographic deployment. The two dominant configurations are horizontal single-axis trackers (HSAT) and vertical single-axis trackers (VSAT). Each design offers distinct advantages in terms of solar capture efficiency, land use, and mechanical complexity, allowing engineers to select the most suitable system based on site-specific solar irradiance profiles and terrain constraints.

Horizontal Single-Axis Trackers (HSAT)

Horizontal single-axis trackers feature an axis of rotation that is parallel to the horizon. These systems are further subdivided based on the cardinal alignment of the axis. North-south aligned HSATs rotate the solar modules from east to west, following the sun's daily path across the sky. This configuration is widely used in utility-scale photovoltaic farms because it maximizes the capture of direct normal irradiance (DNI) and diffuse horizontal irradiance (DHI) throughout the day. The modules tilt towards the sun, optimizing the angle of incidence.

East-west aligned HSATs, less common, rotate the panels in a north-south arc. This design is often employed in specific topographical conditions or when integrating with existing infrastructure. The primary advantage of HSATs is their ability to significantly increase energy yield compared to fixed-tilt systems, particularly in regions with high direct solar irradiance. The mechanical structure typically consists of a long, continuous beam or a series of connected modules mounted on a central rail, reducing material costs per kilowatt.

Vertical Single-Axis Trackers (VSAT)

Vertical single-axis trackers have an axis of rotation that is perpendicular to the horizon. These systems are less common than HSATs but offer unique benefits in specific contexts. The modules rotate around a vertical pole, allowing them to face the sun from east to west. VSATs are particularly effective in regions with high diffuse irradiance or where land availability is constrained, as they can be arranged in dense arrays with minimal shading between rows. This configuration is often used in bifacial module installations, where the vertical orientation allows both sides of the panel to capture reflected light from the ground.

The mechanical design of VSATs is generally simpler than that of HSATs, requiring fewer moving parts and less structural support. However, they may not capture as much direct solar irradiance as HSATs in regions with a high sun path angle. The choice between HSAT and VSAT depends on the specific solar resource characteristics, land cost, and desired energy yield optimization.

Applications in solar power systems

Single-axis solar trackers are deployed across a wide spectrum of photovoltaic installations, ranging from large utility-scale farms to distributed commercial and residential systems. In utility-scale applications, the primary driver for adoption is the maximization of energy yield per unit of installed capacity. By continuously aligning the photovoltaic modules with the sun's trajectory, these systems capture a higher proportion of direct normal irradiance compared to fixed-tilt arrays. This alignment is particularly effective in regions with high direct-to-diffuse irradiance ratios, where the sun's path is less obstructed by atmospheric scattering.

Utility-Scale Photovoltaic Installations

Large-scale solar farms utilize single-axis trackers to optimize land use efficiency and reduce the levelized cost of electricity. The mechanical simplicity of single-axis rotation—typically along a north-south axis in the Northern Hemisphere—allows for dense packing of modules while minimizing shading losses during peak production hours. Engineers design these systems to balance the gain in energy capture against the additional capital and operational expenditures associated with the tracking mechanisms. The structural integrity of the trackers must withstand environmental loads, including wind and snow, which can significantly impact the return on investment if not properly calibrated.

Distributed and Commercial Applications

In distributed energy resources, such as commercial rooftops and ground-mounted systems for industrial parks, single-axis trackers offer a flexible solution for maximizing self-consumption. These installations often face more complex shading environments and spatial constraints compared to utility-scale farms. The ability to adjust the angle of incidence allows these systems to capture more energy during early morning and late afternoon hours, thereby flattening the daily generation profile. This temporal shift in energy production can better align with peak demand periods, enhancing the economic value of the generated electricity through time-of-use tariffs.

Performance Optimization

The performance gain from single-axis tracking can be approximated by considering the angle of incidence modification. The effective irradiance Geff on a tracked surface is influenced by the cosine of the angle of incidence θ. By minimizing θ throughout the day, the system maximizes Geff=GDNcos(θ)+GDIFFsky+GREFFground, where GDN is direct normal irradiance, GDIF is diffuse irradiance, and GREF is reflected irradiance. This optimization leads to a typical increase in annual energy yield, making single-axis trackers a preferred choice for maximizing output in diverse solar power systems.

Advantages and limitations

Single-axis solar trackers provide a strategic middle ground between fixed-tilt arrays and dual-axis tracking systems, balancing energy yield against capital and operational expenditures. By rotating along a single horizontal axis, these systems follow the sun’s apparent path from east to west, significantly increasing the angle of incidence between the solar panels and the sun’s rays throughout the day.

Efficiency Gains Over Fixed-Tilt Systems

Compared to fixed-tilt installations, single-axis trackers typically increase energy yield by approximately 15% to 25%, depending on latitude and seasonal variation. This gain stems from the ability to maintain a near-perpendicular orientation to the sun during peak irradiance hours (morning to afternoon). The effective irradiance Geff on a single-axis tracker can be approximated as Geff=Gglobal×cos(θ), where θ is the angle of incidence. By minimizing θ during critical production hours, the system captures more direct normal irradiance (DNI), which is particularly beneficial for crystalline silicon modules that exhibit higher temperature coefficients than fixed mounts.

Cost-Benefit Analysis vs. Dual-Axis Trackers

Dual-axis trackers, which adjust for both azimuth and elevation, offer higher theoretical yields (up to 30–35% more than fixed-tilt) but incur significantly higher mechanical complexity and maintenance costs. Single-axis systems avoid the need for vertical elevation adjustments, reducing the number of moving parts, motor requirements, and structural steel needed per kilowatt. Consequently, the levelized cost of energy (LCOE) for single-axis trackers is often lower than that of dual-axis systems, especially in regions with high direct sunlight and moderate land costs. The additional yield from dual-axis tracking rarely justifies the increased capital expenditure (CAPEX) and operational expenditure (OPEX) in most utility-scale projects.

Limitations and Operational Considerations

Despite their advantages, single-axis trackers introduce several limitations. Mechanical components such as gears, motors, and sensors are subject to wear and tear, leading to higher OPEX compared to fixed-tilt systems. In high-wind conditions, trackers may enter a "stow" position to minimize drag, temporarily reducing energy capture. Additionally, the increased land requirement due to spacing between rows to prevent shading can be a constraint in dense solar farms. The energy consumption of the tracking motors themselves, typically around 1–2% of the total energy yield, must also be factored into the net energy balance. In regions with high diffuse irradiance (e.g., overcast climates), the efficiency gains from tracking are diminished, making fixed-tilt systems more cost-effective.

Worked examples

Single-axis solar trackers optimize energy yield by aligning the panel normal vector with the sun’s azimuth. The required tilt angle depends on solar geometry, specifically the solar altitude and azimuth angles. This section provides worked examples to illustrate the calculation of the tracker’s rotation angle for a fixed-axis system aligned North-South.

Example 1: Solar Noon at the Equinox

Consider a location at Latitude 40°N during the Spring Equinox (Solar Declination δ ≈ 0°). At solar noon, the Hour Angle (ω) is 0°.

First, calculate the Solar Zenith Angle (θz). The formula is cos(θz) = cos(Latitude) * cos(δ) * cos(ω) + sin(Latitude) * sin(δ).

Substituting the values: cos(θz) = cos(40°) * cos(0°) * cos(0°) + sin(40°) * sin(0°).

This simplifies to cos(θz) = 0.766 * 1 * 1 + 0.643 * 0 = 0.766.

Therefore, θz = arccos(0.766) ≈ 40°.

The Solar Altitude Angle (α) is 90° - θz, which equals 50°.

For a North-South aligned single-axis tracker, the rotation angle (γ) from the horizontal plane at solar noon is equal to the Solar Altitude Angle. Thus, the tracker should tilt 50° from the horizontal to face the sun directly.

Example 2: Morning Sun at Summer Solstice

Now consider the same location (Latitude 40°N) on the Summer Solstice (δ ≈ 23.45°) at 9:00 AM solar time. The Hour Angle (ω) is -45° (since 15° per hour * 3 hours = 45°).

Calculate the Solar Zenith Angle (θz):

cos(θz) = cos(40°) * cos(23.45°) * cos(-45°) + sin(40°) * sin(23.45°).

cos(θz) = 0.766 * 0.917 * 0.707 + 0.643 * 0.398.

cos(θz) = 0.498 + 0.256 = 0.754.

θz = arccos(0.754) ≈ 41.1°.

The Solar Altitude Angle (α) is 90° - 41.1° = 48.9°.

Next, determine the Solar Azimuth Angle (γs). The formula is sin(γs) = sin(ω) * cos(δ) / sin(θz).

sin(γs) = sin(-45°) * cos(23.45°) / sin(41.1°).

sin(γs) = -0.707 * 0.917 / 0.657 ≈ -0.986.

γs ≈ -80.3° (West of South).

For a single-axis tracker, the rotation angle from the horizontal is not simply the altitude. The effective angle (β) the tracker must assume to minimize the angle of incidence is given by tan(β) = tan(α) / cos(γs).

tan(β) = tan(48.9°) / cos(-80.3°) = 1.15 / 0.17 ≈ 6.76.

β = arctan(6.76) ≈ 81.6°.

The tracker must rotate to an angle of approximately 81.6° from the horizontal axis to optimally face the morning sun.

Key Takeaways for Tracker Positioning

At solar noon, the tracker angle equals the solar altitude angle.
As the sun moves away from the meridian, the required tracker angle increases beyond the solar altitude to compensate for the azimuth shift.
Accurate tracking requires real-time calculation of the hour angle and solar declination.
