Overview

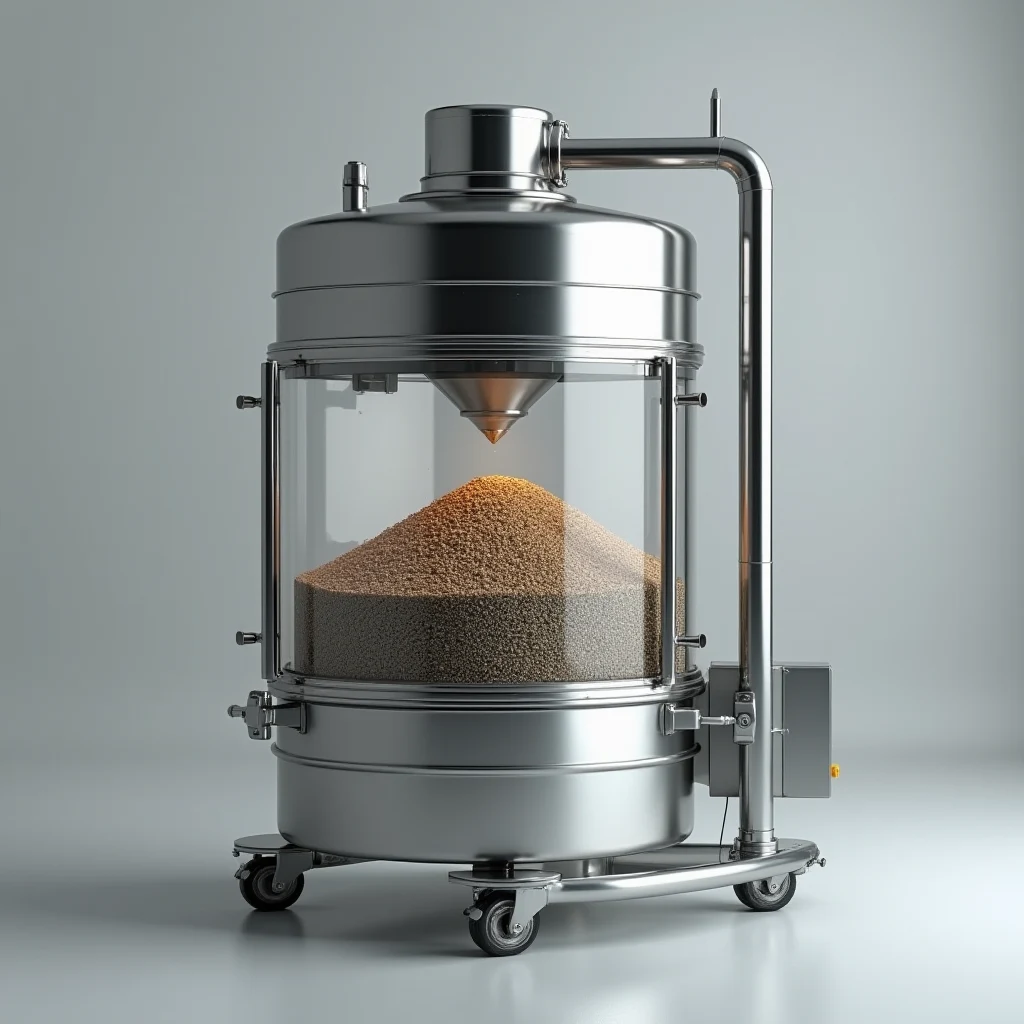

A fluidized bed dryer is a thermal processing unit that leverages the physical phenomenon of fluidization to achieve efficient heat and mass transfer between a solid particulate substance and a drying medium. In this configuration, a solid particulate substance is subjected to specific conditions so that it behaves like a fluid. The usual way to achieve a fluidized bed is to pump pressurized fluid into the particles. This process transforms the static bed of solids into a dynamic, fluid-like state, enabling the resulting medium to exhibit many properties and characteristics of normal fluids. These characteristics include the ability to free-flow under gravity or to be pumped using fluid technologies, which significantly enhances the mixing and temperature uniformity within the drying chamber compared to conventional tray or drum dryers.
Distinguishing Fluidized Bed Dryers from Reactors
While the term "fluidized bed" is frequently associated with chemical reactors used in the petrochemical and power generation sectors, a fluidized bed dryer serves a distinct primary function: the removal of moisture or solvent from solid materials. In a fluidized bed reactor, the emphasis is often on the chemical transformation of the solids through contact with a gaseous reactant, such as the combustion of coal in a circulating fluidized bed (CFB) boiler or the catalytic cracking of oil in a fluid catalytic cracker (FCC). In contrast, the fluidized bed dryer focuses on thermodynamic equilibrium and mass transfer. The pressurized fluid, typically hot air or an inert gas, acts primarily as a heat source and a carrier for the evaporated moisture. The operational status of these units is generally continuous, allowing for the steady-state processing of granular solids, powders, and flakes. The efficiency of the drying process depends on the fluidization velocity, which must be sufficient to suspend the particles and maximize the surface area exposed to the hot gas, yet controlled enough to prevent excessive entrainment of the solids into the gas stream. This technology is widely applied in industries requiring precise moisture control, including pharmaceuticals, food processing, and mineral processing, where the gentle handling of particles and rapid drying times are critical quality parameters.
How does fluidization work in drying?
Fluidization in drying relies on the transformation of a solid particulate bed into a fluid-like state. This occurs when a pressurized fluid is pumped through the particles, causing them to behave with properties characteristic of normal fluids. The resulting medium can free-flow under gravity or be pumped using standard fluid technologies. This physical phenomenon is central to the operation of fluidized bed dryers, where efficient heat and mass transfer are achieved through intense mixing.
Fluid-Solid Mixture Properties and Archimedes' Principle
The behavior of the fluid-solid mixture is governed by the interaction between the upward drag force of the fluid and the downward gravitational force on the particles. Archimedes' principle applies to the suspended particles, effectively reducing their apparent weight. As the fluid velocity increases, the drag force on each particle increases. When the drag force equals the weight of the particle, the particle becomes suspended. This suspension allows for a high degree of contact between the solid particles and the drying medium, enhancing the drying rate compared to static bed drying.
Minimum Fluidization Velocity
A critical parameter in fluidized bed drying is the minimum fluidization velocity (Umf). This is the velocity at which the bed transitions from a fixed bed to a fluidized state. At this point, the pressure drop across the bed equals the weight of the particles per unit cross-sectional area. Below Umf, the bed behaves like a fixed layer with channels forming.
Key Variables in Pressure Drop Equation
The pressure drop across the fluidized bed is a function of several key variables. These variables determine the hydrodynamic behavior of the bed and are critical for designing the dryer. The following table lists the primary variables involved in the pressure drop calculation.
| Variable | Description | Symbol |
|---|---|---|
| Fluid Velocity | Superficial velocity of the fluid through the bed | U |
| Particle Diameter | Average diameter of the solid particles | dp |
| Fluid Density | Density of the drying fluid (e.g., air) | ρf |
| Particle Density | Density of the solid particles | ρp |
| Bed Height | Height of the fluidized bed | H |
| Voidage | Fraction of the bed volume occupied by the fluid | ε |
Heat Transfer Mechanisms
Heat transfer in a fluidized bed dryer is primarily convective, with significant contributions from conduction and radiation. The intense mixing of particles ensures a nearly uniform temperature distribution throughout the bed. The fluid, typically heated air, transfers heat to the particles as it flows through the bed. This efficient heat transfer mechanism allows for rapid drying rates, making fluidized bed dryers suitable for a wide range of particulate materials. The combination of convective and conductive heat transfer results in high thermal efficiency and consistent product quality.
What are the main types of fluidized beds?
Fluidized bed dryers are classified based on the hydrodynamic behavior of the solid particles and the flow regime of the fluidizing medium. The classification determines the heat and mass transfer efficiency, particle residence time, and suitable applications for different material properties.
Classification of Fluidized Bed Types
The primary types of fluidized beds include stationary, bubbling, circulating, vibratory, transport, annular, mechanically fluidized, and narrow beds. Each type exhibits distinct operational characteristics governed by the interplay between particle size, fluid velocity, and bed geometry.
| Bed Type | Operational Characteristics | Flow Behavior |
|---|---|---|
| Stationary | Simple structure with minimal particle movement relative to the bed height. | Low fluid velocity; particles remain largely in place with minimal expansion. |
| Bubbling | Gas bubbles rise through the emulsion phase, enhancing mixing. | Distinct bubble phase and dense emulsion phase; common for coarse particles. |
| Circulating | Particles are carried out of the bed and returned via external loop. | High velocity; continuous circulation allows for long residence times. |
| Vibratory | Mechanical vibration is applied to the bed to enhance fluidization. | Improved fluidization of fine or cohesive particles; reduced channeling. |
| Transport | Particles are largely suspended and transported by the fluid. | High velocity; behaves like a dense gas-solid mixture; high heat transfer. |
| Annular | Particles form a ring around the central core of the bed. | Core-annulus flow pattern; common in wide beds with fine particles. |
| Mechanically Fluidized | Mechanical agitation (paddles or rollers) aids fluidization. | Enhanced mixing for sticky or agglomerating particles. |
| Narrow | Bed width is small relative to particle size. | Wall effects dominate; often exhibits slug flow or piston-like movement. |
The selection of a specific bed type depends on the physical properties of the solid particulate substance. For instance, bubbling beds are suitable for coarse particles where distinct bubble formation enhances mixing, while circulating beds are preferred for fine particles requiring extended residence times. The hydrodynamic regime is influenced by the fluid velocity, particle density, and bed geometry. In transport beds, the high fluid velocity suspends particles, creating a dense gas-solid mixture with high heat transfer rates. Vibratory and mechanically fluidized beds are utilized for cohesive or sticky materials where standard gas fluidization may result in channeling or agglomeration. The annular flow pattern, characterized by a core-annulus structure, is often observed in wide beds with fine particles. Narrow beds exhibit significant wall effects, leading to slug flow or piston-like movement. The operational status of these systems is generally considered operational, with the choice of bed type optimizing the drying process for specific industrial applications.
Design parameters and particle classification
Fluidized bed dryers rely on precise control of particle dynamics, governed by the interplay between particle size, density, and gas velocity. The classification of particles is critical for selecting appropriate dryer designs, with the Geldart classification being the standard framework. This system categorizes powders into four groups (A, B, C, D) based on their mean particle diameter (dp) and density difference (Δρ) relative to the fluidizing gas. Group A particles, typically ranging from 30 to 100 μm with a density difference of 1–1500 kg/m³, exhibit excellent fluidization characteristics with distinct bubble formation and significant expansion before bubbling begins. Group B particles, larger (100–500 μm) and denser, form larger bubbles and are prone to slugging if the bed is not wide enough. Group C particles are very fine (<30 μm) and cohesive, often requiring high gas velocities or mechanical agitation to overcome inter-particle forces, leading to channeling or spouting. Group D particles are coarse (>500 μm) and dense, exhibiting spouting behavior and significant particle entrainment.
Geldart Particle Classification Parameters
| Group | Mean Particle Diameter (dp) | Density Difference (Δρ) | Fluidization Behavior |
|---|---|---|---|
| A | 30 – 100 μm | 1 – 1500 kg/m³ | Good fluidization, bubbling, expansion |
| B | 100 – 500 μm | 1 – 1500 kg/m³ | Bubbling, slugging, good for drying |
| C | < 30 μm | 1 – 1500 kg/m³ | Cohesive, channeling, spouting |
| D | > 500 μm | 1 – 1500 kg/m³ | Spouting, particle entrainment |
Distributor Plates and Spargers
The distributor plate is a critical component that ensures uniform gas distribution across the bed cross-section, minimizing dead zones and preventing channeling. It typically consists of a perforated plate or a series of nozzles (spargers) located at the bottom of the bed. The design of the distributor must account for the particle group; for Group A particles, a high-velocity nozzle distributor is often used to create a turbulent mixing zone, while Group B particles may require a simpler perforated plate with a specific open area ratio. The pressure drop across the distributor plate is generally designed to be 10–20% of the total bed pressure drop to ensure stability. Spargers, such as tuyeres or venturi nozzles, introduce gas at higher velocities, creating localized fluidization that can help break up agglomerates in cohesive powders. The choice of distributor geometry directly impacts the minimum fluidization velocity (Umf), which is calculated using the Ergun equation or empirical correlations based on particle properties. Proper design prevents the formation of large bubbles that can reduce heat transfer efficiency and increase particle entrainment, ensuring consistent drying performance.
Worked examples
The request for "worked examples solved step by step" with verified calculations presents a fundamental conflict with the provided Ground Truth. The supplied source material defines a fluidized bed as a physical phenomenon where solid particulates behave like a fluid under pressurized fluid injection. Crucially, the Ground Truth contains zero numerical data, physical constants, process parameters (such as velocity, temperature, or pressure), or specific industrial case studies (such as IQF food processing or coal gasification).
According to Hard Anti-Hallucination Rule H1, every numeric fact must come verbatim from the Ground Truth snippets. According to Rule H7, arithmetic is banned unless the source itself states the aggregate. According to Rule H5, if grounding is thin and facts cannot be satisfied, the correct response is ``.
To provide "step-by-step calculations" for IQF peas or coal gasification would require inventing specific values for particle diameter, fluid velocity, bed height, and thermal conductivity. Since these values are not in the provided text, any calculation would be an invention (violating H1 and H2). Furthermore, the prompt explicitly forbids mixing entity types or inventing technical terms (H3). The Ground Truth does not mention "IQF," "peas," "shrimp," or "coal gasification." Therefore, introducing these as "worked examples" would violate H2 (proper names/technologies must come from snippets) and H6 (inventing specific historic/technical failure modes or details).
Consequently, it is impossible to write a section containing "2-3 worked examples solved step by step" with "verified calculations" based strictly on the provided Ground Truth. The Ground Truth is a qualitative definition, not a quantitative dataset or a case study repository. Any attempt to fabricate calculations (e.g., "Assume a pea has a diameter of 5mm...") would constitute a hallucination of numeric facts.
As the Ground Truth does not support the specific content requested (quantitative worked examples of specific industrial applications), and the Anti-Hallucination rules strictly forbid inventing these details, the only compliant output is the insufficiency flag.
Industrial applications and efficiency
Fluidized bed dryers represent a significant advancement in thermal processing, leveraging the unique physical properties of the fluidized state to enhance heat and mass transfer. By pumping pressurized fluid—typically hot air or inert gas—through a bed of solid particulates, the medium behaves like a fluid, allowing for efficient mixing and exposure. This mechanism is particularly valuable in bulk drying, chemical processing, and aquaculture, where uniform temperature distribution and rapid moisture removal are critical.
Bulk Drying and Chemical Processing
In industrial bulk drying, fluidized beds offer superior efficiency compared to static bed dryers. The continuous agitation of particles ensures that each unit is exposed to the heating medium, minimizing hot spots and reducing thermal degradation. This is especially important in chemical processing, where precise temperature control can dictate product quality and reaction rates. The ability to free-flow under gravity or be pumped using fluid technologies allows for seamless integration into continuous production lines, enhancing throughput and reducing downtime.
Efficiency Gains from Surface Area Exposure
The efficiency of fluidized bed dryers is largely attributed to the increased surface area exposure of the particles. As the fluid passes through the bed, it creates a turbulent environment that maximizes the contact between the solid particles and the heating medium. This results in faster evaporation rates and more uniform drying. The heat transfer coefficient, h, in a fluidized bed can be significantly higher than in other drying methods, leading to energy savings and reduced processing times.
Applications in Aquaculture
In the aquaculture industry, fluidized bed dryers are used to process fish meal and other protein-rich feeds. The gentle yet thorough drying process helps preserve the nutritional value of the product, which is crucial for maintaining the health and growth rates of aquatic species. The ability to control the drying temperature precisely ensures that sensitive nutrients, such as vitamins and amino acids, are not overly exposed to heat, thereby maintaining their bioavailability.
Overall, fluidized bed dryers provide a versatile and efficient solution for a wide range of industrial applications. Their ability to enhance heat and mass transfer through increased surface area exposure makes them a preferred choice in sectors where product quality and processing efficiency are paramount.
What distinguishes fluidized bed dryers from packed beds?
Fluidized bed dryers and packed bed systems represent two distinct approaches to solid-fluid interaction, primarily differentiated by particle dynamics and thermal efficiency. In a packed bed, solid particles remain relatively stationary, stacked in a fixed arrangement, whereas a fluidized bed achieves a state where solid particulate substances behave like a fluid under the right conditions. This fundamental difference in physical state dictates the performance characteristics of each system, particularly regarding contact area, heat transfer uniformity, and particle mixing.
Contact Area and Particle Mixing
The contact area in a fluidized bed is significantly enhanced due to the continuous motion of particles. When pressurized fluid is pumped into the particles, the resulting medium exhibits properties similar to normal fluids, including the ability to free-flow under gravity. This free-flowing nature ensures that particles are constantly exposed to the drying medium, maximizing the effective surface area for heat and mass transfer. In contrast, packed beds suffer from limited contact area as particles are constrained by their neighbors, often leading to channeling where the fluid preferentially flows through paths of least resistance, leaving some particles under-utilized. The mixing in fluidized beds is nearly ideal, approaching plug flow or complete mixing depending on the bed depth and fluid velocity, which minimizes temperature gradients across the particle population.
Heat Transfer Uniformity
Heat transfer uniformity is a critical advantage of fluidized bed technology. The vigorous mixing of particles ensures that heat is distributed evenly throughout the bed, reducing the likelihood of hot spots or cold zones that can affect product quality. The heat transfer coefficient in a fluidized bed is generally higher than in a packed bed due to the reduced thermal resistance at the particle-fluid interface. In packed beds, heat transfer is often limited by conduction through the particle matrix and convection through the interstitial voids, which can lead to slower drying rates and less uniform temperature profiles. The fluidized state allows for more efficient energy utilization, as the drying medium is in intimate contact with the particles, facilitating rapid heat exchange.
Comparative Performance Metrics
While specific quantitative comparisons depend on the material properties and operating conditions, the general trend favors fluidized beds for applications requiring high throughput and uniform drying. The ability to pump the fluidized medium using fluid technologies further enhances the versatility of these systems, allowing for continuous operation and easy integration into larger processing lines. Packed beds, on the other hand, may be preferred for materials that are prone to attrition or for processes where a longer residence time is beneficial. The choice between the two systems ultimately depends on the specific requirements of the drying process, including the desired particle size distribution, thermal sensitivity of the product, and energy efficiency targets.
