Wide area synchronous grid

Overview

A wide area synchronous grid is defined as a three-phase electric power grid that operates at a synchronized utility frequency and is electrically tied together during normal system conditions. These grids function on a regional scale or greater, forming the backbone of modern electrical infrastructure. They are also commonly referred to as synchronous zones or interconnections. The primary characteristic of such a system is the synchronization of alternating current (AC) frequency across all connected generators and loads, allowing for seamless power flow between different regions without the need for direct current (DC) converters, although DC links are often used to connect different synchronous zones.

The operational status of these grids is critical for regional power systems, as they facilitate the efficient distribution and trading of electricity. Synchronous grids with ample capacity enable significant electricity trading across wide areas, enhancing economic efficiency and grid stability. For example, in the Continental Europe Synchronous Area (CESA) system in 2008, over 350,000 megawatt hours were sold per day on the European Energy Exchange (EEX), demonstrating the commercial viability of large-scale synchronization. This trading capability allows regions with surplus generation to export power to areas with higher demand, balancing load and reducing the need for reserve capacity in each individual zone.

The scale of wide area synchronous grids varies significantly across the globe. The most powerful synchronous grid is the Northern Chinese State Grid, which boasts a generation capacity of 1,700 gigawatts (GW). This immense capacity highlights the potential for large-scale integration of diverse energy sources within a single synchronized network. On the other hand, the widest region served by a synchronous grid is the IPS/UPS system, which serves most countries of the former Soviet Union. This extensive geographic coverage illustrates the ability of synchronous grids to span vast distances, connecting diverse climatic and economic zones under a single frequency regime.

The concept of wide area synchronous grids is fundamental to understanding modern energy infrastructure. By maintaining a synchronized frequency, these grids ensure that power generation and consumption remain balanced in real-time, preventing frequency deviations that could lead to cascading failures. The mixed fuel/source nature of these grids allows for flexibility in energy mix, incorporating everything from thermal and hydroelectric to renewable sources. This diversity enhances resilience and adaptability, making wide area synchronous grids a cornerstone of reliable and efficient power delivery in regions with substantial electrical demand.

How do synchronous grids maintain frequency stability?

Frequency stability in a wide area synchronous grid relies on the precise balance between electrical generation and instantaneous load. In a three-phase system operating at a synchronized utility frequency, any imbalance causes the rotor angles of interconnected generators to shift, altering the system frequency. Maintaining this synchronization is critical for the electrical tie that holds the grid together during normal conditions. Without it, phase differences can grow large enough to cause cascading tripping of transmission lines, potentially fracturing the grid into smaller, desynchronized zones.

Droop Speed Control and Governors

The primary mechanism for immediate frequency response is droop speed control, implemented through mechanical or electronic governors on turbine-generators. Droop control defines a linear relationship between the system frequency and the power output of a generator. When the frequency drops due to a sudden increase in load, the governor senses the change and opens the steam or water inlet valves, increasing mechanical power input. This response is nearly instantaneous, occurring within seconds to minutes. The droop characteristic ensures that multiple generators share the load change proportionally to their rated capacity, preventing any single unit from bearing the entire burden. This inherent stability is what allows vast systems, such as the Northern Chinese State Grid, to manage thousands of gigawatts of generation capacity with coordinated precision.

Automatic Generation Control (AGC)

While governors handle the immediate mechanical response, Automatic Generation Control (AGC) systems manage the longer-term restoration of frequency and tie-line power flows. AGC operates on a timescale of minutes to hours. It continuously monitors the Area Control Error (ACE), which combines the deviation in system frequency and the net power interchange with neighboring synchronous zones. The AGC signals selected generating units to adjust their output to drive the ACE toward zero. This process is essential for facilitating electricity trading across wide areas, as it ensures that power sold on exchanges, such as the European Energy Exchange, is accurately delivered without destabilizing the local frequency. By coordinating the output of diverse fuel sources, AGC maintains the synchronized utility frequency required for the seamless operation of the grid.

What are the benefits and disadvantages of wide area synchronous grids?

Wide area synchronous grids offer significant operational and economic advantages by integrating generation and load across vast geographic regions. A primary benefit is generation pooling, which allows for the statistical smoothing of variable renewable energy sources and base-load plants. When diverse generation assets are connected, the relative variability of the total output decreases, enhancing system stability. This is complemented by load equalization, where time-zone differences and varying climatic conditions mean that peak demand in one region may coincide with off-peak hours in another, reducing the need for expensive peaking power plants.

Reserve provisioning is also optimized in large synchronous zones. Instead of each local grid maintaining substantial spinning reserves, the aggregate inertia and reserve capacity of the wider grid can be shared. This mutual assistance capability ensures that if one region experiences a sudden generator trip or transmission fault, neighboring areas can instantly supply power to maintain frequency stability. The Northern Chinese State Grid, with 1,700 gigawatts of generation capacity, exemplifies this scale, allowing for efficient resource allocation across diverse energy mixes.

From an economic perspective, synchronous grids facilitate electricity trading across wide areas, opening up competitive markets. The integration allows for arbitrage opportunities where electricity is sold from regions with surplus generation to those with deficits. For instance, in the CESA system in 2008, over 350,000 megawatt hours were sold per day on the European Energy Exchange, demonstrating the commercial viability of large-scale synchronization. This market opening encourages investment in infrastructure and promotes price convergence.

However, these benefits come with the risk of widespread outages. Because the grid is electrically tied together during normal conditions, a disturbance in one area can propagate rapidly across the entire synchronous zone. If the frequency deviation is not corrected quickly, it can trigger cascading failures, leading to blackouts that affect millions of consumers. The IPS/UPS system, serving most countries of the former Soviet Union, illustrates the vast regional reach but also the complexity of maintaining stability across such a wide area. Engineers must balance the efficiency gains of synchronization against the potential for large-scale systemic risks, requiring robust protection schemes and real-time monitoring to mitigate cascading effects.

How is inertia provided in modern synchronous grids?

Rotational kinetic energy from synchronous generators provides the primary source of inertia in traditional wide area synchronous grids. This physical property resists changes in system frequency, stabilizing the grid during sudden imbalances between generation and load. The inertia constant H quantifies this effect, defined as the ratio of stored kinetic energy Ek to the rated power Sn of the generator: H=Ek/Sn. Higher inertia allows the grid frequency to change more slowly following a disturbance, giving automatic generation control systems time to respond.

Synthetic Inertia and Inverter-Based Resources

As wind, solar, and battery storage penetrate synchronous grids, the share of rotating mass decreases, reducing natural inertia. Modern inverters mitigate this through synthetic inertia, or virtual inertia, control. These systems detect the rate of change of frequency (RoCoF) and momentarily inject or absorb active power to mimic the response of a rotating rotor. For wind turbines, this often involves extracting kinetic energy from the rotor blades, slightly slowing them down to feed power into the grid. Solar photovoltaic systems and battery energy storage systems use power electronics to release stored energy rapidly upon detecting a frequency drop.

Impact on Grid Stability

The integration of inverter-based resources alters the dynamic behavior of wide area synchronous grids. While synthetic inertia helps manage short-term frequency deviations, it does not fully replace the damping characteristics of synchronous machines. Inverters must be carefully coordinated to avoid resonance and ensure stable operation across the entire grid, from local distribution networks to the largest systems like the Northern Chinese State Grid or the IPS/UPS. The transition requires advanced control strategies to maintain the synchronized utility frequency that defines these extensive electrical networks.

How are different frequency grids interconnected?

Wide area synchronous grids often operate at distinct frequencies, such as the 50 Hz standard common in Europe and Asia or the 60 Hz standard in North and South America. Direct electrical connection between these asynchronous zones is not possible through simple AC lines because the phase angles would continuously drift, causing instability. To bridge these gaps, power systems employ specialized interconnectors that convert alternating current (AC) to direct current (DC) and back again, effectively decoupling the frequency requirements of the two grids.

HVDC Interconnectors

High Voltage Direct Current (HVDC) technology is the most prevalent method for linking asynchronous grids. An HVDC link consists of a converter station at each end of the transmission line. The first station rectifies the incoming AC power into DC, which travels through overhead lines or submarine cables. The second station then inverts the DC power back into AC at the destination frequency. This process allows for precise control over power flow and limits the propagation of faults from one grid to another. For example, if a major generator trips in a 50 Hz grid, the HVDC link can rapidly adjust its power intake to prevent the frequency disturbance from overwhelming the connected 60 Hz grid.

Solid-State Transformers

Solid-state transformers (SSTs) represent a more modern approach to frequency conversion. Unlike traditional transformer-rectifier-inverter chains, SSTs use power electronic switches, such as insulated-gate bipolar transistors (IGBTs), to transform voltage levels and frequencies simultaneously. This integration reduces the physical footprint and weight of the interconnection infrastructure. SSTs offer enhanced controllability, allowing for dynamic adjustment of power flow and reactive power support, which is critical for stabilizing grids with high penetrations of variable renewable energy sources.

Variable-Frequency Transformers

Variable-frequency transformers (VFTs) provide an alternative for medium-capacity interconnections. A VFT combines a rotating machine with a magnetic core, allowing for continuous adjustment of the phase angle and magnitude of the power transfer. This device can directly link two AC systems with different frequencies without the need for a full DC conversion stage. VFTs are particularly useful for connecting smaller asynchronous islands or integrating large hydroelectric plants into a wider grid, offering a cost-effective solution for specific transmission needs.

What are the major deployed and planned synchronous grids?

The global electricity infrastructure is organized into several major synchronous grids, which are large-scale networks operating at a synchronized utility frequency. These systems are electrically tied together during normal conditions, facilitating efficient power flow and trading across vast regions. The scale of these grids varies significantly, with some defined by their immense generation capacity and others by the geographic expanse they cover.

Major Existing Synchronous Grids

The most powerful synchronous grid currently in operation is the Northern Chinese State Grid. According to available data, this system boasts a generation capacity of 1,700 gigawatts (GW). This massive capacity allows for significant flexibility in power generation and distribution across the northern regions of China. The integration of diverse power sources within this single synchronous zone enhances grid stability and enables the optimization of generation assets over a large area.

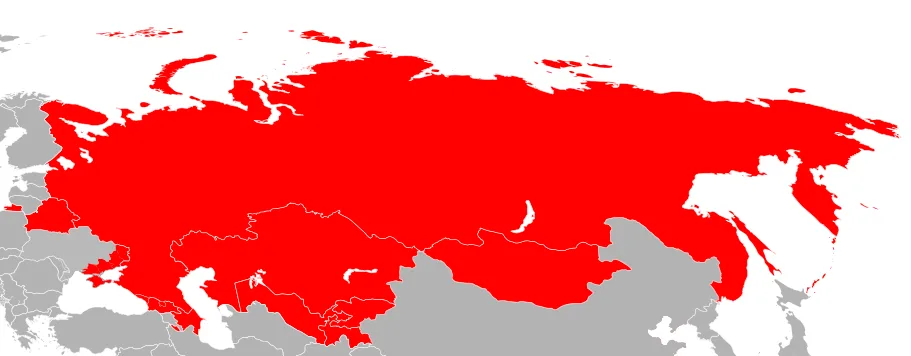

In terms of geographic coverage, the widest region served by a single synchronous system is the IPS/UPS system. This extensive network serves most countries of the former Soviet Union. The IPS/UPS grid connects numerous nations, creating a vast electrical interconnection that spans a significant portion of Eurasia. This wide-area synchronization is crucial for balancing generation and load across different time zones and climate regions within the former Soviet states.

Economic Impact and Electricity Trading

Synchronous grids with ample capacity facilitate substantial electricity trading across wide areas. The ability to trade power efficiently is a key benefit of large synchronous zones. For example, in the CESA system in 2008, over 350,000 megawatt hours were sold per day on the European Energy Exchange (EEX). This volume of trading highlights the economic importance of synchronous interconnections, allowing for price arbitrage and enhanced security of supply for participating regions.

Proposed and Future Grid Projects

Beyond existing systems, several proposed projects aim to expand synchronous connectivity. The Unified Smart Grid is one such initiative, seeking to enhance the integration of power systems through advanced smart grid technologies. Another significant proposal is the ASEAN Power Grid, which aims to interconnect the power systems of the Association of Southeast Asian Nations. These projects represent efforts to create new wide-area synchronous zones or to enhance the synchronization of existing regional networks, potentially increasing efficiency and resilience in global energy infrastructure.

How do market dynamics affect wide area synchronous grids?

Wide area synchronous grids function as complex economic systems where electricity is traded across vast geographic regions. The grounding data indicates that these grids with ample capacity facilitate significant electricity trading. For example, in the CESA system in 2008, over 350,000 megawatt hours were sold per day on the European Energy Exchange (EEX). This volume highlights the liquidity and scale inherent in large synchronous zones, which allows for the smoothing of demand peaks and the optimization of generation assets across borders.

Market Traders and Price Dynamics

The presence of market traders introduces dynamic pricing mechanisms that reflect real-time supply and demand imbalances. In a synchronized grid, the frequency remains constant, allowing power to flow from areas of lower marginal cost to areas of higher marginal cost. Traders exploit these differences by purchasing electricity in surplus regions and selling in deficit regions. However, the efficiency of this arbitrage depends heavily on the transmission infrastructure connecting the synchronous zones. If transmission lines are not congested, price convergence occurs more rapidly, leading to a more efficient allocation of resources. Conversely, if the grid is fragmented or transmission capacity is limited, price disparities can persist, creating opportunities for speculative trading.

Congestion and Transmission Constraints

Congestion is a critical factor affecting the economic performance of wide area synchronous grids. When transmission lines reach their thermal or stability limits, the flow of electricity is restricted, leading to locational marginal pricing (LMP) differences. Congestion can arise from unexpected generator outages, sudden spikes in demand, or maintenance activities. In such scenarios, grid operators may need to dispatch more expensive generators to relieve congestion, thereby increasing the overall cost of electricity. The Northern Chinese State Grid, with its 1,700 gigawatts of generation capacity, likely experiences significant congestion management challenges due to the sheer scale of its operations. Effective congestion management requires sophisticated forecasting tools and real-time data analysis to optimize the dispatch of generation units and transmission assets.

Price Manipulation and Market Volatility

Market volatility and price manipulation are inherent risks in electricity markets, particularly in wide area synchronous grids. The 2000–2001 California electricity crisis serves as a notable example of how market dynamics can lead to significant price fluctuations. During this period, traders exploited structural weaknesses in the market design, such as the "duck curve" of demand and limited transmission capacity, to drive up prices. This crisis highlighted the importance of robust market monitoring and regulatory oversight to prevent excessive price volatility. In a synchronous grid, the interconnected nature of the system can amplify the impact of price shocks, as changes in one region can quickly propagate to others. Therefore, market designers must consider the interdependencies between different regions when structuring trading mechanisms and regulatory frameworks.

The economic efficiency of wide area synchronous grids is thus a balance between the benefits of large-scale trading and the challenges of managing congestion and price volatility. As the global energy landscape continues to evolve, with the increasing integration of renewable energy sources, the role of market dynamics in these grids will become even more critical. The ability to effectively manage these dynamics will determine the long-term sustainability and resilience of the global power infrastructure.

How do synchronous grids impact timekeeping?

Synchronous grids provide a physical mechanism for timekeeping through the stability of their operating frequency. In regions with extensive networks of synchronous motors and line-operated clocks, the grid frequency—typically 50 Hz or 60 Hz—serves as a secondary time standard. These clocks accumulate time based on the number of cycles of the alternating current. If the frequency deviates from its nominal value, the clocks run either fast or slow, allowing the grid operator to correct time discrepancies by adjusting the generation load to shift the frequency slightly above or below the nominal rate.

The relationship between frequency deviation and time accumulation can be expressed as:

ΔT = T × (f_nominal / f_actual - 1)

Where ΔT is the time error, T is the elapsed time, f_nominal is the target frequency, and f_actual is the measured frequency. This principle relies on the grid maintaining a consistent average frequency over time, which is managed through primary and secondary frequency control mechanisms.

The 2018 Kosovo Incident

The importance of frequency stability for timekeeping was highlighted during a significant event in the Continental Europe synchronous grid in 2018. An incident in Kosovo caused a sudden loss of generation, leading to a frequency drop across the wide area synchronous grid. This event affected the synchronization of line-operated clocks and synchronous motors throughout the region. The grid's inertia and automatic generation control systems worked to restore the frequency, but the deviation caused measurable time errors in devices relying on the 50 Hz standard.

This incident demonstrated how localized generation losses can propagate timekeeping errors across a wide area synchronous grid. The Continental Europe synchronous grid, one of the largest in the world, relies on the collective inertia of its generators to maintain frequency stability. When a significant generator trips, the frequency drops, and clocks run slow. Conversely, when generation exceeds demand, the frequency rises, and clocks run fast. Grid operators use this relationship to correct time discrepancies, ensuring that the grid frequency averages the nominal value over a 24-hour period.

The 2018 Kosovo incident served as a reminder of the interdependence of power system stability and timekeeping accuracy. As the grid becomes more complex with the integration of variable renewable energy sources, maintaining frequency stability becomes increasingly challenging. However, the fundamental principle remains the same: the grid frequency is a reliable indicator of time, provided that the grid operators manage the balance between generation and demand effectively.

Worked examples

Frequency Deviation and Load Frequency Control

Consider a synchronous grid operating at a nominal frequency of 50 Hz with a total generation capacity of 1,700 GW, similar to the Northern Chinese State Grid. Assume the system has a total load of 1,000 GW and a frequency response coefficient (R) of 2% per unit of load. If a sudden load increase of 10 GW occurs, the initial frequency deviation can be calculated. The per-unit load increase is 10 GW / 1,000 GW = 0.01 p.u. The frequency drop is 0.01 p.u. * 2% = 0.02 p.u. In absolute terms, the frequency drops by 0.02 * 50 Hz = 1 Hz, resulting in a new steady-state frequency of 49 Hz. This example illustrates how large synchronous grids use inertia and governor response to stabilize frequency after disturbances.

Inertia Contribution from Synchronous Generators

In a synchronous grid, inertia is provided by the rotating masses of synchronous generators. Consider a grid with a total installed capacity of 500 MW, where each generator has an inertia constant (H) of 5 seconds. The total kinetic energy stored in the rotating masses is calculated as E_kinetic = 0.5 * H * P_rated. For one generator, E_kinetic = 0.5 * 5 s * 500 MW = 1,250 MWs (or MJ). If the grid frequency drops from 50 Hz to 49 Hz, the change in kinetic energy can be approximated. The relative frequency change is (50 - 49) / 50 = 0.02. The energy released is approximately 2 * H * P_rated * Δf/f = 2 * 5 * 500 * 0.02 = 100 MWs. This energy helps bridge the power deficit during the initial seconds of a disturbance.

Short Circuit Current Calculation

Short circuit current in a synchronous grid depends on the subtransient reactance of the generators and the impedance of the transmission lines. Consider a simplified grid with a generator having a subtransient reactance (X''d) of 0.2 p.u. and a base voltage of 230 kV. The base current is I_base = S_base / (√3 * V_base) = 100 MVA / (√3 * 230 kV) ≈ 251 A. The short circuit current at the generator terminals is I_sc = I_base / X''d = 251 A / 0.2 = 1,255 A. If a transmission line with an impedance of 0.1 p.u. is added, the total impedance becomes 0.3 p.u., reducing the short circuit current to 251 A / 0.3 ≈ 837 A. This calculation is crucial for sizing circuit breakers and protective relays in wide area synchronous grids.
