Overview
An HVDC converter is a critical component in power transmission systems, responsible for converting electrical power from high voltage alternating current (AC) to high-voltage direct current (HVDC), or vice versa. This conversion process enables the efficient transmission of electrical energy over long distances or facilitates interconnections between AC power systems operating at different frequencies. The fundamental operation involves rectification, where AC is converted to DC for transmission, and inversion, where DC is converted back to AC for distribution or consumption. These converters form the core of HVDC technology, providing a viable alternative to traditional AC transmission in specific grid configurations.
Modern HVDC converters have achieved significant technical milestones in terms of power handling and voltage ratings. Capable of converting up to two gigawatts (GW) of power, these systems can operate with voltage ratings of up to 900 kilovolts (kV). The technical feasibility extends beyond these established benchmarks, with potential for even higher ratings as component technologies advance. A complete converter station typically comprises multiple individual converters arranged in series and/or parallel configurations. This modular approach allows engineers to achieve total system DC voltage ratings of up to 1,100 kV, optimizing the transmission capacity and efficiency of the overall HVDC link.
The ability to scale voltage and power ratings through strategic converter arrangement is essential for meeting the diverse requirements of modern power grids. By combining multiple converter units, system designers can tailor the HVDC link to specific transmission needs, whether for long-distance bulk power transfer or for connecting asynchronous AC networks. The operational status of these converters remains active, with continuous improvements in semiconductor technology and control systems driving further enhancements in performance and reliability. This flexibility in configuration and scaling makes HVDC converters indispensable in the evolving landscape of global energy infrastructure.
History of HVDC conversion technology
The development of HVDC conversion technology spans nearly a century, evolving from bulky electromechanical systems to sophisticated static electronic valves. Early implementations in the 1880s through the 1930s relied on rotary converters, which combined a motor and generator on a single shaft to transform AC to DC. While effective, these systems required significant maintenance and were limited in voltage and power ratings compared to modern standards.
Mercury-Arc Valves and Early Static Conversion
The transition to static conversion began with the introduction of mercury-arc valves. This technology allowed for higher voltage ratings and reduced mechanical wear. A landmark project demonstrating this era was the Lyon-Moutiers scheme, one of the earliest commercial HVDC links. This system utilized mercury-arc rectifiers to transmit power between different AC networks, proving the viability of DC transmission for interconnecting systems with different frequencies or over long distances where AC line losses became significant.
Thyristor Valves and Modern High-Voltage Ratings

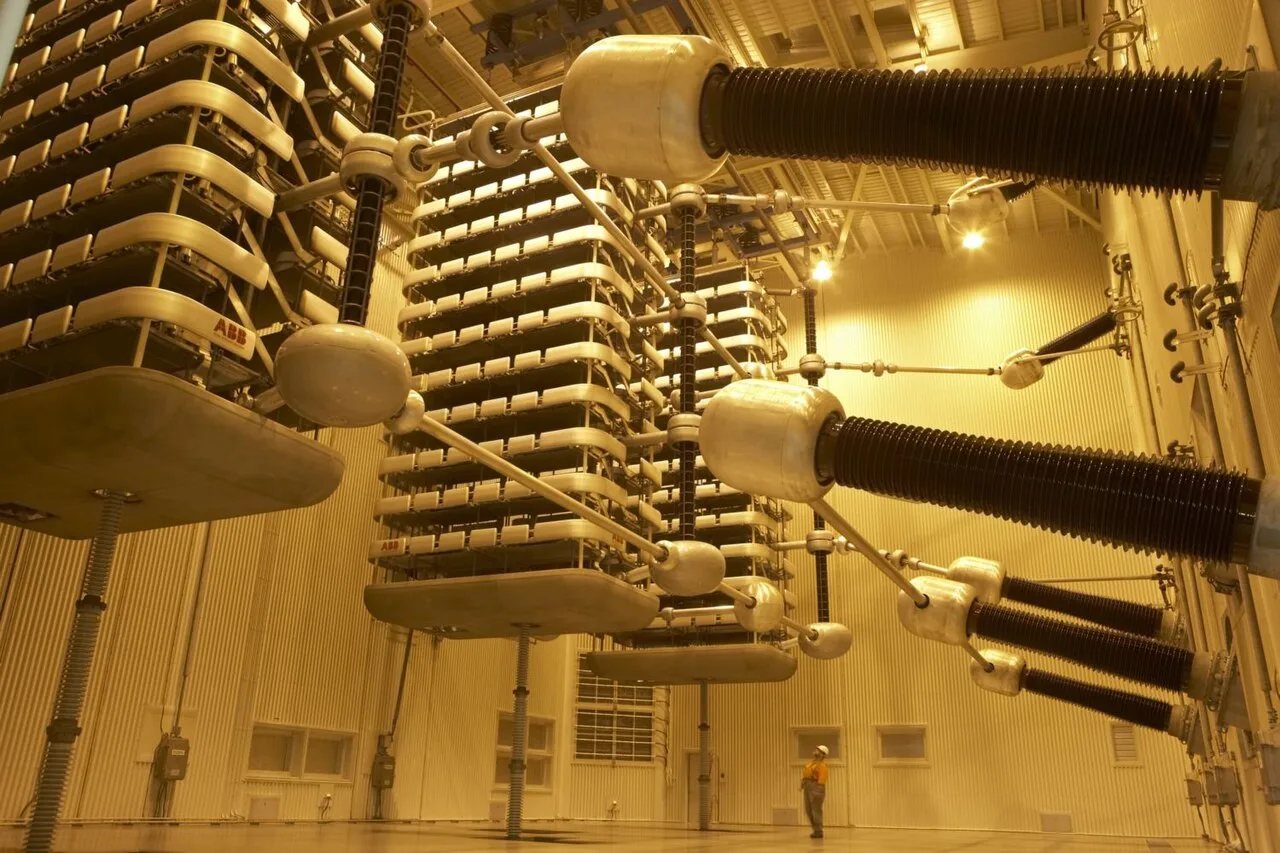

The advent of thyristor valves marked a major leap in reliability and control. Thyristors, being solid-state devices, offered faster switching speeds and greater durability than their mercury-arc predecessors. This technological shift enabled the construction of converter stations capable of handling much higher power and voltage levels. Modern HVDC converters are now capable of converting up to two gigawatts (GW) of power, with voltage ratings reaching up to 900 kilovolts (kV) per converter. Complete converter stations often arrange several of these units in series or parallel configurations to achieve total system DC voltage ratings of up to 1,100 kV, making them technically feasible for the most demanding long-distance transmission and interconnection projects globally.
What are the main types of HVDC converters?
HVDC technology relies on two primary converter topologies: Line-Commutated Converters (LCC) and Voltage-Source Converters (VSC). These systems serve distinct operational roles within high-voltage direct current transmission networks, each offering unique advantages depending on grid conditions and distance.
Line-Commutated Converters (LCC)
LCC technology represents the traditional approach to HVDC conversion. It utilizes thyristor-based valves that require an external AC voltage source to commutate, or switch, the current from one valve to the next. This dependency means LCC systems generally require a strong AC grid at the receiving end to maintain stable operation. LCC converters are known for their high efficiency and ability to handle large power ratings, making them suitable for long-distance point-to-point transmission. However, they consume reactive power and can introduce harmonic distortions into the connected AC systems, often necessitating additional filtering equipment.
Voltage-Source Converters (VSC)
VSC technology employs insulated-gate bipolar transistors (IGBTs) that allow for self-commutation. This capability enables VSC converters to control both active and reactive power independently, providing greater flexibility in grid management. VSC systems can transmit power to passive AC networks, such as offshore wind farms or island grids, without requiring synchronous generators at the receiving end. They also offer improved voltage profile control and reduced harmonic distortion compared to LCC systems. While VSC converters may have slightly higher losses at very high power ratings, their operational versatility makes them ideal for interconnecting weak grids and integrating renewable energy sources.
Operational Comparison
The choice between LCC and VSC depends on specific project requirements. LCC is often preferred for bulk power transmission over long distances where cost-effectiveness and high power handling are critical. VSC is favored for projects requiring precise control, black-start capability, and integration with variable renewable generation. Both technologies contribute to the global energy infrastructure by enabling efficient long-distance power transmission and interconnecting AC systems of different frequencies, supporting the transition to more flexible and resilient power grids.
How do line-commutated converters work?
Line-commutated converters (LCC) represent the traditional technology for HVDC transmission, relying on thyristor valves to convert AC to DC. Unlike voltage-sourced converters, LCCs require a strong AC grid to provide the commutation voltage necessary to switch current from one valve to the next. The fundamental building block is the six-pulse bridge, typically arranged in two groups to form a twelve-pulse configuration. This arrangement reduces harmonic distortion on both the AC and DC sides, minimizing the need for extensive filtering. The operation is controlled by the firing angle, denoted as α, which determines the delay between the natural commutation point and the actual turn-on of the thyristor. The overlap angle, μ, accounts for the finite time required for current transfer between phases due to AC system inductance.
Valve Technologies and Historical Evolution
Early HVDC systems utilized mercury-arc valves, which were bulky and required significant maintenance. Modern LCC stations predominantly use thyristor valves, which offer higher reliability and faster switching speeds. The transition from mercury-arc to thyristor technology marked a significant advancement in HVDC efficiency and capacity.
| Valve Type | Key Characteristics | Historical Usage |
|---|---|---|
| Mercury-Arc | High maintenance, bulky, requires cooling | Early HVDC projects (1920s–1960s) |
| Thyristor | High reliability, fast switching, compact | Modern HVDC projects (1960s–present) |
The twelve-pulse bridge configuration is achieved by connecting two six-pulse bridges in series on the DC side and using a transformer with star and delta windings on the AC side. This setup cancels out the fifth and seventh harmonics, which are the most prominent in a six-pulse system. The firing angle α is adjusted to control the power flow; a smaller α results in higher DC voltage and power transfer. The overlap angle μ is influenced by the commutating reactance and the DC current. Proper management of α and μ is critical for stable operation and efficient power conversion in LCC-based HVDC systems.
Voltage-source converter topologies
Voltage-source converters (VSC) represent a distinct class of HVDC technology that utilizes self-commutating power electronic switches, typically insulated-gate bipolar transistors (IGBTs), to control voltage magnitude and phase. Unlike line-commutated converters, VSCs can operate independently of the AC grid strength, enabling power flow control into weak grids or passive networks. The fundamental operational principle involves synthesizing a multi-level AC voltage waveform from a DC voltage source through high-frequency pulse-width modulation (PWM).
Two-level and Three-level Topologies
The two-level VSC is the simplest configuration, producing a two-step voltage waveform per phase leg. While robust, it generates significant harmonic distortion, requiring large AC filters and resulting in higher switching losses at moderate frequencies. To improve waveform quality, three-level topologies were developed. The diode-clamped (Neutral Point Clamped, NPC) converter introduces a third voltage level by clamping the midpoint of the DC bus with diodes. This reduces the voltage step size, thereby lowering harmonic content and stress on the switching devices. However, maintaining neutral point potential balance can be complex. The active NPC topology replaces the clamping diodes with active switches, offering greater flexibility in controlling the neutral point voltage and improving efficiency at higher power ratings, though it increases component count and control complexity.
Modular Multi-Level Converter (MMC)
The Modular Multi-Level Converter (MMC) has emerged as a dominant topology for high-power HVDC applications. It consists of multiple sub-modules (SMs) connected in series within each phase leg. Each sub-module typically contains a half-bridge or full-bridge circuit with a capacitor. By selectively inserting or bypassing sub-modules, the MMC synthesizes a near-sinusoidal AC voltage with very low total harmonic distortion, significantly reducing filter requirements compared to two-level converters. The MMC offers high scalability, redundancy, and efficiency, making it suitable for voltages up to 900 kV and powers exceeding two gigawatts. Its modular nature allows for easier maintenance and standardized manufacturing, contributing to its widespread adoption in modern HVDC projects.
What distinguishes MMC from other VSC types?
The Modular Multi-Level Converter (MMC) represents a distinct topology within Voltage Source Converter (VSC) technology, differing fundamentally from traditional two-level or three-level VSCs through its cascaded submodule architecture. Instead of a single string of switching devices per phase leg, the MMC utilizes multiple identical submodules connected in series. Each submodule typically contains two insulated-gate bipolar transistors (IGBTs) and a capacitor, allowing it to contribute a discrete voltage level to the total leg output. This structure enables the converter to synthesize a near-sinusoidal voltage waveform with significantly fewer steps compared to conventional VSCs, thereby reducing the need for extensive external filtering.
Current flow characteristics in the MMC are defined by the circulation of current within each phase leg. The total current in a leg is composed of the output phase current and a circulating current that flows between the upper and lower arms. This circulating current contains a significant second-harmonic component, which must be managed through control strategies to prevent excessive thermal stress on the IGBTs. The ability to independently control the voltage and current vectors provides enhanced flexibility in power flow management, particularly useful in asynchronous grid interconnections.
Advantages of the MMC include superior harmonic performance and high efficiency. The multi-level output voltage reduces total harmonic distortion (THD), allowing for lower filter costs and improved power quality. Additionally, the soft-switching capabilities of the submodules reduce switching losses, leading to higher overall efficiency, especially at partial loads. These features make the MMC particularly suitable for high-power applications, such as long-distance HVDC transmission and offshore wind farm integration, where voltage ratings can reach up to 900 kV and capacities up to two gigawatts.
However, the MMC also presents limitations, primarily in control complexity and physical size. The large number of submodules requires sophisticated control algorithms to balance capacitor voltages and manage circulating currents. This complexity increases the computational burden on the converter's control system. Furthermore, the physical footprint of an MMC station is generally larger than that of a two-level VSC due to the greater number of power electronic components and associated cooling systems. Despite these challenges, the MMC's performance benefits have established it as a leading technology in modern HVDC infrastructure.
Applications and system integration
HVDC converters are critical for long-distance power transmission, where they offer lower line losses compared to AC over extended distances. They are also essential for connecting asynchronous AC systems operating at different frequencies, enabling power exchange between grids that would otherwise be electrically isolated. The technology is increasingly vital for integrating offshore wind farms, where submarine cables benefit from reduced capacitive charging currents associated with DC transmission. Multi-terminal DC grids represent a growing application, allowing multiple power sources and loads to connect to a single DC backbone, enhancing grid flexibility and redundancy.
System Integration and Control
In weak AC systems, such as those with low short-circuit ratios, HVDC converters provide enhanced voltage and frequency stability. The converters can operate in bi-directional power flow, allowing power to move from the sending end to the receiving end and vice versa, depending on generation profiles and load demands. This bi-directional capability is particularly useful in hybrid AC/DC networks and for optimizing power flow in multi-terminal systems. Polarity reversal is another operational feature, where the positive and negative poles of the DC line can swap voltages to balance loading or manage thermal ratings of the conductors. This is achieved by adjusting the firing angles of the thyristor valves or the switching patterns of IGBT valves in voltage-source converters. The control systems manage active and reactive power independently, providing fast response to grid disturbances. For example, the active power P can be expressed as P = V_dc * I_dc, where V_dc is the DC voltage and I_dc is the DC current. This relationship allows precise control of power transfer by adjusting either voltage or current, or both, depending on the converter topology and operating point.
