Water capacitor: Theory, applications and limitations

Overview

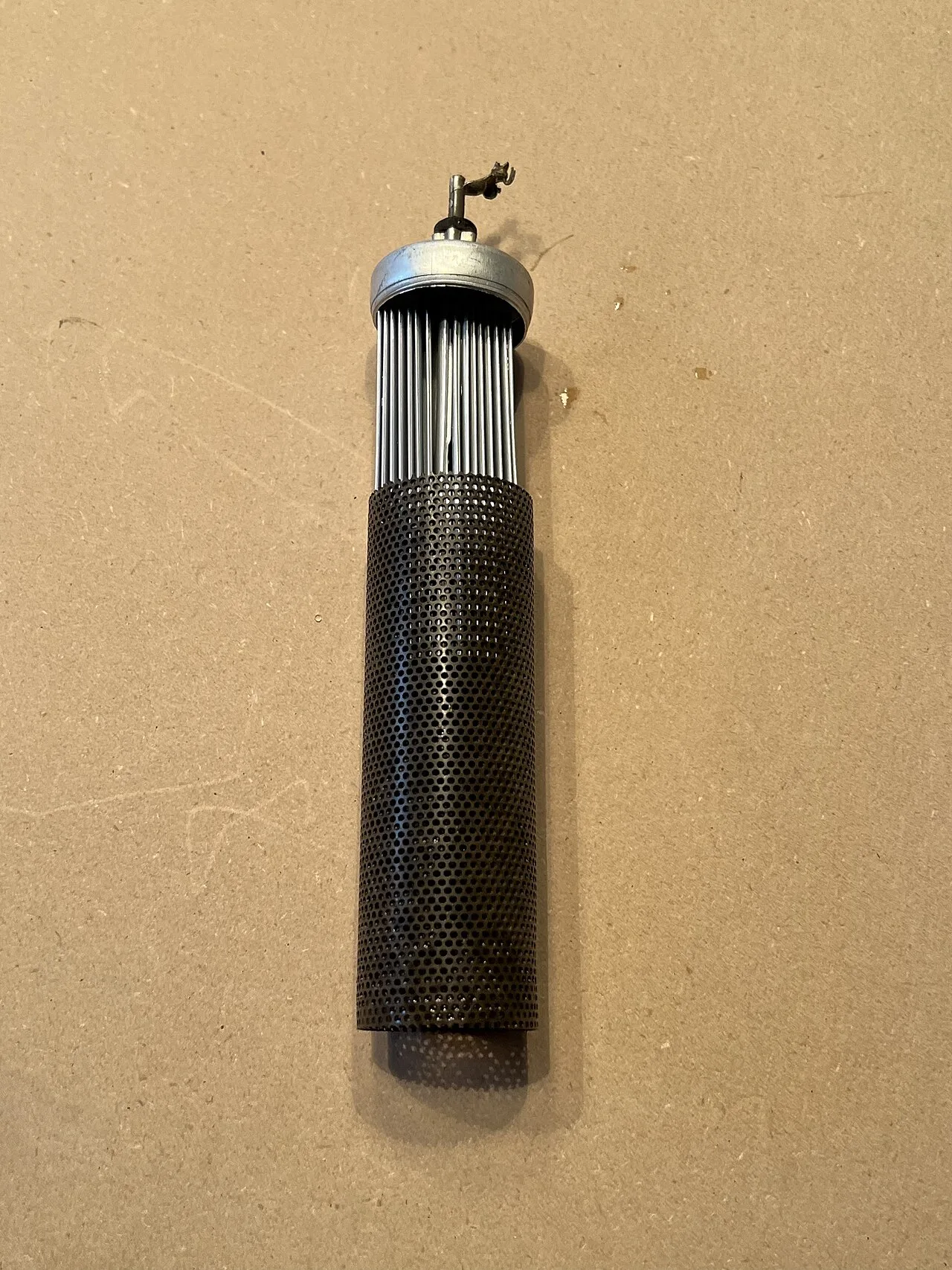

A water capacitor is a device that uses water as its dielectric insulating medium. This concept represents a specific application of fundamental capacitor theory, where the capacity to store electrical charge is determined by the physical arrangement of conductors and the properties of the material separating them. In conventional capacitors, the dielectric is typically a solid material such as ceramic, paper, or plastic film, or a liquid such as electrolytic solutions. The water capacitor distinguishes itself by utilizing water, leveraging its unique electrical properties to function as the insulating layer between the conductive plates or electrodes.

Basic Capacitor Theory

The operation of any capacitor, including the water capacitor, is governed by the fundamental relationship between charge, voltage, and capacitance. The basic formula for capacitance is expressed as C = Q/V, where C represents the capacitance in farads, Q is the electric charge stored in coulombs, and V is the potential difference or voltage across the plates in volts. This relationship indicates that capacitance is a measure of the amount of electric charge stored per unit of voltage applied.

Furthermore, the capacitance of a parallel-plate capacitor is determined by the geometric and material properties of the device. The formula C = εA/d describes this relationship, where ε is the permittivity of the dielectric material, A is the area of the overlapping plates, and d is the distance between the plates. In the case of a water capacitor, the permittivity of water plays a critical role. Water has a relatively high dielectric constant compared to vacuum, which enhances the capacitance for a given geometry. The permittivity of the dielectric medium directly influences the electric field strength and the amount of charge that can be stored without breakdown.

Distinction from Conventional Dielectrics

The use of water as a dielectric introduces specific characteristics that distinguish water capacitors from those using conventional solid or liquid dielectrics. Solid dielectrics, such as ceramics or polymers, offer stability and compactness but may have lower dielectric constants compared to water. Liquid dielectrics, like transformer oil or electrolytic solutions, provide good heat dissipation and self-healing properties but may require specific containment and maintenance. Water, as a dielectric, offers high permittivity and availability, but its conductivity and susceptibility to temperature changes must be managed. The distinction lies in the balance between the high dielectric constant of water and the need to control its inherent electrical conductivity, which can affect the leakage current and overall efficiency of the capacitor. This makes the water capacitor a specialized device where the properties of the water medium are optimized for specific electrical storage applications.

How does water function as a dielectric?

Water functions as a dielectric medium by leveraging its high relative permittivity, which significantly enhances capacitance compared to air or vacuum. The dielectric constant of water is approximately 80, meaning that for a given electric field, water can store roughly 80 times more charge than an equivalent volume of vacuum. This property is governed by the fundamental capacitance equation C=dεrε0A, where εr represents the relative permittivity of the water, ε0 is the vacuum permittivity, A is the plate area, and d is the distance between the conductors. The high polarity of water molecules allows them to align with the electric field, reducing the effective field strength within the medium and allowing greater charge accumulation on the capacitor plates.

Deionization and Conductivity Control

Pure water is an excellent insulator, but its dielectric performance is highly sensitive to ionic content. In a water capacitor, deionization is critical to minimize electrical conductivity. Dissolved ions, such as sodium, chloride, and calcium, act as charge carriers that facilitate current leakage, reducing the capacitor's efficiency and increasing heat generation. Deionized water, often achieved through reverse osmosis or distillation, reduces the concentration of free ions, thereby increasing the resistivity of the medium. This reduction in conductivity ensures that the majority of the applied voltage is stored as electrostatic potential rather than being dissipated as resistive loss. However, maintaining low ion concentration requires careful management, as water naturally absorbs carbon dioxide from the air, forming weak carbonic acid and introducing hydrogen and bicarbonate ions.

Self-Healing Properties

One of the distinctive advantages of water as a dielectric is its self-healing capability. When a localized dielectric breakdown occurs, a small bubble of vapor or gas forms at the site of the discharge. Unlike solid dielectrics, which may suffer permanent punctures or carbon tracks, the water medium can rapidly reflow and fill the void. The surface tension of water helps to expel the gas bubble or dissolve it back into the liquid, restoring the dielectric integrity of the path between the electrodes. This self-healing mechanism allows water capacitors to withstand transient voltage spikes and minor imperfections in the electrode surface without catastrophic failure. The process is particularly effective in systems where the water is under slight pressure or in a closed loop, ensuring continuous contact with the conductive plates.

Hold-Off Time Limitations

Despite its high permittivity, water has limitations regarding hold-off time, which refers to the duration the capacitor can maintain its charge without significant leakage. The hold-off time is inversely proportional to the conductivity of the water. Even with deionization, water is more conductive than solid dielectrics like ceramic or polyester, leading to faster discharge rates. This makes water capacitors particularly suitable for applications requiring high capacitance values and moderate frequency operation, such as motor run capacitors or low-frequency filtering, rather than long-term energy storage. The hold-off time can be extended by using highly purified water and maintaining a stable temperature, as temperature fluctuations can affect ion mobility and viscosity, further influencing the dielectric performance. Engineers must balance the desire for high capacitance with the acceptable rate of voltage decay for the specific application.

Applications and industrial viability

Water capacitors have found specialized application primarily in high-voltage pulse power systems, where their unique dielectric properties offer distinct advantages over traditional oil or vacuum capacitors. The most notable industrial use is in experimental X-ray pulsers, where the water capacitor serves as a key energy storage and switching component. In these systems, the capacitor is charged to several hundred kilovolts and then discharged through an X-ray tube, producing a short, intense pulse of X-rays. The use of water as the dielectric medium allows for efficient heat dissipation and simplified construction compared to oil-filled alternatives, making it particularly suitable for pulsed operation where thermal management is critical.

Experimental and research applications

Beyond X-ray pulsers, water capacitors have been explored in various experimental setups, including particle accelerators, laser power supplies, and electromagnetic pulse (EMP) generators. The linear dielectric constant of water, approximately 80 at room temperature, enables high capacitance values in relatively compact volumes. The capacitance of a parallel-plate water capacitor can be expressed as:

C = ε₀εᵣA/d

where ε₀ is the vacuum permittivity, εᵣ is the relative permittivity of water, A is the plate area, and d is the separation distance. This relationship allows engineers to achieve substantial capacitance with modest physical dimensions, a feature that has attracted interest in space-constrained experimental apparatus.

Reasons for limited industrial adoption

Despite these advantages, water capacitors have seen limited adoption in mainstream industrial applications. Several factors contribute to this restricted use. First, water's relatively low dielectric strength—approximately 65 to 70 MV/m under ideal conditions—requires careful control of impurities and dissolved gases to prevent premature breakdown. In contrast, transformer oil and synthetic dielectric fluids offer higher and more predictable breakdown voltages, which is critical for continuous-duty power systems.

Second, the management of water as a dielectric introduces practical challenges, including corrosion of electrode materials, biological growth in stagnant systems, and the need for continuous filtration and degassing. These maintenance requirements increase operational complexity and cost, particularly in environments where reliability is paramount. Additionally, the temperature dependence of water's dielectric constant and viscosity means that performance can vary significantly with ambient conditions, requiring additional thermal regulation in precision applications.

Third, the availability of mature, cost-effective alternatives such as film capacitors, ceramic capacitors, and oil-filled capacitors has reduced the incentive to adopt water-based solutions for most standard applications. These conventional technologies benefit from decades of optimization, standardized manufacturing processes, and well-characterized failure modes, making them the default choice for engineers designing power electronics, motor drives, and energy storage systems.

Consequently, water capacitors remain a niche technology, valued primarily in research and specialized pulsed-power applications where their unique characteristics—high volumetric capacitance, thermal conductivity, and simplicity of construction—outweigh the operational complexities. Their continued use in X-ray pulser systems demonstrates that, while not universally adopted, water capacitors retain a viable role in specific high-performance contexts where alternative dielectrics struggle to match their combined electrical and thermal properties.

Worked examples

The concept of a water capacitor relies on using water as a dielectric insulating medium. To illustrate the electrical behavior of such a device, we examine a simple parallel-plate model where water serves as the primary insulator between conductive surfaces.

Example 1: Pure Water Dielectric

Consider a capacitor with two square metal plates, each with an area A of 0.01m2 (equivalent to a 10 cm x 10 cm plate). The plates are separated by a distance d of 0.002m (2 mm). The space between the plates is filled with pure water, which has a relative permittivity εr of approximately 80 at room temperature.

Substituting these values into the capacitance formula:

C=0.002m(8.854×10−12F/m)×80×0.01m2

First, calculate the numerator: 8.854×10−12×80×0.01=7.0832×10−12.

The resulting capacitance is approximately 3.54nF. This demonstrates how the high dielectric constant of water significantly increases capacitance compared to air (εr≈1), which would yield only about 0.044nF for the same geometry.

Example 2: Effect of Salinity

In practical applications, water is rarely perfectly pure. Dissolved ions increase conductivity but can slightly alter the effective dielectric behavior depending on frequency.

Calculating the new capacitance:

While the change in capacitance is modest (from 3.54 nF to 3.45 nF), the primary impact of salinity in a water capacitor is often increased leakage current due to higher electrical conductivity, which affects the capacitor's quality factor rather than its static capacitance value.

History of capacitor technology

The conceptual lineage of the water capacitor is rooted in the earliest experiments with electrostatic storage, most notably the invention of the Leyden jar. This foundational device, independently developed by Pieter van Musschenbroek in the early 18th century, established the principle of using a dielectric medium to separate conductive plates. While early iterations typically employed glass as the insulating layer, the fundamental physics governing the charge storage mechanism—defined by the relationship between capacitance, the dielectric constant of the medium, and the geometry of the conductors—remained consistent with later variations. The basic formula for capacitance, C=dεA, where ε represents the permittivity of the dielectric, highlights the critical role of the insulating material's properties.

As capacitor technology evolved, researchers and engineers explored alternative dielectric materials to optimize performance for specific applications. Water, with its relatively high dielectric constant compared to air or simple oils, emerged as a viable candidate for certain electrostatic storage configurations. The development of the water capacitor represents a specialized adaptation of these early principles, utilizing water specifically as the dielectric insulating medium. This approach diverges from the more common use of water as a conductive electrolyte in electrochemical capacitors or supercapacitors. Instead, it relies on the insulating properties of pure or treated water to separate charged surfaces, a concept that traces its theoretical underpinnings back to the same electrostatic discoveries that gave rise to the Leyden jar.

The historical progression from simple glass-jar capacitors to specialized water-based devices illustrates the broader trend in electrical engineering to tailor dielectric materials to specific voltage, frequency, and environmental requirements. While the Leyden jar served as a proof of concept for electrostatic storage, modern implementations of the water capacitor refine these early ideas by addressing issues such as leakage current, polarization, and the need for precise control over water purity to maintain its insulating characteristics. This evolution underscores the enduring relevance of fundamental electrostatic principles in the development of niche capacitor technologies.
