Tripod foundation for offshore wind turbines

Overview

The tripod foundation, also known as a jacket foundation, represents a distinct structural category within offshore wind energy infrastructure. This system serves as the primary support mechanism for offshore wind turbines, particularly in environments where water depth and turbine scale necessitate enhanced stability beyond simpler monopile designs. As a lattice structure, the tripod foundation utilizes an interconnected network of steel members to distribute mechanical loads efficiently across the seabed, offering a robust solution for securing large-scale wind energy converters in challenging marine conditions.

Classification as a lattice structure defines the engineering approach behind the tripod design. Unlike solid shaft foundations, the tripod relies on a triangulated framework that combines strength with relative weight efficiency. This structural configuration allows the foundation to withstand significant dynamic forces generated by wind, wave action, and turbine operation. The lattice architecture provides flexibility in adapting to varying seabed geologies, making it a versatile option for diverse offshore sites. The design prioritizes durability, which becomes a critical factor when evaluating the long-term performance of offshore wind installations.

In the context of offshore wind energy infrastructure, the tripod foundation plays a strategic role in enabling the deployment of larger turbines in deeper waters. While initial capital expenditures for tripod foundations are generally higher than those for alternative foundation types, this cost disadvantage can be offset by the system's durability and suitability for specific site conditions. For large turbines operating in higher water depths, the enhanced stability and longevity provided by the tripod structure may justify the increased upfront investment. This economic trade-off is a key consideration in the selection process for offshore wind farm developers aiming to optimize levelized cost of energy over the project lifecycle.

The operational relevance of tripod foundations is demonstrated by their adoption by key industry players. Multibrid, a prominent operator in the sector, has utilized tripod foundations in its offshore wind projects. Commissioned in 2008, Multibrid's implementation of this technology highlights the practical application of tripod systems in real-world offshore wind energy infrastructure. The choice of tripod foundations by such operators underscores the balance between structural performance and economic viability in the evolving landscape of offshore wind energy. As the industry continues to push turbines into deeper waters and larger scales, the tripod foundation remains a critical component in the toolkit of offshore wind engineering solutions.

History of development and deployment

The development of the tripod foundation, also known as the jacket, emerged as a specialized solution for offshore wind turbine support structures. This foundation type is generally more expensive than other available options, but its cost disadvantage may be compensated by increased durability, particularly for large turbines installed in higher water depths (Global Energy Monitor, 2023). The concept gained significant traction through a series of strategic deployments beginning in the mid-2000s.

Early Design and Demonstration

The foundational design work for the tripod system was initiated by OWT in 2005, establishing the technical parameters for this specific foundation architecture. This early design phase focused on optimizing structural integrity to address the unique challenges of offshore environments. In 2006, a demonstrator project was launched to validate the design concepts under real-world conditions. This demonstrator served as a critical proof-of-concept, providing empirical data on the performance and cost-efficiency of the tripod structure compared to traditional monopile foundations. The success of the 2006 demonstrator paved the way for larger-scale commercial applications.

Commercial Deployment at Alpha Ventus

The first major commercial deployment of the tripod foundation occurred in 2008 at the Alpha Ventus offshore wind farm. This project marked a significant milestone in the adoption of tripod foundations, demonstrating their viability for operational wind energy generation. The Alpha Ventus project utilized the tripod design to support wind turbines in the North Sea, leveraging the foundation's durability to withstand harsh marine conditions. This deployment in 2008 established the tripod as a competitive option for offshore wind infrastructure, particularly in areas with deeper water where monopiles might face increased cost pressures.

Mass Production and Expansion (2010–2013)

Following the success at Alpha Ventus, the tripod foundation entered a phase of mass production between 2010 and 2013. This period saw the widespread adoption of the tripod design in major offshore wind projects, including Borkum West II and Global Tech I. These projects demonstrated the scalability of the tripod foundation, allowing for efficient manufacturing and installation processes. The deployment at Borkum West II and Global Tech I further validated the economic and technical benefits of the tripod system, reinforcing its position as a key foundation type for offshore wind energy. By 2013, the tripod had become a well-established solution in the offshore wind industry, with Multibrid emerging as a notable operator in this sector.

How does the tripod foundation work structurally?

The tripod foundation, also referred to as a jacket-type structure, serves as a critical support system for offshore wind turbines, particularly in deeper waters where traditional monopiles become less efficient. Structurally, the tripod relies on three primary legs that transfer mechanical loads from the turbine tower to the seabed. This configuration allows for effective distribution of bending moments, which are significantly higher in larger turbines and deeper water conditions. The foundation's durability compensates for its generally higher initial cost compared to other foundation types, making it a viable option for specific offshore environments.

Load Transfer and Pile Connections

Load transfer in a tripod foundation occurs through the interaction between the tubular legs and the seabed piles. Each leg is typically connected to a driven pile using grouting, which ensures a rigid connection that minimizes deflection under operational loads. The grouting process involves injecting a cementitious mixture into the annular space between the leg and the pile, creating a composite structure that enhances stiffness and load-bearing capacity. This method is crucial for managing the complex stress patterns induced by wind and wave forces.

Role of Tubular Nodes

Tubular nodes play a pivotal role in the structural integrity of the tripod foundation. These nodes connect the three legs and the central tower, distributing forces evenly across the structure. The design of these nodes must account for high stress concentrations, particularly at the junctions where the legs meet the central column. Proper engineering of these connections ensures that the foundation can withstand cyclic loading, which is common in offshore environments.

Characteristic	Tripod	Monopile	Jacket
Cost	Generally higher	Lower in shallow waters	Higher in deep waters
Water Depth Suitability	Moderate to deep	Shallow	Deep
Durability	High	Moderate	High
Complexity	Moderate	Low	High

The choice between tripod, monopile, and jacket foundations depends on various factors, including water depth, soil conditions, and turbine size. While monopiles are cost-effective in shallow waters, tripods offer a balanced solution for moderate to deep waters, providing enhanced durability and load distribution. Jackets, though more complex, are often preferred in very deep waters where their structural flexibility and strength are advantageous.

What are the technical specifications and materials?

The tripod foundation, also referred to as a jacket, serves as a structural support system for offshore wind turbines, particularly in environments where water depth and turbine scale necessitate enhanced durability. According to the provided technical overview, this foundation type is generally more expensive than alternative foundation systems. However, for large turbines situated in higher water depths, the initial cost disadvantage may be compensated when long-term durability is factored into the economic analysis. The structure is designed to withstand significant environmental loads, making it suitable for specific offshore conditions where traditional monopiles or gravity bases might be less efficient.

Structural Configuration and Material Utilization

The tripod configuration relies on a multi-legged framework that distributes the load of the turbine tower across three or more support points anchored to the seabed. This design aims to optimize material utilization by leveraging the geometric stability of the triangular base. The structural members are typically fabricated from steel, chosen for its high strength-to-weight ratio and proven performance in marine environments. The wall thickness of the tubular members is engineered to resist compressive and bending stresses induced by wind, wave, and current forces. While specific dimensional data such as exact height or wall thickness values are not explicitly detailed in the primary source, the design principle emphasizes balancing material volume with structural rigidity to minimize weight without compromising load-bearing capacity.

Shell Buckling and Stability

Shell buckling is a critical failure mode for the cylindrical components of the tripod foundation. The thin-walled tubular sections are susceptible to local and global buckling under combined axial and bending loads. Engineers must ensure that the geometric proportions and material properties prevent premature buckling, which could lead to sudden structural collapse. The stability of the tripod is further enhanced by the interaction between the legs and the seabed, where the foundation is secured through piles or gravity-based anchors. The design must account for the dynamic nature of offshore loads, including cyclic fatigue from wind and wave action, which can exacerbate buckling risks over the turbine's operational lifespan.

Corrosion Protection Systems

Corrosion protection is essential for the longevity of steel tripod foundations exposed to the harsh marine environment. The foundation is typically protected through a combination of paint systems and cathodic protection. The splash zone and atmospheric zone are often coated with high-performance epoxy or polyurethane paints to shield the steel from oxygen and saltwater exposure. Below the waterline, cathodic protection systems, such as sacrificial anodes or impressed current systems, are employed to mitigate electrochemical corrosion. These systems work by making the steel structure the cathode in an electrochemical cell, thereby reducing the rate of metal loss. The effectiveness of these protection measures is crucial for maintaining the structural integrity of the tripod over the turbine's operational life, which can extend beyond two decades.

Manufacturing and installation processes

The fabrication of tripod foundations relies on specialized assembly techniques designed to manage the geometric complexity of the three-legged structure. Manufacturers typically employ an upright assembly method, where the central transition piece and the three legs are welded together in a vertical orientation. This approach facilitates serial production, allowing for standardized welding sequences and quality control checks that reduce overall manufacturing time. The structural integrity of the tripod depends on precise alignment of the legs relative to the central hub, ensuring that load distribution remains balanced under dynamic wind and wave forces.

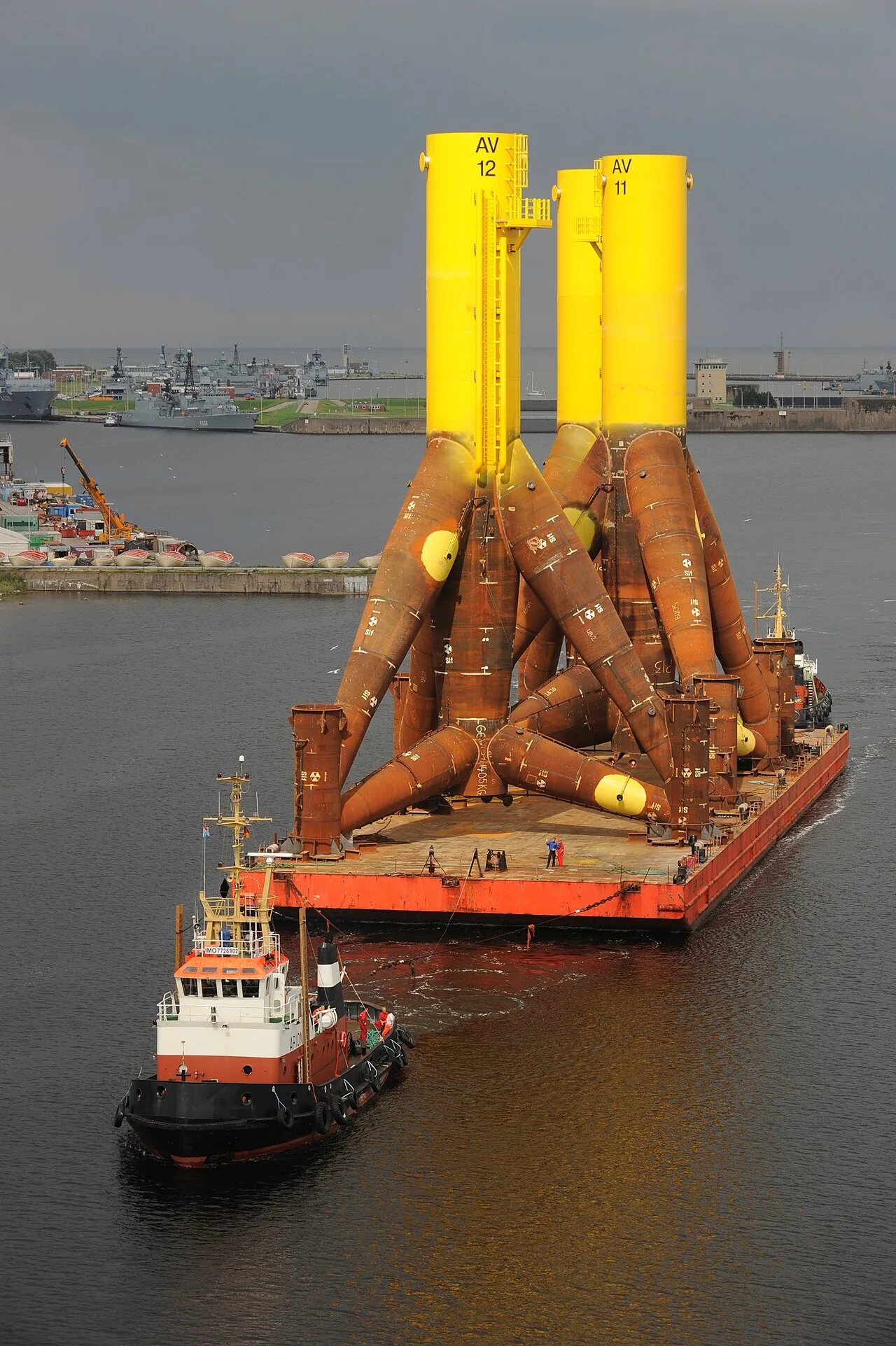

Transportation of these massive steel structures requires heavy-lift vessels and specialized load-out procedures. The Taklift 4, a prominent heavy-lift vessel in the offshore wind sector, is frequently utilized for this purpose. Due to the tripod's height and weight, a pontoon load-out system is often employed. This method involves sliding the foundation from the fabrication yard onto a large pontoon barge, which then transports the structure to the offshore site. This logistical step minimizes the need for complex crane lifts during the initial transport phase, reducing weather dependency and potential structural stress.

Installation at the offshore site demands precise positioning and penetration into the seabed. The Innovation jack-up vessel is a key piece of equipment used for this task. This vessel provides a stable platform that can adjust its height relative to the water level, allowing for accurate placement of the tripod legs. The installation process involves driving the legs into the seabed to achieve the required bearing capacity. The stability of the foundation is critical for the long-term performance of the wind turbine, particularly in deeper waters where the tripod's durability advantages become more pronounced. The coordination between the jack-up vessel and the foundation's geometry ensures that the structure is securely anchored before the turbine nacelle and blades are mounted.

Why it matters

The tripod foundation, also known as the jacket type, represents a critical engineering solution for offshore wind installations, particularly in environments characterized by large turbines and significant water depths. While generally more expensive than alternative foundation types, the tripod design offers a distinct cost-benefit advantage when durability is factored into the lifecycle analysis of the energy asset. This structural efficiency is crucial for maximizing the return on investment in challenging marine environments where monopiles may face geometric or soil-condition limitations.

Role in German Offshore Industrialization

In the context of Germany (DE), the deployment of tripod and jacket foundations has been instrumental in the early industrialization of the offshore wind sector. Commissioned as early as 2008, these structures helped validate the technical feasibility of large-scale wind farms in the North and Baltic Seas. The operational status of these installations demonstrates the robustness of the design under harsh North Sea conditions, contributing to the stability of the national grid and the diversification of the renewable energy mix.

Engineering Legacy and Knowledge Transfer

The engineering knowledge gained from the deployment of 126 operational turbines utilizing tripod and jacket foundations has significantly influenced modern offshore wind design. Insights into load distribution, fatigue resistance, and installation logistics have been transferred to the development of contemporary monopile and advanced jacket designs. This iterative improvement process has lowered levelized costs of energy (LCOE) across the sector, proving that early investments in more complex foundation types yield long-term technological dividends.

Economic and Technical Considerations

The economic viability of the tripod foundation is not solely determined by initial capital expenditure. When analyzing the total cost of ownership, the durability of the tripod structure can compensate for its higher upfront cost compared to simpler foundation types. This is particularly relevant for larger turbine classes where the foundation must support increased gravitational and aerodynamic loads. The design allows for optimized material usage, reducing the overall steel weight while maintaining structural integrity, a key factor in reducing carbon footprint during the manufacturing phase.

Worked examples: Alpha Ventus and Borkum West II

The tripod foundation concept, associated with operator Multibrid, saw its first large-scale operational deployments in Germany (DE), with the system commissioned in 2008. These early projects serve as critical case studies for the technology’s application in offshore wind, specifically utilizing the Multibrid M5000 turbine type. The following examples illustrate the implementation of this foundation type in real-world scenarios, focusing on the Alpha Ventus and Borkum West II projects.

Alpha Ventus Deployment

The Alpha Ventus project represents a primary example of the tripod foundation’s use in offshore wind infrastructure. In this deployment, the Multibrid M5000 turbines were mounted on tripod foundations, demonstrating the system’s capability to support large turbines. The project highlights the operational status of the technology in a German context, aligning with the 2008 commissioning milestone. The tripod design was selected to address specific site conditions, leveraging the durability advantages noted in the technology’s profile. This case underscores the practical application of the foundation type in a commercial setting, providing data on performance and reliability.

Borkum West II Implementation

The Borkum West II project further validates the tripod foundation’s viability for offshore wind farms. Similar to Alpha Ventus, this site utilized Multibrid M5000 turbines supported by tripod structures. The deployment in Borkum West II contributed to the broader understanding of the foundation’s cost-benefit ratio, particularly in higher water depths where durability compensates for initial expenses. The operational success of this project reinforces the technology’s role in the German offshore wind sector, with Multibrid as the key operator. These examples collectively demonstrate the tripod foundation’s integration into large-scale wind energy systems, meeting the operational and technical requirements of modern offshore installations.

Future outlook and feasibility studies

The economic viability of tripod foundations remains a subject of ongoing engineering analysis, particularly as turbine ratings increase. A pivotal 2014 desk-top study evaluated the feasibility of deploying tripod foundations for 8 MW offshore wind turbines. This analysis highlighted that while tripods are generally more expensive than other foundation types, the cost disadvantage might be compensated when durability is also taken into account for large turbines and higher water depth.

Competition with Monopiles

The primary competitor to the tripod system is the monopile foundation. Monopiles have historically dominated the shallow-water market due to their relative simplicity and lower initial capital expenditure. However, as water depths increase, the structural demands on monopiles grow exponentially, often requiring thicker steel walls and larger diameters. In these scenarios, the tripod’s three-legged structure offers a more efficient load distribution mechanism. The competition between these two technologies is not static; it shifts based on soil conditions, water depth, and the specific structural requirements of the turbine above.

Future Reconciliation of Advantages

Future feasibility studies aim to reconcile the advantages of tripod foundations against the entrenched monopile market. The key metric is the levelized cost of energy (LCOE) over the full operational lifespan. If the durability of the tripod leads to reduced maintenance costs and a longer service life, the higher upfront investment becomes justifiable. Engineers are increasingly looking at hybrid approaches and optimized leg geometries to further reduce material usage. The goal is to identify the precise water-depth threshold where the tripod’s structural efficiency outweighs the monopile’s manufacturing simplicity.
