Tianhuangping Pumped Storage Power Station

Overview

The Tianhuangping Pumped Storage Power Station is a significant energy infrastructure facility located in Tianhuangping, Anji County, within Huzhou, Zhejiang Province, China. As a pumped-storage power station, it plays a crucial role in the regional energy grid by utilizing water as its primary energy source. The facility is currently operational and features an installed capacity of 1,836 megawatts (2,462,000 hp), making it a major contributor to power stability and load balancing in the Zhejiang region. The station's technical design relies on six reversible Francis turbines, which are essential for the efficient conversion of potential and kinetic energy during both pumping and generating cycles. Construction of the power station began in 1993, reflecting a long-term strategic investment in Zhejiang's energy infrastructure. The project was completed and officially commissioned in 2004, marking a key milestone in the development of pumped-storage technology in China. The Tianhuangping facility exemplifies the integration of hydraulic engineering and electrical generation to support grid reliability, particularly in managing peak demand and integrating variable power sources. Its location in Anji County provides the necessary topographical advantages for effective water storage and flow management, which are critical for the operation of reversible Francis turbines. The station's operational status since 2004 underscores its enduring importance in the Chinese energy landscape, providing a reliable mechanism for energy storage and rapid power dispatch. The use of six turbines allows for flexible operation, enabling the station to adjust output quickly in response to grid fluctuations. This infrastructure project highlights the strategic value of pumped-storage hydropower in modern energy systems, offering a scalable solution for balancing supply and demand. The completion in 2004 followed a decade of construction starting in 1993, demonstrating the complex engineering efforts required to establish such a large-scale facility. The Tianhuangping Pumped Storage Power Station remains a vital asset for energy management in Zhejiang Province, leveraging its 1,836 MW capacity to support regional power needs. The facility's design and operation reflect advanced engineering practices in hydraulic power generation, ensuring efficient energy conversion and long-term operational reliability. Its continued operation since 2004 attests to the robustness of its infrastructure and the strategic planning that went into its development. The station serves as a model for other pumped-storage projects, showcasing the potential of water-based energy storage in enhancing grid stability and supporting the transition to a more flexible energy system. The integration of six reversible Francis turbines is a key feature that enables the station to function effectively in both generating and pumping modes, maximizing its utility for the regional grid. The Tianhuangping facility's location in Anji County, Huzhou, provides optimal conditions for its operation, taking advantage of the natural landscape to facilitate efficient water management. The project's completion in 2004 marked the culmination of years of engineering and construction efforts, resulting in a powerful and reliable energy infrastructure asset. The station's role in the Zhejiang energy grid is significant, providing essential services for load balancing and peak shaving. The use of water as the primary fuel source highlights the sustainability and renewability of pumped-storage hydropower, contributing to a more resilient and adaptable energy system. The Tianhuangping Pumped Storage Power Station stands as a testament to the importance of strategic infrastructure development in supporting modern energy demands. Its operational history since 2004 demonstrates the long-term viability and effectiveness of pumped-storage technology in managing energy resources. The facility's capacity of 1,836 MW provides substantial power output, supporting the growing energy needs of the region. The six reversible Francis turbines are central to the station's operational efficiency, enabling rapid response to grid requirements. The construction period from 1993 to 2004 reflects the extensive planning and execution involved in establishing such a large-scale energy project. The Tianhuangping facility continues to serve as a key component of China's energy infrastructure, contributing to the stability and reliability of the regional power grid. Its operation underscores the strategic importance of pumped-storage hydropower in modern energy systems, offering a flexible and efficient solution for energy management. The station's location in Anji County, Zhejiang Province, provides the necessary geographical advantages for effective operation, ensuring optimal performance and long-term sustainability. The completion of the project in 2004 marked a significant achievement in China's energy infrastructure development, highlighting the country's commitment to advanced hydraulic engineering and power generation technologies. The Tianhuangping Pumped Storage Power Station remains a vital asset for energy storage and grid stability, supporting the dynamic needs of the regional power system. Its continued operation since 2004 demonstrates the enduring value of pumped-storage technology in enhancing energy reliability and flexibility. The facility's design and operation reflect the sophisticated engineering required to manage large-scale water-based energy storage, ensuring efficient power generation and consumption. The station's role in the Zhejiang energy grid is essential, providing critical services for balancing supply and demand. The use of six reversible Francis turbines enables the station to operate efficiently in both generating and pumping modes, maximizing its contribution to grid stability. The construction of the Tianhuangping facility from 1993 to 2004 involved significant engineering efforts, resulting in a robust and reliable energy infrastructure asset. The station's operational status since 2004 highlights its importance in supporting the regional energy system, providing a flexible and efficient solution for power management. The Tianhuangping Pumped Storage Power Station exemplifies the strategic value of pumped-storage hydropower in modern energy infrastructure, offering a sustainable and adaptable approach to energy storage and generation.

Why it matters

The Tianhuangping Pumped Storage Power Station represents a significant milestone in China's energy infrastructure, serving as a critical asset for grid stability and load balancing. With an installed capacity of 1,836 megawatts, the facility utilizes six reversible Francis turbines to manage energy fluctuations efficiently. This capacity allows the station to act as a large-scale battery for the regional power grid, storing excess energy during low-demand periods and releasing it during peak hours. The engineering achievements of the station are notable, particularly in its integration into the terrain of Tianhuangping, Anji County, Huzhou, Zhejiang Province. Construction began in 1993 and was completed in 2004, marking an eleven-year development phase that established it as one of the early major pumped-storage projects in the region.

Engineering Specifications and Grid Role

The station's design leverages the natural topography of the Zhejiang Province landscape to maximize hydraulic head. While specific metrics such as dam height and penstock length are key engineering parameters, the primary documented achievement lies in the successful deployment of its six reversible Francis turbines. These turbines enable the station to switch between generating and pumping modes with high efficiency, a crucial feature for managing the variable loads on China's expanding energy grid. The 1,836 MW capacity positions Tianhuangping as a substantial contributor to the operational flexibility of the Zhejiang power network. By providing rapid response capabilities, the station helps stabilize frequency and voltage, supporting the integration of other energy sources. Its operational status since 2004 has demonstrated the long-term reliability of pumped-storage technology in the Chinese energy mix. The facility remains a reference point for subsequent pumped-storage developments in the country, highlighting the importance of strategic location and robust turbine technology in energy infrastructure planning.

How does pumped storage work at Tianhuangping?

The Tianhuangping Pumped Storage Power Station operates on the fundamental principle of gravitational potential energy storage, utilizing water as the primary energy carrier. This facility, located in Tianhuangping, Anji County of Huzhou, Zhejiang Province, China, functions as a massive battery for the regional grid. The system relies on an installed capacity of 1,836 megawatts, distributed across six reversible Francis turbines. These turbines are the core mechanical components that enable the dual-phase operational cycle: pumping and generating. The power station was completed in 2004, following construction that began in 1993, establishing it as a critical infrastructure asset in Zhejiang Province.

The Pumping Cycle

During periods of low electricity demand, typically at night or during seasons with abundant renewable generation, the station enters the pumping phase. Water is drawn from the lower reservoir, identified as Daxi Creek, and pumped uphill to the upper reservoir. This process converts electrical energy into gravitational potential energy. The six reversible Francis turbines operate in reverse, acting as pumps to move the water against gravity. This phase consumes electricity from the grid, effectively storing energy for later use. The efficiency of this cycle is critical to the economic viability of the station, as it determines how much of the consumed energy is recovered during generation.

The Generating Cycle

When electricity demand peaks, the station switches to the generating phase. Water is released from the upper reservoir, flowing downhill through the penstocks and driving the six reversible Francis turbines. As the water passes through the turbines, the gravitational potential energy is converted into mechanical energy, which is then transformed into electrical energy by generators. This electricity is fed back into the grid, providing rapid response to load changes and stabilizing frequency. The ability to switch between pumping and generating modes allows Tianhuangping to provide flexible power output, crucial for balancing the variability of other energy sources in the region.

Engineering specifications of the dam and reservoirs

The Tianhuangping Pumped Storage Power Station utilizes a concrete face rock-fill dam as its primary hydraulic structure. This engineering design is critical for managing the significant head difference between the upper and lower reservoirs, which drives the 6 reversible Francis turbines that provide the plant's 1,836 MW installed capacity. The dam serves as the retaining structure for the upper reservoir, ensuring the necessary water volume and elevation to generate power during peak demand periods.

Dam Structure

The dam at Tianhuangping is constructed using a concrete face rock-fill technique, a common method for large-scale pumped storage facilities in mountainous terrain. The structure stands 72 meters high and spans a length of 577 meters. These dimensions are engineered to withstand the hydrostatic pressure of the upper reservoir while maintaining structural integrity over the operational life of the station, which began after construction started in 1993 and was completed in 2004.

Reservoir Capacities

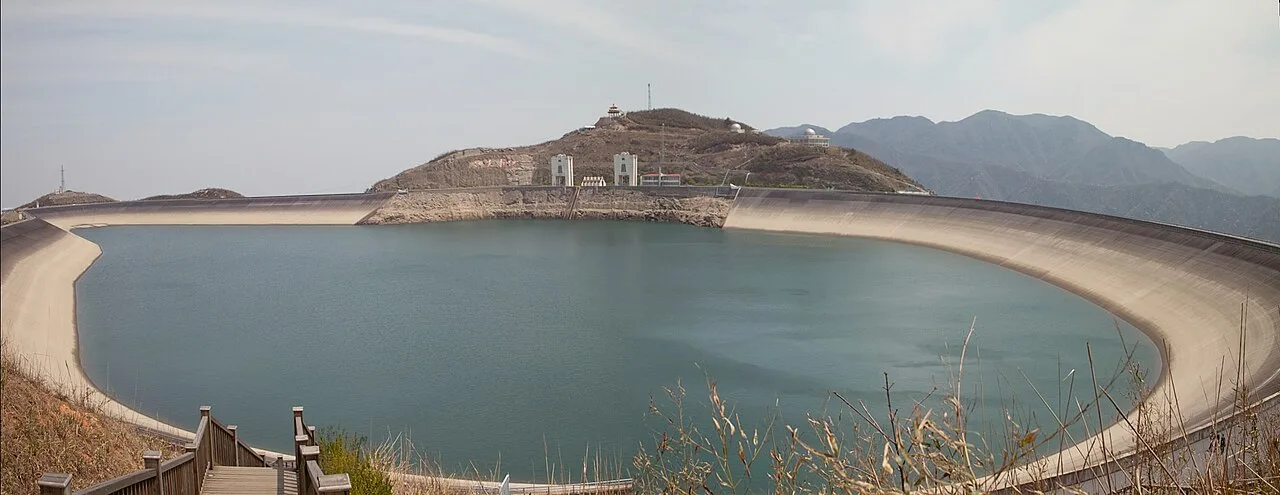

The efficiency of the Tianhuangping facility depends on the storage volumes of its two main reservoirs. The upper reservoir, held back by the 72-meter-high dam, stores water pumped during off-peak hours. The lower reservoir feeds into the turbine intakes during generation. While the specific volumetric capacities in cubic meters or hectares are detailed in technical engineering reports, the system is designed to optimize the 1,836 MW output through the 6 Francis turbines. The geographic location in Tianhuangping, Anji County, Huzhou, Zhejiang Province, provides the necessary topographic gradient for this pumped-storage cycle.

Power station infrastructure and turbine details

The Tianhuangping Pumped Storage Power Station features a substantial underground infrastructure designed to house its generating equipment. The powerhouse is situated beneath the terrain in Tianhuangping, Anji County, Huzhou, Zhejiang Province, China. This subterranean structure measures 198.7 meters in length, 21 meters in width, and 47.7 meters in height, providing the necessary spatial configuration for the station's operational machinery. The facility utilizes water as its primary energy source, functioning as a pumped-storage system with a total installed capacity of 1,836 megawatts.

Turbine Specifications

The power station's generating capability is delivered through six reversible Francis turbines. These units are central to the station's operation, enabling both power generation and pumping modes. Each turbine has an installed capacity of 306 megawatts, contributing to the aggregate installed capacity of the facility. The turbines are also capable of reaching a maximum capacity of 336 megawatts per unit, allowing for flexible output adjustments depending on grid demand and hydraulic conditions. The use of Francis turbines is typical for pumped-storage applications due to their efficiency across a range of flow rates and heads.

The engineering design of the underground powerhouse accommodates the mechanical and electrical requirements of the six Francis turbine-generator sets. The dimensions of the cavern allow for maintenance access and the integration of auxiliary systems necessary for the reversible operation of the units. The station was completed in 2004, following construction that began in 1993, marking the integration of these specific turbine specifications into the regional grid infrastructure.

Construction history and timeline

Construction of the Tianhuangping Pumped Storage Power Station commenced in 1993, marking the beginning of a major infrastructure project in Tianhuangping, Anji County of Huzhou, Zhejiang Province, China. The development spanned over a decade, culminating in the completion of the facility in 2004. This extended construction period was necessary to establish the complex hydraulic and mechanical systems required for the station's operation. The project involved significant engineering efforts to integrate the site's natural water resources into a functional energy storage solution.

Construction Milestones

The completion in 2004 established the station as a key component of the regional energy grid. The facility utilizes 6 reversible Francis turbines to achieve its installed capacity of 1,836 megawatts (2,462,000 hp). The choice of Francis turbines is typical for pumped-storage applications, allowing for efficient conversion between potential and kinetic energy during both pumping and generating phases. The construction phase laid the groundwork for the station's operational status, which remains active.

Throughout the construction period from 1993 to 2004, the project focused on integrating the mechanical systems with the civil infrastructure in Anji County. The successful completion of the station in 2004 enabled the utilization of water as the primary energy source for storage and generation. The station's design, featuring 6 reversible Francis turbines, was finalized during this construction era to optimize performance for the specific geographical conditions of Huzhou, Zhejiang Province. The timeline from the start of construction in 1993 to the final completion in 2004 reflects the scale and complexity of building a pumped-storage facility with an installed capacity of 1,836 megawatts.

What are the key hydraulic features of the system?

The hydraulic infrastructure of the Tianhuangping Pumped Storage Power Station is engineered to manage significant water volumes and pressure differentials essential for the operation of its six reversible Francis turbines. The system's design prioritizes efficient water conveyance from the upper reservoir to the powerhouse, utilizing a robust network of penstocks and branch pipes. According to technical specifications for the facility, the main penstocks are 882 meters long and feature a diameter of 7 meters. These dimensions are critical for maintaining the necessary flow rates and head pressure required to drive the turbines during peak generation periods and to pump water back to the upper reservoir during off-peak hours.

Penstock and Branch Pipe Configuration

The 882-meter-long penstocks serve as the primary conduits for water transport within the Tianhuangping system. With a 7-meter diameter, these large-bore pipes are designed to minimize friction losses while accommodating the high volumetric flow rates associated with the station's 1,836 MW installed capacity. The penstocks connect the upper reservoir to the turbine hall, ensuring a steady and controlled delivery of water. Branch pipes extend from the main penstocks to individual turbine units, allowing for flexible operation where individual Francis turbines can be started or stopped without disrupting the entire hydraulic circuit. This configuration supports the station's role in providing rapid response and load-following capabilities to the regional grid in Zhejiang Province.

Spillway and Discharge Capacity

Effective water management also requires a robust spillway system to handle excess inflow and maintain reservoir levels during high-water events. The Tianhuangping power station features a spillway with a discharge capacity of 536 cubic metres per second. This capacity ensures that the upper reservoir can efficiently shed surplus water, preventing overtopping and structural stress on the dam and surrounding infrastructure. The spillway design is integral to the overall hydraulic balance of the pumped-storage cycle, working in tandem with the penstocks and turbines to optimize water usage. By managing discharge at this rate, the system maintains operational stability and protects the hydraulic components from surge pressures and sedimentation issues. These hydraulic features collectively support the reliable operation of the station, which was completed in 2004 and has since served as a key energy infrastructure asset in China.
