Overview

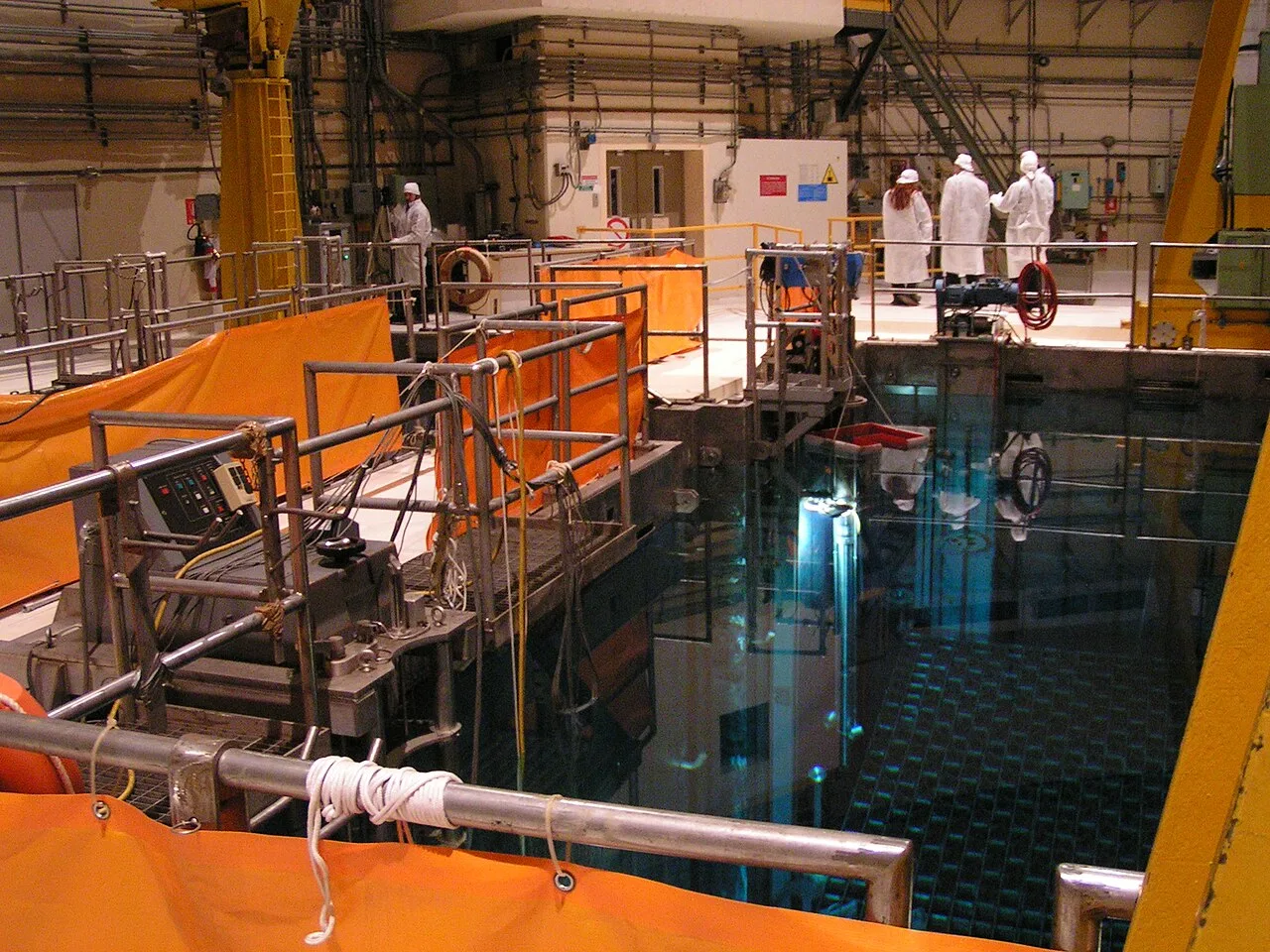

Spent fuel pools (SFP) are specialized storage facilities designed to house spent nuclear fuel removed from reactor cores. These pools serve as the primary short-term cooling and shielding mechanism for fuel assemblies immediately following their extraction from the reactor vessel. The primary fuel source stored within these pools is uranium, which continues to emit significant amounts of decay heat and ionizing radiation after being discharged from the reactor. The operational status of these pools is critical to the continuous operation of nuclear power plants, ensuring that the fuel remains stable during the initial phases of its post-reactor life cycle.

The physical design of a typical spent fuel pool is engineered to maximize both thermal efficiency and radiological protection. These structures are typically 40 or more feet (12 m) deep, providing sufficient water volume to submerge the fuel assemblies effectively. The bottom 14 feet of the pool are specifically equipped with storage racks designed to hold the fuel assemblies in an organized manner. This rack system allows for precise positioning of the fuel rods, ensuring that each assembly is adequately surrounded by water for optimal heat transfer and neutron moderation. The depth and structural integrity of the pool are crucial for maintaining the necessary water levels, which act as both a coolant and a radiation shield.

The primary function of the spent fuel pool is to facilitate the short-term cooling of fuel rods. This cooling process allows short-lived isotopes to decay, which significantly reduces the ionizing radiation and decay heat emanating from the rods. The water within the pool plays a dual role: it cools the fuel by absorbing the decay heat and provides radiological protection by attenuating the gamma rays and neutrons emitted by the spent fuel. A reactor's local pool is specially designed to accommodate the specific characteristics of the reactor in which the fuel was used, ensuring that the storage conditions are optimized for the unique thermal and radiological profile of the fuel assemblies. These pools are situated directly at the reactor site, allowing for efficient transfer of fuel from the reactor core to the storage racks.

How do spent fuel pools work?

Spent fuel pools function as the primary short-term storage and conditioning system for nuclear fuel assemblies immediately following their removal from the reactor core. The operational mechanism relies fundamentally on the properties of water, which serves three critical engineering functions: thermal cooling, radiological shielding, and neutron moderation to maintain subcriticality. The pools are typically constructed to a depth of 40 or more feet (12 m), with the lower 14 feet equipped with specialized storage racks designed to hold the fuel assemblies in a precise geometric arrangement.

Thermal Cooling and Decay Heat Management

When fuel assemblies are removed from the reactor, they continue to emit significant amounts of heat due to the radioactive decay of fission products. The water in the pool absorbs this thermal energy, preventing the fuel cladding from overheating and potentially failing. The reduction in thermal output is essential for stabilizing the fuel before it is moved to dry cask storage or reprocessing facilities.

Radiological Shielding

In addition to thermal management, the water provides essential radiological protection. Spent nuclear fuel emits intense ionizing radiation, including gamma rays and neutrons. The depth of the water acts as a shield, attenuating this radiation to safe levels for workers and surrounding equipment. The water absorbs the energy from the radiation, thereby reducing the immediate radiological hazard associated with the spent fuel assemblies. This shielding capability is critical for the operational safety of the reactor site, allowing for the handling and inspection of fuel without excessive exposure to ionizing radiation.

Subcriticality Maintenance

The water in the spent fuel pool also plays a vital role in maintaining subcriticality. By acting as a neutron moderator, the water slows down neutrons emitted by the fuel assemblies, which helps to control the chain reaction. The specific design of the storage racks and the depth of the water ensure that the fuel remains subcritical, preventing an uncontrolled release of energy. This mechanism is integral to the safety of the local pool, which is specially designed for the specific reactor in which the fuel was used. The pool is situated at the reactor site, allowing for efficient management of the fuel cycle while ensuring that the physical and nuclear properties of the spent fuel are effectively controlled.

What are the main types of spent fuel storage?

Spent fuel management primarily involves two distinct storage configurations: local reactor pools and remote Independent Spent Fuel Storage Installations (ISFSI). The choice between these methods depends on the fuel's age, thermal output, and the plant's operational needs.

Local Reactor Spent Fuel Pools

A reactor's local pool is a specialized facility situated directly at the reactor site, designed specifically for the fuel assemblies removed from that particular reactor. These pools are used for the short-term cooling of fuel rods. The water in the pool serves a dual purpose: it cools the fuel and provides radiological protection from its radiation. These pools are typically 40 or more feet (12 m) deep. This configuration is essential for immediate post-reactor storage before the fuel is moved to long-term solutions or reprocessing.

Independent Spent Fuel Storage Installations (ISFSI)

Independent Spent Fuel Storage Installations (ISFSI) offer a remote storage alternative to the local reactor pool. While local pools are integral to the reactor building, ISFSIs are often located on the same site but in separate structures, allowing for greater flexibility in storage capacity and management. This separation is crucial when the local pool reaches capacity or when the fuel has cooled sufficiently to be moved from the immediate vicinity of the reactor core. ISFSIs typically utilize dry cask storage technology, although the initial transfer often involves moving fuel from the wet local pool to the ISFSI racks. This transition marks the shift from short-term, water-cooled storage to longer-term, often air-cooled or passively cooled storage solutions.

Feature Local Reactor Pool Independent Spent Fuel Storage (ISFSI)
Location At the reactor site, integrated with the reactor building Remote from the reactor, often on-site but in separate structures
Purpose Short-term cooling of fuel rods Longer-term storage, capacity management
Depth/Structure Typically 40+ feet (12 m) deep; bottom 14 feet have racks Varies; often dry cask systems or separate wet pools
Cooling Mechanism Water provides cooling and radiological protection Water (initially) or air/passive cooling (dry casks)
Design Specificity Specially designed for the specific reactor More standardized, adaptable to multiple fuel types

Operational procedures and water management

Spent fuel pools function as critical short-term cooling systems for uranium fuel assemblies removed from nuclear reactors. The operational procedure begins with the transfer of fuel rods into the reactor's local pool, which is specifically designed for the reactor type at the site. These pools are typically 40 or more feet (12 m) deep, providing sufficient water depth to manage both thermal and radiological properties of the spent fuel. This rack system ensures that each assembly is properly spaced to facilitate efficient heat dissipation and to minimize neutron interaction between adjacent rods.

Water Quality and Thermal Regulation

Water serves two primary operational functions within the spent fuel pool: cooling and radiological shielding. The water absorbs the decay heat emanating from the fuel rods, which is generated as short-lived isotopes decay. This thermal management is essential for reducing the ionizing radiation levels over time. To maintain operational integrity, the water quality must be carefully controlled to prevent corrosion of the fuel cladding and the storage racks. The water also provides the necessary mass to shield workers and equipment from the gamma and neutron radiation emitted by the spent fuel. Temperature regulation is maintained through continuous circulation and heat exchangers, ensuring that the water remains within optimal thermal ranges to prevent boiling and to maximize heat transfer efficiency from the fuel assemblies.

Storage Rack Configuration

The storage racks located in the bottom 14 feet of the pool are engineered to support the weight of the fuel assemblies while allowing for easy access during future handling or transfer to dry cask storage. The design of these racks is specific to the reactor type, ensuring compatibility with the dimensions and thermal output of the fuel assemblies. This configuration allows for the systematic placement of fuel, optimizing the use of pool space and ensuring that the most recently removed fuel, which generates the highest decay heat, is positioned for optimal cooling. The structural integrity of the racks is maintained through regular inspection and water chemistry management, ensuring long-term stability for the stored uranium fuel.

Safety risks and historical incidents

Spent fuel pools present distinct safety challenges primarily related to thermal management and radiological shielding. The primary risk mechanism involves the decay heat generated by fuel assemblies, which must be continuously removed to prevent the water from reaching its boiling point. If the water level drops or temperature rises significantly, the cooling efficiency decreases, potentially leading to the exposure of fuel rods. This exposure increases ionizing radiation levels and can cause the zirconium cladding of the fuel rods to react with steam, a process that generates additional heat and hydrogen gas. The accumulation of hydrogen poses an explosion risk if not properly vented, while the loss of water reduces the radiological protection provided by the pool's depth. Radiolysis, the decomposition of water molecules due to intense radiation fields, further contributes to hydrogen generation within the pool environment.

Historical incidents

The Fukushima Daiichi nuclear disaster highlighted the critical vulnerability of spent fuel pools during extended power outages. At the Fukushima site, the loss of cooling systems led to significant temperature rises in the pools. The incident demonstrated that while reactor cores are often the primary focus, the spent fuel pools require robust, redundant cooling mechanisms to manage decay heat. The water in these pools served as both a coolant and a radiation shield, and maintaining adequate water levels was essential to prevent fuel damage and the release of radioisotopes. The event underscored the importance of passive cooling systems and emergency power supplies for spent fuel storage.

Another notable incident occurred at the Leibstadt nuclear power plant in Switzerland. In this case, a leak in the spent fuel pool led to a temporary loss of water, exposing some of the fuel assemblies. The incident revealed potential weaknesses in the pool's structural integrity and monitoring systems. The exposure of the fuel rods increased the radiation dose to workers and required immediate corrective actions to restore water levels and cooling. The Leibstadt event prompted a review of spent fuel pool designs and operational procedures across several nuclear facilities, emphasizing the need for regular inspections and maintenance of the pool's bottom racks and surrounding structures. These incidents collectively illustrate the importance of rigorous safety protocols and continuous monitoring to mitigate the risks associated with spent fuel pool storage.
