Solar thermal collector: Technology, types and applications

Overview

A solar thermal collector is a device designed to collect heat by absorbing sunlight. The term "solar collector" commonly refers to a device for solar hot water heating, but may also refer to large power generating installations such as solar parabolic troughs and solar towers, or to non-water-heating devices such as solar cookers or solar air heaters. These systems operate on the fundamental principle of converting solar radiation into thermal energy, which can then be stored or immediately utilized for various applications.

Classification of Solar Thermal Collectors

Solar thermal collectors are broadly classified into two main categories based on their optical design and operating temperature: non-concentrating and concentrating collectors. Non-concentrating collectors, also known as flat-plate collectors, absorb sunlight directly onto an absorber plate. These are typically used for low-to-medium temperature applications, such as domestic hot water heating and space heating. They are characterized by their simplicity and ability to capture both direct and diffuse solar radiation.

Concentrating solar collectors, on the other hand, use mirrors or lenses to focus sunlight onto a smaller receiver area. This concentration of solar flux allows for higher operating temperatures, making them suitable for large-scale power generation. Examples of concentrating systems include solar parabolic troughs and solar towers. These installations are often part of concentrated solar power (CSP) plants, where the thermal energy is used to generate steam, drive a turbine, and produce electricity.

Operating Principles

The operation of a solar thermal collector involves several key components: the absorber, the cover (if applicable), the insulation, and the heat transfer fluid. Sunlight passes through the cover and strikes the absorber, where it is converted into heat. The heat transfer fluid, which can be water, air, or a specialized oil, circulates through the absorber, carrying the thermal energy to the point of use or storage. In non-concentrating systems, the absorber is usually a flat plate with a selective coating to maximize absorption and minimize re-radiation. In concentrating systems, the receiver is often a tube or a central tower, depending on the specific design.

The efficiency of a solar thermal collector depends on factors such as the optical properties of the absorber, the thermal insulation, and the temperature difference between the collector and the ambient environment. For non-concentrating collectors, the efficiency can be approximated by the equation: η = F_R (τ α) - F_R U_L (T_i - T_a) / G where η is the efficiency, F_R is the heat removal factor, τ is the transmittance of the cover, α is the absorptance of the absorber, U_L is the overall heat loss coefficient, T_i is the inlet fluid temperature, T_a is the ambient temperature, and G is the solar irradiance.

For concentrating collectors, the efficiency is influenced by the concentration ratio and the optical efficiency of the concentrator. The higher the concentration ratio, the higher the potential operating temperature, but also the greater the optical and thermal losses. These systems require precise tracking of the sun to maintain optimal performance.

Solar thermal collectors are widely used in various applications, including residential and commercial hot water heating, space heating, solar cooling, and large-scale power generation. Their versatility and ability to harness renewable energy make them a key component in the transition to sustainable energy systems.

How do solar thermal collectors work?

Solar thermal collectors operate by absorbing solar radiation and converting it into thermal energy. The fundamental mechanism involves a selective absorber surface that captures photons from sunlight, raising the temperature of the fluid or air passing through or over the collector. This process relies on the principles of thermodynamics, where heat transfer occurs via conduction, conduction, and convection. The efficiency of this conversion depends on the optical properties of the absorber, the thermal insulation of the collector, and the characteristics of the heat transfer fluid.

Absorption Mechanisms and Selective Coatings

The core component of a solar thermal collector is the absorber plate, typically made of metal such as copper or aluminum, which has high thermal conductivity. To maximize heat absorption and minimize radiative losses, the absorber is often treated with a selective coating. These coatings are engineered to have high absorptance (α) in the solar spectrum (short wavelengths) and low emittance (ε) in the infrared spectrum (long wavelengths). This property allows the absorber to capture a large portion of incoming solar radiation while reducing the amount of heat lost back to the environment through thermal radiation. The effectiveness of a selective coating is often described by the ratio of absorptance to emittance (α/ε). Common selective coatings include black chrome, titanium dioxide, and thin-film metallic oxides.

Role of Glazing and Heat Transfer Fluids

Glazing, usually made of tempered glass, plays a critical role in reducing convective and radiative heat losses from the absorber. It allows short-wavelength solar radiation to pass through to the absorber while trapping longer-wavelength infrared radiation emitted by the heated absorber, creating a greenhouse effect. The transparency of the glazing (τ) and the absorptance of the plate (α) determine the overall optical efficiency of the collector. Some advanced collectors use double or triple glazing to further enhance insulation, particularly in high-temperature applications like parabolic troughs and solar towers.

Heat transfer fluids (HTFs) are used to transport the absorbed thermal energy from the collector to the storage system or the point of use. The choice of HTF depends on the operating temperature range and the specific application. For low-temperature systems, such as solar hot water heaters, water or a water-antifreeze mixture (e.g., ethylene glycol) is commonly used. In medium-temperature applications, synthetic oils or molten salts may be employed to achieve higher thermal stability. The heat transfer process can be modeled using the equation Q=m˙cpΔT, where Q is the heat collected, m˙ is the mass flow rate of the fluid, cp is the specific heat capacity, and ΔT is the temperature difference between the inlet and outlet of the collector. Efficient heat exchange ensures that the thermal energy is effectively captured and utilized, minimizing losses in the system.

What are the main types of water heating collectors?

Solar thermal collectors for water heating are primarily categorized into flat-plate, evacuated tube, and evacuated flat-plate designs, each optimizing heat absorption and retention through distinct structural mechanisms. These devices function by absorbing solar radiation and transferring the thermal energy to a working fluid, typically water or a glycol mixture, for domestic or industrial use.

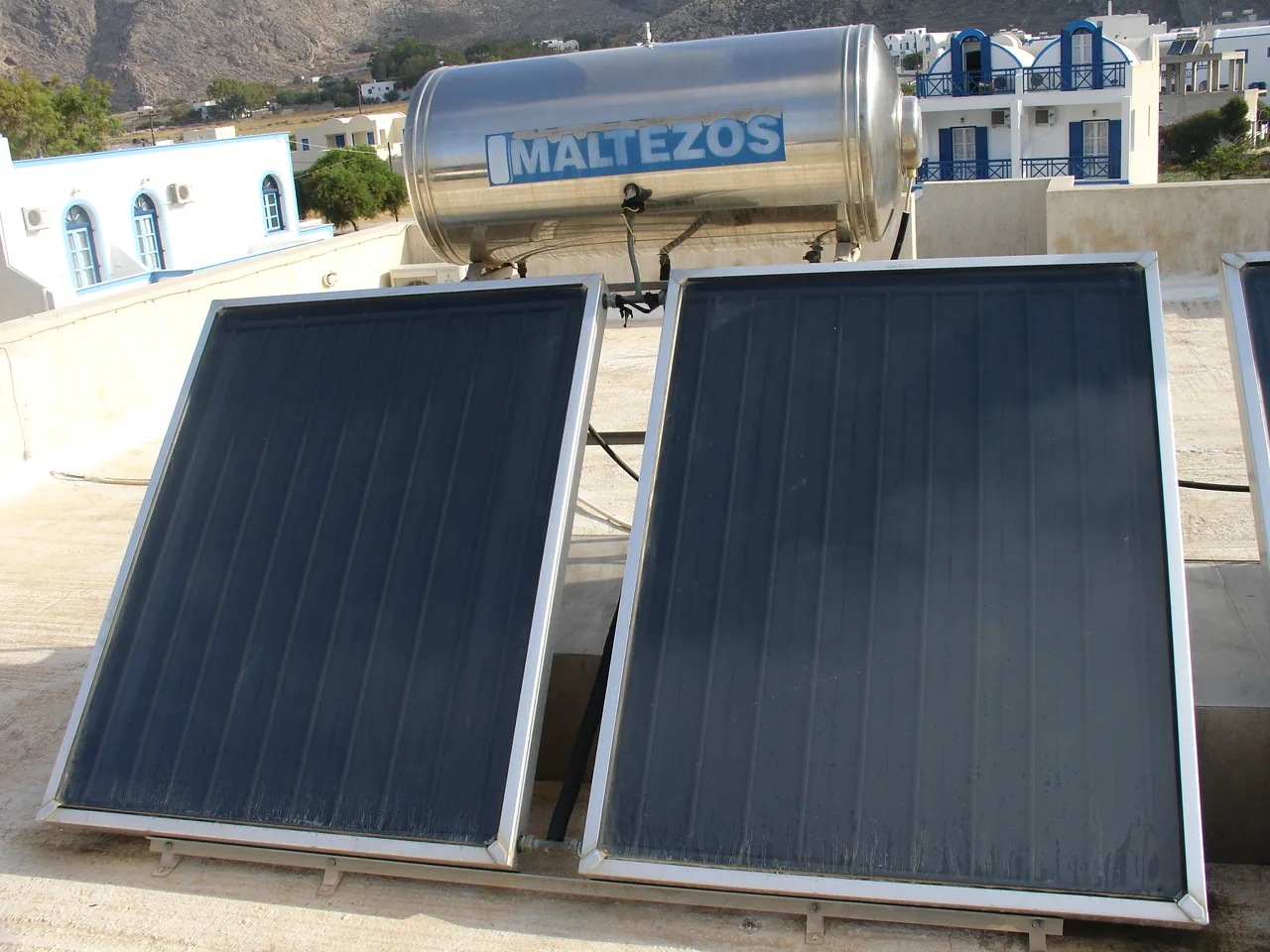

Flat-Plate Collectors

Flat-plate collectors consist of a dark absorber plate enclosed in an insulated box with a transparent glass cover. The absorber plate, often copper or aluminum with a selective coating, absorbs sunlight and heats the fluid circulating through attached tubes. This design is robust and cost-effective, making it suitable for moderate climates. The glass cover minimizes convective heat loss while allowing solar radiation to penetrate.

Evacuated Tube Collectors

Evacuated tube collectors use parallel glass tubes with a vacuum layer between the inner and outer walls to reduce heat loss. Each tube contains an absorber and a heat pipe or working fluid. The vacuum provides superior insulation, allowing these collectors to perform well in colder or cloudier conditions. They are modular, enabling flexible installation on various roof types.

Evacuated Flat-Plate Collectors

Evacuated flat-plate collectors combine the simplicity of flat-plate design with the insulation benefits of a vacuum. A glass envelope encloses the absorber plate, creating a vacuum layer that reduces conductive and convective heat losses. This hybrid design offers improved efficiency over traditional flat-plate collectors while maintaining a lower profile than tube systems.

Feature	Flat-Plate	Evacuated Tube	Evacuated Flat-Plate
Insulation Method	Glass cover + edge insulation	Vacuum between glass tubes	Vacuum layer around plate
Efficiency in Cold Climates	Moderate	High	High
Cost	Low to moderate	Moderate to high	Moderate
Modularity	Low	High	Moderate

The choice of collector depends on climate, budget, and installation space. Evacuated tubes excel in variable conditions, while flat-plate systems offer simplicity and cost savings. Evacuated flat-plates provide a balanced solution for enhanced performance without excessive complexity.

How do flat plate and evacuated tube collectors compare?

Flat plate collectors and evacuated tube collectors represent the two dominant technologies in solar thermal systems, differing fundamentally in their thermal insulation mechanisms and optical concentration. Flat plate collectors utilize a glazed absorber plate mounted within an insulated box, relying on a vacuum or air gap between the absorber and the cover glass to minimize convective and radiative heat losses. This design offers robustness and simplicity, making it suitable for moderate climates where ambient temperatures rarely drop significantly below the operating temperature of the working fluid. In contrast, evacuated tube collectors consist of parallel glass tubes with a vacuum seal between the inner and outer layers, effectively eliminating convective heat loss. This vacuum insulation allows evacuated tubes to maintain higher efficiency at higher temperature differentials, particularly in colder or cloudier climates where the sun’s intensity is lower but the need for heat retention is high.

Efficiency and Performance Metrics

The thermal efficiency η of a solar collector is often expressed by the Hottel-Whillier-Blalock equation: η=η0−a1GΔT−a2G(ΔT)2, where η0 is the optical efficiency, ΔT is the temperature difference between the absorber and ambient air, and G is the solar irradiance. Evacuated tube collectors typically exhibit a lower first heat loss coefficient (a1) due to the vacuum, resulting in flatter efficiency curves at higher ΔT. Flat plate collectors, while having slightly higher optical efficiency in direct normal irradiance due to less shading from supports, suffer from greater heat losses as the temperature difference increases. ISO 9806 standards provide the framework for testing these performance characteristics, ensuring that manufacturers report efficiency data under standardized climatic conditions, which is critical for accurate system modeling.

Cost, Durability, and Market Dynamics

Flat plate collectors generally have a lower upfront cost per square meter of aperture area and are easier to manufacture at scale, contributing to their historical market dominance in temperate regions. Their flat profile also facilitates easier integration into architectural designs and roof spaces. However, evacuated tube collectors often offer a better return on investment in colder climates due to their superior heat retention, reducing the required collector area for the same thermal output. Durability is a key differentiator; evacuated tubes are individually replaceable, meaning a single cracked tube does not compromise the entire system, whereas a leak in a flat plate collector’s manifold may require more extensive repairs. Market trends show a shift toward evacuated tubes in northern latitudes and high-altitude installations, while flat plates remain prevalent in Mediterranean and subtropical zones where high solar irradiance offsets their higher heat loss coefficients.

What are polymer and unglazed collectors?

Polymer flat plate collectors represent a significant evolution in solar thermal technology, offering distinct advantages over traditional glass-copper systems, particularly in terms of weight, cost, and durability. These collectors utilize polymer materials, such as polycarbonate or ETFE, for the cover and absorber plates, replacing heavier glass and metal components. This material substitution results in a lighter assembly that is easier to install on various roof structures and building facades. Polymer collectors are often engineered with high thermal insulation properties, reducing heat loss and maintaining efficiency even under moderate temperature differentials. Their construction typically involves a selective coating on the polymer absorber to maximize solar absorption while minimizing thermal radiation losses. The use of polymers also enhances resistance to corrosion, making these units suitable for coastal environments or areas with high humidity where traditional metal components might degrade over time.

Freeze-Tolerance in Polymer Collectors

One of the most critical features of polymer flat plate collectors is their inherent freeze-tolerance. Unlike glass-covered collectors that often require complex glycol-based fluid loops or electric trace heating to prevent pipe bursts during winter, many polymer systems can handle direct water circulation. The flexibility of polymer materials allows them to expand and contract with temperature changes, reducing the risk of cracking under thermal stress. Some advanced polymer collectors are designed with a "dry" or "wet" heat exchanger system that enables the fluid to drain back to a storage tank when the pump stops, naturally preventing freeze damage. This feature simplifies the installation process and reduces maintenance requirements, as the need for antifreeze additives and expansion tanks is often eliminated. The ability to operate efficiently in colder climates without auxiliary heating systems makes polymer collectors a viable option for year-round solar hot water heating in regions with seasonal temperature variations.

Unglazed Collectors for Swimming Pools and Large-Scale Pre-Heating

Unglazed solar thermal collectors, often referred to as "black plastic" collectors, are optimized for applications where the operating temperature does not need to exceed the ambient air temperature by a large margin. These collectors lack the glass cover found in flat plate systems, relying instead on a dark, absorptive surface—typically made of rubber or polymer—to capture solar radiation. The absence of glass reduces manufacturing costs and allows for larger surface areas, making them ideal for heating swimming pools and large-scale domestic hot water pre-heating. Unglazed collectors are particularly effective in warm climates or during summer months when the sun's intensity is high, and the temperature difference between the collector and the ambient air is relatively small. They are commonly installed on rooftops or ground-mounted near pools, circulating water through a network of black tubing or mats. The simplicity of their design means they have fewer moving parts and lower maintenance needs compared to glazed systems. While their efficiency drops significantly at night or during cloudy days due to higher convective heat losses, they remain a cost-effective solution for seasonal heating demands. The thermal performance of unglazed collectors can be described by the basic heat gain equation, where the useful energy gain Q is proportional to the collector area A, the solar irradiance I, and the overall efficiency η, often simplified as Q = A × I × η. This straightforward relationship highlights their effectiveness in high-irradiance, low-temperature-differential scenarios.

How are solar air collectors used for heating?

Solar air heating technology utilizes solar thermal collectors to absorb sunlight and transfer heat directly to an air stream, distinct from liquid-based systems. This approach is particularly effective for space heating and ventilation applications where the working fluid (air) is also the primary heat sink. The system operates by drawing ambient air through or across the collector surface, where it absorbs thermal energy before being distributed into the building envelope or used for pre-heating ventilation air.

Transpired Collectors

Transpired collectors represent a prominent configuration for solar air heating. These devices typically consist of a dark, perforated metal plate mounted on the south-facing facade of a building. Solar radiation passes through the perforations, heating the plate and the air layer between the plate and the building wall. Ambient air is drawn through the holes via a fan, absorbing heat from the plate surface. This configuration is highly effective for pre-heating ventilation air, reducing the load on mechanical heating systems. The efficiency of transpired collectors depends on factors such as plate color, perforation size, and airflow rate.

Through-Pass and Back-Pass Configurations

Through-pass and back-pass configurations describe the airflow path relative to the solar absorber. In a through-pass collector, air flows directly through the absorber medium, such as a packed bed of rocks or a perforated plate, maximizing contact time and heat exchange. Back-pass collectors, often used in roof-mounted systems, draw air from the attic space or the building interior, passing it behind the absorber plate before returning it to the living space. This configuration helps to reduce roof heat gain in summer and provides supplemental heating in winter. The choice between through-pass and back-pass depends on the specific architectural integration and thermal storage requirements.

Applications in Space Heating and Ventilation

Solar air heating systems are widely applied in residential, commercial, and industrial buildings for space heating and ventilation. In residential settings, these systems can provide significant supplemental heating, reducing reliance on conventional furnaces. Commercial buildings benefit from the simplicity and low maintenance of air-based systems, which are particularly suitable for large, open spaces such as warehouses and gyms. Industrial applications include drying agricultural products, textiles, and lumber, where precise temperature control is essential. The integration of thermal storage, such as rock beds or phase-change materials, enhances the system's ability to deliver heat during periods of low solar irradiance.

What are concentrating solar thermal collectors?

Concentrating solar thermal collectors utilize optical systems to focus a large area of sunlight onto a small receiver. This concentration significantly increases the temperature of the working fluid, enabling high-efficiency electricity generation and high-temperature process heat applications. Unlike flat-plate collectors that primarily rely on direct and diffuse irradiation, concentrating systems predominantly require direct normal irradiance (DNI) to achieve optimal performance. The focused energy is absorbed by a receiver, where it is converted into thermal energy, which is then transferred to a working fluid such as molten salt, synthetic oil, or pressurized water.

Parabolic Troughs

Parabolic trough collectors consist of long, curved mirrors that focus sunlight onto a linear receiver tube positioned along the focal line. These systems typically track the sun along a single axis, rotating from east to west. The receiver tube contains a heat transfer fluid that absorbs the concentrated solar radiation. Parabolic trough technology is one of the most mature concentrating solar power (CSP) technologies, widely used in utility-scale power plants. The linear concentration ratio allows for moderate to high temperatures, making it suitable for steam generation and direct expansion cycles.

Power Towers

Power tower systems, also known as central receiver systems, use an array of flat or slightly curved mirrors called heliostats. Each heliostat independently tracks the sun and reflects sunlight onto a central receiver located at the top of a tower. This configuration achieves high concentration ratios, resulting in very high temperatures in the receiver. The high thermal energy enables efficient thermodynamic cycles, often using supercritical carbon dioxide or steam. Power towers are particularly advantageous for large-scale installations and offer excellent potential for thermal energy storage integration, enhancing dispatchability.

Parabolic Dishes

Parabolic dish collectors feature a large, parabolic-shaped mirror that focuses sunlight onto a receiver located at the focal point of the dish. These systems typically employ two-axis tracking to follow the sun’s path precisely, achieving high point concentration ratios. The receiver is often connected to a Stirling engine or a small turbine generator mounted directly on the dish assembly. Parabolic dishes are known for their high optical efficiency and modular design, allowing for scalable deployment. They are suitable for distributed generation and remote power applications where high temperatures and efficiency are critical.

Solar Bowls

Solar bowl collectors, sometimes referred to as solar furnaces, utilize a large, spherical or parabolic mirror to concentrate sunlight onto a focal point. These systems can achieve extremely high temperatures, making them ideal for high-temperature process heat applications in industries such as metallurgy, ceramics, and chemical production. Solar bowls often employ two-axis tracking to maintain precise focus. The high concentration ratio allows for direct heating of materials or generation of high-pressure steam. While less common than parabolic troughs or power towers, solar bowls offer unique advantages for specialized industrial processes requiring intense thermal energy.

Applications and standards

Solar thermal collectors serve diverse applications, ranging from residential and commercial hot water heating to large-scale power generation and industrial process heat. In residential settings, these devices are primarily utilized for domestic hot water systems, providing a reliable source of thermal energy for households. Commercial applications extend to hotels, hospitals, and office buildings, where consistent hot water demand makes solar thermal technology an efficient choice. Industrial applications involve more complex systems, such as solar parabolic troughs and solar towers, which concentrate sunlight to generate high-temperature heat for processes like drying, pasteurization, and even electricity production. The performance and reliability of solar thermal collectors are governed by international standards, ensuring consistency and quality across different manufacturers and regions. Key standards include those from the International Organization for Standardization (ISO), the European Norm (EN), and the International Code Council/Solar Rating and Certification Corporation (ICC/SRCC). These standards provide detailed guidelines for testing, certification, and performance evaluation of solar collectors. ISO standards, such as ISO 9064 and ISO 9807, outline the general requirements and test methods for solar thermal collectors. These standards ensure that collectors meet specific performance criteria, including thermal efficiency, durability, and heat loss characteristics. The EN standards, particularly EN 12975, are widely used in Europe and provide comprehensive guidelines for the design, testing, and rating of solar thermal systems. The ICC/SRCC certification, prominent in North America, focuses on verifying the performance claims of solar collectors through rigorous testing and third-party verification. The efficiency of a solar thermal collector can be expressed using the following formula: η=Ac⋅GQuseful Where: - η is the thermal efficiency of the collector. - Quseful is the useful heat gain. - Ac is the aperture area of the collector. - G is the solar irradiance. These standards and formulas help engineers and researchers evaluate the performance of solar thermal collectors, ensuring that they meet the specific needs of various applications. By adhering to these standards, manufacturers can provide reliable and efficient solar thermal solutions, contributing to the broader adoption of solar energy in residential, commercial, and industrial sectors.
