Solar power: Technology, economics and global deployment

Overview

Solar power, also known as solar electricity, represents the conversion of energy from sunlight into electricity. This conversion occurs either directly through the use of photovoltaics (PV) or indirectly via concentrated solar power systems. As a primary energy source, solar power relies on solar radiation, which is captured and transformed into usable electrical energy for grid integration or direct consumption. The technology is currently operational globally, serving as a significant component of the modern energy infrastructure.

Photovoltaic Systems

Photovoltaic systems utilize solar panels to convert light directly into an electric current. This process relies on the photovoltaic effect, a physical and chemical phenomenon where certain materials generate electric current when exposed to light. Solar panels are composed of photovoltaic cells that absorb photons from sunlight, releasing electrons and creating a direct current (DC). This DC electricity is often converted into alternating current (AC) for compatibility with standard electrical grids and appliances. The efficiency of photovoltaic conversion depends on the material properties of the cells and the intensity of the incident sunlight.

Concentrated Solar Power

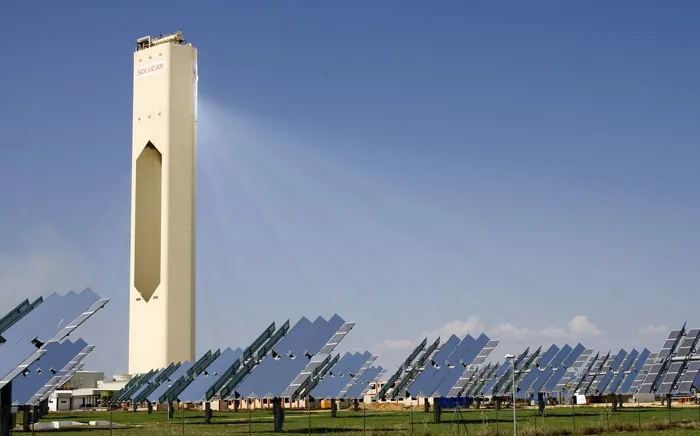

Concentrated solar power (CSP) systems operate indirectly by focusing a large area of sunlight onto a small, hot spot. These systems employ lenses or mirrors, often combined with solar tracking systems, to concentrate solar radiation. The concentrated heat is typically used to drive a steam turbine, which generates electricity through a thermodynamic cycle. Unlike photovoltaic systems that convert light directly into electricity, CSP systems convert solar energy into thermal energy first, allowing for potential thermal energy storage to extend power generation beyond peak sunlight hours. The use of tracking systems ensures that the mirrors or lenses remain aligned with the sun’s position, maximizing the concentration of solar flux.

What are the main types of solar power technology?

Solar electricity generation relies on two primary technological pathways: photovoltaics (PV) and concentrated solar power (CSP). Photovoltaic systems convert sunlight directly into electricity via the photovoltaic effect, where semiconductor materials absorb photons to generate an electric current. CSP systems operate indirectly, using lenses or mirrors and solar tracking mechanisms to focus a large area of sunlight onto a hot spot, typically to drive a steam turbine.

Photovoltaic Technologies

PV technology encompasses various cell architectures. Traditional crystalline silicon cells dominate the market, but thin-film cells offer flexibility and lower production costs by depositing photovoltaic material in very thin layers. Emerging perovskite cells are gaining attention for their high efficiency potential and low-temperature manufacturing processes. These cells convert light into an electric current without moving parts, making them suitable for diverse installations ranging from rooftop arrays to utility-scale farms.

Concentrated Solar Power

CSP systems require direct normal irradiance and often incorporate thermal storage to extend generation beyond peak sunlight hours. By concentrating sunlight to create high temperatures, CSP can drive conventional steam turbines, providing inertia and grid stability similar to thermal power plants. This indirect conversion process distinguishes CSP from the direct current generation of PV systems.

The choice between PV and CSP depends on site-specific factors such as irradiance type, land availability, and grid requirements. PV systems are generally more modular and widely deployed, while CSP offers inherent thermal storage capabilities that enhance dispatchability.

Economics and cost trends

The economics of solar power have been defined by rapid cost reductions, transforming it from a niche energy source into one of the most competitive forms of electricity generation globally. The primary metric for this analysis is the Levelized Cost of Electricity (LCOE), which represents the average net present cost of electricity generation for a generating plant over its lifetime. The formula for LCOE is generally expressed as LCOE=∑t=1n​(1+r)tEt​​∑t=1n​(1+r)tIt​+Mt​+Ft​​​, where It​ is investment, Mt​ is maintenance, Ft​ is fuel cost, Et​ is electricity output, r is discount rate, and n is the lifespan.

Historical Cost Trends

Historical data indicates a steep downward trajectory in the cost per watt of solar photovoltaic (PV) modules and installed systems. In the early decades of solar adoption, costs were significantly higher, driven by manufacturing scale and technology maturity. Over time, economies of scale, technological advancements in cell efficiency, and supply chain optimizations have driven prices down. Concentrated solar power (CSP) systems, which use lenses or mirrors to focus sunlight, have also seen cost reductions, though their trajectory differs from PV due to the inclusion of thermal storage and steam turbine components.

Factors Influencing Installation Prices

Several key factors influence the final installation prices of solar power systems. These include the cost of raw materials such as silicon for PV cells, labor costs which vary by region, and the efficiency of the solar tracking systems used in both PV and CSP installations. Policy mechanisms, including subsidies and tax credits, also play a crucial role in the economic viability of solar projects, affecting the net cost to the consumer and the return on investment for developers. The operational status of solar power as a widely adopted technology reflects these favorable economic trends.

How does solar power integrate with the grid?

Integrating solar power into the electrical grid presents distinct challenges due to the inherent variability of the sun. Unlike conventional baseload generators, photovoltaic (PV) and concentrated solar power (CSP) outputs fluctuate with cloud cover, diurnal cycles, and seasonal shifts. Grid operators must balance these intermittent inputs to maintain frequency stability and ensure that supply matches demand in real-time. Without adequate management, rapid changes in solar irradiance can cause voltage spikes or dips, requiring fast-responding reserve capacity or flexible load management.

Energy Storage Solutions

Energy storage is critical for smoothing solar output and shifting generation to peak demand periods. Battery Energy Storage Systems (BESS), particularly lithium-ion batteries, are widely deployed to store excess daytime solar electricity for evening use. The round-trip efficiency of a battery system can be approximated by the ratio of energy discharged to energy charged:

η = E_out / E_in

For concentrated solar power, thermal energy storage offers a distinct advantage. Molten salt systems store heat generated by focused sunlight, allowing steam turbines to continue driving generators even after sunset. This provides dispatchable power, reducing the need for rapid battery cycling and enhancing grid reliability during evening peaks.

Hybrid Systems

Hybridizing solar with other renewable sources mitigates variability through complementary generation profiles. Solar-Wind hybrids are particularly effective because wind speeds often increase at night or during cloudy conditions when solar output drops. By combining PV panels and wind turbines at a single point of interconnection, the combined output is smoother than either source alone.

Solar-Hydro hybrids leverage the flexibility of hydropower reservoirs. Excess solar power can drive pumps to lift water to an upper reservoir (pumped hydro storage) or reduce the draw on hydro turbines, saving water for later. This synergy allows the grid to maximize renewable penetration while maintaining the inertia and frequency control traditionally provided by hydroelectric dams. These integrated approaches reduce curtailment and enhance the overall capacity factor of the renewable portfolio.

Environmental effects and resource use

Solar power systems exhibit distinct environmental profiles compared to fossil fuel counterparts, primarily characterized by low operational emissions and significant material intensity. The lifecycle greenhouse gas emissions of solar photovoltaic installations are substantially lower than those of coal or natural gas, though they are not zero. Emissions arise from manufacturing, transportation, and installation phases. The carbon intensity is often expressed in grams of CO2 equivalent per kilowatt-hour (g CO2e/kWh). For crystalline silicon modules, this value typically ranges from 20 to 50 g CO2e/kWh, depending on the solar irradiance of the location and the manufacturing energy mix. Concentrated solar power systems, which utilize thermal cycles, may have slightly higher lifecycle emissions due to the complexity of the heat transfer fluids and turbine components.

Land Use and Spatial Requirements

Land use is a critical factor in the deployment of utility-scale solar energy. Photovoltaic farms require significant surface area to capture sufficient sunlight, often competing with agriculture, forestry, or natural habitats. The land use intensity is measured in square meters per kilowatt of peak capacity (m²/kWp) or hectares per megawatt (ha/MW). Ground-mounted PV systems typically require between 4 to 10 hectares per megawatt, depending on the panel efficiency and the latitude of the site. Concentrated solar power plants generally demand more land due to the spacing required between mirrors or lenses to prevent shading and to accommodate the central receiver tower or linear troughs. Dual-use strategies, such as agrivoltaics, aim to mitigate this by integrating solar panels with crop production or livestock grazing, thereby increasing the land equivalent ratio.

Material Demands and Critical Minerals

The manufacturing of solar technologies relies on specific material inputs, creating demand for critical minerals. Crystalline silicon modules require high-purity silicon, aluminum for frames, glass for covers, and copper for wiring and inverters. Thin-film technologies, such as cadmium telluride (CdTe), depend on tellurium, a relatively scarce element often recovered as a byproduct of copper mining. Other emerging technologies may utilize indium, gallium, or silver. The extraction and processing of these materials involve energy consumption and potential environmental impacts, including water usage and tailings management. The supply chain for these critical minerals is often geographically concentrated, influencing the strategic security of solar energy deployment. Recycling end-of-life modules can recover a significant portion of these materials, reducing the primary resource demand.

Recycling and End-of-Life Management

As the first generations of solar panels reach their operational lifespan, recycling has become a key environmental consideration. Standard photovoltaic modules consist of glass, aluminum, copper, and silicon, which are highly recyclable. However, the separation of these materials requires specific processing techniques. Mechanical, thermal, and chemical recycling methods are employed to recover valuable components. The economic viability of recycling depends on the cost of raw materials and the efficiency of the recovery processes. Regulatory frameworks, such as the European Union's Waste Electrical and Electronic Equipment (WEEE) directive, have driven the development of recycling infrastructure. Effective recycling reduces landfill waste and conserves resources, contributing to a more circular economy for the solar industry. The environmental benefits of recycling include reduced mining impacts and lower lifecycle emissions compared to virgin material production.

Global deployment and policy landscape

Global deployment of solar power has expanded significantly, driven by the conversion of sunlight into electricity through photovoltaics (PV) and concentrated solar power (CSP). These technologies operate by using solar panels to generate an electric current via the photovoltaic effect, or by employing lenses and mirrors to focus sunlight onto a hot spot to drive a steam turbine. The operational status of these systems is widely established, with solar remaining a primary source of renewable energy globally. Regional deployment statistics reflect a diverse adoption pattern, though specific numerical data on capacity and growth rates are not detailed in the provided grounding. The role of China in this landscape is notable, as it has been a major driver in the manufacturing and installation of solar infrastructure, although the exact extent of its contribution requires further specification from additional sources.

Policy Incentives

Policy incentives play a crucial role in the adoption of solar power. Mechanisms such as feed-in tariffs and net metering have been instrumental in encouraging investment and consumer adoption. Feed-in tariffs provide a fixed price for electricity generated from solar panels, offering a stable return on investment for producers. Net metering allows consumers to sell excess electricity back to the grid, effectively reducing their energy bills. These policies help to offset the initial costs of installation and operation, making solar power more accessible to a broader range of users. However, the specific details of these policies, including their implementation and impact, vary by region and are not fully elaborated in the current grounding.

Political Factors

Political factors also influence the growth of solar power. Government support, regulatory frameworks, and international agreements can either accelerate or hinder the expansion of solar infrastructure. Political stability and consistent policy-making are essential for attracting investment and ensuring the long-term viability of solar projects. Conversely, political uncertainty or shifts in energy policy can create challenges for the sector. The interplay between political decisions and solar deployment is complex, and while the general importance of these factors is recognized, the specific political dynamics affecting solar power growth are not detailed in the provided information.
