Ryan Dam: Hydroelectric Infrastructure on the Missouri River

Overview

Ryan Dam is an operational hydroelectric powerplant located in the U.S. state of Montana. The facility is situated on the Missouri River, positioned 10 miles (16 km) downstream from the city of Great Falls. It serves as a key component of the regional energy infrastructure, utilizing the natural flow of the river to generate electricity. The dam is classified as a run-of-river hydroelectric facility, a design that relies on the continuous flow of water rather than large storage reservoirs to drive turbines. This configuration allows for consistent power generation while maintaining the natural hydrological rhythm of the Missouri River in this section of the state.

The structure itself is substantial, measuring 1,336 feet (407 m) in length and standing 61 feet (19 m) high. The reservoir created by the dam extends 7 miles (11 km) and holds a storage capacity of 5,000 acre-feet (6,200,000 m3). The installation is built directly on the largest of the five Great Falls of the Missouri, known as the "Big Falls" or simply "Great Falls." This location is significant because the dam and its associated powerhouse occupy a significant portion of the 87-foot (27 m) high waterfall. The integration of the engineering structure with the natural waterfall creates a unique operational environment where the hydroelectric units harness the vertical drop of the river.

The power generation capabilities of Ryan Dam are centered around a six-unit powerhouse located on the left side of the dam. The facility has a total installed capacity of 52.8 MW. Commissioned in 1915, the plant has been in continuous operation for over a century, reflecting the long-standing importance of hydropower in Montana's energy mix. The operator of the facility is NorthWestern Corporation, which manages the maintenance and daily operations of the hydroelectric units. The primary fuel source for the plant is water, harnessed from the Missouri River. The dam's strategic location on the Big Falls allows for efficient energy extraction from the river's flow, contributing to the regional grid's stability and output.

Engineering Design and Structural Components

Structural Configuration

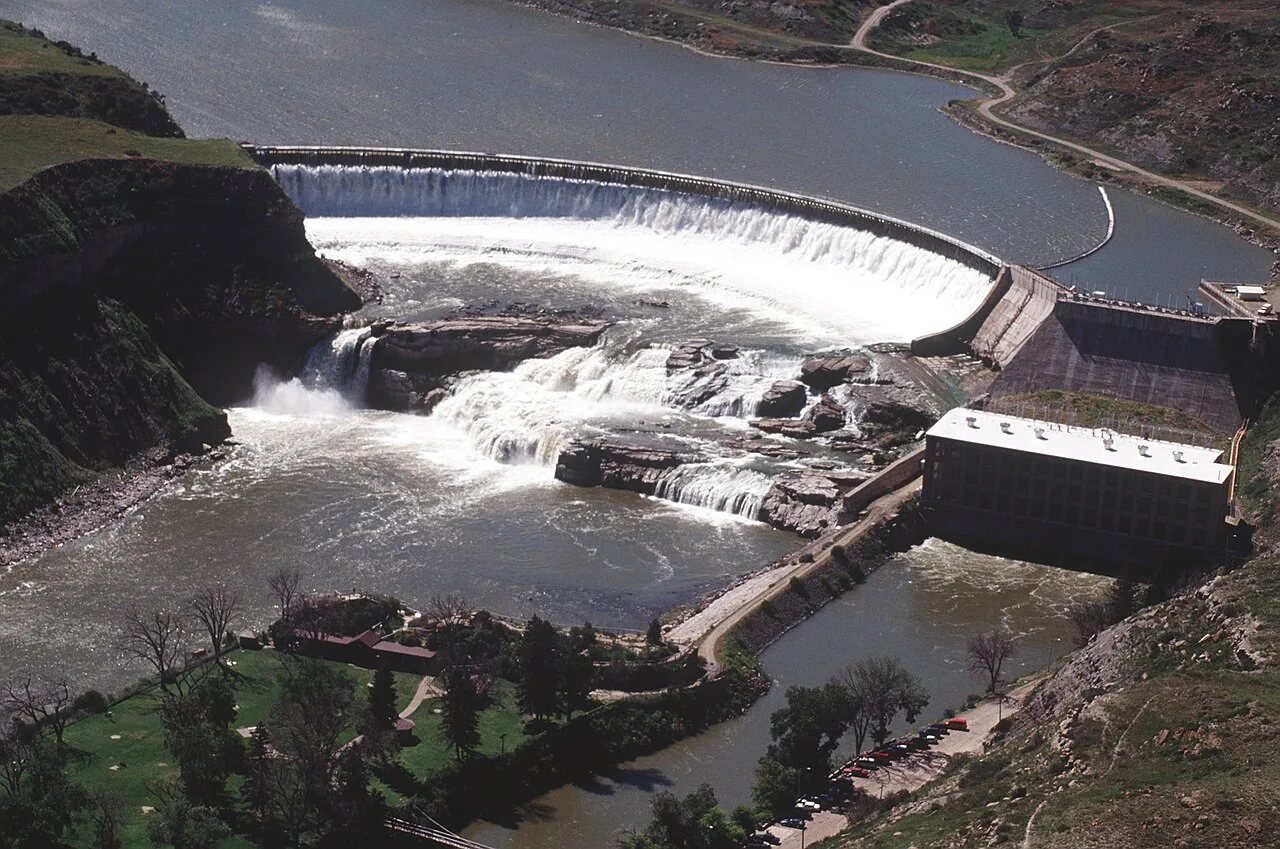

The Ryan Dam employs a composite structural design tailored to the specific topography of the Missouri River. The facility is not a monolithic barrier but rather an integrated system comprising three distinct engineering components. On the right bank, the structure features a concrete-arch spillway designed to manage river flow and excess water volume. This arch configuration leverages the lateral support of the riverbanks to distribute hydrostatic pressure efficiently. The central portion of the dam consists of a gravity structure that functions as a dike. This section incorporates the outlet works, allowing for controlled water release and reservoir management. The left bank houses the powerhouse, which is physically integrated into the dam’s footprint. This three-part arrangement allows the dam to span the river while accommodating the natural elevation changes of the valley floor.

Waterfall Integration and Dimensions

The dam is constructed directly on the largest of the five Great Falls of the Missouri River, known as the "Big Falls." The structure is built atop an 87-foot (27 m) high waterfall, a feature that defines the site’s hydroelectric potential. Since its commissioning in 1915, the six-unit powerhouse has occupied a significant portion of this waterfall, effectively harnessing the vertical drop for power generation. The dam itself stands 61 feet (19 m) high and extends 1,336 feet (407 m) in length, creating a reservoir that is 7 miles (11 km) long with a storage capacity of 5,000 acre-feet (6,200,000 m3). The integration of the dam with the natural falls allows for a run-of-river operational model, minimizing storage requirements while maximizing flow consistency.

The concrete-arch spillway on the right side works in conjunction with the central gravity dike to regulate the flow over the falls. The outlet works within the central structure provide additional control over the reservoir levels, ensuring that the six units in the left-side powerhouse receive a consistent water supply. This design reflects early 20th-century engineering principles that emphasized the integration of civil infrastructure with natural geographical features. The dam’s operational status remains active, continuing to utilize the natural head provided by the Big Falls for electricity generation.

How does the Ryan Dam manage water flow?

Ryan Dam operates as a run-of-river hydroelectric facility, a design that relies on the natural flow of the Missouri River rather than massive impoundment to generate power. As a run-of-river system, the dam captures the kinetic energy of the moving water, channeling it through turbines to produce electricity while allowing the majority of the river’s volume to continue downstream with minimal retention. This operational model is particularly suited to the Missouri River’s significant gradient at the "Big Falls," the largest of the five Great Falls of the Missouri. The dam does not create a vast lake but instead forms a reservoir that is 7 miles (11 km) long and holds a storage capacity of 5,000 acre-feet (6,200,000 m3). This relatively modest storage volume allows the plant to adjust to daily and seasonal flow variations without drastically altering the river’s hydrological regime compared to larger storage dams.

Water Flow Management and Spillway

The management of water flow at Ryan Dam is intrinsically linked to the physical geography of the waterfall. The dam structure is 1,336 feet (407 m) long and 61 feet (19 m) high. The powerhouse, which contains six units and has been operational since 1915, is situated on the left side of the dam. This placement occupies a significant portion of the 87-foot (27 m) high waterfall, integrating the mechanical infrastructure directly into the natural drop of the river. Water not diverted through the turbine units is released over the remaining section of the falls, functioning as a spillway. This design ensures that excess water flows over the natural rock face, maintaining the visual and hydrological character of the "Great Falls" while preventing upstream flooding during high-flow periods.

Outlet Works and Jet

In addition to the main spillway, the dam utilizes outlet works to regulate flow and manage sediment and water levels. These outlet works include a jet mechanism that directs water from the reservoir into the river channel below. This controlled release helps maintain downstream water quality and flow consistency, particularly during periods of lower river discharge. The integration of the powerhouse with the waterfall means that water management is not just about power generation but also about preserving the natural flow dynamics of the Missouri River at this specific geographic point. The run-of-river design ensures that the water passes through the system relatively quickly, minimizing evaporation losses and temperature changes that can affect aquatic life in the reservoir and downstream areas.

History and Ownership Transitions

The historical development of the Ryan Dam is inextricably linked to the geography of the Missouri River and the industrial ambitions of early 20th-century Montana. The site is defined by the "Big Falls," the largest of the five Great Falls of the Missouri, a feature noted by explorers Lewis and Clark. Historical observations describe the cascade at this location as a 3.0 m drop, which became the focal point for hydroelectric harnessing. The strategic location, situated 10 miles (16 km) downstream from the city of Great Falls, offered significant potential for power generation on the left side of the river.

Construction and Inception

The project's inception began in 1913, marking the start of the engineering efforts required to tame the Big Falls. Construction proceeded rapidly, culminating in the dam's commissioning in 1915. The resulting structure is a run-of-river dam, 1,336 feet (407 m) long and 61 feet (19 m) high. It creates a reservoir that is 7 miles (11 km) long with a storage capacity of 5,000 acre-feet (6,200,000 m3). The powerhouse, located on the left side of the dam, houses six units and occupies a significant portion of the 87-foot (27 m) high waterfall. This construction fundamentally altered the flow and appearance of the Big Falls, integrating industrial infrastructure directly into the natural cascade.

Ownership Transitions

Since its initial operation, the Ryan Dam has undergone several ownership changes, reflecting broader trends in the regional energy market. The original operator was the Montana Power Company, which managed the facility for much of its early operational life. In 1997, the asset was acquired by PPL Corporation, marking a significant consolidation in the Montana power sector. More recently, in 2014, NorthWestern Corporation became the operator of the dam. Under NorthWestern Corporation, the plant continues to operate with an installed capacity of 52.8 MW, maintaining its status as an active hydroelectric powerplant in the United States. These transitions highlight the evolving corporate landscape surrounding this historic infrastructure on the Missouri River.

Impact on the Great Falls of the Missouri

The construction of Ryan Dam fundamentally altered the hydrology and physical landscape of the Missouri River at the Great Falls. As a run-of-river structure, the dam utilizes the natural gradient of the river, specifically the "Big Falls," which is the largest of the five Great Falls of the Missouri. Since its commissioning in 1915, the six-unit powerhouse, operated by NorthWestern Corporation, has occupied a significant portion of the 87-foot (27 m) high waterfall, integrating industrial infrastructure directly into the natural cascade.

The dam’s presence has modified the flow dynamics between Grand Fall and Crooked Falls. By regulating the water volume, the structure has flooded certain cascades in the intervals between these falls, altering the visual and hydrological character of the riverbed. This regulation also reduces the flow in specific sections, exposing bedrock that might otherwise remain submerged during higher natural flow periods. The reservoir, with a storage capacity of 5,000 acre-feet (6,200,000 m3) and a length of 7 miles (11 km), plays a critical role in maintaining these flow adjustments.

The relationship between the dam and Ryan Island is central to the site’s geography. The dam is built on the Big Falls, and the powerhouse is located on the left side of the dam, directly impacting the waterfall’s structure. The 1,336 feet (407 m) long and 61 feet (19 m) high dam spans the river, influencing the water distribution around Ryan Island and the surrounding falls. This integration of the hydroelectric facility into the natural landscape highlights the balance between energy production and the preservation of the Missouri River’s iconic geological features.

Ryan Dam in the Context of the Missouri River System

Ryan Dam functions as a critical node within the Missouri River hydroelectric system, situated in the U.S. state of Montana. The facility is located 10 miles (16 km) downstream from the city of Great Falls. It is constructed on the largest of the five Great Falls of the Missouri, specifically the "Big Falls," also referred to as "Great Falls". This positioning places the dam within a concentrated sequence of hydroelectric structures that harness the river's gradient in this region.

The operational context of Ryan Dam is defined by its relationship with adjacent facilities. Upstream, the river flows through a series of dams including Cochrane, Rainbow, and Black Eagle. Downstream, the Morony Dam serves as the next major hydroelectric structure in the sequence. This arrangement creates a cascading effect on the Missouri River's flow and storage capacity in the Great Falls area. Ryan Dam itself is a run-of-river type structure, which influences how it manages water flow compared to storage-heavy reservoirs further upstream or downstream.

Sequence of Dams on the Missouri River (Great Falls Area)

The integration of Ryan Dam into this sequence highlights the strategic development of the Missouri River for power generation. The dam's reservoir is 7 miles (11 km) long with a storage capacity of 5,000 acre-feet (6,200,000 m3). This storage capability, while modest compared to major river dams, is significant for a run-of-river facility and contributes to the overall regulation of the river's flow for downstream users, including the Morony Dam. The six-unit powerhouse, commissioned in 1915 and operated by NorthWestern Corporation, occupies a significant portion of the 87-foot (27 m) high waterfall at the Big Falls. This long-standing operation underscores the dam's enduring role in the regional energy infrastructure.

Why it matters

Ryan Dam stands as a significant example of early 20th-century hydroelectric engineering, distinguished by its direct integration with one of the most prominent natural features of the Missouri River. The structure is built on the largest of the five Great Falls of the Missouri, known as the "Big Falls" or simply "Great Falls". This location choice was not arbitrary; it capitalized on the natural 87-foot (27 m) high waterfall to maximize energy generation potential while minimizing the height of the dam structure itself. The dam is 1,336 feet (407 m) long and 61 feet (19 m) high, a design that allows it to span the gorge effectively without completely submerging the falls. This architectural adaptation represents a unique structural solution where the powerhouse is situated on the left side of the dam, occupying a significant portion of the waterfall itself. Such integration is rare in modern hydroelectric projects, where dams often create vast reservoirs that drown natural topography. Here, the run-of-river design preserves the character of the falls while harnessing their power.

Regional Grid Integration and Operational History

Commissioned in 1915, Ryan Dam has served as a critical component of the regional power grid in Montana for over a century. The facility is operated by NorthWestern Corporation, which manages the six-unit powerhouse to deliver a capacity of 52.8 MW. This output, while modest compared to modern mega-dams, has been vital for the city of Great Falls, located 10 miles (16 km) upstream on the Missouri River. The dam's operational status remains active, demonstrating the durability of early 20th-century engineering. The reservoir associated with the dam is 7 miles (11 km) long and holds a storage capacity of 5,000 acre-feet (6,200,000 m3), providing essential water management and power stability for the region. The continued operation of Ryan Dam highlights the enduring value of early hydroelectric investments. It serves not only as a power source but also as a historical landmark that illustrates how early engineers adapted to the rugged geography of the American West. The dam's ability to function as a run-of-river facility while maintaining significant storage capacity underscores its strategic importance in the Missouri River basin's energy infrastructure.
