Gomal Zam Dam: Hydroelectric Infrastructure and Sediment Challenges in South Waziristan

Overview

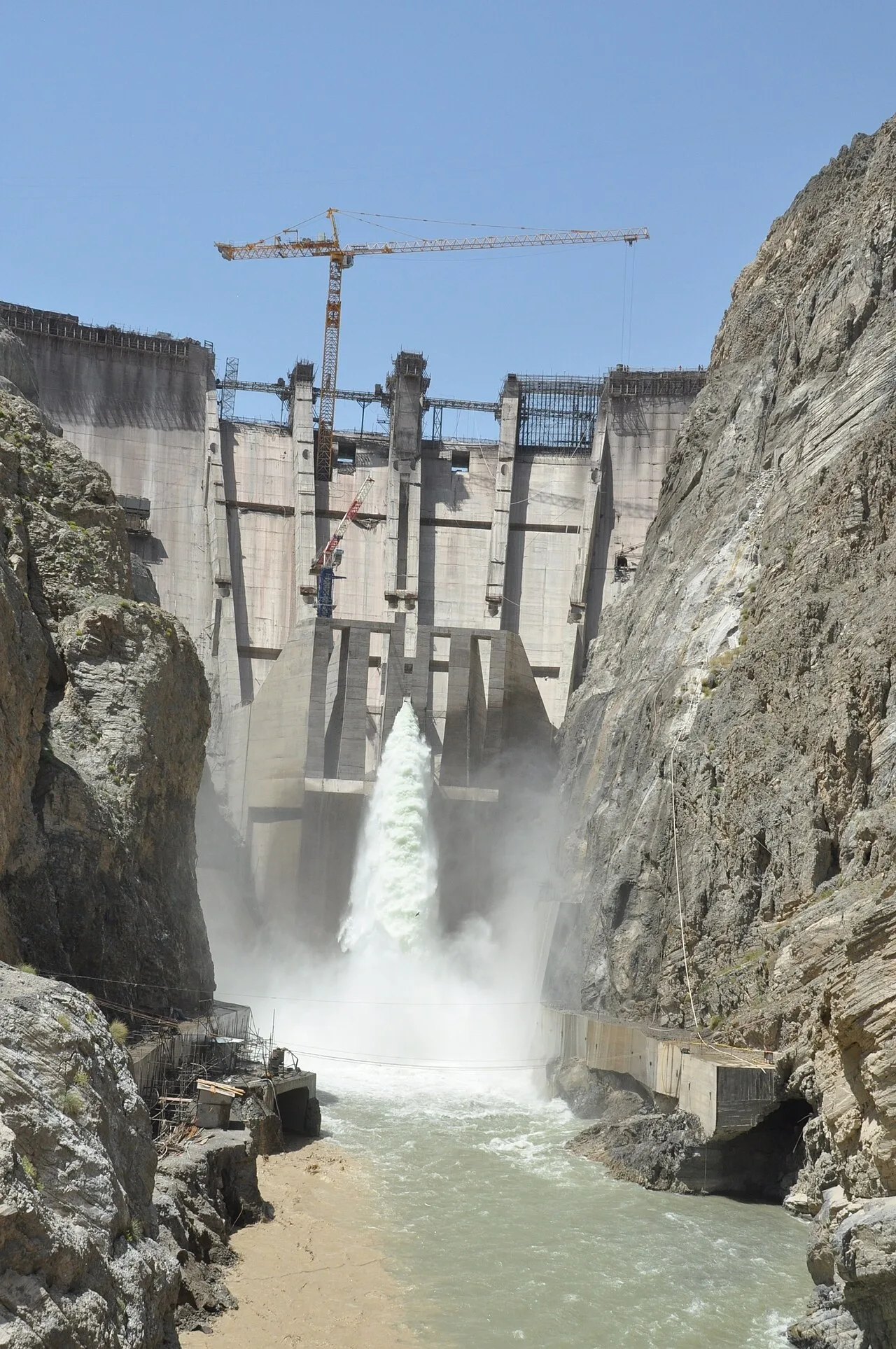

Gomal Zam Dam is a multi-purpose gravity dam located in the South Waziristan District of Khyber Pakhtunkhwa, Pakistan. The structure impounds the Gomal River, a significant tributary of the Indus River system, at Khjori Kach, a site characterized by a narrow ravine through which the river flows. Operated by the Water & Power Development Authority (WAPDA), the facility serves three primary functions: irrigation, flood control, and hydroelectric power generation. It stands as a key infrastructure project in the region, designed to harness the water resources of the Gomal River for both agricultural and energy needs.

Technical Specifications and Construction Timeline

The dam has a total height of 133 m and provides a storage capacity of 1.41 km³. Its hydroelectric powerhouse has an installed capacity of 17.4 MW. Construction of the dam commenced in August 2001 and was completed in April 2011. The powerhouse was finished in March 2013, with electricity production beginning in August 2013. The dam was officially inaugurated on 12 September 2013 by Minister for Water and Power Khawaja Muhammad Asif, alongside US Ambassador Richard G. Olson and Khyber Pakhtunkhwa Governor Shaukatullah Khan.

History and Construction Timeline

The Gomal Zam Dam project spans more than a century of planning and construction in South Waziristan. The site at Khjori Kach, where the Gomal River passes through a narrow ravine, was identified for its potential for irrigation, flood control, and hydroelectric power generation. The Gomal River is a tributary of the Indus River. The operator is the Water & Power Development Authority.

How did security challenges impact the Gomal Zam Dam project?

The construction of the Gomal Zam Dam occurred in South Waziristan, a region historically marked by significant security volatility. The project faced substantial risks due to its location within the tribal areas of Khyber Pakhtunkhwa, Pakistan. Security incidents directly impacted the workforce and timelines. In 2004, Chinese engineers were kidnapped, highlighting the vulnerability of technical staff in the area. Later, in 2012, eight workers were kidnapped by the Tehrik-i-Taliban Pakistan (TTP). These events underscored the persistent threat of insurgency during the dam's development phase.

The Frontier Works Organisation played a critical role in managing these challenges. As the primary executing agency, it coordinated security and construction efforts. The organization worked to mitigate delays caused by the volatile environment. USAID funding also contributed to the project's resilience. Financial support from the United States Agency for International Development helped sustain operations despite security disruptions. This funding was part of a broader effort to stabilize infrastructure development in the region.

Despite these setbacks, the project maintained its trajectory. The powerhouse was finished in March 2013. Electricity production started in August 2013. The dam was officially inaugurated on 12 September 2013. The presence of high-level officials, including Minister for Water and Power Khawaja Muhammad Asif, US Ambassador Richard G. Olson, and Governor Shaukatullah Khan, signaled the project's strategic importance. The successful completion demonstrated the ability to deliver major infrastructure in a challenging security landscape.

What are the irrigation and flood control benefits of the dam?

Irrigation Infrastructure and Agricultural Impact

The Gomal Zam Dam serves as a critical irrigation hub for the South Waziristan District, fundamentally altering the agricultural landscape of the region. The primary distribution network is the 60.5 km main canal, which delivers water to approximately 163,000 acres of arable land. This infrastructure enables consistent water supply to fields that previously relied on erratic river flows and shallow wells, stabilizing crop yields for local farmers.

To further expand the irrigated area, the Waran Canal System was developed as a secondary distribution network. Spanning 164 km, this system adds an additional 28,000 acres to the cultivated zone. The combination of the main canal and the Waran Canal System creates a comprehensive irrigation grid that reaches deeper into the district, reducing dependency on groundwater extraction and improving soil moisture retention during dry seasons.

Crop Sowing Potential

The most significant agricultural benefit of the dam is the dramatic increase in crop sowing potential. Before the dam's operation, only about 26 percent of the available land was consistently sown due to water scarcity. With the regulated water release from the Gomal Zam Dam, this figure rises to 87 percent. This nearly threefold increase allows farmers to transition from single-crop annual planting to multi-crop cycles, significantly boosting food security and local economic output.

The data above illustrates the incremental gain provided by the Waran Canal System. While the main canal provides the bulk of the irrigation capacity, the Waran extension ensures that peripheral fields receive adequate water flow. This expansion is crucial for maximizing the utility of the stored water in the reservoir, ensuring that fewer acres remain fallow during peak growing seasons.

Flood Control Mechanisms

In addition to irrigation, the dam plays a vital role in flood control for the Gomal River basin. By impounding water in the reservoir at Khjori Kach, the dam regulates the flow downstream, mitigating the impact of seasonal monsoon surges. This regulation protects agricultural fields and settlements in South Waziristan from sudden inundation, reducing crop loss and infrastructure damage during high-water periods. The gravity dam structure provides robust containment, ensuring stable water levels even during peak inflow events.

Why does sedimentation threaten the Gomal Zam Dam's lifespan?

The operational longevity of the Gomal Zam Dam is significantly influenced by sedimentation rates within the Gomal River basin. The Gomal River is characterized by a high sediment-to-water ratio of 3%, a metric that classifies it as one of the most sediment-laden rivers globally (Hazrat Hussain, 2016). This high turbidity results in substantial annual sediment inflow into the reservoir, directly impacting the storage capacity available for irrigation, flood control, and hydroelectric power generation.

Sedimentation Projections and Reservoir Lifespan

Studies conducted on the dam's hydrological performance indicate specific timelines for reservoir filling based on current sedimentation trends. According to a 2016 study by Hazrat Hussain, the projected time to fill the dam's dead storage capacity is approximately 11 years. Dead storage refers to the lower portion of the reservoir that remains filled with sediment and is less accessible for water withdrawal, effectively reducing the active volume available for operational use.

The study further projects that it will take approximately 70 years to fill the entire reservoir capacity with sediment. This long-term projection highlights the gradual but continuous encroachment of sediment into the active storage zones. As sediment accumulates, the effective height of the dam decreases, potentially reducing the hydraulic head available for the 17.4 MW hydroelectric power generation capacity operated by the Water & Power Development Authority.

The implications of these sedimentation rates are critical for the multi-purpose functionality of the Gomal Zam Dam. Reduced storage capacity can diminish the dam's ability to regulate flood flows and maintain consistent irrigation supplies during dry seasons. The high sediment load also poses operational challenges for the powerhouse, potentially increasing wear on turbine components and requiring more frequent maintenance interventions to sustain electricity production efficiency.

Understanding these sedimentation dynamics is essential for long-term planning and potential mitigation strategies. The 3% sediment-to-water ratio serves as a key indicator of the river's geological characteristics and the ongoing geomorphological processes in the South Waziristan District. Continued monitoring of sediment inflow and reservoir depth is necessary to validate the 11-year and 70-year projections and to inform future water resource management decisions for the region.

Significance

The Gomal Zam Dam represents a critical infrastructure achievement in the Khyber Pakhtunkhwa province, serving as a multi-purpose gravity dam that addresses both energy generation and agricultural needs in the South Waziristan District. This strategic location allows for effective water management in a region historically characterized by geological complexity and volatility. The dam's primary functions include irrigation, flood control, and hydroelectric power generation, making it a vital asset for local development.

Energy and Agricultural Impact

As an operational hydroelectric powerplant, the facility contributes 17.4 MW of capacity to the regional grid, operated by the Water & Power Development Authority. Electricity production commenced in August 2013, following the completion of the powerhouse in March of the same year. This energy output supports local communities and contributes to the broader energy infrastructure of Khyber Pakhtunkhwa. Beyond power generation, the dam plays a substantial role in agricultural expansion. By regulating the flow of the Gomal River, it provides consistent water supply for irrigation, which is essential for farming in the arid and semi-arid landscapes of South Waziristan. The flood control capabilities further protect downstream areas, reducing the vulnerability of agricultural lands and settlements to seasonal water fluctuations.

Strategic and Historical Context

The construction of the Gomal Zam Dam began in August 2001 and was completed in April 2011, spanning a decade of development in a region that has faced significant historical challenges. This high-level participation underscores the project's importance not only as a local utility but also as a symbol of regional stability and international cooperation. The dam's development amidst geological difficulties highlights the engineering efforts required to harness the Gomal River's potential, providing a model for future multi-purpose water projects in similar terrains.
