Overview

The Rance Tidal Power Station is a hydroelectric powerplant located on the estuary of the Rance River in Brittany, France. As a tidal power station, it represents a significant engineering achievement in the harnessing of marine energy, utilizing the natural rise and fall of tides to generate electricity. The facility is operated by EDF and has maintained an operational status since its commissioning in 1966. With a capacity of 240 MW, the plant serves as a key example of tidal energy infrastructure in the global energy mix, demonstrating the viability of water-based power generation in coastal regions with substantial tidal ranges.

Location and Setting

Situated in the Brittany region of France, the Rance Tidal Power Station takes advantage of the unique geographical features of the Rance River estuary. This location was chosen for its significant tidal amplitude, which provides the necessary head difference to drive the turbines efficiently. The estuary's natural basin allows for the accumulation and release of large volumes of water, creating a consistent and predictable source of energy. The plant's integration into the local landscape has made it a notable landmark in the region, combining functional energy infrastructure with the natural beauty of the Breton coast.

Operational Significance

Since its commissioning in 1966, the Rance Tidal Power Station has been a pioneer in tidal energy production. Its 240 MW capacity makes it one of the largest tidal power stations in the world, contributing to the electricity supply of the surrounding area. The plant's long-term operation under EDF has provided valuable data on the performance and maintenance requirements of tidal energy systems. As an operational facility, it continues to demonstrate the potential of tidal power as a renewable energy source, offering a reliable alternative to more variable forms of renewable energy such as wind and solar.

The Rance Tidal Power Station remains a testament to the ingenuity of energy infrastructure development, showcasing how natural phenomena can be harnessed to meet human energy needs. Its continued operation highlights the enduring relevance of tidal energy in the broader context of global energy infrastructure.

Why it matters

The Rance Tidal Power Station holds a distinct place in global energy infrastructure history as the world's first tidal power station. Its commissioning in 1966 marked the initial large-scale deployment of tidal energy technology, demonstrating the viability of harnessing the kinetic energy of water movement for electricity generation. For nearly half a century, this facility in Brittany, France, remained the largest tidal power station in the world, serving as the primary benchmark for tidal energy projects globally.

The plant's status as the leading tidal facility was maintained until 2011, when the Sihwa Lake Tidal Power Station in South Korea surpassed it in installed capacity. This shift highlighted the continued evolution of tidal energy infrastructure. The comparison between the French pioneer and the South Korean successor illustrates the growth in scale and technology within the tidal energy sector over several decades.

Comparative Context: Rance vs. Sihwa

The following table provides a direct comparison between the Rance Tidal Power Station and the Sihwa Lake Tidal Power Station, highlighting their respective capacities and commissioning years.

Feature Rance Tidal Power Station Sihwa Lake Tidal Power Station
Country France South Korea
Commissioned 1966 2011
Installed Capacity 240 MW 254 MW
Operator EDF Sihwa Lake Tidal Power Co.
Location Rance River estuary, Brittany Sihwa Lake, Incheon

The Rance station, operated by EDF, continues to operate with a capacity of 240 MW, while the Sihwa station operates with a slightly higher capacity of 254 MW. This comparison underscores the incremental advancements in tidal power technology and the geographic expansion of tidal energy projects from Europe to Asia. The Rance station remains a critical reference point for engineers and researchers studying tidal energy systems, given its long operational history and pioneering role in the sector.

How does tidal power generation work at Rance?

The Rance Tidal Power Station utilizes a unique configuration of bulb turbines to harness the kinetic energy of tidal flows. Unlike conventional hydroelectric plants that rely on a steady river flow, this facility exploits the difference in water levels between the estuary and the sea. The core of the generation system consists of bulb Kaplan turbines, which are specifically designed for low-head, high-flow environments. Each turbine unit is housed within a bulb-shaped casing, allowing the runner and generator to be submerged directly in the water flow path, minimizing structural complexity and head loss.

Turbine Specifications

The technical specifications of these turbines are critical to the plant's efficiency. Each bulb turbine has a rated capacity of 10 MW. The runner diameter measures 5.35 m, providing a large swept area to capture the tidal current. The blades are configured with four distinct vanes, optimized for variable flow rates. The rotational speed of the runners is maintained at 93.75 rpm, a relatively low speed compared to other hydroelectric technologies, which reduces cavitation risk and mechanical stress on the submerged components.

This design allows the turbines to operate effectively during both ebb and flood tides. Water flows through the turbines in both directions, driving the generator to produce electricity as the tide rises and falls. The versatility of the bulb Kaplan design is essential for maximizing energy extraction from the semi-diurnal tidal cycle characteristic of the Rance estuary.

Capacity Factor and Annual Output

The operational performance of the Rance Tidal Power Station is defined by its capacity factor and annual energy output. The plant achieves a capacity factor of 24%, which is notably high for a renewable energy source, reflecting the predictability of tidal movements. This efficiency translates into a substantial annual output of 500 GWh. This volume of electricity is generated consistently year-round, providing a reliable baseload contribution to the regional grid in Brittany, France. The combination of the 240 MW installed capacity and the 24% capacity factor underscores the effectiveness of the tidal resource at this specific geographic location.

History

The conceptual origins of the Rance Tidal Power Station date back to 1921, when Gerard Boisnoer first proposed harnessing the tidal energy of the Rance River estuary in Brittany, France. This initial vision was followed by early experimental efforts, including the 1925 Aber Wrac'h attempt, which served as a preliminary test of tidal energy potential in the region. These early initiatives laid the groundwork for more rigorous scientific and engineering evaluations that would define the project's trajectory in the mid-20th century.

Engineering and Pre-Construction Studies

By 1943, formal studies were initiated to assess the feasibility of a large-scale tidal power installation on the Rance River. These studies were crucial in determining the technical viability of the project and identifying the optimal location for the barrage. The engineering leadership for the project was later assumed by Albert Caquot, whose expertise played a pivotal role in shaping the design and structural integrity of the power station. Caquot's contributions were instrumental in addressing the unique challenges posed by tidal energy, including the variability of water flow and the need for robust infrastructure capable of withstanding marine conditions.

Construction and Inauguration

Construction of the Rance Tidal Power Station commenced in 1961, marking the transition from theoretical planning to physical realization. The project involved significant engineering efforts, including the construction of the barrage, the installation of turbine units, and the development of supporting infrastructure. The total cost of the project was recorded at 620 million francs, reflecting the scale and complexity of the undertaking. The power station was officially inaugurated by Charles de Gaulle in 1966, coinciding with its commissioning year. This event marked a milestone in tidal energy development, establishing the Rance Tidal Power Station as a pioneering facility in the global energy infrastructure landscape.

What are the environmental impacts of the Rance barrage?

The construction of the Rance barrage fundamentally altered the hydrodynamic and biological characteristics of the estuary. One of the most significant environmental changes has been the accumulation of sediment, or silting, within the basin. The tidal flow that previously flushed the estuary was modified by the barrage, leading to the deposition of silt and sand. This silting has gradually changed the bathymetry of the Rance estuary, affecting the intertidal zones and the surrounding marshlands. The management of this sediment load is a continuous operational challenge for the facility, requiring careful monitoring to prevent excessive shallowing of the navigation channel and the reservoir.

The biological community of the Rance estuary has also undergone notable shifts since the station became operational in 1966. The introduction of the barrage created a semi-enclosed lagoon with distinct salinity and temperature profiles compared to the open Bay of Saint-Malo. These changes have influenced the distribution of marine species. Some species, such as sand-eels and plaice, have seen a relative disappearance or reduction in certain areas of the estuary due to the altered substrate and flow conditions. Conversely, other species have thrived in the new environment. Sea bass and cuttlefish have made a significant return to the Rance basin, benefiting from the stabilized water conditions and the availability of specific habitats created by the barrage structure and the resulting tidal regimes.

EDF, the operator of the Rance Tidal Power Station, has implemented various management strategies to minimize the biological impact of the facility. The operation of the turbines and the control gates is coordinated with the natural tidal cycles to optimize energy production while maintaining ecological balance. EDF monitors the water quality, salinity gradients, and the migration patterns of fish species to adjust operational parameters. The design of the turbine intakes and the flow velocities are managed to reduce the stress on marine life passing through the station. These efforts aim to sustain the biodiversity of the estuary, ensuring that the tidal power generation does not lead to a monoculture or a significant decline in the overall health of the marine ecosystem. The long-term data collected since 1966 provides valuable insights into the adaptability of marine life to tidal energy infrastructure.

Infrastructure and Tourism

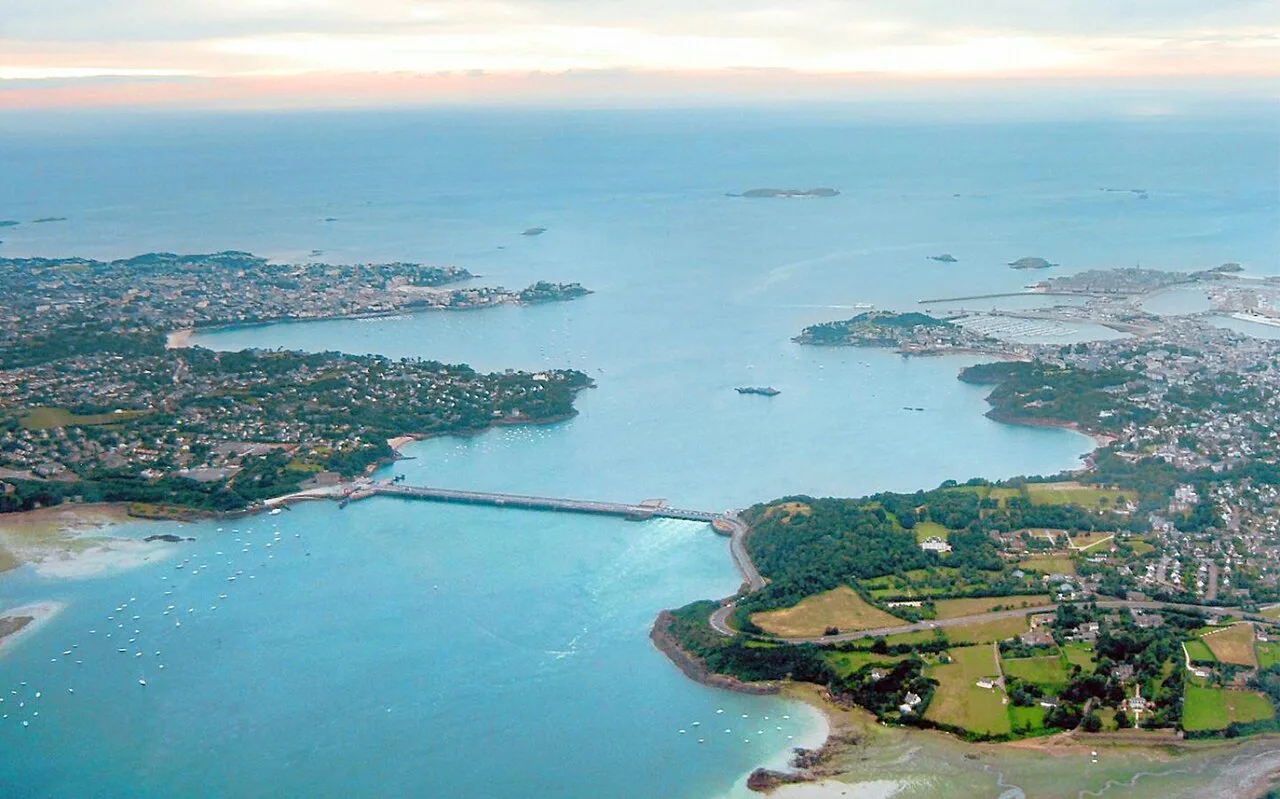

The Rance Tidal Power Station is defined by its massive civil engineering infrastructure, centered on a 750 m long barrage that spans the estuary of the Rance River in Brittany, France. This structure creates a 22.5 km2 tidal basin, which serves as the primary reservoir for the station’s hydroelectric generation capacity of 240 MW. The barrage functions not only as a hydrological barrier but also as a critical transportation link. It supports the Departmental road 168, allowing for continuous road traffic across the estuary, effectively connecting the northern and southern banks of the river valley.

In addition to road transport, the infrastructure includes a navigational lock designed to accommodate vessels weighing up to 1,600 tonnes. This lock facilitates maritime access to the inland areas of the Rance estuary, maintaining the river's utility for local shipping and leisure boating despite the tidal fluctuations managed by the EDF-operated plant (Ground Truth; Wikipedia). The integration of the lock within the barrage demonstrates the multi-functional design of the facility, balancing energy production with regional connectivity.

Beyond its primary role in energy infrastructure, the Rance Tidal Power Station has established itself as a significant tourist attraction. The site draws visitors interested in tidal energy technology and the surrounding natural landscape. In 2011, the station recorded 40,000 visitors, highlighting its status as a notable destination within the Brittany region. The operational status of the plant, which has been active since its commissioning in 1966, allows for ongoing tours and observation of the tidal mechanisms in action (Ground Truth; Wikipedia). The combination of engineering scale and scenic location contributes to its enduring appeal to tourists and researchers alike.

Economic Assessment

The economic profile of the Rance Tidal Power Station presents a complex case study in renewable energy economics, characterized by significant capital expenditure and distinct operational cost structures. The station's electricity production cost has been assessed at 0.12 €/kWh, a figure that reflects the substantial infrastructure investments required for tidal barrages. This cost structure must be evaluated against the broader energy mix, particularly when compared to nuclear power, which has historically served as a benchmark for baseload generation in France.

Cost Comparison with Nuclear Power

When analyzing generation costs, the Rance station's performance is often juxtaposed with nuclear energy. Data indicates a comparison where nuclear power costs are cited at 1.8 ¢/kWh versus 2.5 ¢/kWh for tidal generation in specific analytical contexts. It is critical to note the unit discrepancies and temporal contexts of these figures, as the 0.12 €/kWh metric (equivalent to 12 ¢/kWh) suggests that tidal power, while competitive in certain phases, generally carries a higher per-unit cost than established nuclear baseload. The 1.8 ¢/kWh and 2.5 ¢/kWh comparisons highlight the relative efficiency of nuclear fuel cycles, which benefit from economies of scale and high energy density, whereas tidal power relies on the kinetic energy of water movement, requiring extensive civil engineering works to capture the resource effectively.

Capacity Factor and Operational Efficiency

A defining characteristic of the Rance Tidal Power Station is its capacity factor, which stands at approximately 28%. This metric indicates that the station operates at 28% of its maximum potential output over a given period. This is significantly lower than the 85–90% capacity factor typically achieved by nuclear power plants. The lower capacity factor of tidal energy is inherent to the technology, as it depends on the semi-diurnal tidal cycles, resulting in periods of high generation followed by relative lulls. In contrast, nuclear plants operate continuously, maintaining a high throughput of energy output. This disparity in capacity factors directly impacts the economic viability and grid integration strategies for both energy sources, with tidal power often requiring complementary generation to smooth out the variability.

Payback Period and Long-Term Viability

Despite the higher initial capital costs and lower capacity factors, the Rance Tidal Power Station demonstrated a favorable long-term economic outlook, with a payback period of 20 years. This timeframe reflects the duration required for the cumulative revenue from electricity sales to offset the initial investment in the barrage, turbines, and ancillary infrastructure. The 20-year payback period underscores the asset's durability and the relatively low operational and maintenance costs associated with tidal hydroelectricity once the primary civil works are completed. This economic model supports the station's continued operational status, validating the initial investment by EDF and positioning tidal power as a viable, albeit niche, component of the regional energy portfolio. The station's longevity further enhances its economic profile, as the extended operational life allows for the amortization of capital costs over several decades, improving the overall return on investment.
