Puerto Errado Solar Thermal Power Plant

Overview

Puerto Errado is an operational solar thermal power plant situated in the Region of Murcia, Spain. The facility utilizes linear Fresnel reflector technology to generate electricity, distinguishing it from other concentrated solar power designs. It is operated by Novatec Solar and comprises two distinct units, Puerto Errado 1 and Puerto Errado 2, which were commissioned in different phases to expand the site's total capacity. The plant represents a significant application of Fresnel reflector technology in the Spanish solar energy sector.

Puerto Errado 1

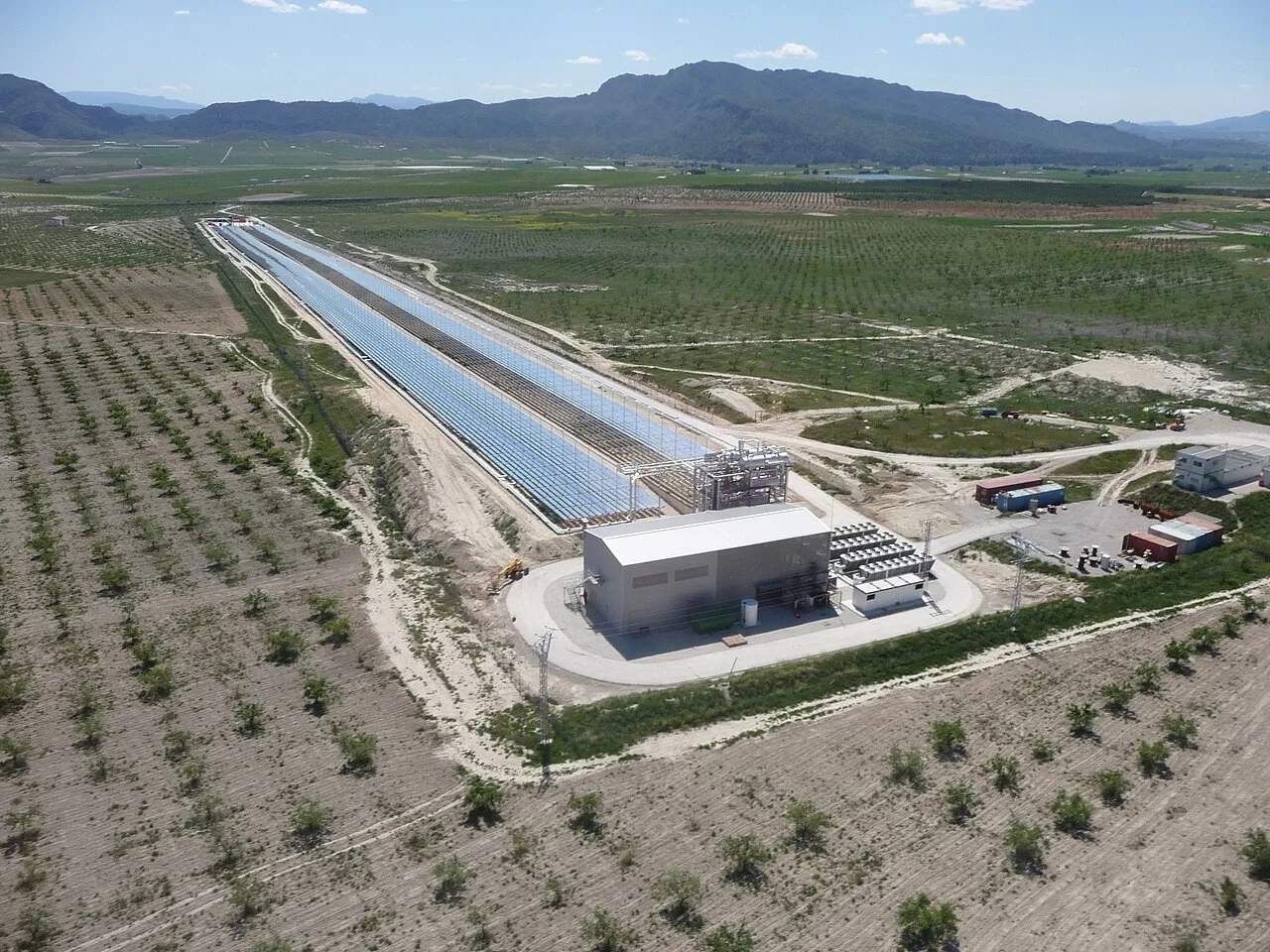

Puerto Errado 1 was the first Fresnel-reflector solar power plant connected to the grid, achieving this milestone in March 2009. This initial unit has an installed capacity of 1.4 megawatts (MW). The footprint of Puerto Errado 1 covers an area of 5 hectares. Its commissioning marked the entry of the linear Fresnel technology into the operational grid mix in the region, providing a baseline for the subsequent expansion of the site.

Puerto Errado 2

The second phase of the development, Puerto Errado 2, was added in February 2012. This unit significantly increased the site's output with an additional capacity of 30 MW. Puerto Errado 2 covers a much larger area of 70 hectares. The technical configuration includes 28 rows of mirrors, providing a total aperture area of 302,000 square metres (3,250,700 sq ft). This expansion demonstrates the scalability of the linear Fresnel reflector design for larger solar thermal installations.

Commercial Framework

The commercial structure for the power generated at Puerto Errado includes specific pricing tiers over time. Power is sold for 26.8717 Euro cents per kWh for the first 25 years of operation. Thereafter, the price adjusts to 21.5495 Euro cents per kWh. This pricing model reflects the long-term financial planning associated with solar thermal investments in Spain during the period of the plant's development and commissioning.

History and Development

The development of the Puerto Errado solar thermal power plant occurred in two distinct phases, establishing it as a pioneering facility for linear Fresnel reflector technology in the Region of Murcia, Spain. The initial phase, known as Puerto Errado 1, marked a significant milestone in solar energy infrastructure.

Following the successful integration of the first unit, the project expanded significantly with the addition of Puerto Errado 2. This second phase was added in February 2012, contributing an additional 30 MW of capacity. The expansion covers a much larger footprint of 70 hectares.

Timeline of Development

The economic structure of the plant involves specific power purchase agreements. The facility is operated by Novatec Solar and remains operational.

Technical Specifications and Infrastructure

Unit Specifications and Comparison

The Puerto Errado facility comprises two distinct operational units utilizing linear Fresnel reflector technology. Puerto Errado 1, commissioned in March 2009, serves as the initial grid-connected Fresnel-reflector solar power plant. This unit has an installed capacity of 1.4 MW and occupies a land area of 5 hectares. The second phase, Puerto Errado 2, significantly expanded the site’s output. It added 30 MW of capacity and began operations in February 2012. This larger unit covers an area of 70 hectares and features 28 rows of mirrors. The total aperture area for Puerto Errado 2 is 302,000 square metres, equivalent to 3,250,700 square feet.

Technology and Energy Sales

The plant employs linear Fresnel reflector technology provided by the operator, Novatec Solar. This solar thermal technology uses long, slightly curved mirrors to focus sunlight onto fixed absorber tubes located above the mirror field. The energy generated is sold under specific tariff structures. After this initial period, the rate adjusts to 21.5495 Euro cents per kWh. These technical and financial parameters define the operational framework of the Puerto Errado solar farm in the Region of Murcia, Spain.

How does Linear Fresnel Solar Thermal Technology Work?

Linear Fresnel reflector technology utilizes long, flat or slightly curved mirrors arranged in parallel rows to concentrate sunlight onto a fixed elevated receiver tube. This configuration distinguishes the system from parabolic troughs, which require a single curved mirror per focal line. At Puerto Errado, this technology is implemented with 28 rows of mirrors covering an aperture area of 302,000 square metres. The mirrors track the sun along a single axis, reflecting light upward to the stationary absorber. This fixed receiver design reduces mechanical complexity and wind load compared to moving parabolic troughs, allowing for higher placement of the heat transfer fluid pipes. The concentrated solar radiation heats the fluid within the receiver, generating steam that drives a turbine for electricity production. The efficiency of the system depends on the optical concentration ratio and the alignment of the mirror rows. The technology is significant for solar thermal energy because it offers a cost-effective solution for large-scale power generation, particularly in regions with high direct normal irradiance. The linear Fresnel design allows for a compact footprint, as seen in Puerto Errado 2, which occupies 70 hectares for a 30 MW capacity. This efficiency in land use and mechanical simplicity makes it a viable option for integrating solar thermal power into the grid. The system's ability to provide dispatchable power through thermal storage or hybridization further enhances its value in energy infrastructure. The operational data from Puerto Errado demonstrates the technology's maturity and reliability in commercial applications.

Ownership and Economic Model

The ownership structure of the Puerto Errado solar thermal power plant is characterized by a consortium of five major Swiss utilities. This collaborative investment model includes EBL and IWB, both based in Basel, as well as EKZ and EWZ from Zurich, and EWB from Bern. These entities collectively hold the assets, leveraging their regional energy portfolios to finance and operate the facility in the Region of Murcia. The involvement of these specific Swiss utilities highlights the international capital flows into Spain’s early solar thermal sector, particularly for innovative technologies like the linear Fresnel reflector system employed at Puerto Errado.

Power Purchase Agreement and Revenue Model

The economic viability of the Puerto Errado plant is underpinned by a long-term power purchase agreement (PPA) that defines the revenue stream for the consortium. The PPA stipulates a fixed tariff structure designed to provide stability over the plant's operational life. This initial phase captures the primary return on investment for the Swiss utility partners, accounting for the capital expenditure required for the 1.4 MW Phase 1 and the subsequent 30 MW Phase 2 expansion.

This stepped-down rate reflects the amortization of the initial capital costs and the continued operational expenses of the 70-hectare facility, which includes 28 rows of mirrors with an aperture area of 302,000 square metres. The precise tariff values are critical for financial modeling, as they determine the net present value of the project. The formula for the annual revenue during the first phase can be expressed as:

Revenue = Energy_Output (kWh) × 0.268717 (EUR/kWh)

And for the subsequent period:

This structured pricing mechanism mitigates market volatility risks for the operators, ensuring a predictable cash flow from the commissioning in 2009 through the mid-21st century. The PPA terms are a key component of the plant's financial architecture, aligning the interests of the Swiss owners with the long-term performance of the solar thermal technology.

Significance

Puerto Errado holds a distinct position in the history of concentrated solar power (CSP) technology, specifically within the Linear Fresnel Reflector (LFR) category. The site is recognized for hosting Puerto Errado 1, which was the first Fresnel-reflector solar power plant connected to the grid globally. Commissioned in March 2009, this initial 1.4 MW unit demonstrated the viability of LFR technology for commercial electricity generation, marking a key milestone for solar thermal infrastructure in the Region of Murcia, Spain. The successful grid connection of this first unit provided critical operational data for the broader adoption of the technology.

Scale and Capacity

The significance of the site extends to the subsequent expansion known as Puerto Errado 2. Commissioned in February 2012, this phase added 30 MW of capacity, significantly increasing the site's output. Puerto Errado 2 is noted as the world's largest Fresnel power plant in operation. The facility covers an area of 70 hectares and utilizes 28 rows of mirrors to capture solar radiation. The total aperture area of the mirror surface is 302,000 square metres (3,250,700 sq ft). This large-scale deployment highlights the potential for Linear Fresnel technology to achieve competitive capacity factors compared to other CSP types, such as parabolic troughs or solar towers.

Economic Framework

The project also established a specific economic model for LFR solar thermal power. This pricing structure reflects the long-term investment and operational characteristics of the technology, providing revenue stability for the operator, Novatec Solar. The combination of being the first grid-connected LFR plant and hosting the largest operational Fresnel facility makes Puerto Errado a key reference point for engineers and analysts evaluating the performance and economics of linear Fresnel solar thermal systems.

Location and Regional Context
