Overview
Passive solar building design is an architectural approach that integrates the building envelope to manage solar energy without relying on mechanical or electrical devices. In this system, windows, walls, and floors are specifically engineered to collect, store, reflect, and distribute solar energy. The primary function is to capture heat during winter months and reject excess solar heat during summer months, thereby regulating indoor thermal comfort through physical properties rather than active machinery.
Distinction from Active Solar Systems
The defining characteristic of passive solar design is its lack of dependence on mechanical and electrical devices. This contrasts sharply with active solar heating systems, which utilize pumps, fans, and ductwork to move heat from a collector to a storage unit or living space. Passive systems rely on natural physical processes—conduction, convection, and radiation—driven by the sun’s position and the thermal mass of building materials. Because there are fewer moving parts, passive solar designs often offer greater simplicity and potentially lower maintenance requirements compared to their active counterparts.
Core Principles of Energy Management
The effectiveness of passive solar design hinges on three core principles: collection, storage, and distribution. Collection involves orienting windows and glazing to maximize solar gain, typically facing the equator to capture low-angle winter sun while allowing high-angle summer sun to be shaded. Storage is achieved through thermal mass materials, such as concrete, brick, or stone, which absorb heat during the day and release it slowly at night. Distribution ensures that the stored heat reaches occupied spaces through strategic placement of floors, walls, and air circulation paths. These elements work in concert to reject solar heat in the summer and retain it in the winter, creating a balanced thermal environment.
Scientific principles and heat transfer
Passive solar building design relies on fundamental thermodynamic principles to regulate indoor temperatures without mechanical intervention. The core mechanism involves the strategic management of heat transfer through three primary modes: conduction, convection, and radiation. In winter, the design aims to maximize solar gain while minimizing heat loss, whereas in summer, the goal is to reject excess heat to maintain thermal comfort. This balance is achieved through careful selection of materials and spatial orientation.
Radiation and Solar Gain
Solar radiation is the primary energy source in passive systems. Shortwave solar radiation penetrates through glazing and strikes interior surfaces, where it is absorbed and re-emitted as longwave infrared radiation. This process, known as the greenhouse effect, traps heat within the building envelope. The amount of heat gained depends on the solar altitude, azimuth, and the transmittance of the glazing materials. Effective passive design orients large windows toward the equator to capture maximum winter sun while using overhangs to shade these windows during the high-angle summer sun.
Conduction and Thermal Mass
Conduction is the transfer of heat through solid materials. In passive solar design, thermal mass materials such as concrete, brick, or stone are used to absorb and store heat. These materials have high specific heat capacities, allowing them to absorb excess heat during the day and release it slowly at night. The thermal diffusivity of the material determines how quickly heat moves through it. Proper placement of thermal mass is critical; it must be within the direct path of solar radiation to be effective. The heat flow through a material can be described by Fourier's Law of Conduction, where heat flux is proportional to the temperature gradient and the material's thermal conductivity.
Convection and Airflow
Convection involves the movement of heat through fluids, primarily air in building contexts. Natural convection occurs when warm air rises and cool air sinks, creating circulation patterns. Passive designs often utilize this principle through features like atriums, courtyards, and stack vents. In winter, warm air from sunlit spaces rises and circulates through the building, while in summer, night flushing can cool the thermal mass by drawing in cooler outside air. Forced convection can also be employed using fans, but this begins to blur the line between passive and active systems.
Human Thermal Comfort
Human thermal comfort is influenced by several factors, including air temperature, mean radiant temperature, humidity, and air velocity. Passive solar design aims to optimize these parameters to create a comfortable indoor environment. The mean radiant temperature is particularly important in solar buildings, as it reflects the average temperature of the surrounding surfaces. By balancing solar gain with ventilation and shading, passive designs can maintain comfort levels with minimal energy input. The goal is to create a dynamic equilibrium where the building's thermal mass and airflow patterns respond to external climatic conditions.
How does solar path affect passive design?
Solar Geometry and Latitude
Passive solar design relies fundamentally on the sun’s apparent path, which varies significantly by latitude and season. The angle of incidence determines how much solar radiation penetrates glazing and strikes thermal mass. At higher latitudes, the winter sun sits lower in the sky, allowing deeper penetration through south-facing windows (in the Northern Hemisphere) to reach interior floors and walls. Conversely, the summer sun is higher, enabling overhangs to shade these same apertures. This geometric relationship is critical for balancing winter heat gain against summer heat rejection.
| Latitude | Winter Sun Altitude (approx.) | Summer Sun Altitude (approx.) | Key Design Implication |
|---|---|---|---|
| Equator (0°) | High | Very High | Minimal seasonal variation; shading is consistent. |
| Moderate (40°) | Low | High | Distinct seasonal shift; optimal for overhang shading. |
| High (60°) | Very Low | Moderate | Long winter days; large south glazing needed. |
The 47-Degree Altitude Difference
A critical metric in passive design is the approximate 47-degree difference in solar altitude between the winter solstice and the summer solstice at mid-latitudes. This specific angular gap allows architects to design fixed architectural elements, such as roof overhangs and fins, that perform dual functions. An overhang sized to block the high summer sun will automatically admit the low winter sun. This eliminates the need for mechanical blinds or louvers, maintaining the "passive" nature of the system by relying on geometry rather than electricity-driven actuators.
Thermal Lag and Mass
The effectiveness of passive solar gain depends on thermal lag—the time delay between solar heat absorption and its release into the living space. Materials with high thermal mass, such as concrete, brick, or stone, absorb heat during the day and release it slowly at night. The optimal thermal lag aligns the peak heat release with the coldest part of the day, typically late evening or early morning. If the mass is too light, heat escapes quickly; if too heavy, the heat may not be released until the next afternoon. Proper sizing of thermal mass relative to glazing area is essential to prevent overheating and underheating.
What are the main types of passive solar systems?
Direct-Gain Systems

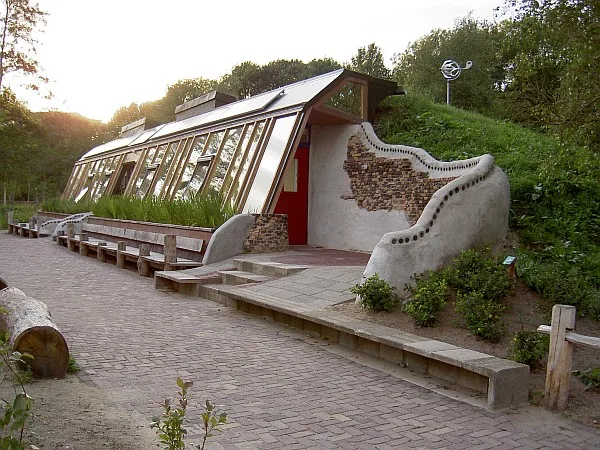

Direct-gain systems are the simplest form of passive solar design. In these configurations, south-facing windows (in the Northern Hemisphere) allow sunlight to enter the living space directly. The solar radiation is absorbed by thermal mass materials, such as concrete floors, masonry walls, or water containers, which store the heat and release it slowly during the night or on cloudy days. This method relies on the direct interaction between the sun’s rays and the conditioned space, minimizing the need for complex mechanical components.
Indirect-Gain Systems
Indirect-gain systems separate the solar collection area from the living space, using a thermal mass wall or roof pond to store heat. The most common type is the Trombe wall, a thick masonry wall placed behind a south-facing window. The wall absorbs solar heat and radiates it into the interior space. Roof ponds involve water-filled containers on the roof, which absorb heat during the day and release it at night. These systems provide more controlled heat distribution and can reduce glare in the living area.
Isolated-Gain Systems
Isolated-gain systems, such as sunspaces or solar rooms, collect and store solar heat in a separate space that is thermally connected to the main living area. Sunspaces are often used as transitional areas, providing additional living space while capturing solar energy. The heat from the sunspace can be distributed to the main living area through natural convection or forced air systems. This design allows for greater flexibility in architectural layout and can enhance the aesthetic appeal of the building.
Hybrid Systems
Hybrid systems combine elements of direct, indirect, and isolated-gain systems to optimize solar heat collection and distribution. These systems may include a combination of south-facing windows, thermal mass walls, and sunspaces. Hybrid designs are often used in larger buildings or in climates with variable solar exposure. They offer a balanced approach to passive solar heating, leveraging the strengths of each system type to achieve consistent indoor temperatures.
| System Type | Description | Key Features |
|---|---|---|
| Direct-Gain | Sunlight enters living space directly | Simple, cost-effective, relies on thermal mass |
| Indirect-Gain | Heat stored in thermal mass wall or roof pond | Controlled heat distribution, reduces glare |
| Isolated-Gain | Heat collected in separate sunspace | Flexible layout, aesthetic appeal |
| Hybrid | Combines multiple system types | Optimized for variable climates, balanced performance |
Design elements and site considerations
Passive solar building design relies on the strategic integration of architectural elements to manage solar energy without mechanical devices. The process begins with site considerations, primarily orientation. In the Northern Hemisphere, maximizing south-facing exposure allows for optimal winter sun penetration, while minimizing east and west exposures helps control summer heat gain. This fundamental alignment dictates the placement of windows, walls, and floors to collect, store, and distribute heat effectively.
Glazing and Window Sizing
Windows serve as the primary collectors of solar radiation. Proper sizing is critical; too little glazing fails to capture sufficient heat, while excessive window area can lead to overheating in summer and heat loss in winter. The selection of glazing involves balancing visible light transmission with the Solar Heat Gain Coefficient (SHGC). High-performance glazing, such as double or triple-pane units with low-emissivity coatings, helps retain interior heat during cold months while allowing short-wave solar radiation to enter.
Thermal Mass Requirements
Thermal mass materials absorb heat during the day and release it slowly at night, stabilizing indoor temperatures. Common materials include concrete, brick, stone, and water. The effectiveness of thermal mass depends on its placement, color, and thickness. Darker surfaces absorb more solar radiation, while the thickness determines the duration of heat release. The following table provides general recommendations for thermal mass thickness based on material type.
| Material | Recommended Thickness (cm) | Notes |
|---|---|---|
| Concrete | 10–20 | High density, effective for daily cycles |
| Brick | 10–15 | Good thermal inertia, common in masonry |
| Stone | 10–20 | Variable density, aesthetic and functional |
| Water | 5–10 | High specific heat capacity, efficient storage |
Insulation and Shading Devices
Insulation is essential to minimize heat loss through the building envelope. High R-value insulation in walls, roofs, and floors ensures that the collected solar heat remains inside during winter. Shading devices, such as overhangs, louvers, and deciduous vegetation, are critical for summer performance. Properly designed overhangs block high-angle summer sun while allowing low-angle winter sun to penetrate the glazing. The angle of the overhang can be calculated based on the latitude of the site to optimize seasonal performance. These elements work together to create a comfortable indoor environment with minimal energy input.
Efficiency and economic impact
The economic viability of passive solar building design is fundamentally tied to the Passive Solar Fraction (PSF), a metric that quantifies the proportion of a building’s total heating load met directly by solar gains without mechanical assistance. The PSF is calculated as the ratio of solar heat collected to the total heating demand, often expressed as PSF=QtotalQsolar. In well-designed structures, this fraction can reach significant percentages, reducing reliance on auxiliary heating systems and lowering operational energy costs.
Historical analyses indicate that passive solar strategies can yield substantial economic savings. By optimizing window placement, thermal mass, and insulation, buildings can achieve efficiency improvements that translate into reduced fuel consumption. Cost-benefit analyses suggest that while initial capital expenditures for features like south-facing glazing and high-mass walls may be higher, the long-term energy savings often offset these costs within a reasonable payback period. The absence of mechanical devices further reduces maintenance expenses and system complexity, enhancing the economic appeal of passive designs.
Efficiency in passive solar systems is not static; it varies with climate, orientation, and building envelope quality. In temperate zones, the integration of thermal mass materials such as concrete or stone can stabilize indoor temperatures, minimizing peak heating demands. These design choices contribute to a more resilient and cost-effective energy profile, aligning with broader sustainability goals. The economic impact extends beyond individual buildings, influencing regional energy demand and infrastructure planning.
Advanced measures and landscaping
Advanced passive solar design integrates specialized architectural elements and site planning to optimize thermal performance. Glazing systems play a critical role in balancing solar gain and heat loss. High-performance windows, such as double or triple-glazed units with low-emissivity coatings, allow short-wave solar radiation to enter while reflecting long-wave infrared heat back into the interior. The selection of glass type directly influences the Solar Heat Gain Coefficient (SHGC), a key metric in passive design calculations.
Operable Shading and Exterior Finishes
Effective shading is essential for summer cooling and winter heating optimization. Operable shading devices, including overhangs, louvers, and blinds, can be adjusted based on the sun’s angle. Fixed overhangs are often designed to block high summer sun while admitting low winter sun. Exterior surface colors significantly impact heat absorption. Light-colored roofs and walls reflect solar radiation, reducing cooling loads, while darker materials can absorb heat for thermal mass integration. The albedo of exterior surfaces is a critical factor in determining the building’s overall thermal balance.
Sustainable Landscaping
Strategic landscaping enhances passive solar performance. Deciduous trees planted on the south side of a building provide shade during the summer months while allowing sunlight to penetrate in the winter after leaf drop. Evergreen trees on the north and west sides can act as windbreaks, reducing convective heat loss. Ground covers and vegetation also contribute to microclimate regulation by reducing ambient temperatures through evapotranspiration. Proper site orientation and plant selection are integral to minimizing mechanical energy consumption.
Passive Solar Lighting
Daylighting strategies reduce reliance on artificial lighting. Techniques such as light shelves, clerestory windows, and skylights distribute natural light deeper into the building interior. Light shelves reflect sunlight onto ceilings, providing diffuse illumination. Clerestory windows, positioned high on walls, capture overhead light while maintaining privacy. These methods enhance visual comfort and reduce electrical energy use. The integration of daylighting with thermal mass helps stabilize indoor temperatures, creating a more comfortable and energy-efficient environment.
