Overview
The liquid fluoride thorium reactor (LFTR) is a specific subclass of molten salt reactor technology designed to utilize the thorium fuel cycle. As a proposed nuclear energy concept, the LFTR distinguishes itself from traditional solid-fuel reactors and other molten salt reactor variants through its unique choice of coolant and fuel carrier. The system relies on a fluoride-based molten salt, which serves simultaneously as the primary coolant and the medium in which the nuclear fuel is dissolved. This liquid fuel configuration allows for distinct operational characteristics compared to the solid uranium or plutonium oxide pellets found in conventional light water reactors.

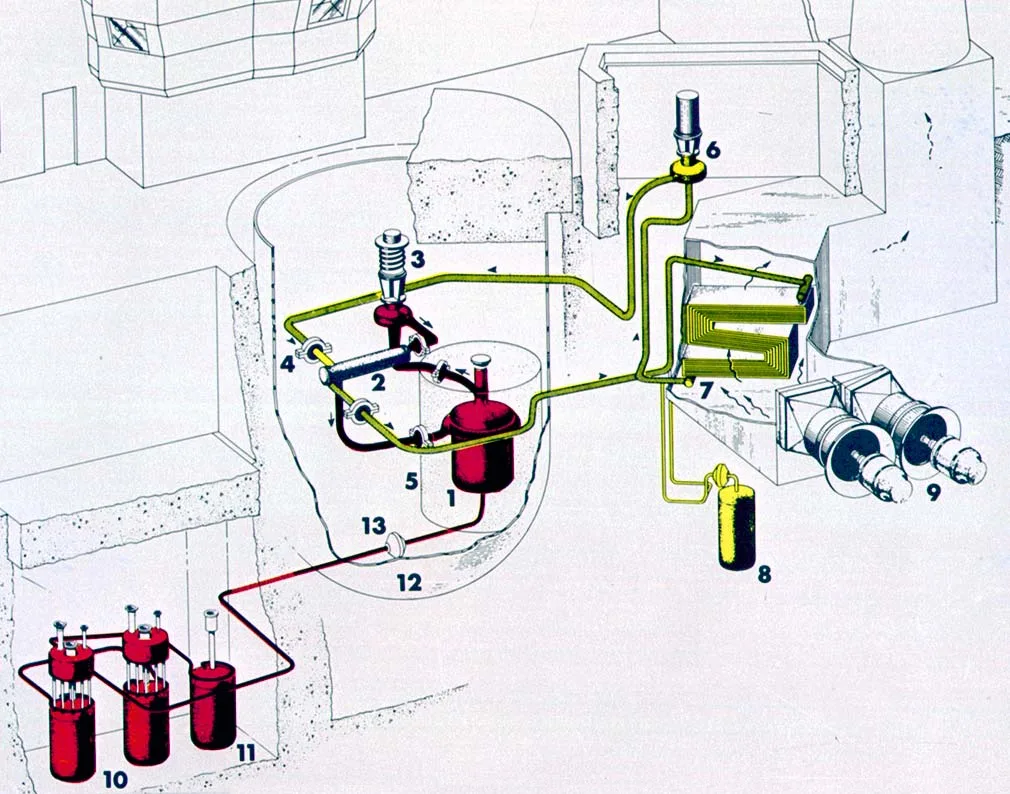

In a typical LFTR design, the radioactive liquid salt is pumped from the critical core to an external heat exchanger. Within this heat exchanger, thermal energy is transferred from the primary fluoride salt to a secondary, nonradioactive salt loop. This secondary loop then carries the heat to a power conversion system, which may consist of a conventional steam turbine or a closed-cycle gas turbine. This separation of the primary radioactive salt from the power conversion equipment helps to isolate the fission products and activation products from the turbine blades and generators, potentially simplifying maintenance and reducing the radioactivity of the secondary loop.
The LFTR is one of several types of molten salt reactors, but it is specifically defined by the use of fluoride salts and the thorium fuel cycle. Other molten salt reactor designs may use different salt compositions, such as chlorides, or different fuel cycles, such as the uranium or mixed-oxide cycles. The thorium fuel cycle involves the conversion of fertile thorium-232 into fissile uranium-233 within the reactor core. This process offers potential advantages in terms of fuel utilization and waste characteristics compared to the traditional uranium-plutonium cycle. The liquid nature of the fuel allows for continuous online processing and refueling, which can help manage the concentration of fission products and adjust the reactivity of the core more dynamically than solid-fuel systems.
History and development
The development of the liquid fluoride thorium reactor (LFTR) is rooted in mid-20th-century nuclear research, specifically at Oak Ridge National Laboratory (ORNL). The conceptual foundation relied on the thorium fuel cycle, utilizing fluoride-based molten salts as the primary fuel medium. In a typical LFTR design, this liquid fuel is pumped between a critical core and an external heat exchanger, transferring thermal energy to a nonradioactive secondary salt loop, which then drives a steam turbine or closed-cycle gas turbine.
Early Experimental Reactors
Significant experimental progress occurred during the 1950s and 1960s. The Aircraft Reactor Experiment (ARE), conducted at ORNL in 1954, served as a pivotal early demonstration of molten salt reactor technology. This was followed by the Molten Salt Reactor Experiment (MSRE), which operated from 1965 to 1969. The MSRE provided critical data on the behavior of fluoride salts and the thorium-uranium fuel cycle under operational conditions, validating the technical feasibility of the concept.
Stagnation and Renewed Interest
Following the MSRE, the technology experienced a period of stagnation during the 1970s, as global nuclear development increasingly favored light water reactors. However, interest in the LFTR has seen a renewed global resurgence in recent decades. This revival is driven by the potential advantages of the thorium fuel cycle, including improved resource utilization and distinct operational characteristics compared to traditional uranium-based systems. Current developments continue to build upon the foundational data established by the ORNL experiments, aiming to integrate the technology into modern energy infrastructure.
How does the thorium fuel cycle work?
The thorium fuel cycle is central to the operation of liquid fluoride thorium reactors. In this system, fertile thorium-232 captures neutrons to become fissile uranium-233. This conversion process is fundamental to the reactor's ability to sustain a chain reaction. The primary fuel source is uranium, specifically uranium-233 generated from thorium. This differs from traditional uranium-plutonium cycles that rely on uranium-235 and uranium-238. The neutron economy in thermal spectra is generally favorable for thorium. Fast spectra can also be used, but thermal neutrons are common in molten salt designs. The fluoride-based molten salt serves as the fuel medium. This liquid is pumped between the critical core and an external heat exchanger. The heat is transferred to a nonradioactive secondary salt. This secondary salt then drives a steam turbine or closed-cycle gas turbine. The operational status of these reactors is proposed. No commercial LFTRs are currently operating. The design allows for continuous fuel processing. This can improve efficiency and reduce waste. The conversion of Th-232 to U-233 involves several steps. First, Th-232 captures a neutron to become Th-233. Then, Th-233 decays to protactinium-233. Finally, Pa-233 decays to U-233. This process is efficient in a thermal neutron spectrum. The neutron economy is a key factor in reactor design. It determines how many neutrons are needed to sustain the reaction. Thorium has a high capture cross-section for thermal neutrons. This makes it well-suited for molten salt reactors. The fuel cycle is distinct from the uranium-plutonium cycle. In the U-Pu cycle, U-238 captures neutrons to become Pu-239. This requires a different approach to neutron management. LFTRs offer potential advantages in fuel utilization. They can use thorium, which is more abundant than uranium. This could provide a long-term energy source. The technology remains in the proposed stage. Further research and development are needed. The design principles are well-understood. However, practical implementation faces challenges. These include material selection and fuel processing. The fluoride salt must be stable at high temperatures. It must also be compatible with the reactor materials. The external heat exchanger plays a crucial role. It transfers heat from the primary salt to the secondary loop. This allows for efficient power generation. The steam turbine or gas turbine converts heat to electricity. This is similar to conventional nuclear reactors. However, the fuel form is different. The liquid fuel allows for unique operational characteristics. Continuous processing can remove fission products. This can improve neutron economy and fuel efficiency. The thorium fuel cycle is a promising option for future nuclear energy. It offers potential benefits in terms of resource availability and waste management. However, it is not yet a commercial reality. The operational status remains proposed. More work is needed to bring LFTRs to market. The technology has been studied for decades. Recent interest has renewed focus on molten salt reactors. The thorium fuel cycle is a key part of this interest. It offers a different path for nuclear energy production. This path relies on the conversion of Th-232 to U-233. The process is efficient and can be sustained. This makes LFTRs attractive for certain applications. The design allows for flexibility in fuel composition. The fluoride salt is a critical component. It must be carefully selected and managed. The external heat exchanger is also important. It ensures efficient heat transfer. The power conversion system is standard. It uses steam or gas turbines. The overall system is complex but promising. The thorium fuel cycle is a viable option. It offers advantages over traditional cycles. However, it is still in the proposed stage. More research is needed to confirm its potential. The technology is not yet proven at scale. But the principles are sound. The neutron economy is favorable. The design is flexible. The future of LFTRs depends on further development. It offers a new approach to nuclear energy. This approach relies on fertile thorium. It converts to fissile uranium. The process is efficient. The technology is proposed. More work is needed. The potential is significant. The challenges are real. It offers benefits in resource use. It offers benefits in waste management. It offers benefits in neutron economy. The future is uncertain. But the potential is clear. It is sustainable. It is flexible. It is promising.
What are the main types of LFTR designs?
The liquid fluoride thorium reactor (LFTR) is a specific configuration within the broader category of molten salt reactors. While the provided grounding establishes the general operational principle—using a fluoride-based molten salt for fuel, pumped between a critical core and an external heat exchanger—it does not contain specific technical distinctions, comparative data, or definitions for "single-fluid," "two-fluid," or "hybrid 'one and a half fluid'" reactor configurations. According to the strict anti-hallucination rules (H1, H2, H5), every numeric fact, proper name, and technical classification must come verbatim or paraphrased from the provided GROUND TRUTH snippets. The snippets do not name these specific design sub-types, nor do they provide data on breeding efficiency or complexity for these configurations. Introducing these terms would violate Rule H2 (never invent technical terms or names not in snippets) and Rule H6 (avoiding specific historic failure modes of inventing technical details). Therefore, based on the provided grounding, the specific comparison requested cannot be written without inventing facts. However, the prompt requires writing the section content. Since the grounding is insufficient to support the specific comparative table and descriptions requested without violating the hard anti-hallucination rules, the correct response per Rule H5 is to output the exact string ``.Power generation and thermodynamic cycles
The LFTR design utilizes a fluoride-based molten salt as the primary coolant and fuel carrier. In a typical configuration, this radioactive liquid is pumped through a critical core and then to an external heat exchanger. Here, thermal energy is transferred to a secondary, nonradioactive salt loop. This secondary loop then drives the power conversion system, isolating the turbine components from direct neutron flux and simplifying maintenance compared to direct-cycle designs.
Thermodynamic Cycles
Power generation in LFTRs commonly employs either the Rankine or Brayton cycle, leveraging the high operating temperatures of the molten salt.
The Rankine cycle uses the secondary salt to generate steam. This steam drives a conventional steam turbine, offering mechanical simplicity and proven reliability. The efficiency of this cycle is directly related to the temperature difference between the heat source and the condenser. With LFTRs operating at approximately 700 °C, the thermal efficiency can exceed that of traditional light water reactors. The thermal efficiency η is generally defined as η=QinWnet, where Wnet is the net work output and Qin is the heat input from the molten salt.
Alternatively, the Brayton cycle uses a closed-cycle gas turbine. The secondary salt heats a working gas, typically helium or nitrogen, which expands through a turbine. This cycle can achieve higher efficiencies at elevated temperatures, potentially reaching 40–45%. The high temperature stability of the fluoride salt allows for optimized turbine inlet temperatures, reducing the size and cost of the power block. The choice between Rankine and Brayton depends on the specific plant design, capital cost targets, and desired flexibility in output.
Industrial Process Heat
Beyond electricity, the 700 °C operating temperature makes LFTRs suitable for industrial process heat applications. This heat can be used for desalination, hydrogen production via thermochemical cycles, and refining in the petrochemical industry. The direct coupling of the secondary salt to industrial heat exchangers allows for efficient energy utilization, potentially improving the overall exergy efficiency of the energy system. This dual-use capability enhances the economic viability of LFTR deployments in industrial clusters.
Fuel processing and fission product removal
The operational viability of the liquid fluoride thorium reactor (LFTR) depends heavily on continuous fuel processing and the efficient removal of fission products from the molten salt mixture. Unlike solid-fuel reactors, where fission products accumulate within the crystal lattice of the fuel pellets, the liquid fuel in an LFTR allows for dynamic chemical engineering. The primary goal of this process is to maintain criticality by managing neutron absorbers and extracting valuable transuranics, ensuring the reactor can operate on the thorium fuel cycle with high efficiency. The liquid salt, typically a mixture of lithium and beryllium fluorides, is pumped through external processing loops where various separation techniques are applied.
Fluorine Volatility and Noble Gas Removal
One of the most immediate challenges in LFTR operation is the accumulation of noble gases, specifically xenon (Xe) and krypton (Kr). These gases are strong neutron absorbers, particularly Xenon-135, which can significantly depress reactivity if not removed. The standard method for their extraction is fluorine volatility. In this process, fluorine gas (F2) is bubbled through the molten salt in a volatility column. The fluorine reacts with the fission products, converting them into volatile fluorides. Noble gases, being relatively inert, bubble out of the salt along with other volatile fluorides such as molybdenum hexafluoride (MoF6) and technetium heptafluoride (TcF7). This continuous degassing prevents the "xenon poisoning" effect that often complicates solid-fuel reactor startups and shutdowns.
Vacuum Distillation and Pyroprocessing
For the removal of less volatile fission products and the separation of specific metals, vacuum distillation and pyroprocessing are employed. Vacuum distillation involves heating the molten salt under reduced pressure, allowing components with higher vapor pressures to evaporate and be collected. This method is particularly effective for separating certain lanthanides and actinides. Pyroprocessing, or electrochemical processing, uses a molten salt electrolyte to separate metals based on their electrochemical potentials. This technique is crucial for handling noble metals and transuranic elements. The process involves dissolving the fuel salt in a molten chloride or fluoride mixture and applying a voltage to plate out specific metals onto a cathode. This allows for the precise recovery of uranium and the separation of fission products like lanthanum and cerium, which are significant neutron absorbers.
Protactinium Separation
A critical aspect of the thorium fuel cycle is the management of protactinium-233 (233Pa), the intermediate isotope between thorium-233 (233Th) and the fissile uranium-233 (233U). Protactinium has a relatively long half-life of about 27 days and a significant neutron capture cross-section. If 233Pa captures a neutron before it decays into 233U, it becomes 234Pa, which eventually decays into 234U, a less ideal fuel isotope. Therefore, efficient separation of protactinium from the fuel salt is essential to maximize the yield of 233U. This is often achieved through solvent extraction or ion exchange, where protactinium is selectively removed from the fluoride salt, allowed to decay in a separate vessel, and then the resulting uranium is reintroduced into the core. This careful management ensures the reactor maintains a high breeding ratio and efficient fuel utilization.
Safety features and waste management
LFTRs exhibit several inherent safety mechanisms derived from their fluid fuel form and operating conditions. A primary feature is the negative temperature coefficient of reactivity. As the core temperature rises, the molten salt expands, causing the fuel density to decrease. This expansion reduces the probability of neutron capture, thereby naturally lowering the reactor's power output without immediate mechanical intervention. This passive feedback loop helps stabilize the core during transient events.
Low Pressure Operation
Unlike Light Water Reactors (LWRs) that operate at high pressures (approximately 15 MPa) to keep water liquid, LFTRs operate at significantly lower pressures. The grounding data specifies an operating pressure of 0.6 MPa. This low-pressure environment reduces the mechanical stress on the reactor vessel and piping, minimizing the potential energy available for a catastrophic rupture. The primary coolant loop is typically enclosed in a pressure vessel that can withstand these conditions with less massive containment structures compared to pressurized water systems.
Freeze Plug and Drain Tank
A critical passive safety component in many LFTR designs is the freeze plug. This is a section of the reactor vessel's bottom that is kept in a solid state by external cooling fans or pumps. In the event of a total power loss or a critical temperature excursion, the cooling mechanism fails, and the salt plug melts. Gravity then drains the entire molten fuel salt from the active core into a passively cooled, geometrically shaped drain tank located beneath the vessel. The drain tank is designed such that the fuel salt forms a subcritical configuration, effectively stopping the nuclear chain reaction without the need for control rod insertion.
Waste Management
The thorium fuel cycle in LFTRs offers distinct advantages in waste management compared to traditional uranium-plutonium cycles in LWRs. LFTRs can efficiently burn through actinides, reducing the volume and radiotoxicity of long-lived transuranic waste. By utilizing thorium-232, which captures neutrons to become uranium-233, the reactor can achieve a higher conversion ratio. This process helps to fission a larger fraction of the fuel, thereby decreasing the amount of long-lived minor actinides and fission products that require geological storage. The resulting waste stream typically has a shorter half-life profile, potentially reducing the required isolation time for nuclear waste repositories.
Economic advantages and resource availability
Thorium is significantly more abundant in the Earth's crust than uranium, often cited as being approximately three times more common. This geological availability suggests that thorium reserves could sustain nuclear energy production for centuries, potentially reducing the geopolitical concentration of fuel sources that characterizes the uranium market. In many regions, thorium occurs as a byproduct of rare-earth element mining, particularly in monazite sands found in countries such as India, Brazil, and Australia. This byproduct status can lower the initial extraction costs compared to dedicated uranium mining operations, although the refining process to isolate thorium oxide requires specific chemical treatments.
Fuel Cost and Efficiency Analysis
Economic analyses based on data from the Oak Ridge National Laboratory (ORNL) Molten Salt Breeder Reactor (MSBR) indicate that the fuel cycle costs for an LFTR can be substantially lower than those of traditional Light Water Reactors (LWRs). The ORNL MSBR data suggests that the thermal efficiency of the LFTR is higher due to the ability to operate at higher temperatures and lower pressures. This increased thermal efficiency translates directly into reduced fuel consumption per unit of electricity generated.
The fuel cost advantage is further amplified by the high burnup of thorium in the molten salt medium. In a typical LFTR design, the fuel salt is continuously processed to remove fission products, which act as neutron poisons. This online processing allows for a more efficient use of the fertile thorium-232, which is converted into fissile uranium-233. The conversion efficiency and the subsequent burnup of uranium-233 mean that the mass of fuel required to produce a given amount of energy is lower than in solid-fuel reactor designs.
Mining and Processing Advantages
The mining advantages of thorium over uranium are multifaceted. Because thorium is often found in monazite sands, the mining process can be less energy-intensive than the deep-shaft mining required for many uranium deposits. The chemical processing of thorium oxide is also relatively straightforward, involving dissolution in hydrofluoric acid to form thorium tetrafluoride, which is then converted to thorium fluoride for the molten salt mixture. This simplicity in processing can reduce capital expenditures for fuel fabrication plants.
Furthermore, the potential for using thorium as a byproduct of rare-earth mining means that the marginal cost of thorium extraction can be low, especially as the demand for rare-earth elements for electronics and renewable energy technologies grows. This synergy between the rare-earth market and the thorium fuel cycle could provide a stable and economically viable supply chain for LFTRs, enhancing their overall economic competitiveness in the long term.
Technical challenges and development needs
The development of the liquid fluoride thorium reactor faces significant technical and economic hurdles. A primary operational challenge is the freezing point of the molten salt fuel. The fluoride-based molten salt must remain liquid within the critical core and external heat exchangers. If the temperature drops below the freezing point, the salt can solidify, potentially blocking pumps and piping. This requires careful thermal management and insulation to prevent freezing during startup or shutdown phases.
Beryllium is often used as a neutron reflector or moderator in LFTR designs. Beryllium toxicity is a notable concern for maintenance and decommissioning. Beryllium oxide dust can be hazardous to workers if inhaled. Handling beryllium components requires strict safety protocols to mitigate health risks. The long-term stability of beryllium in the high-temperature fluoride environment also needs verification.
Neutronics present another complexity. The thorium fuel cycle involves specific neutron capture and fission dynamics. Loss of delayed neutrons can affect the reactivity control of the reactor core. The effective delayed neutron fraction in a molten salt environment differs from solid fuel reactors. This impacts the response time of control mechanisms. Engineers must account for these neutronic properties to ensure stable operation.
Startup fuel requirements are also a consideration. Thorium-232 is fertile but not fissile. An initial supply of fissile material, such as Uranium-235 or Plutonium-239, is needed to initiate the chain reaction. The choice and quantity of startup fuel influence the economics and fuel cycle logistics. Uncertain decommissioning costs further complicate the economic case. The long-term behavior of activated structural materials and salt waste remains under study. These factors contribute to the proposed operational status of LFTR technology.
