Overview

Kraftwerk Heimbach is a hydroelectric power plant located in Heimbach, North Rhine-Westphalia, Germany. The facility operates as a reservoir power station, utilizing water from the Urft reservoir to generate electricity. It is also known as the Urftkraftwerk, a name that reflects its primary water source. The plant has a total installed capacity of 16 MW and remains operational, contributing to the regional energy grid. The operator of the facility is Innogy, which manages the station's ongoing production and maintenance activities.

Historical Significance and Architecture

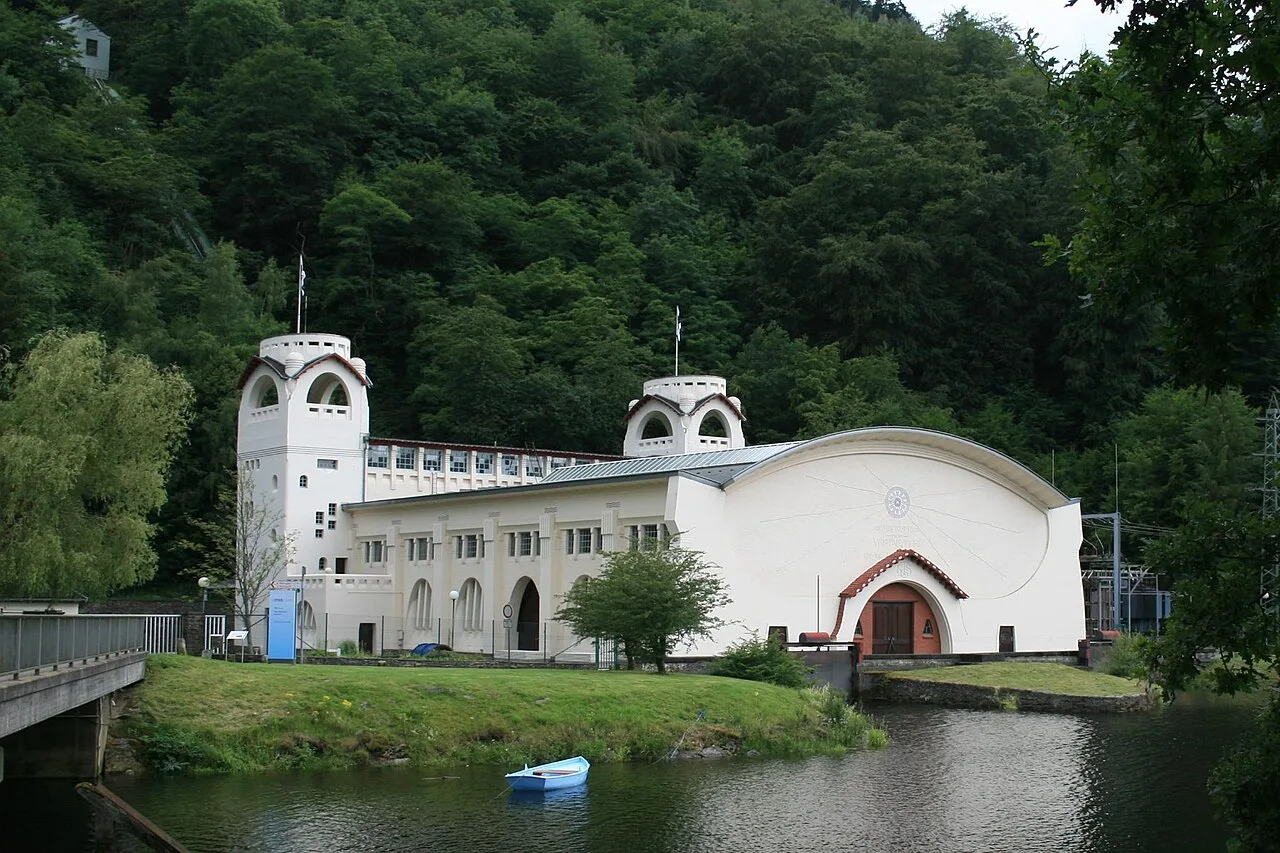

The power station was completed in 1905. At the time of its commissioning, it was the largest hydroelectric power station in Europe. The building is constructed in the Jugendstil architectural style, making it a notable example of early 20th-century industrial design. This architectural choice gives the facility significant cultural value, positioning it as both an energy infrastructure asset and a historic site. The structure reflects the engineering ambitions of the era, combining functional hydroelectric generation with aesthetic considerations typical of the Jugendstil movement.

Turbine Configuration and Operation

The original installation featured eight Francis turbines. These turbines served the plant for several decades, providing power until 1974. In that year, the facility underwent a major modernization. The original eight turbines were replaced by two more powerful turbines to enhance efficiency and output. However, two of the original Francis turbines were retained in place to preserve the historic character of the station. This dual-turbine configuration allows the plant to balance modern operational needs with heritage conservation. The station continues to operate to cover peak demand, leveraging the storage capacity of the Urft reservoir to adjust output as needed. The facility is run by RWE, which oversees the operational strategies for the plant.

History

The development of the hydroelectric infrastructure in Heimbach, North Rhine-Westphalia, began with the engineering commission of Otto Intze in 1895. This appointment marked the initial phase of what would become a significant energy asset in the region. Construction of the dam structure commenced in 1899, laying the groundwork for the facility that would later be known as the Urftkraftwerk due to its reliance on water from the Urft reservoir.

The facility was designed with distinctive Jugendstil architecture, reflecting the aesthetic sensibilities of the early 20th century. The original installation featured eight Francis turbines, which served as the primary mechanical drivers for power generation for several decades.

Turbine Replacement and Modernization

By the mid-1970s, the original machinery required significant updates to maintain efficiency and capacity. In 1974, the original eight Francis turbines were largely replaced. The new turbines entered service in 1975, introducing two more powerful units to handle the evolving energy demands. This modernization allowed the plant to continue its role in covering peak demand while maintaining a tangible link to its engineering origins.

Restoration and Current Status

A major restoration project took place between 1990 and 1991, further securing the structural and operational integrity of the facility. The Kraftwerk Heimbach remains operational today. While the provided grounding data lists Innogy as the operator, the facility is also noted as being run by RWE, reflecting the complex corporate history of energy assets in the region. The plant continues to utilize water from the Urft reservoir, maintaining its function as a key component of the local hydroelectric grid.

Engineering and Infrastructure

The Heimbach hydroelectric power station utilizes water from the Urft reservoir, located on the Roer river in North Rhine-Westphalia, Germany. The plant operates with a significant hydraulic head of 110 metres (360 ft), a key factor in its energy generation capability. This infrastructure is integral to the regional hydroelectric network, leveraging the elevation difference between the Urft reservoir and the river level to drive turbine rotation.

Turbine Evolution and Capacity

Originally, the facility was equipped with eight Francis turbines, each paired with a 1.5 MW generator. This configuration established the plant as the largest hydroelectric power station in Europe upon its completion in 1905. These original turbines served the grid for nearly seven decades. In 1974, a major technical upgrade replaced six of the eight original units with two more powerful turbines.

The current installation features two turbines with a total installed capacity of 16 MW. This modernized setup allows the plant to efficiently cover peak demand periods. The transition from eight smaller units to two larger ones reflects advancements in turbine efficiency and power density over the 20th century.

Technical Specification Detail
Water Source Urft reservoir
Location Roer river, Heimbach, North Rhine-Westphalia
Hydraulic Head 110 metres (360 ft)
Original Turbines (1905) 8 Francis turbines, 1.5 MW each
Current Turbines (post-1974) 2 turbines
Installed Capacity 16 MW
Primary Function Peak demand coverage

Why it matters

Upon its completion in 1905, the Kraftwerk Heimbach held the distinction of being the largest hydro-electric power station in Europe, marking a significant milestone in early 20th-century energy infrastructure. This status was achieved through its innovative use of water from the Urft reservoir, which supplied the facility with a consistent and powerful water source. The plant’s capacity of 16 MW, while modest by modern standards, represented a substantial output for the era, enabling it to serve as a primary power source for the surrounding regions. The station was operated by Innogy, ensuring its continued functionality and integration into the local energy grid.

Architectural Significance

The Kraftwerk Heimbach is not only an engineering marvel but also an architectural landmark. Designed in the Jugendstil style, the building reflects the artistic and aesthetic sensibilities of the early 1900s. The architect, Georg Frentzen, crafted a structure that harmonized functional requirements with artistic expression, resulting in a building that remains visually striking today. The Jugendstil design elements, characterized by flowing lines and organic forms, are evident in the station’s facade and interior details, making it a notable example of the movement in industrial architecture.

Role in Regional Energy Mix

The Kraftwerk Heimbach played a crucial role in the energy mix of Aachen, Cologne, and the Eifel region. Its operation helped meet the growing energy demands of these areas, providing a reliable source of electricity that supported both industrial and residential consumption. The plant’s ability to cover peak demand was particularly valuable, as it could quickly adjust its output to match fluctuations in energy usage. This flexibility was achieved through the use of Francis turbines, which were replaced in 1974 by two more powerful units, while two original turbines were retained for their historic value. The continued operation of the station, now run by RWE, underscores its enduring importance in the regional energy landscape.

Cultural Use and Tourism

The Kraftwerk Heimbach extends its utility beyond energy production, serving as a significant cultural venue and tourist attraction in North Rhine-Westphalia. The site hosts the "Spannungen" (Tensions) chamber music festival, a cultural initiative that leverages the power station's unique architectural and acoustic properties. This festival has been a recurring event since 1998, bringing classical music performances to the industrial setting.

The festival was founded by Lars Vogt, a prominent pianist and conductor, who recognized the potential of the Jugendstil architecture to enhance the musical experience. The venue provides a distinctive atmosphere for audiences, where the interplay of light and shadow in the historic building complements the performances. The event has become a notable feature in the regional cultural calendar, attracting music enthusiasts and tourists alike.

A key feature of the concerts at Kraftwerk Heimbach is the temporary cessation of power generation to optimize the acoustic environment. During performances, the turbines are stopped to minimize mechanical noise, allowing for a more immersive auditory experience. This operational adjustment highlights the flexibility of the facility, which continues to operate to cover peak demand while accommodating cultural events. The process of halting the turbines involves coordinating with the operator, RWE, to ensure that the interruption in power output is minimal and well-timed with the concert schedule.

Museum and Historic Appliances

In addition to the festival, the Kraftwerk Heimbach houses the RWE Industriemuseum on its upper floor. This museum showcases the history of electric appliances and the evolution of the power station. The exhibits include historic electric devices that illustrate the technological advancements in hydroelectric power and domestic electricity usage since the early 20th century. The museum provides visitors with insights into the industrial heritage of the region and the role of RWE in the development of the local energy infrastructure.

The combination of the Spannungen festival and the RWE Industriemuseum makes Kraftwerk Heimbach a multifaceted destination. It offers a blend of cultural enrichment and educational value, attracting visitors interested in both music and industrial history. The site's continued operation as a power station adds a layer of authenticity to the visitor experience, demonstrating the enduring relevance of hydroelectric power in the modern energy mix.

How does the hydroelectric system work?

Kraftwerk Heimbach operates as a run-of-the-river hydroelectric facility, utilizing the potential energy of water stored in the Urft reservoir. The plant, also known as the Urftkraftwerk, draws its primary water source from this reservoir, channeling the flow through a series of conduits and penstocks to the turbine hall located in Heimbach, North Rhine-Westphalia. This hydraulic system is designed to convert the kinetic energy of the moving water into mechanical energy, which is then transformed into electricity. The water, after passing through the turbines, is discharged into the Roer river, completing the immediate hydrological cycle for the generation process.

Turbine Technology and Configuration

The core of the power station’s generation capability lies in its turbine configuration. Originally, the plant was equipped with eight Francis turbines, which served as the primary drivers for electricity production from the plant's commissioning in 1905 until 1974. The Francis turbine is a type of reaction turbine that combines radial and axial flow concepts, making it highly efficient for medium-head hydroelectric sites like Heimbach. In 1974, a significant modernization took place to enhance the plant’s output. The original eight units were largely replaced by two more powerful turbines. This hybrid configuration allows the plant to benefit from modern efficiency while maintaining a tangible link to its early 20th-century engineering heritage.

Operational Strategy and Peak Demand

The operational strategy of Kraftwerk Heimbach is tailored to meet specific load profiles, particularly focusing on covering peak demand. The plant is operated by RWE, which manages the timing of water release and turbine activation to align with electricity consumption patterns. The facility is especially active during the morning hours on weekdays, a period characterized by a surge in industrial and residential energy usage. By leveraging the relatively quick start-up time of hydroelectric turbines compared to thermal plants, Heimbach can rapidly adjust its output to stabilize the grid during these critical peak windows. This operational flexibility ensures that the 16 MW capacity is utilized efficiently, providing a reliable source of renewable energy to the regional grid while maintaining the water balance of the Urft reservoir and the Roer river.

What happened to the original turbines?

The original turbine installation at the Kraftwerk Heimbach consisted of eight Francis turbines, which served as the primary power-generating units for several decades following the station's 1905 commissioning. These units were instrumental in establishing the facility as the largest hydroelectric power station in Europe at the time of its completion, utilizing water from the Urft reservoir. The operational lifecycle of these original eight turbines concluded in 1974, marking a significant technical transition for the plant. During this year, the original units were largely decommissioned and replaced by two more powerful turbines to enhance efficiency and output capacity for peak demand coverage. This modernization allowed the station to maintain its operational status under the management of Innogy, while preserving key elements of its early 20th-century engineering heritage.

Preservation and Relocation of Historic Turbines

As part of the 1974 modernization, a deliberate effort was made to preserve the historic value of the original Francis turbines. Rather than retiring all eight units to scrap, two of the original turbines were retained on-site at the Kraftwerk Heimbach. These two units were left in place within the Jugendstil architecture of the power station to serve as historic monuments, offering visitors and engineers a tangible connection to the plant's origins. Their preservation highlights the cultural and technical significance of the Urftkraftwerk in the history of German hydropower.

The remaining six original Francis turbines were not entirely lost to history; instead, they were relocated to other facilities for historic demonstration and continued utility. Some of these units were moved to the Staustufe Fankel, a key component of the Rur River hydropower scheme. Others were transferred to the Kraftwerk Weisweiler and the Brauweiler power station. These relocations ensured that the engineering legacy of the original Heimbach installation continued to be visible and functional in other parts of the North Rhine-Westphalia energy infrastructure. The movement of these turbines to Staustufe Fankel, Kraftwerk Weisweiler, and Brauweiler allowed for a distributed preservation of the 1905-era technology, ensuring that the Francis turbine design remained a demonstrable feature of the region's hydroelectric heritage. This strategic redistribution of the original eight turbines reflects a broader approach to industrial heritage conservation, balancing modern operational needs with historical preservation.
