Name: Katowice Power Station: Coal Infrastructure and Heating Capacity in Poland
Address: PL

Overview

The Katowice Power Station is a coal-fired energy facility located in Katowice, Poland. It operates as a combined heat and power plant, serving the local energy infrastructure by providing both electricity and thermal energy to the region. The plant is operated by Tauron Polska Energia, a major player in the Polish energy sector. The facility has been in continuous operational status since its initial commissioning in 1985, evolving through several expansion phases to meet the growing energy demands of Katowice and its surroundings.

Technical Composition and Capacity

The Katowice Power Station consists of four distinct generation units, each contributing to the plant's overall thermal and electric output. The first two units, which each possess a generation capacity of 144 MWt, were put into service in 1985. These early units established the foundation of the plant's thermal power capabilities. A third unit, with a larger capacity of 233 MWt, was added later, entering service in 1991. This expansion significantly increased the plant's thermal output, allowing for greater flexibility in heat distribution.

In 2000, the plant underwent a significant modernization with the addition of a fourth unit. This new unit is of the BCF-100 type and features a heat capacity of 200 MW. It also provides an electric generation capacity of 135.5 MW, which represents the plant's total electric output. The addition of this unit marked a shift towards more efficient combined heat and power generation, enhancing the plant's role in the local energy mix. The total heating capacity of the Katowice Power Station stands at 200 MWt, underscoring its importance as a thermal energy provider for Katowice.

What are the technical specifications of the Katowice Power Station?

The Katowice Power Station operates as a coal-fired facility with a diverse configuration of generation units, combining electric and thermal output capabilities. The plant's technical profile is defined by four distinct units that have been commissioned across different eras, resulting in a mixed fleet of generation technologies. The facility provides both electricity and district heating, with specific units dedicated to thermal output.

Unit Configuration and Capacity

The station comprises two early units that entered service in 1985. Each of these units has a generation capacity of 144 MWt. These units form the foundational thermal output of the station. This unit significantly increased the plant's thermal generation potential.

In 2000, the plant was expanded with the addition of a new unit of the BCF-100 type. This unit is notable for its dual-output design, providing both electric and heat capacity. Additionally, this BCF-100 unit contributes a heat capacity of 200 MW. The plant's total heating capacity is recorded as 200 MWt, indicating that the BCF-100 unit may be the primary or sole contributor to the current thermal output, or that the thermal output of the earlier units is integrated into this total.

Unit Type	Commissioning Year	Electric Capacity (MWe)	Thermal Capacity (MWt)	Notes
Unit 1	1985	—	144	Coal-fired
Unit 2	1985	—	144	Coal-fired
Unit 3	1991	—	233	Coal-fired
Unit 4 (BCF-100)	2000	135.5	200	Combined heat and power

The BCF-100 technology represents a specific design choice for combined heat and power generation. The plant's total electric capacity is 135.5 MW, which corresponds directly to the output of the BCF-100 unit. The thermal capacity of the plant is 200 MWt, matching the heat output of the BCF-100 unit. The earlier units, with capacities of 144 MWt and 233 MWt, contribute to the plant's historical thermal profile, though their current operational status in terms of heat delivery is not explicitly detailed beyond their initial commissioning capacities. The plant is operated by Tauron Polska Energia, which manages the integration of these diverse units into the local energy grid.

History of construction and expansion

The Katowice Power Station was developed in distinct phases, beginning with its initial commissioning in the mid-1980s. The facility's construction history is defined by three major expansion stages that increased both its thermal and electric output capabilities. The plant is operated by Tauron Polska Energia and remains operational in Katowice, Poland.

Initial Commissioning and Early Expansion

The first phase of the power station involved the commissioning of two generation units. These two units, each possessing a generation capacity of 144 MWt, entered service in 1985. This initial commissioning established the foundational thermal output of the facility. Several years later, the plant underwent its second major expansion. In 1991, a third unit was added to the existing infrastructure. This third unit had a capacity of 233 MWt, significantly boosting the station's thermal generation potential.

Introduction of the BCF-100 Unit

The most significant technical addition to the Katowice Power Station occurred in the year 2000. During this phase, a new unit of the BCF-100 type was installed. This specific unit provided a heat capacity of 200 MW and an electric generation capacity of 135.5 MW. The installation of the BCF-100 unit marked a key development in the plant's electric output profile. The plant as a whole maintains a heating capacity of 200 MWt.

Year	Event
1985	Commissioning of two units, each with 144 MWt capacity
1991	Addition of a third unit with 233 MWt capacity
2000	Installation of a new BCF-100 unit (200 MW heat, 135.5 MW electric)

How does the Katowice Power Station integrate heating and power?

The Katowice Power Station operates as a combined heat and power (CHP) facility, meaning it simultaneously generates electricity and useful thermal energy for the local district heating network. This dual-output model improves overall thermodynamic efficiency compared to simple cycle power generation, where waste heat is often lost to the atmosphere or a local river. The plant’s heating capacity is a defining feature of its operational profile, providing a stable thermal supply to the urban grid in Katowice.

Thermal Capacity and Unit Configuration

The station’s total heating capacity is 200 MWt, a figure derived from the combined output of its four generating units. The facility’s thermal profile evolved significantly with the addition of its fourth unit in 2000. This newer unit, identified as a BCF-100 type, was specifically designed to contribute to both electric and thermal output. This unit represents a modernization effort, introducing a specific technology class (BCF-100) to the plant’s fleet, which had previously relied on older units commissioned in 1985 and 1991.

The earlier units also contribute to the thermal balance. While the exact thermal split for these older units is not detailed in the primary source, their inclusion in a CHP plant implies they feed into the same 200 MWt total heating capacity figure, likely through extraction turbines or back-pressure configurations typical of coal-fired CHP plants. The BCF-100 unit, however, is explicitly cited as having a heat capacity of 200 MW, which may represent the peak or dedicated thermal output of that specific modernized section, or the total plant capacity if the older units are primarily electric-focused or have been retrofitted.

Significance for the Katowice Thermal Grid

The 200 MWt heating capacity plays a crucial role in the energy infrastructure of Katowice, a city in southern Poland with a long history of coal mining and industrial activity. District heating systems are vital in such urban centers, providing consistent temperature control for residential, commercial, and industrial buildings. By utilizing the waste heat from coal combustion, the Katowice Power Station reduces the need for individual boilers in connected buildings, thereby lowering local emissions and improving fuel efficiency.

The integration of the BCF-100 unit in 2000 likely enhanced the flexibility of the thermal grid. Modern CHP units often offer better part-load performance and faster response times than older technology, allowing the plant to adjust heat output more dynamically to match seasonal and daily demand fluctuations in Katowice. This capability is essential for maintaining grid stability during peak winter months when thermal demand is highest. The plant’s operational status remains active, indicating that its combined output of electricity and heat continues to meet the energy needs of the region, supported by the operator Tauron Polska Energia.

The coal-fired nature of the plant means that the thermal output is directly tied to the combustion process. The efficiency of converting coal into both megawatts of electricity and megawatts of thermal energy is a key performance indicator for CHP plants. The specific mention of the BCF-100 unit’s 200 MW heat capacity highlights the importance of thermal output in the plant’s design and operational strategy. This capacity ensures that the Katowice Power Station is not just a source of electrons but also a critical node in the local thermal infrastructure, providing resilience and efficiency to the city’s energy supply.

Physical infrastructure and the flue gas stack

The physical infrastructure of the Katowice Power Station is defined by its multi-unit configuration and a dominant vertical landmark that integrates energy production with telecommunications. The earliest units, commissioned in 1985, are two identical units with a thermal generation capacity of 144 MWt each. These were followed by a third unit added in 1991, which increased the thermal capacity to 233 MWt. The most recent addition, brought online in 2000, is a BCF-100 type unit that provides a heat capacity of 200 MW and an electric generation capacity of 135.5 MW. This final unit also accounts for the plant’s total heating capacity of 200 MWt.

The Flue Gas Stack and Skyline Presence

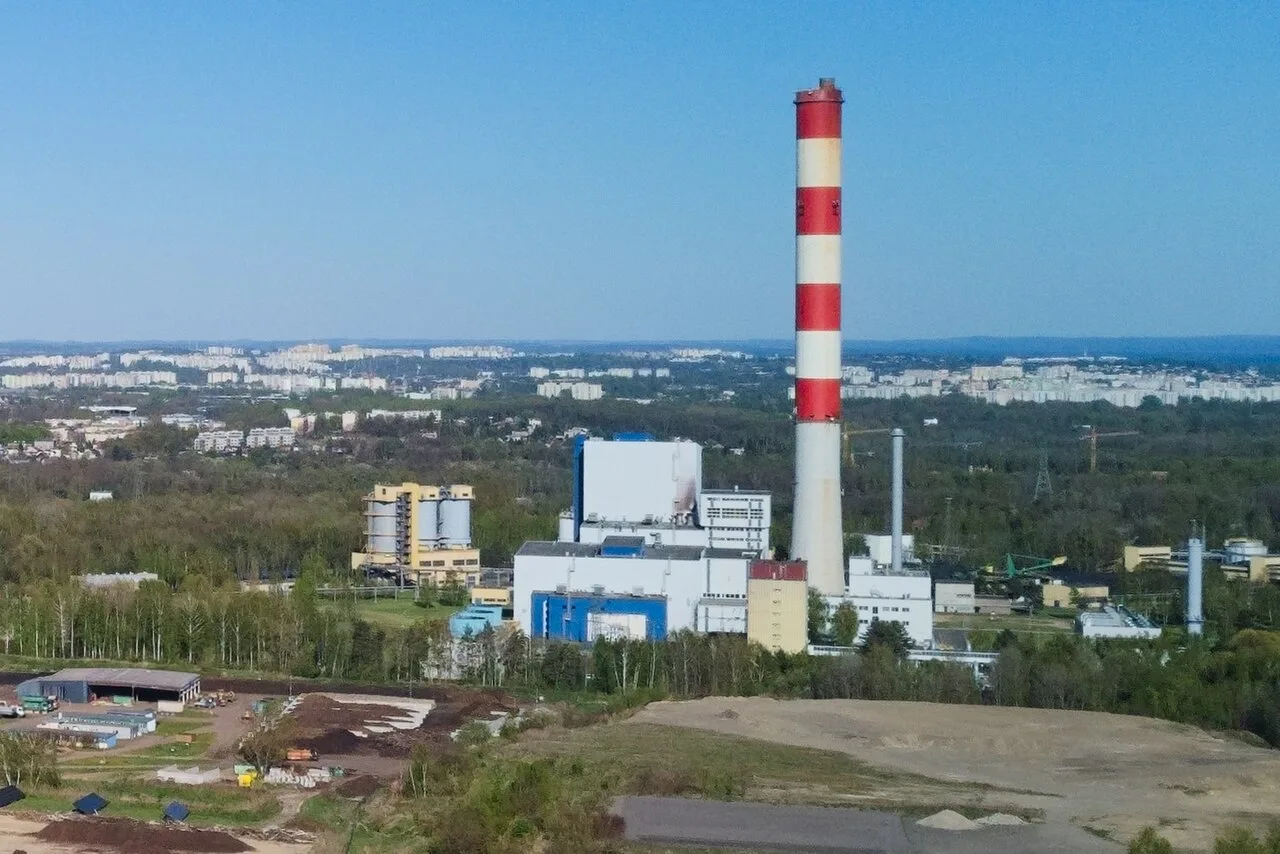

A defining feature of the Katowice Power Station is its 200-metre (660 ft) tall flue gas stack, which serves as a critical component of the plant’s physical footprint and a recognizable element of the Katowice skyline. This structure is not merely a chimney for exhaust dispersion; it is equipped with antennas that extend its utility beyond thermal power generation into the realm of telecommunications and broadcasting. The integration of antennas into the flue gas stack is a common engineering solution in urban power plants, allowing for the efficient use of vertical space and structural stability to support transmission equipment.

The visibility of the 200-metre stack ensures that the power station remains a prominent visual marker in the industrial landscape of Katowice, Poland. As an operational coal-fired power station under the operator Tauron Polska Energia, the plant’s physical presence underscores the continued role of coal in the region’s energy mix. The stack’s height facilitates the dispersion of flue gases over a wider area, which is essential for minimizing local air quality impacts in a densely populated urban environment. The combination of the BCF-100 unit and the towering stack reflects the plant’s evolution from a purely thermal generation facility to a more integrated energy and infrastructure hub.

The structural design of the stack, supporting both the flue gas exhaust and the antenna array, requires robust engineering to withstand environmental loads and thermal stresses. While specific material compositions or construction details of the stack are not detailed in the primary source, its height and dual functionality are well-documented. The antennas mounted on the stack likely support various communication services, contributing to the local infrastructure network. This dual-purpose design is a hallmark of modern power plant engineering, where maximizing the utility of physical assets is a key consideration.

The Katowice Power Station’s physical layout, centered around these four units and the prominent stack, reflects a phased development strategy that has evolved over several decades. From the initial 1985 commissioning to the 2000 addition of the BCF-100 unit, the plant has expanded its capacity and functionality. The stack, standing at 200 metres, remains a constant visual and functional element, linking the plant’s operational history with its ongoing role in Katowice’s energy and communication infrastructure. The plant’s operational status, maintained by Tauron Polska Energia, ensures that this physical infrastructure continues to serve the city’s needs.

Why it matters

The Katowice Power Station serves as a critical node within the energy infrastructure of the Upper Silesian industrial region, a historic heartland of Polish coal mining and metallurgy. As a coal-fired facility operated by Tauron Polska Energia, the plant provides essential baseload power and district heating to one of Europe’s most densely populated industrial corridors. Its operational status ensures grid stability in southern Poland, where the concentration of heavy industry creates fluctuating demand patterns that require flexible generation sources.

Regional Energy Role

Within the Upper Silesian conurbation, the Katowice plant functions not merely as an electric generator but as a combined heat and power (CHP) unit. The facility’s heating capacity of 200 MWt is vital for district heating networks that supply residential and commercial buildings in Katowice and surrounding municipalities. This dual-output capability improves overall thermal efficiency compared to simple-cycle power plants, making the station strategically important for winter energy security in the region. The integration of electric generation and heat supply allows Tauron Polska Energia to optimize fuel usage, reducing waste heat and enhancing the economic viability of the coal asset in a competitive energy market.

Comparison with Major Polish Coal Plants

While significant locally, the Katowice Power Station is modest in scale compared to Poland’s largest coal-fired giants. The plant’s total electric capacity of 135.5 MW, derived from its newest BCF-100 type unit, represents only a fraction of the output of major regional facilities. For context, the Bełchatów Power Station, located in the Łódź Voivodeship, is the largest coal-fired power station in Europe, with an installed capacity exceeding 5,000 MW. Similarly, the Jaworzno Power Station, also situated in Upper Silesia, boasts a total capacity of approximately 2,400 MW, making it one of the most critical generation hubs in the region.

The Katowice plant’s four units, including two 144 MWt units commissioned in 1985 and a 233 MWt unit added in 1991, reflect a phased expansion strategy typical of mid-sized Polish power stations. The addition of the 135.5 MW electric unit in 2000 modernized the plant’s output profile, allowing it to remain competitive despite the dominance of larger supercritical and ultra-supercritical units elsewhere in the national grid. Unlike Bełchatów, which primarily serves the national transmission grid, the Katowice station’s role is more localized, balancing regional load and providing thermal energy to the immediate urban area.

This distinction highlights the diversity of Poland’s coal power infrastructure. While mega-plants like Bełchatów and Jaworzno drive national export potential and base load stability, facilities like Katowice ensure resilience at the regional level. The plant’s continued operation underscores the importance of distributed generation assets in maintaining energy security in Upper Silesia, where industrial demand and urban heating needs intersect. As Poland transitions its energy mix, the Katowice Power Station remains a key component of the regional supply chain, bridging the gap between large-scale generation and localized energy consumption.

What distinguishes Katowice from other Polish coal plants?

The Katowice Power Station occupies a distinct niche within Poland’s thermal generation landscape, primarily defined by its relatively modest scale and its dual-purpose design. Unlike the massive baseload facilities that dominate the national grid, Katowice operates with a total electric capacity of 135.5 MW. This figure is significantly lower than the output of major Polish coal plants such as Bełchatów or Jaworzno, which typically feature units exceeding 300 MW each. The station’s structure reflects a hybrid approach to energy production, combining electricity generation with substantial heating output.

Capacity and Unit Configuration

The plant consists of four units, but only the most recent addition contributes to the stated electric capacity. A third unit, added in 1991, contributed 233 MWt. These early units were primarily focused on thermal output. In 2000, the operator Tauron Polska Energia added a new unit of the BCF-100 type. The total heating capacity of the entire plant is 200 MWt. This configuration makes Katowice a significant combined heat and power (CHP) facility rather than a pure baseload electric generator.

Comparative Context

When compared to other major Polish coal facilities, Katowice’s role is specialized. Plants like Bełchatów, the largest in Central Europe, or Kozienice and Połaniec, are designed primarily for high-volume electric output to feed the national transmission grid. Katowice, by contrast, serves a more localized function in the Silesian region. Its operational history, beginning in 1985, places it in the era of post-industrial expansion, but its capacity has remained relatively static compared to the multi-phase expansions seen at Łaziska or Jaworzno. The reliance on coal as the primary fuel aligns it with the broader Polish energy mix, but its smaller scale allows for greater flexibility in meeting local heating demands alongside electricity production. This dual focus distinguishes it from larger, single-purpose coal-fired stations that prioritize megawatt-hours over thermal efficiency for district heating.
