Overview
The Karun-4 Dam is a major hydroelectric infrastructure project located in the Chaharmahal and Bakhtiari province of Iran. Situated on the Karun River, the structure is positioned approximately 180 km southwest of the city of Shahr-e Kord. The Karun River is noted for having the highest discharge of all rivers in Iran, providing the essential hydraulic head and flow required for the dam’s operational efficiency. The dam is engineered as a concrete double curvature arch dam, a design choice that leverages the topography of the river valley to distribute water pressure effectively into the abutments. This structural form allows for a height of 230 metres, making it one of the significant vertical structures in the regional power grid.
The primary functions of the Karun-4 Dam are hydroelectric power generation and flood control for the upper Karun basin. The facility has an installed capacity of 1020 MW, contributing significantly to the energy mix of the Khuzestan and Chaharmahal and Bakhtiari provinces. According to project specifications, the dam is aimed at generating an annual hydroelectric power supply of 2,107 million kWh. This output helps stabilize the regional grid, particularly during peak demand periods. Beyond energy production, the dam plays a critical role in mitigating flood risks in the upper Karun region, protecting downstream agricultural lands and urban centers from seasonal surges.
The Karun-4 Dam was commissioned in 2010, marking a key milestone in Iran’s modern hydroelectric development strategy. The project represents a substantial investment in renewable energy infrastructure, utilizing the natural gradient of the Zagros Mountains. The operational status of the plant remains active, with the arch dam continuing to regulate water flow and drive turbines for electricity generation. The integration of flood control and power generation highlights the dual-purpose nature of the infrastructure, balancing energy needs with hydrological management in one of Iran’s most vital river systems.
Why it matters
The Karun-4 Dam holds a strategic position within Iran's national energy infrastructure, primarily due to its location on the Karun River, which possesses the highest discharge of all rivers in the country. This hydrological advantage allows the facility to serve as a critical node in the broader Karun River cascade system, a network of dams designed to optimize water usage for both power generation and downstream economic activities.
Energy Generation Capacity
As an operational hydroelectric power plant with an installed capacity of 1020 MW, the Karun-4 Dam contributes significantly to the stability of the regional power grid. The facility is designed to generate an annual energy supply of 2,107 million kWh, providing a substantial volume of renewable electricity to support industrial and residential demand in western Iran. This output is vital for balancing the load on the national grid, particularly given the variability inherent in hydroelectric production and the growing energy consumption patterns of the Chaharmahal and Bakhtiari province and surrounding regions.
Flow Regulation and Downstream Impact
Beyond electricity generation, the dam plays a crucial role in flood control and water management for the upper Karun basin. By regulating the river's flow, the Karun-4 Dam mitigates flood risks for downstream communities and ensures a more consistent water supply for agriculture and industry. The arch dam structure, located 180 km southwest of Shahr-e Kord, acts as a buffer that smooths out seasonal variations in river discharge, thereby enhancing the reliability of water resources for sectors that depend on the Karun River's abundant flow. This dual function of power generation and hydrological regulation underscores the dam's importance in sustaining the economic and environmental balance of the region.
Engineering Design and Specifications
The Karun-4 Dam is an arch dam constructed on the Karun River, situated 180 km southwest of Shahr-e Kord in the Chaharmahal and Bakhtiari province of Iran. The Karun River is noted for having the highest discharge of all Iranian rivers, providing a significant water source for the hydroelectric facility. The dam's primary engineering objectives include generating hydroelectric power and controlling floods in the upper Karun basin.
Structural Design
The dam features a double curvature arch-type design, a structural configuration specifically suited for narrow, rocky gorges. This arch design effectively presses the water force downward, thereby strengthening the foundation and enhancing the overall stability of the structure. The arch shape allows the dam to utilize the natural strength of the gorge walls to support the water load, making it an efficient choice for the Karun River's topography.
Reservoir Statistics
The reservoir created by the Karun-4 Dam has a surface area of 29 square kilometres and a capacity of 2.19 cubic kilometres, which is equivalent to 1,780,000 acre-feet. These reservoir dimensions contribute to the dam's flood control capabilities and water storage for hydroelectric power generation.
| Technical Specification | Value |
|---|---|
| Dam Type | Arch dam |
| Location | Karun River, 180 km southwest of Shahr-e Kord, Chaharmahal and Bakhtiari, Iran |
| Reservoir Surface Area | 29 square kilometres |
| Reservoir Capacity | 2.19 cubic kilometres (1,780,000 acre-ft) |
| Annual Power Generation | 2,107 million kWh |
| Installed Capacity | 1020 MW |
| Commissioned Year | 2010 |
| Operational Status | Operational |
Construction History and Timeline
The development of the Karun-4 Dam began with initial studies in 1995, marking the start of a multi-decade engineering effort to harness the discharge of Iran's highest-flowing river. The project aimed to generate 2,107 million kWh annually and provide flood control for the upper Karun basin. Construction activities progressed through distinct phases, beginning with the diversion of the river in 1997 to expose the foundation for the arch dam structure.
Construction Phases

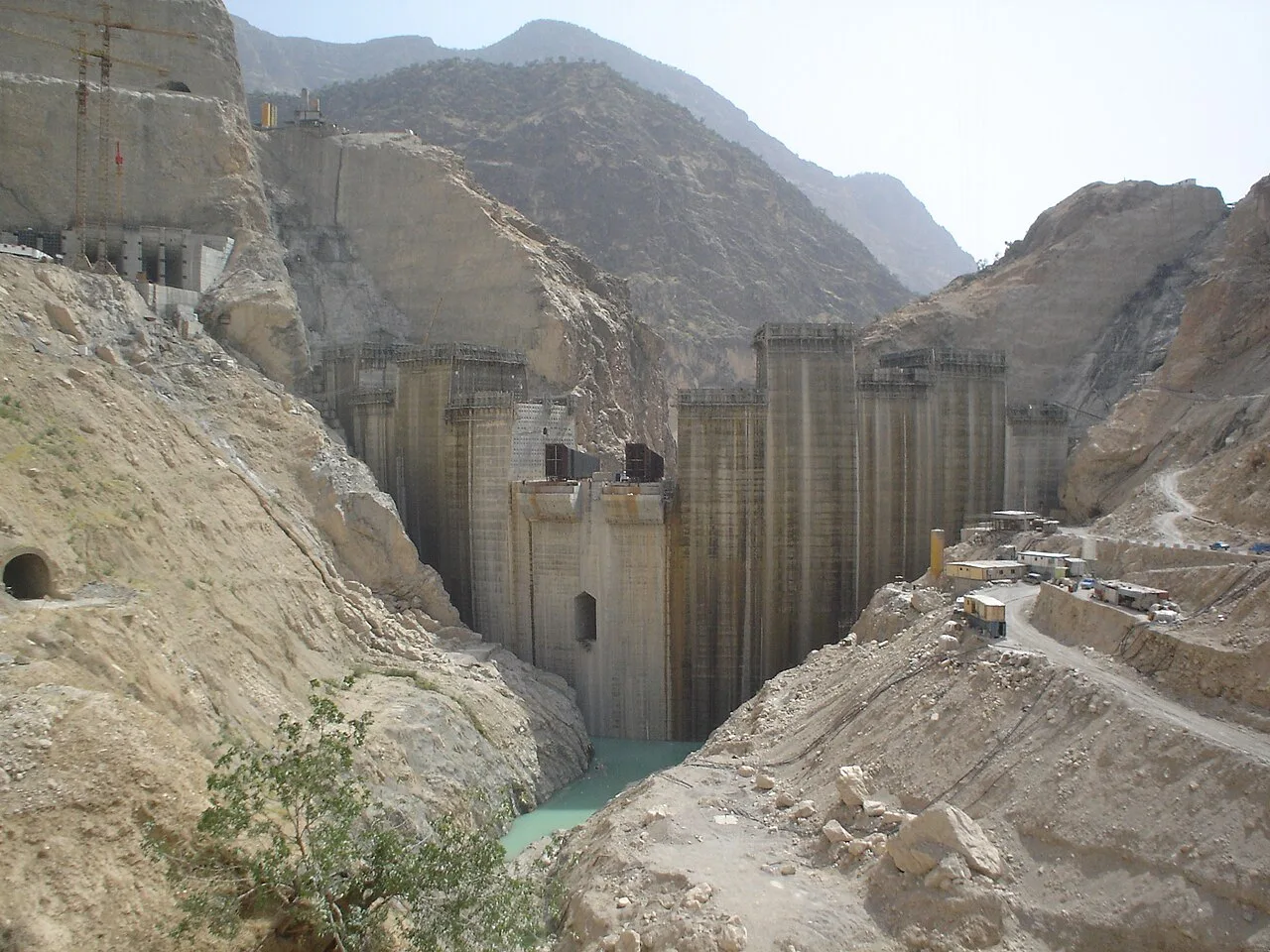

Following the river diversion, the project entered a period of preparation and infrastructure development before the main structural work commenced. Concrete pouring for the dam structure began in 2006, a key milestone in the physical realization of the 1020 MW facility. The construction process involved significant logistical coordination to manage the flow of the Karun River while erecting the arch dam 180 km southwest of Shahr-e Kord in Chaharmahal and Bakhtiari province.
Commissioning and Inauguration
Power production officially started in November 2010, bringing the hydroelectric plant into operational status. The second generator was connected to the grid on 11 December 2010, further solidifying the plant's initial output capabilities. The formal inauguration of the Karun-4 Dam took place on 6 July 2011, presided over by President Mahmoud Ahmadinejad. This event marked the completion of the primary construction phase and the full integration of the dam into Iran's energy infrastructure.
| Year | Event |
|---|---|
| 1995 | First studies for the Karun-4 Dam project initiated |
| 1997 | River diversion completed to begin foundation work |
| 2006 | Concrete pouring for the arch dam structure began |
| 2010 | Power production began in November |
| 2010 | Second generator connected on 11 December |
| 2011 | Official inauguration on 6 July by President Mahmoud Ahmadinejad |
How does the arch dam design work?
The Karun-4 Dam utilizes an arch dam design, a structural form specifically chosen to leverage the geological characteristics of the Karun River valley. An arch dam is defined by its curved shape, which faces upstream towards the reservoir. This curvature is not merely aesthetic; it is the primary mechanism for transferring the immense hydrostatic pressure of the backed-up water. Instead of relying solely on its own weight to resist the water's push, as a gravity dam does, an arch dam transfers the load laterally into the abutments of the valley walls and downward into the foundation. This dual transfer of force effectively strengthens the dam foundation, allowing for a thinner structure relative to its height compared to other dam types.
Structural Mechanics and Foundation Load
The double curvature of an arch dam means it curves both horizontally across the river and vertically along its height. This geometry ensures that the force of the water is distributed efficiently. The horizontal arch action pushes the water pressure into the rock faces on either side of the river, while the vertical curvature helps distribute the load down to the bedrock. For the Karun-4 Dam, located 180 km southwest of Shahr-e Kord in Chaharmahal and Bakhtiari province, this design is critical. The Karun River has the highest discharge of all Iranian rivers, generating significant hydraulic pressure. The arch design allows the dam to withstand this high volume of water by anchoring firmly into the valley's geology, reducing the amount of concrete required while maintaining structural integrity under varying water levels.
Operational Benefits for Flood Control and Power
This structural efficiency directly supports the dam's dual operational goals: hydroelectric power generation and flood control. The Karun-4 Dam is designed to generate 2,107 million kWh of electricity annually. The stability provided by the arch design ensures consistent performance during high-discharge periods, which are common in the upper Karun basin. By effectively managing the water's force, the dam can regulate flow more precisely, mitigating flood risks for downstream areas while maintaining the head pressure necessary for efficient power generation. The arch dam's ability to handle high hydraulic loads makes it an optimal choice for the Karun River's specific hydrological profile, ensuring long-term operational reliability in Iran's energy infrastructure.
What are the operational objectives of Karun-4?
The Karun-4 Dam serves three primary operational objectives: hydroelectric power generation, flood control, and the regulation of river flow for downstream industrial and agricultural sectors. As an arch dam situated on the Karun River, the facility is designed to harness the river’s significant discharge capacity, which is noted as the highest among all Iranian rivers. The infrastructure is engineered to generate an average annual hydroelectric energy output of 2,107 million kWh, contributing substantially to the regional power grid. This generation capacity supports the operational status of the plant, which has been active since its commissioning in 2010.
Flood Control and Flow Regulation
A critical function of the Karun-4 Dam is the mitigation of destructive flooding in the upper Karun basin. The river’s high discharge volume poses significant risks to surrounding infrastructure and settlements, necessitating robust hydraulic management. The dam’s reservoir acts as a buffer, capturing peak flows during high-water periods and releasing them in a controlled manner. This regulation is essential for stabilizing the river’s behavior, reducing the frequency and severity of flood events that historically impacted the Chaharmahal and Bakhtiari province.
In addition to flood control, the dam plays a vital role in regulating water flow for downstream users. The Karun River supports extensive agricultural activities and industrial operations that depend on consistent water availability. By managing the discharge rates, the Karun-4 Dam ensures a more predictable water supply, enhancing the efficiency of irrigation systems and industrial processes located further along the river’s course. This regulatory function is integral to the broader water resource management strategy for the region.
Integration with the Karun River Cascade System
The Karun-4 Dam is not an isolated structure but a key component of the larger Karun River hydroelectric cascade. This system comprises multiple dams and reservoirs strategically positioned along the river to maximize energy production and water utilization. The integration of Karun-4 into this cascade allows for coordinated operation, where the output and storage of one dam can influence the performance of others. This synergy enhances the overall efficiency of the hydroelectric network, enabling better load balancing and energy distribution.
The location of the Karun-4 Dam, approximately 180 km southwest of Shahr-e Kord, places it in a strategic position within the cascade. Its arch design is particularly suited to the topographical features of the site, allowing for effective water retention and pressure management. The dam’s contribution to the cascade system underscores its importance in the broader context of Iran’s hydroelectric infrastructure, supporting both local and national energy goals. The operational objectives of power generation, flood control, and flow regulation are thus achieved through a cohesive and integrated approach, leveraging the natural advantages of the Karun River.
Geographic and Environmental Context
This positioning places the structure within a critical hydrological zone in western Iran, where the topography supports the construction of a significant arch dam. The specific coordinates and administrative region are defined by the proximity to Shahr-e Kord, serving as the primary geographic reference point for the facility's location within the national grid infrastructure.
The Karun River is characterized as having the highest discharge of all the Iranian rivers, a distinction that underpins the strategic importance of the Karun-4 Dam for national energy production. This high volumetric flow rate provides the necessary hydraulic head and consistency required for the dam's 1020 MW installed capacity and its projected annual generation of 2,107 million kWh. The river's hydrological dominance in the region makes it a primary target for hydroelectric development, flood control, and water resource management in Iran's western provinces.
The construction of the Karun-4 Dam has significantly altered the local landscape, creating a reservoir that serves dual purposes of power generation and flood mitigation. The project is explicitly aimed at controlling floods in the upper Karun basin, addressing seasonal variability in river discharge that historically impacted downstream communities and agricultural zones. The arch dam design is particularly suited to the valley geometry at this location, allowing for efficient water retention and pressure distribution across the structure. The resulting reservoir modifies the immediate ecological and topographical features of the upper Karun, influencing local water tables, sediment transport, and the broader hydrological balance of the Chaharmahal and Bakhtiari province. These environmental modifications are integral to the dam's operational function, balancing energy output with the need for flood control in one of Iran's most significant river systems.
