Intake (fluid dynamics)

Overview

An intake is defined as an opening, structure, or system through which a fluid is admitted to a space or machine. This admission occurs as a direct consequence of a pressure differential between the outside environment and the interior volume. The pressure difference driving the flow may be generated on the inside by a mechanical mechanism, such as a pump or turbine, or on the outside by forces such as ram pressure or hydrostatic pressure. The fundamental principle relies on the fluid moving from a region of higher pressure to a region of lower pressure to equalize the differential.

Flow rate through the intake is determined by several key variables. According to the provided grounding, the flow rate depends on the magnitude of the pressure difference, the physical properties of the fluid, and the specific geometry of the intake structure. These factors interact to define the volumetric or mass flow entering the system. The geometry of the intake plays a critical role in minimizing losses and ensuring smooth fluid entry, which is essential for efficient operation in energy infrastructure applications such as cooling systems, hydroelectric turbines, and thermal power plant condensers.

Distinctions: Inlet, Diffuser, and Intake System

While the terms are often used interchangeably in general engineering discourse, distinct technical definitions apply within the context of fluid dynamics and energy infrastructure. An inlet typically refers to the specific point or aperture where the fluid first enters the system boundary. It is the initial interface between the external fluid source and the internal machine or space. The inlet may be a simple hole or a complex valve assembly, but its primary function is to admit the fluid.

A diffuser is a component often associated with, but distinct from, the intake opening. A diffuser is a passage that increases in cross-sectional area, designed to convert kinetic energy into pressure energy. In many intake systems, the fluid enters through an inlet, passes through a diffuser to slow down and increase pressure, and then enters the main machine or space. The diffuser helps to reduce turbulence and streamline the flow, improving the efficiency of the subsequent mechanical components.

An intake system encompasses the entire assembly required to admit and condition the fluid. This includes the inlet opening, any guiding structures such as diffusers or vanes, filtration mechanisms, and control valves. The system is designed to manage the pressure differential effectively, ensuring that the fluid enters the machine at the desired flow rate and with minimal energy loss. The geometry of the intake system is critical in determining the overall performance of the fluid admission process, influencing factors such as cavitation risk, noise generation, and thermal efficiency in energy applications.

How do intakes function in fluid dynamics?

Intakes function as critical interfaces in fluid systems, governing the admission of fluids into enclosed spaces or machinery. The fundamental driving force is a pressure differential between the external environment and the internal volume. This pressure difference may be generated internally by mechanical mechanisms, such as pumps or compressors, or externally through dynamic effects like ram pressure or static effects like hydrostatic pressure. The resulting flow rate is determined by the magnitude of this pressure difference, the physical properties of the fluid, and the geometric configuration of the intake structure.

Pressure Differentials and Flow Drivers

The operational mechanism relies on the contrast between outside and inside pressures. In many engineering applications, ram pressure—generated by the relative motion of the intake structure through the fluid—provides the primary driving force. Alternatively, hydrostatic pressure, resulting from the weight of the fluid column above the intake, can dominate in submerged systems. The pressure difference may also be generated on the inside by a mechanism, creating a suction effect that draws fluid inward. The flow rate through the intake depends on pressure difference, fluid properties, and intake geometry, making these parameters critical for system design and performance optimization.

Flow Rate Dependencies and Entry Loss

The efficiency of fluid admission is significantly influenced by entry loss, which occurs as fluid particles accelerate and converge into the intake opening. This phenomenon results in kinetic energy dissipation due to viscous effects and flow separation. The flow rate through the intake depends on pressure difference, fluid properties, and intake geometry, meaning that even minor geometric variations can alter the pressure drop and volumetric throughput. Engineers must account for these factors to ensure that the intake can deliver the required flow rate without excessive energy loss or cavitation risk.

Capture Area and Geometric Considerations

The concept of capture area defines the effective region from which fluid is drawn into the intake. This area is not always identical to the physical cross-section of the opening, as streamlines converge from a wider region upstream. The intake geometry plays a crucial role in determining how efficiently the fluid is admitted to a space or machine as a consequence of a pressure differential between the outside and the inside. Proper design ensures that the pressure difference may be generated on the inside by a mechanism, or on the outside by ram pressure or hydrostatic pressure, with minimal turbulence and optimal flow alignment.

What are the main types of intakes?

Intake systems are classified by their operational environment and the specific fluid dynamics challenges they present. The design priorities shift significantly between hydroelectric, automotive, and aviation applications, driven by differences in pressure differentials and fluid properties.

Hydroelectric Intakes

In hydroelectric power generation, intakes admit water into penstocks or turbine casings. These structures rely on hydrostatic pressure to drive flow. The geometry is critical to minimize head loss and prevent vortex formation, which can introduce air into the turbine and reduce efficiency. Flow rate depends on the pressure difference between the reservoir and the turbine inlet, as well as the intake’s cross-sectional area and shape.

Automotive Intakes

Automotive intakes manage the admission of air-fuel mixtures or pure air into internal combustion engines or turbochargers. The pressure differential is often generated by the engine’s piston movement (suction) or by ram pressure at higher speeds. Design focuses on optimizing the flow rate to match engine RPM, balancing volumetric efficiency against aerodynamic drag. The intake geometry must accommodate variable fluid properties as temperature and density change.

Aviation Intakes

Aviation intakes, such as those on jet engines, operate under extreme dynamic conditions. They utilize ram pressure to compress incoming air before it enters the compressor stages. The design must maintain stable flow across a wide range of Mach numbers, minimizing shock waves and turbulence. The pressure difference is generated primarily by the aircraft’s forward motion, making the intake geometry crucial for maintaining engine performance at high altitudes and speeds.

Application	Primary Pressure Source	Key Design Priority	Fluid
Hydroelectric	Hydrostatic pressure	Minimize head loss and vortex formation	Water
Automotive	Piston suction / Ram pressure	Optimize flow rate for RPM and volumetric efficiency	Air / Air-Fuel Mixture
Aviation	Ram pressure	Maintain stable flow at high Mach numbers	Air

The fundamental principle across all types is that the flow rate is a function of the pressure differential, fluid properties, and intake geometry. Engineers must tailor the intake structure to the specific pressure generation mechanism—whether internal mechanical action or external dynamic pressure—to ensure efficient fluid admission.

Hydroelectric intakes and dam infrastructure

Hydroelectric intakes serve as the primary hydraulic interface between a reservoir and the power generation machinery. These structures are designed to admit water from the upstream body, controlling the flow rate and quality of water delivered to the turbines. The intake system is critical for maintaining the pressure differential required to drive the fluid through the downstream infrastructure, including pressure pipes or penstocks. Proper design ensures that the flow remains stable, minimizing turbulence and energy losses before the water reaches the turbine runner.

Flow Control and Regulation

The regulation of water flow is achieved through various mechanical components integrated into the intake structure. Gates, valves, and trash racks are commonly used to modulate the volume of water entering the system. These controls allow operators to adjust the flow rate in response to changing power demands or variations in the reservoir level. The pressure difference between the outside reservoir and the inside of the intake mechanism drives the flow. This pressure differential may be generated by the hydrostatic pressure of the water column or by the ram pressure of the incoming fluid. The flow rate through the intake depends on this pressure difference, the properties of the fluid, and the geometry of the intake opening.

Delivery to Turbines and Penstocks

Once admitted, the water is directed into pressure pipes or penstocks that convey it to the turbine. The intake structure must ensure a smooth transition to minimize hydraulic losses. The geometry of the intake is optimized to reduce turbulence and cavitation, which can erode the structure and reduce efficiency. The fluid properties, such as density and viscosity, influence the flow characteristics. The intake system must also handle variations in water quality, filtering out debris and sediment to protect the turbine blades. The pressure differential is maintained to ensure a consistent flow rate, which is crucial for the stable operation of the hydroelectric generator. The design of the intake and the subsequent penstock system is integral to the overall efficiency of the hydroelectric plant.

Automobile engine intake systems

Automobile engine intake systems have evolved from rudimentary openings into complex assemblies designed to optimize airflow, filtration, and pressure dynamics. The fundamental principle remains the admission of fluid—primarily air or an air-fuel mixture—into the engine cylinder due to a pressure differential. Early automotive engines relied on simple carburetor inlets where atmospheric pressure and the piston's downward stroke created the necessary suction. The 1915 Packard Twin Six exemplifies this early era, utilizing a straightforward intake manifold design that distributed the carbureted mixture to the six cylinders. At this stage, the intake geometry was relatively simple, with flow rate determined largely by the throttle plate position and the engine's rotational speed.

Modern Intake Components and Sensors

Contemporary intake systems incorporate multiple components to enhance efficiency and combustion control. Air filters are standard, removing particulates before the air enters the throttle body. The throttle body itself acts as the primary valve, regulating the mass of air entering the engine based on driver input. Modern engines utilize mass airflow (MAF) sensors to measure the actual density and volume of incoming air, allowing the engine control unit to adjust fuel injection precisely. This contrasts with older speed-density systems that estimated airflow based on manifold absolute pressure (MAP) and engine RPM.

Engineers design these tracts to minimize turbulence and optimize the velocity of the air charge. The relationship between flow and pressure can be conceptually linked to the Bernoulli principle, where an increase in fluid velocity corresponds to a decrease in static pressure. In a simplified model, the volumetric flow rate Q through an intake opening can be related to the pressure difference ΔP and the effective area A of the intake, often expressed in forms similar to Q=A⋅v, where v is the velocity derived from the pressure differential. Modern systems may also include variable intake manifolds that change the length or cross-sectional area of the intake path to optimize torque at different engine speeds, further refining the pressure dynamics within the cylinder.

How do performance modifications affect car intakes?

Performance modifications to automotive intake systems fundamentally alter the volumetric efficiency and dynamic pressure waves within the engine's breathing circuit. The primary goal is to optimize the mass airflow rate, m˙, which is governed by the pressure differential ΔP across the intake opening and the effective flow area A. Modifications aim to maximize ΔP or reduce geometric restrictions to increase the mass of air-fuel mixture admitted to the combustion chamber.

Impact of Silencers and Aftermarket Throttle Bodies

Silencers, or air filters, introduce a trade-off between filtration efficiency and flow restriction. Standard cotton-gauze or foam filters reduce turbulence but may increase the pressure drop across the intake path. High-flow aftermarket silencers often utilize pleated media to increase surface area A, thereby reducing the velocity head loss. This modification can slightly increase peak power by allowing a higher volumetric flow rate at high engine speeds, where the inertial forces of the air mass dominate. However, excessive flow area without corresponding density increases may reduce low-end torque due to decreased air velocity and mixing efficiency.

Aftermarket throttle bodies typically feature a larger bore diameter than stock units. This increases the maximum cross-sectional area available for airflow, reducing the throttling loss at wide-open throttle (WOT). The pressure differential ΔP between the manifold and the atmosphere is minimized, allowing the engine to breathe more freely. However, a larger throttle body can reduce the air velocity at partial throttle openings, potentially weakening the torque curve in the lower RPM range. This is because the dynamic pressure, or ram pressure, generated by the moving air mass is proportional to the square of the velocity.

Resonance Tuning and Flow Bench Testing

Resonance tuning exploits the wave dynamics of the intake charge. By adjusting the length and volume of the intake runners or plenum, engineers can create constructive interference of pressure waves. When the intake valve closes, the pressure wave reflects off the end of the runner and returns to the valve. If timed correctly, this returning high-pressure wave pushes additional air into the cylinder, effectively increasing the static pressure inside the combustion chamber. This phenomenon enhances torque at specific engine speeds, depending on the runner length and the speed of sound in the intake air.

Flow bench testing is the empirical method used to quantify these geometric effects. In a flow bench setup, air is forced through the intake component at a known pressure differential ΔP. The resulting flow rate is measured, allowing for the calculation of the discharge coefficient and the effective flow area. This testing reveals how changes in intake geometry, such as the curvature of the runner or the shape of the throttle body, impact the overall flow characteristics. Data from flow bench testing provides the basis for optimizing intake design for specific engine performance goals, balancing peak power with torque consistency.

Aircraft intakes and supersonic flight

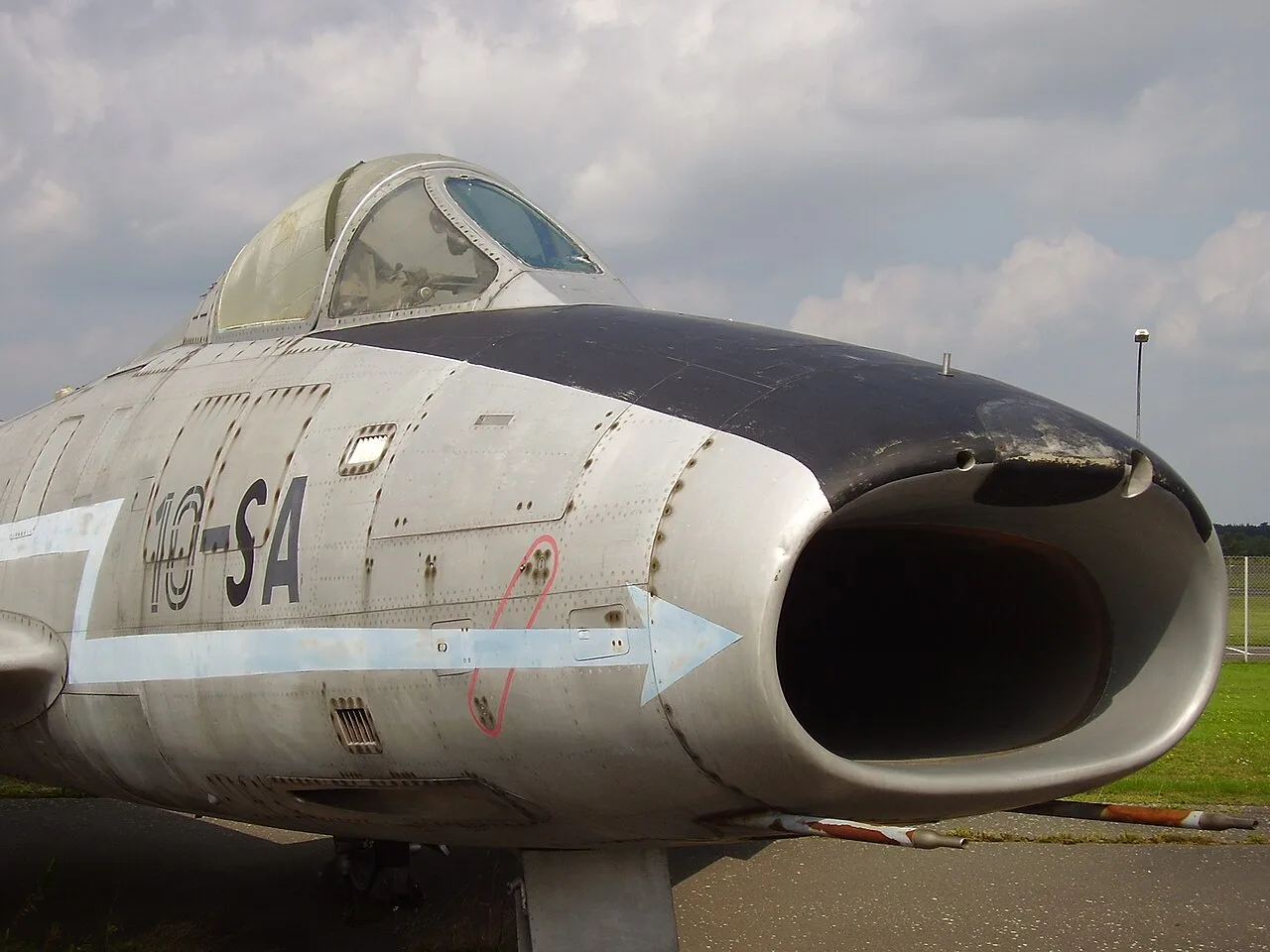

Aircraft intakes face distinct aerodynamic challenges depending on the propulsion system. Piston engines typically utilize simple openings or ducts, as the internal combustion process creates a pressure differential that draws in air. In contrast, jet engines require more complex intake structures to manage higher flow rates and pressure ratios. The design must ensure that the airflow matches the engine's mass flow requirements across varying flight speeds and altitudes.

Supersonic Intake Design

For aircraft flying at supersonic speeds, particularly above Mach 2, the intake design becomes critical. At these velocities, the incoming air must be decelerated to subsonic speeds before entering the compressor stages of the jet engine. This deceleration is achieved through a series of shock waves. Variable geometry intakes are often employed to optimize performance across different Mach numbers. These intakes can adjust their shape or internal components to position the shock waves correctly, ensuring efficient pressure recovery and minimizing total pressure loss.

XB-70 and SR-71 Intake Systems

The North American XB-70 Valkyrie and the Lockheed SR-71 Blackbird exemplify advanced supersonic intake designs. The XB-70 featured variable geometry intakes with movable ramps and spikes. These components helped manage the shock waves generated at high speeds, ensuring that the airflow was properly conditioned for the engines. The SR-71, designed for sustained Mach 3+ flight, utilized a more sophisticated intake system. Its intakes included movable ramps and a variable area throat, which adjusted to maintain optimal pressure ratios across a wide range of flight conditions. The design of these intakes was crucial for the performance and efficiency of these high-speed aircraft, demonstrating the importance of precise airflow management in supersonic flight.

What are blow-in doors and how do they work?

Blow-in doors represent a specific mechanical application of intake principles in early jet aircraft, such as the Boeing 707 and 737. These spring-loaded panels are designed to admit air into the engine nacelle or auxiliary systems when the pressure differential between the outside environment and the interior space reaches a critical threshold. The fundamental operation relies on the pressure difference generated by ram pressure or hydrostatic pressure, which forces the panels to open and allow fluid admission. This mechanism is crucial for preventing engine stalls and reducing noise at low speeds, where the natural airflow might be insufficient to maintain optimal pressure conditions within the engine bay.

Mechanical Operation and Pressure Dynamics

The function of these doors is governed by the relationship between flow rate, pressure difference, fluid properties, and intake geometry. When the aircraft is at low speeds, the ram pressure outside the intake may not be sufficient to overcome the internal pressure, causing the spring-loaded panels to remain closed or partially open. As the pressure differential increases, the panels are forced open, allowing more air to enter the system. This process helps to stabilize the airflow and prevent stalls, which can occur when the engine does not receive enough air to maintain combustion efficiency.

In the case of the Boeing 707 and 737, the blow-in doors are typically located on the side of the engine nacelle and are designed to open when the external pressure exceeds the internal pressure by a specific amount. This ensures that the engine receives a consistent supply of air, even at low speeds where the natural airflow might be turbulent or insufficient.

The geometry of the blow-in doors is carefully designed to minimize noise and turbulence while maximizing the efficiency of the air intake. The spring-loaded mechanism ensures that the doors can respond quickly to changes in pressure, allowing for precise control over the amount of air admitted to the engine. This is particularly important during takeoff and landing, when the aircraft is most susceptible to stalls and noise issues.

In summary, blow-in doors are a critical component of early jet aircraft, providing a mechanical solution to the problem of maintaining optimal airflow and pressure conditions within the engine bay. By utilizing the principles of pressure differential and fluid dynamics, these doors help to prevent stalls and reduce noise, ensuring smooth and efficient operation of the aircraft at low speeds.

Applications in energy and transportation

Intake systems are fundamental components in energy conversion and transportation, where the geometry and flow dynamics directly influence overall efficiency. In hydroelectric power generation, the intake structure regulates the admission of water into penstocks and turbines. The flow rate is governed by the pressure differential between the reservoir and the turbine inlet, often modeled using the Bernoulli equation: P+21ρv2+ρgh=constant. Proper intake design ensures that the fluid properties and geometric constraints align to maximize the kinetic energy transferred to the turbine blades, directly impacting the plant's output capacity.

Automotive Combustion Intakes

In internal combustion engines, the intake system manages the flow of air or air-fuel mixture into the cylinders. The efficiency of this process depends on the pressure differential created by the piston's downward stroke and the geometry of the intake manifold. Modern designs utilize variable geometry to optimize the flow rate across different engine speeds. The mass flow rate m˙ is critical for determining the stoichiometric balance, expressed as m˙=ρAv, where ρ is the fluid density, A is the cross-sectional area, and v is the velocity. Optimizing these parameters reduces pumping losses and enhances volumetric efficiency, leading to improved fuel economy and power output. The intake system must also filter contaminants to protect engine components, balancing flow resistance with filtration effectiveness.

Aviation Propulsion Intakes

Aviation propulsion systems rely on intakes to admit air into jet engines or propellers. The design must account for ram pressure, which increases with aircraft speed, and hydrostatic pressure variations at different altitudes. Supersonic intakes often feature complex geometries, such as shock cones or ramps, to decelerate the airflow to subsonic speeds before it reaches the compressor. This process minimizes total pressure loss and ensures stable combustion. The efficiency of the intake directly affects the engine's thrust-to-weight ratio and fuel consumption. In turboprop engines, the intake must also manage the boundary layer to prevent flow separation, which can cause vibrations and reduce aerodynamic efficiency. The integration of intake design with the overall aircraft aerodynamics is crucial for minimizing drag and maximizing range.
