Name: Hohhot Pumped Storage Power Station
Address: CN

Overview

The Hohhot Pumped Storage Power Station, also referred to as the Huhehaote Pumped Storage Power Station, is a major hydroelectric facility located in Inner Mongolia, China. Situated approximately 20 kilometres (12 mi) north of the city of Hohhot, the plant serves as a critical component of the regional energy infrastructure, utilizing the pumped-storage hydroelectric method to generate electricity. This technology allows for efficient energy management by storing potential energy in water reservoirs, which is then converted back into electrical power during periods of high demand. The facility is currently operational and plays a significant role in stabilizing the local grid, providing flexibility and reliability to the energy supply in the region. The plant has an installed capacity of 1,224 megawatts (1,641,000 hp), making it one of the substantial power generation assets in the province. Construction of the Hohhot Pumped Storage Power Station began in 2005, marking the start of a decade-long development phase that involved significant engineering efforts to integrate the facility into the local topography. The commissioning process was executed in stages, with the first generator coming online on 20 November 2014. This was followed shortly after by the second generator, which was commissioned on 26 December 2014. The final two generators were brought into service in June 2015, completing the full installation of the plant's capacity. As a pumped-storage facility, the Hohhot Power Station operates by pumping water to an upper reservoir during periods of low electricity demand, typically when base-load power is abundant or renewable sources like wind and solar are producing excess energy. When demand peaks, the water is released back through turbines to generate electricity, effectively acting as a large-scale battery for the grid. This operational model is particularly valuable in Inner Mongolia, where the energy mix includes significant contributions from variable renewable sources. The plant's ability to quickly ramp up or down in output helps balance the grid, reducing the need for fossil-fuel-based peaker plants and enhancing the overall efficiency of the energy system. The strategic location of the plant, just north of Hohhot, allows it to serve the capital of Inner Mongolia and its surrounding areas effectively. The proximity to the urban center minimizes transmission losses and ensures that the generated power can be quickly dispatched to where it is most needed. The development of the Hohhot Pumped Storage Power Station reflects broader trends in China's energy sector, where pumped-storage hydroelectricity is being increasingly leveraged to support the integration of renewable energy and to enhance grid stability. The successful commissioning of all four generators by mid-2015 marked a milestone in the region's energy infrastructure, providing a reliable and flexible power source that continues to contribute to the energy security of Inner Mongolia.

Why it matters

The Hohhot Pumped Storage Power Station serves as a critical infrastructure asset for the Inner Mongolia regional energy grid, functioning primarily as a large-scale battery to manage fluctuating energy demand. Located 20 kilometres north of Hohhot, the facility utilizes the pumped-storage hydroelectric method to balance supply and load, a vital function in a region characterized by significant variability in power generation and consumption patterns. The plant’s operational significance is defined by its ability to absorb excess electricity during off-peak hours and release stored energy during peak demand periods, thereby stabilizing grid frequency and voltage while deferring the need for additional thermal or renewable capacity investments.

Economic Model and Energy Balance

The economic viability of the Hohhot station is underpinned by a distinct annual energy balance model. The facility consumes 2.677 billion kWh of electricity annually to pump water to the upper reservoir, subsequently generating 2.007 billion kWh during discharge phases. This ratio reflects the inherent thermodynamic and mechanical efficiencies of the pumped-storage technology, where the difference between input and output energy accounts for losses in turbine-generator sets, penstocks, and transformer stations. The ability to convert 2.007 billion kWh of stored potential energy into grid-ready power annually provides substantial value to grid operators, who can purchase electricity at lower off-peak tariffs and sell at higher peak tariffs, optimizing the regional energy mix.

Grid Stability and Peak Management

With an installed capacity of 1,224 megawatts, the station plays a decisive role in peak shaving and load following. The commissioning of its four generators—starting with the first unit on 20 November 2014, followed by the second on 26 December 2014, and the final two in June 2015—marked a significant milestone in Inner Mongolia’s grid modernization efforts. This rapid deployment of capacity allowed the grid to respond more dynamically to sudden load changes, reducing reliance on slower-responding thermal plants. The station’s operational status since 2014 has provided consistent reliability, ensuring that the northern Chinese grid can maintain stability even as renewable energy penetration increases, offering a flexible resource that can ramp up or down much faster than conventional coal-fired units.

How does pumped storage work at Hohhot?

The Hohhot Pumped Storage Power Station operates using the fundamental principles of pumped-storage hydroelectricity, functioning as a large-scale mechanical battery for the regional grid. The facility utilizes four reversible Francis pump turbine-generators, each with an individual capacity of 306 MW, contributing to the plant's total installed capacity of 1,224 MW. This configuration allows the station to seamlessly switch between generating electricity and storing energy by manipulating the flow of water between its upper and lower reservoirs.

Generation Cycle

During periods of high electricity demand, such as peak daytime hours or winter heating seasons, the station enters its generation mode. Water stored in the upper reservoir is released through penstocks, flowing downward under gravity. This kinetic energy drives the Francis turbines, which spin the generators to produce electricity. The reversible nature of the Francis units means they can efficiently handle the variable head pressures typical of pumped storage operations. The generated power is then fed into the grid, helping to stabilize voltage and frequency while meeting immediate consumer needs. The first of these four generators began commissioning in November 2014, with the remaining units following shortly after, ensuring a rapid ramp-up of the plant's output capability.

Pumping Cycle

Conversely, during periods of low electricity demand, such as late at night or during seasonal lulls, the station switches to its pumping mode. Electricity drawn from the grid powers the same turbine-generators, which now act as pumps. This process forces water from the lower reservoir back up to the upper reservoir, effectively storing potential energy for later use. This cycle is particularly effective when the grid has excess generation from baseload sources, such as coal or nuclear plants, or intermittent renewables like wind and solar. By pumping water uphill when electricity prices are lower or supply is abundant, the Hohhot station optimizes the cost-efficiency of the broader energy infrastructure in Inner Mongolia. The completion of all four units by June 2015 solidified the plant's role in balancing the regional load.

Reservoir infrastructure and dam engineering

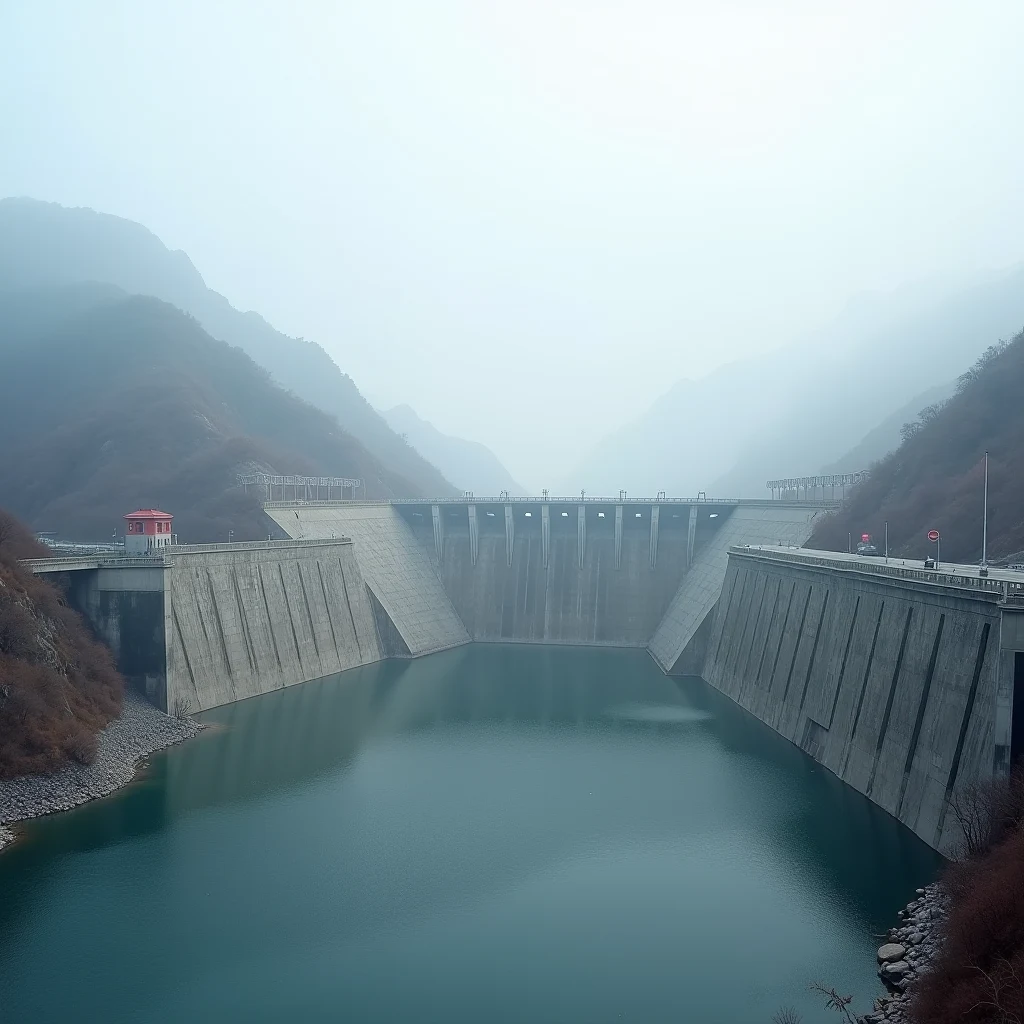

The Hohhot Pumped Storage Power Station relies on a dual-reservoir system located in the hilly terrain north of Hohhot, Inner Mongolia. The engineering design incorporates distinct dam structures to manage the hydraulic head and storage volumes required for the 1,224 MW installed capacity. The infrastructure includes a primary concrete-face rock-fill dam and two roller-compacted concrete gravity dams, each serving specific hydrological functions within the pumped-storage cycle.

Dam Structures and Materials

The upper reservoir is impounded by a 62.5 m high concrete-face rock-fill dam. This structure utilizes a rock-fill core with a concrete face slab to provide watertightness and structural stability against the variable water levels characteristic of pumped-storage operations. The choice of concrete-face rock-fill allows for efficient construction in the local geological conditions while maintaining the necessary integrity for the upper basin.

The lower reservoir infrastructure features two roller-compacted concrete (RCC) gravity dams. One RCC dam stands at 57 m in height, while the other reaches 69 m. Roller-compacted concrete is a cost-effective and durable material often used in hydroelectric projects for its rapid placement and high compressive strength. These gravity dams rely on their mass to resist the hydrostatic pressure of the lower basin, ensuring stable water levels for the turbine intake and discharge phases.

Structure	Type	Height (m)	Reservoir
Primary Dam	Concrete-face rock-fill	62.5	Upper
Secondary Dam 1	Roller-compacted concrete gravity	57	Lower
Secondary Dam 2	Roller-compacted concrete gravity	69	Lower

These structures collectively define the hydraulic parameters of the station. The specific heights of the dams determine the net head available for power generation, influencing the efficiency of the four generator units commissioned between 2014 and 2015. The reservoir capacities are calibrated to support the operational cycles of the plant, ensuring sufficient water volume for both pumping and generating phases over daily and seasonal intervals.

What are the key technical specifications?

The Hohhot Pumped Storage Power Station utilizes the pumped-storage hydroelectric method to generate electricity, leveraging significant elevation differences to store and release energy. The facility is situated 20 kilometres (12 mi) north of Hohhot in Inner Mongolia, China. Its design relies on a substantial hydraulic head of 521 m, created between the upper reservoir at an elevation of 1940 m and the lower reservoir at 1400 m. This vertical distance is critical for the efficiency of the reversible pump-turbine units, allowing the plant to act as a large-scale battery for the regional grid.

Installed Capacity and Units

The plant has a total installed capacity of 1,224 megawatts (1,641,000 hp). This capacity is distributed across four generator units. Construction of the station began in 2005. The commissioning process occurred in two main phases in late 2014 and mid-2015. The first generator was commissioned on 20 November 2014. The second generator followed shortly after, coming online on 26 December 2014. The final two generators were commissioned in June 2015, marking the completion of the initial operational phase.

Technical Parameter	Value
Entity Type	Pumped Storage Power Station
Primary Source	Water
Location	20 km north of Hohhot, Inner Mongolia, China
Operational Status	Operational
Total Installed Capacity	1,224 MW (1,641,000 hp)
Number of Generators	4
Hydraulic Head	521 m
Upper Reservoir Elevation	1940 m
Lower Reservoir Elevation	1400 m
Construction Start	2005
First Unit Commissioned	20 November 2014
Second Unit Commissioned	26 December 2014
Final Units Commissioned	June 2015

The technical configuration of the Hohhot station reflects standard pumped-storage engineering principles adapted to the topography of the Inner Mongolian plateau. The 521 m head allows for high-pressure turbine operation, optimizing power output during peak demand periods. The four-unit layout provides operational flexibility, enabling partial load operation depending on grid requirements. The commissioning timeline, spanning from November 2014 to June 2015, indicates a relatively rapid construction phase for a facility of this scale, with the first two units coming online within a month of each other. The plant's location 20 km north of Hohhot positions it strategically to support the capital city of Inner Mongolia's growing energy needs.

Construction history and commissioning

The development of the Hohhot Pumped Storage Power Station began with the initiation of construction in 2005. The facility, also referred to as the Huhehaote Pumped Storage Power Station, is situated approximately 20 kilometres north of Hohhot in Inner Mongolia, China. The project utilized the pumped-storage hydroelectric method to generate electricity, with a total installed capacity of 1,224 megawatts.

Commissioning Timeline

The commissioning of the plant’s generators occurred in rapid succession starting in late 2014. This initial milestone marked the beginning of the station's operational phase, bringing the first portion of the 1,224-megawatt capacity online.

Less than a month later, the second generator was commissioned on 26 December 2014. This quick succession of commissioning events demonstrated the progress made during the construction phase that had started nine years earlier. The final two generators were commissioned in June 2015, completing the installation of the plant’s generating units.

The operational status of the Hohhot Pumped Storage Power Station is listed as operational, with the initial commissioning date recorded as 2014 in structured data sources. The plant serves as a key energy infrastructure asset in Inner Mongolia, leveraging the pumped-storage technology to manage electricity demand and supply in the region. The specific operator of the facility is not explicitly named in the primary cited sources, though the plant remains a significant component of the regional power grid.

The construction and commissioning phases spanned a decade, from the start of works in 2005 through the final generator’s activation in June 2015. This timeline reflects the typical development cycle for major pumped-storage hydroelectric projects, which often involve extensive civil engineering works, turbine installation, and grid integration testing. The plant’s location north of Hohhot provides strategic access to the capital of Inner Mongolia, supporting the energy needs of the urban center and surrounding areas.

With all four generators commissioned by mid-2015, the Hohhot Pumped Storage Power Station achieved full operational capacity. The 1,224-megawatt installed capacity positions the facility as a substantial contributor to the power generation mix in Inner Mongolia. The use of pumped-storage technology allows the plant to store energy during periods of low demand and release it during peak hours, enhancing grid stability and efficiency. This operational model is particularly valuable in regions with variable energy production or growing electricity consumption.

The commissioning dates of November 2014, December 2014, and June 2015 mark the key milestones in the plant’s transition from construction to full operation. These dates are documented in authoritative sources and provide a clear timeline of the project’s progress. The rapid commissioning of the first two generators within weeks of each other suggests a well-coordinated construction and testing schedule, allowing the plant to begin contributing to the grid before the final units were brought online.

Hohhot Pumped Storage Power Station
