Overview

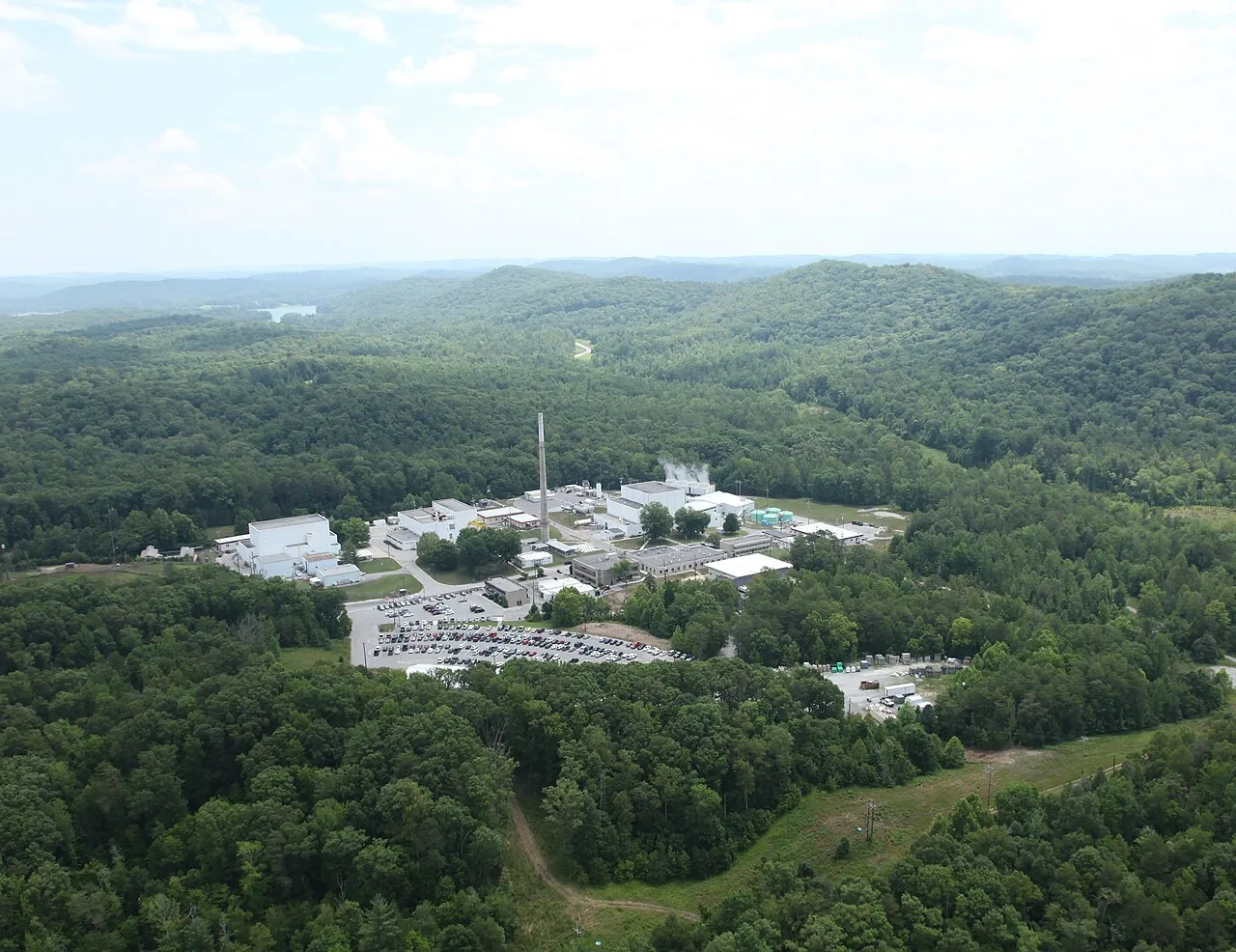

The High Flux Isotope Reactor (HFIR) is a nuclear research reactor located at Oak Ridge National Laboratory (ORNL) in Oak Ridge, Tennessee, United States. Operating at a thermal power capacity of 85 MW, HFIR is one of the highest flux reactor-based sources of neutrons for condensed matter physics research in the United States. It possesses one of the highest steady-state neutron fluxes of any research reactor in the world, making it a critical infrastructure asset for global energy and materials science research.
The reactor utilizes uranium as its primary fuel source and has maintained operational status since its commissioning in 1965 (per and ). The thermal and cold neutrons produced by HFIR are used to study physics, chemistry, materials science, engineering, and biology. The intense neutron flux, constant power density, and constant-length fuel cycles are used by more than 500 researchers each year for neutron scattering research into the fundamental properties of condensed matter. HFIR has about 600 users each year for both scattering and in-core research, supporting a wide range of scientific inquiries.
History
The facility operates at a thermal power of 85 MW and serves as a premier source of neutrons for condensed matter physics research. HFIR is recognized for having one of the highest steady-state neutron fluxes among research reactors globally. The thermal and cold neutrons generated by the reactor are utilized by more than 500 researchers annually for neutron scattering studies in physics, chemistry, materials science, engineering, and biology. Additionally, HFIR supports approximately 600 users each year for both scattering and in-core research activities. The reactor’s design emphasizes intense neutron flux, constant power density, and constant-length fuel cycles to ensure stability for experimental conditions.
Construction and Commissioning
The decision to construct the High Flux Isotope Reactor was made in 1958 to address the growing need for high-flux neutron sources in the United States. The project aimed to provide a versatile platform for isotope production and materials testing. The reactor achieved criticality in 1965, marking the beginning of its operational history. Since its commissioning, HFIR has been operated by Oak Ridge National Laboratory, which manages the facility as part of the broader Oak Ridge complex. The 85 MW capacity was chosen to balance neutron output with thermal management requirements for the core and surrounding experimental areas.
Operational Milestones and Refurbishment
In 1986, HFIR experienced a significant operational interruption when the reactor was shut down due to vessel embrittlement. This issue required detailed engineering assessment to determine the structural integrity of the reactor vessel under prolonged neutron bombardment. Following extensive evaluation and remediation efforts, the reactor was successfully restarted in 1989, resuming its role as a key research infrastructure. In 2007, HFIR underwent a major refurbishment to enhance its performance and extend its operational lifespan. This upgrade involved modernizing key components to maintain the high neutron flux necessary for cutting-edge research. The refurbishment ensured that HFIR could continue to support the diverse needs of the scientific community, maintaining its status as a leading facility for neutron scattering and isotope production.
How does the HFIR reactor core work?
The High Flux Isotope Reactor (HFIR) utilizes a specialized flux-trap design to maximize neutron availability for research. This configuration relies on a beryllium reflector surrounding the active fuel zone, which moderates neutrons to create a high-flux region ideal for scattering experiments. The core operates at a thermal power of 85 MW, providing one of the highest steady-state neutron fluxes among research reactors globally (Oak Ridge National Laboratory). The reactor's design ensures constant power density and consistent fuel cycles, supporting more than 500 researchers annually in condensed matter physics, chemistry, and materials science (ORNL).
Core Specifications
| Parameter | Value |
|---|---|
| Thermal Power | 85 MW |
| Fuel Enrichment | 93% 235U |
| Reflector Material | Beryllium |
| Primary Coolant | Light Water (H2O) |
| Neutron Types | Thermal and Cold |
The fuel composition consists of uranium enriched to 93% 235U, arranged in a lattice within the core. This high enrichment level is critical for maintaining the intense neutron flux required for in-core and scattering research. The coolant system circulates light water, which removes heat from the fuel elements while also serving as a primary moderator. The beryllium reflector plays a dual role: it reflects neutrons back into the core and further moderates them, enhancing the flux in the central "trap" area. This design allows for precise control over neutron energy spectra, enabling studies in biology, engineering, and fundamental physics. The reactor's operational stability supports approximately 600 users each year, facilitating detailed investigations into material properties under steady-state conditions (ORNL). The combination of high flux, constant power density, and specialized reflector geometry makes HFIR a unique facility for neutron scattering research in the United States.
What are the main neutron beam tube configurations?
The High Flux Isotope Reactor (HFIR) at Oak Ridge National Laboratory utilizes a specific configuration of horizontal beam tubes to deliver neutrons for scattering research. These tubes penetrate the reactor's core and reflector, allowing researchers to access thermal and cold neutrons. The system includes four primary horizontal beam tubes, designated HB-1 through HB-4, each serving distinct experimental needs.Horizontal Beam Tube Specifications
The horizontal beam tubes are critical for directing neutron flux to experimental stations. Each tube is equipped with mechanical components such as collimators and shutters to control the neutron beam's intensity and quality.| Beam Tube | Primary Feature | Key Component |
|---|---|---|
| HB-1 | Thermal Neutrons | Standard Collimators |
| HB-2 | Thermal Neutrons | Adjustable Shutters |
| HB-3 | Thermal Neutrons | High-Flux Port |
| HB-4 | Cold Neutrons | Cold Neutron Source |
In-core experiment facilities
The High Flux Isotope Reactor (HFIR) provides specialized in-core experiment facilities designed to maximize neutron flux exposure for materials testing and isotope production. These facilities are integrated directly into the reactor core structure, allowing samples to experience the intense thermal and cold neutron environments that define the reactor’s research capabilities. The core design supports multiple distinct irradiation positions, each optimized for specific experimental requirements regarding flux intensity, temperature control, and sample geometry.
Flux Trap Positions
Flux trap positions are located at the geometric center of the HFIR core, representing the region of highest neutron flux density. These positions are critical for experiments requiring maximum neutron exposure over relatively short durations. The central location minimizes self-shielding effects for small samples, ensuring that the neutron flux remains nearly constant throughout the sample volume. Researchers utilize these positions for high-flux neutron scattering studies and for producing isotopes with high specific activity. The constant power density and constant-length fuel cycles of the HFIR ensure that the flux characteristics in the trap remain stable throughout the operational cycle, providing reproducibility for long-term materials testing (per Oak Ridge National Laboratory operational data).
Hydraulic Tube and Peripheral Targets
The hydraulic tube system allows for the dynamic insertion and retraction of samples into the core without shutting down the reactor. This capability is essential for time-resolved neutron scattering experiments and for monitoring real-time changes in material properties under irradiation. Peripheral target positions are situated along the outer edge of the core, where the neutron flux is slightly lower than in the central trap but offers greater flexibility in sample size and cooling arrangements. These positions are frequently used for larger assemblies or for experiments requiring specific angular orientations relative to the neutron beam. The hydraulic drive mechanism ensures precise positioning, allowing researchers to adjust the sample depth to optimize the flux-to-sample ratio.
Beryllium Reflector Irradiation Positions
The beryllium reflector surrounding the HFIR core serves to moderate and reflect neutrons back into the active fuel region, enhancing the overall thermal neutron population. Irradiation positions within the beryllium reflector provide a unique environment for testing materials that require a high ratio of thermal to epithermal neutrons. These positions are particularly valuable for studying radiation damage in structural materials and for producing isotopes with specific decay characteristics. The reflector positions also offer improved thermal stability compared to the core center, making them suitable for temperature-sensitive experiments. The integration of these reflector positions into the overall core design maximizes the utility of the 85 MW thermal power output, ensuring that every region of the neutron field is exploited for scientific discovery (per Oak Ridge National Laboratory technical specifications).
Applications in isotope production and analysis
The High Flux Isotope Reactor (HFIR) serves as a critical infrastructure component for the production of rare isotopes and advanced materials analysis, leveraging its 85 MW thermal capacity and high steady-state neutron flux (per Oak Ridge National Laboratory operational data). The reactor’s intense neutron environment enables the synthesis of isotopes essential for medical diagnostics, industrial gauging, and fundamental physics research, with californium-252 being a primary product. Californium-252 is produced through the successive neutron capture of uranium-238 and subsequent beta decays, a process optimized by HFIR’s constant power density and long fuel cycles. This isotope is widely used as a portable neutron source for neutron activation analysis (NAA), a non-destructive technique that quantifies elemental composition by measuring gamma rays emitted after neutron bombardment.
Californium-252 Production
HFIR is one of the world’s leading producers of californium-252, an isotope with a half-life of approximately 2.645 years and a high spontaneous fission rate. The production process involves irradiating curium-244 targets within the reactor core, where they capture neutrons to form curium-245, which then decays into berkelium-245 and subsequently californium-252. The high flux of thermal and epithermal neutrons at HFIR accelerates the capture rates, making the production more efficient than in lower-flux research reactors. This capability supports global supply chains for medical neutron sources, oil well logging tools, and neutron moisture gauges.
Neutron Activation Analysis (NAA)
Neutron activation analysis is a key application of HFIR’s neutron flux, enabling precise elemental analysis of samples from diverse fields including archaeology, environmental science, and materials engineering. In NAA, samples are exposed to neutrons in the reactor core, causing stable isotopes to become radioactive. The resulting gamma-ray spectra are analyzed to determine the concentration of elements with high sensitivity, often detecting trace elements at parts-per-million or parts-per-billion levels. HFIR’s consistent neutron flux and well-characterized irradiation positions ensure reproducibility and accuracy in NAA results, making it a preferred facility for standardized measurements.
Nuclear Nonproliferation Screening
HFIR also plays a role in nuclear nonproliferation efforts by producing isotopes used in screening and detection technologies. For example, the reactor produces isotopes such as americium-241 and curium-244, which are used in neutron sources for portable detectors and fixed monitoring systems. These detectors are employed to identify fissile materials in spent fuel assemblies, nuclear waste, and reactor cores, aiding in the verification of nuclear fuel cycles and the detection of potential fissile material diversions. HFIR’s ability to produce high-purity isotopes with consistent quality supports the reliability of these nonproliferation tools, contributing to global nuclear security.
Why it matters
The High Flux Isotope Reactor (HFIR) holds a critical position in global energy and materials infrastructure as the sole supplier of californium-252 in the Western world. This isotope is essential for neutron source applications, medical diagnostics, and industrial gauging, making HFIR a strategic asset for scientific continuity outside of major Eastern Hemisphere producers. The reactor’s unique capability to produce this specific isotope stems from its high neutron flux environment, which drives the transmutation of curium and other actinides into californium-252 with high efficiency.
World-Record Neutron Flux
This performance metric is central to its utility for condensed matter physics research. The intense neutron flux allows for precise scattering experiments that reveal the fundamental properties of materials at the atomic level. When compared to the Institut Laue–Langevin (ILL), a leading European research reactor, HFIR maintains competitive flux levels that support a vast array of international research projects. The constant power density and constant-length fuel cycles further enhance the stability of the neutron beam, which is crucial for long-duration scattering experiments.
Research Impact and User Base
The reactor supports more than 500 researchers each year for neutron scattering research. Additionally, HFIR has about 600 users annually for both scattering and in-core research. These users span multiple disciplines, including physics, chemistry, materials science, engineering, and biology. The thermal and cold neutrons produced by HFIR are used to study complex material behaviors, aiding in the development of new alloys, superconductors, and biological structures. The high flux environment enables researchers to conduct experiments with smaller sample sizes and shorter exposure times, increasing the throughput of scientific discoveries.
Future plans and operational outlook
The High Flux Isotope Reactor (HFIR) at Oak Ridge National Laboratory maintains a robust operational outlook, with strategic infrastructure upgrades and a projected service life extending through 2040. As one of the highest flux reactor-based sources of neutrons for condensed matter physics research in the United States, HFIR’s longevity is critical for global scientific output. The reactor, which operates at 85 MW, supports more than 500 researchers each year for neutron scattering research into the fundamental properties of condensed matter. With about 600 users annually for both scattering and in-core research, the facility’s ability to deliver thermal and cold neutrons for physics, chemistry, materials science, engineering, and biology remains a cornerstone of the United States’ nuclear research infrastructure.
Infrastructure Upgrades and Beryllium Reflector Replacement
A major component of HFIR’s future operational strategy involves the replacement of its beryllium reflector, scheduled for the 2028–2029 timeframe. The beryllium reflector is essential for optimizing the neutron flux distribution within the reactor core, ensuring the high steady-state neutron fluxes that define HFIR’s competitive advantage among research reactors worldwide. This replacement project aims to maintain the intense neutron flux, constant power density, and constant-length fuel cycles that are vital for the precision required in in-core research. The timing of the beryllium reflector replacement aligns with broader maintenance cycles to minimize downtime and ensure seamless integration with ongoing experimental schedules.
Extension to Cold Guide Hall and Long-Term Projections
In addition to core component replacements, HFIR’s future plans include an extension to the cold guide hall. This expansion is designed to enhance the facility’s capacity to deliver cold neutrons, which are particularly valuable for studying the structural and dynamic properties of materials in biology and materials science. The cold guide hall extension will support the growing demand for high-resolution neutron scattering experiments, further solidifying HFIR’s role as a premier source of neutrons for condensed matter physics research in the United States.
Looking ahead, the operational outlook for HFIR projects continued service through 2040. This long-term projection underscores the reactor’s enduring relevance in the global energy and research landscape. The combination of strategic infrastructure upgrades, including the beryllium reflector replacement and cold guide hall extension, ensures that HFIR will remain a vital asset for scientists and engineers exploring the fundamental properties of matter. As the reactor continues to operate, it will sustain its contribution to advancements in physics, chemistry, materials science, engineering, and biology, supporting the next generation of scientific discoveries.
